ASUS SBC Tinker Board R2.0A, 2GB ARM-Based SBC with Enhanced and Better Compatibility, Support Debian 10 / Android 11

NOTE:

 - All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
 - Specifications and features vary by model, and all images are illustrative.
 - Please refer to specification pages for full details.
 - PCB color and bundled software versions are subject to change without notice. Brand and product names mentioned are trademarks of their respective companies.
 - Find download link for Android at the bottom of the page.

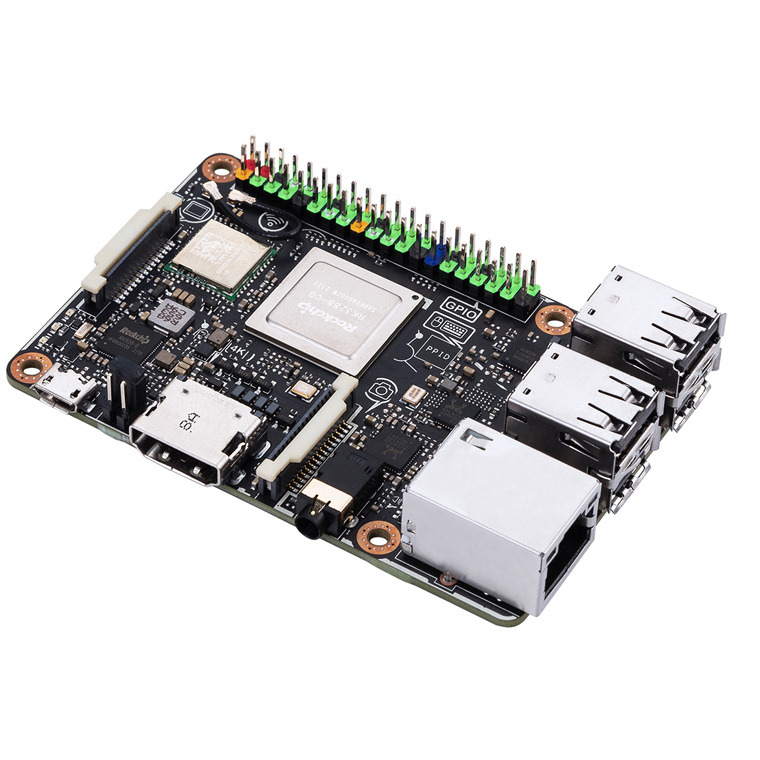

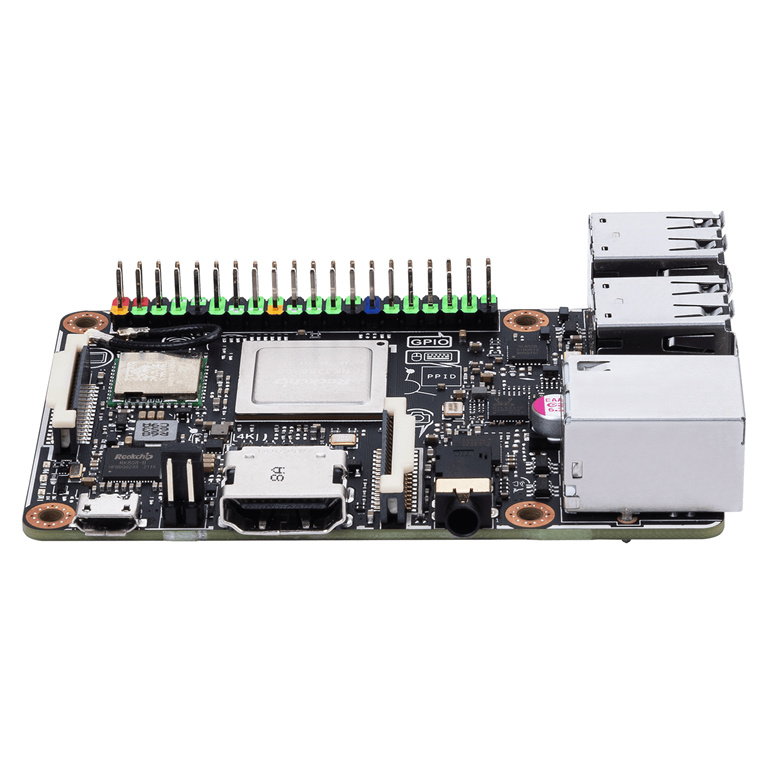

Tinker Board R2.0, ARM-based SBC with enhanced and better compatibility

The new and improved Tinker Board R2.0 is a single board computer (SBC) that offers greater durability, better stability and an overall improved user experience for DIY enthusiasts and makers everywhere.

CLASS-LEADING PERFORMANCE

With its powerful and modern quad-core ARM-based processor - the Rockchip RK3288-CG.W - Tinker Board R2.0 series offers significantly improved performance versus other popular SBC boards. Powered by an ARM-based Mali™-T764 GPU, Tinker Board R2.0's GPU and fixed-function processors allow for a wide range of uses, including high-quality media playback, gaming, computer vision, gesture recognition, image stabilization and processing, as well as computational photography and more.

- Mali™-T764 ARM MP4 GPU
- HD / UHD Playback support
- 2GB LPDDR3 Dual-channel memory
- QUAD-CORE RK3288 Processor

* HD & UHD video playback at 30 fps on Tinker Board R2.0 is currently only available via the included media player. Third-party video players and applications may not offer hardware acceleration, which will result in limited or unstable playback performance.

HD AUDIO QUALITY

Tinker Board R2.0 series is equipped with an HD codec that supports up to 24-bit/192kHz audio. Its integrated audio jack supports audio output and a microphone in, without an extension module.

The audio jack also offers hassle-free plug-in detection so it automatically switches the audio output to an audio jack when the speaker or headset is connected.

- 24bit/192kHz Audio support
- Audio Jack Integrated support

Standard Interface for IoT Connectivity

Tinker Board R2.0 series features standard maker connectivity options, including a 40-pin GPIO interface that allow for interfacing with a range inputs. Tinker Board R2.0 series is equipped with one DSI MIPI connection for displays and touchscreens. The secondary CSI MIPI connection is for connection to compatible cameras allowing for computer vision, and much more.

Tinker Board R2.0 series also features Gbit LAN for Internet and network connectivity. A dedicated bus resource designed for the LAN port ensures consistent Ethernet performance. The integrated Wi-Fi and Bluetooth controller on the Tinker Board S is shielded with a metal cover to ensure minimal interference and improved radio performance. An integrated IPEX antenna header allows for easy antenna replacement or upgrades.

Tinker Board R2.0 series also features a full-size HDMI output. Additionally, it includes four USB 2.0 ports for extensive peripheral and accessory connectivity.

- 40-pin GPIO Support
- MIPI DSI/CSI Support
- Gbit Lan Support

A Variety of Accessories Available

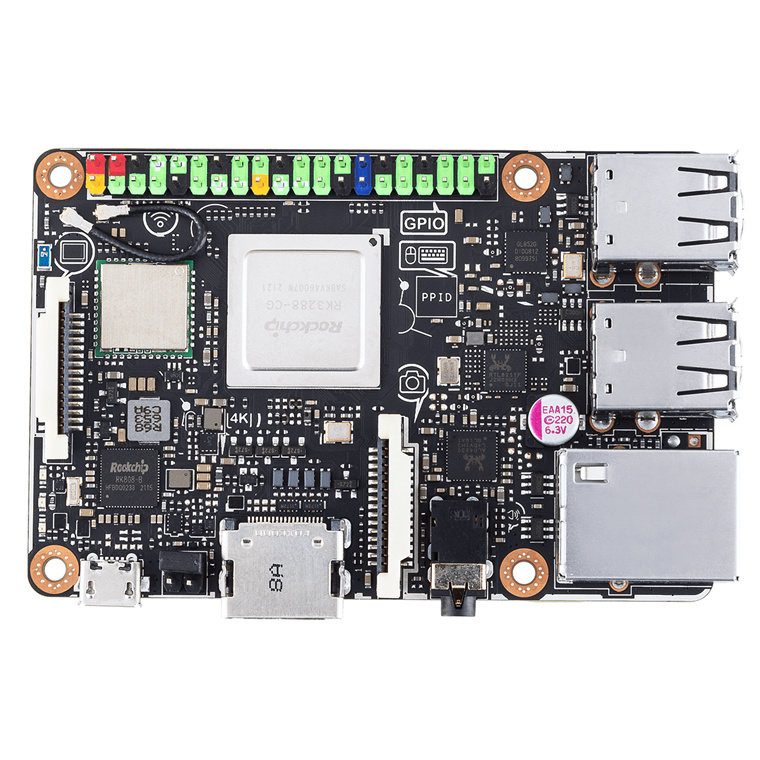

The PCB dimensions and topology of the Tinker Board R2.0 series aligns with standard SBC boards, allowing support for a wide range of chassis and physical accessories. The PCB features silk-screening with a connection header and location callouts, for improved connection clarity. The onboard MIPI headers also feature color-coded pull tabs.

Tinker Board R2.0 series also includes a heatsink, which provides better thermal solution under heavy loading or in hot ambient environments. Additionally, an optional metallic case is also available for market-ready solution. With hassle-free installation, the aluminum case helps dissipate heat in fanless design, ensuring Tinker Board has a top-notch performance.

Creating new possibilities and advantages, Tinker Board R2.0 series supports MIPI Convert Board and PoE Splitter Board to enhance convenience and functionality in different scenarios.

- Heatsink Included
- Color - Coded GPIO
- Aluminum Case Optional Accessory
- MIPI Convert Board Optional Accessory
- PoE Splitter Board Optional Accessory

BENCHMARK

* Tinker Board S - OS: Linux 4.4.0+ armv7l l Image Version: V20170113 l Memory Type: 2GB l CPU Type, Speed[GHz]: Cortex-A17 Quad-core 1.8GHz l GPU Type, Speed[MHz]: Mali™ T-764
* Competitor SBC - OS: Linux 4.4.11+ armv7l l Memory Type: 1GB l CPU Type, Speed[GHz]: Cortex-A72 Quad-core 1.5GHz l GPU Type, Speed[MHz]: VideoCore IV

KEY APPLICATION

AWARDS

* We strongly recommend that you regularly backup all data stored in the device. ASUS shall not be liable for any damage to or loss of programs or data stored in the Tinker Board series, and shall not be responsible for data recovery, backup, or any charges arising therefrom.
* In no event shall ASUS be liable for any defect, damage or data loss arising from product repair or replacement.

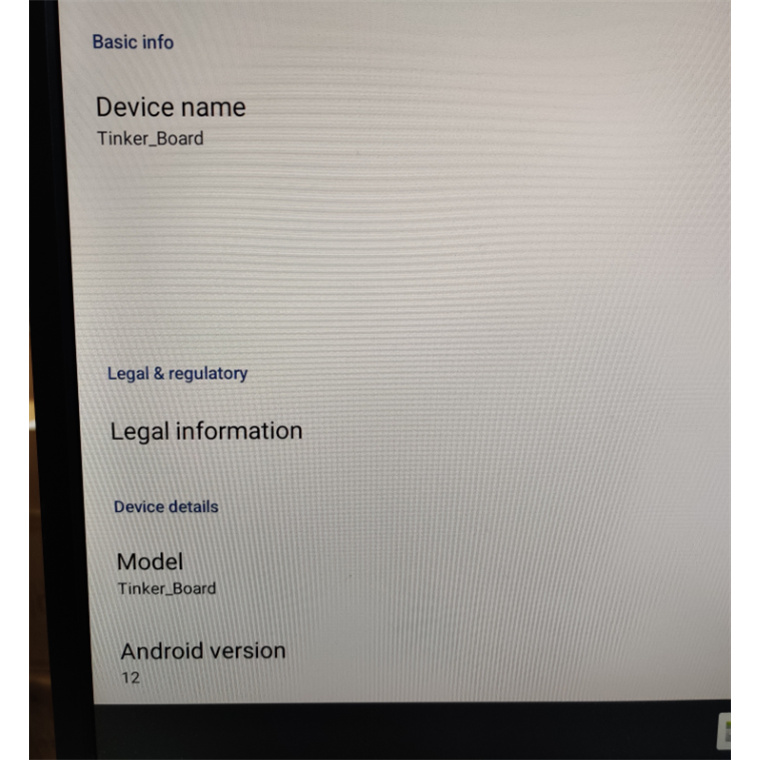

Tinker Board R2.0 /Tinker Board S R2.0 Android 12 V0.0.3
