Dynamix FP-C6S-011 Cat6 Shielded Keystone Jack Termination 110/Krone

With promo code $5.25

Save 14%

NZD $ 6 .12

$ 6 .12

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Dynamix FP-C6S-011 Cat6 Shielded Keystone Jack Termination 110/Krone

Brand: Dynamix
MPN: FP-C6S-011
Part #: SCBDNX1014
UPC:

CLEARANCE

With promo code $5.25

Save 14% with code CLEARANCE

Without promo code

NZD $ 6 .12

Part of Clearance Zone

In stock

Delivery: Order now and it ships today

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Dynamix
MPN: FP-C6S-011
Part #: SCBDNX1014
UPC:

Be the first to review this product

Cable Length

Returns & Warranty Bulk Quote Print Page

Features

DYNAMIX Cat6 Shielded Keystone Jack Termination 110/Krone

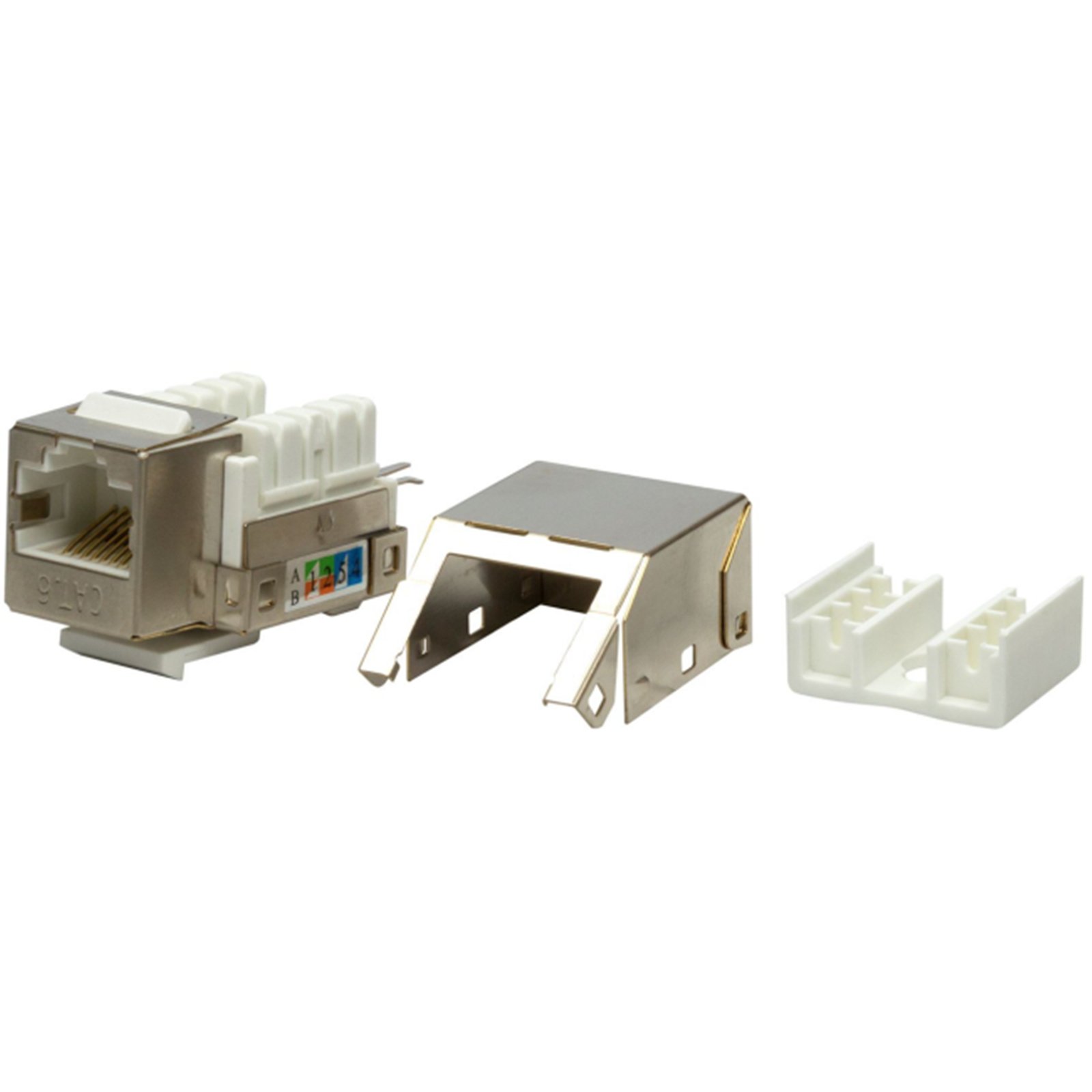

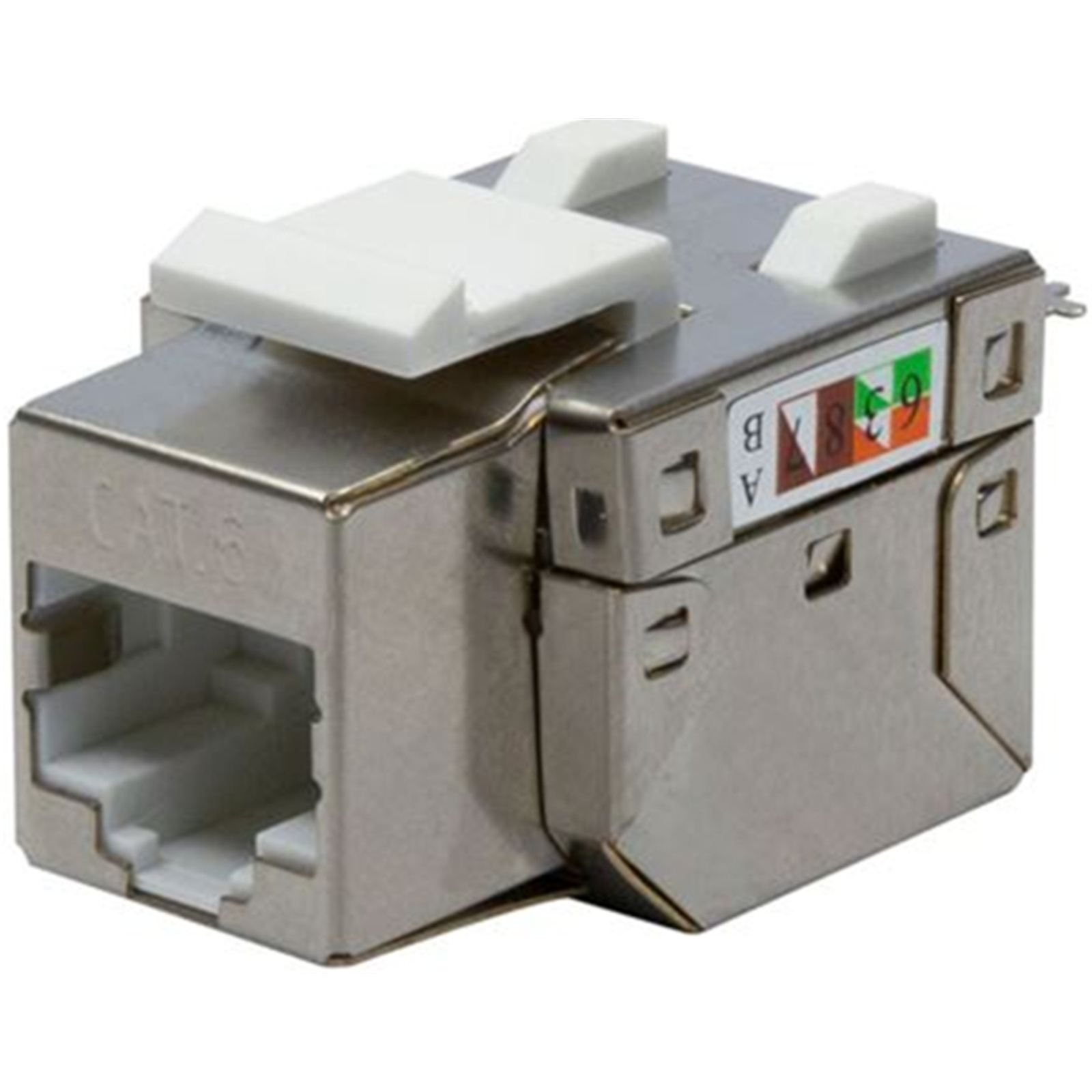

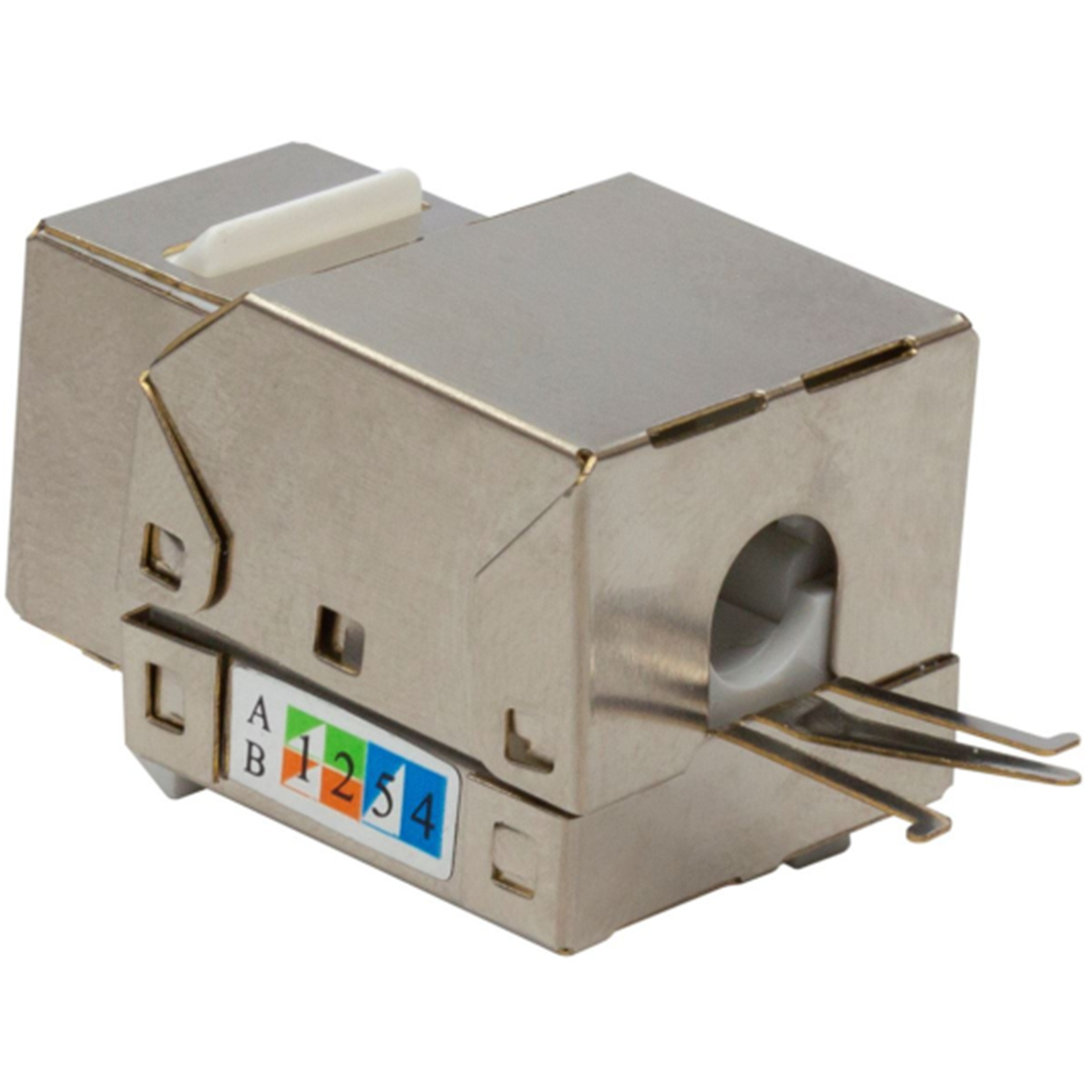

Our DYNAMIX 90° Cat6 Keystone Jack has a fully shielded design to protect from EMI. Dual IDC connectors can accept 22-26 AWG solid cables and supports T568 A&B wiring, plus it uses 110 or Krone tools for termination.

FP-C6S-011 is made to an extremely high standard and superior construction ensures that our Cat6 shielded Keystone Jack conform to ANSI/TIA-568-C.2, ISO/IEC 11801 and EN50173-1 Category 6 specifications, and supports channel link bandwidth up to 250MHz.

FEATURES

- Shielded Cat6 keystone jack
- RJ45 Female connector
- 90° Angle termination design
- Supports gauge wire 22-26AWG cable
- Compatible with shielded or unshielded patch cables
- Use with a wall-plate for network wiring installs
- Designed for high-speed network applications
- Excellent crosstalk suppression
- Corrosion-resistant construction
- Operating temperature -10°C to 60°C (-14°F to 140°F)
- Category 6 ANSI/TIA/EIA 568-C.2 performance

Specifications

Shielded Shell

Brass, Nickel plated

Jack Terminal

Phosphor Bronze, 3U gold plated over Nickel plated in contact area

IDC Housing

ABS Plastic

IDC Terminal

Phosphor Bronze, nickel plated 50~60, micro inch

P.C. Board

FR-4, T=1.6mm

Operating Temperature

-10°C~60°C

Insertion Force

900gms for 8 Contacts

Retention

7.7kgs between jack and plug

Durability

750 Cycles contact resistance test check with 10mm/s

Supports

T568A & T568B wiring compatible with Cat6 requirements

Tool

Dual Type

Current Rating

1.5 Amps

Insulation Resistance

500MO

Contact Resistance

20MO

DC Resistance

0.1O

Rated Voltage

500V

Manufacturer Part No:

FP-C6S-011

Brand:

Dynamix

Product Type:

UPC

Product Family:

Shipping Weight:

0.1 kg

PB Part No:

SCBDNX1014

Product Model:

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
