JBL PRO CSS-H30 30W PAGING HORN FOR 70V/100V OR 8OHMS

PB Tech price

NZD $ 509 .57

$ 509 .57

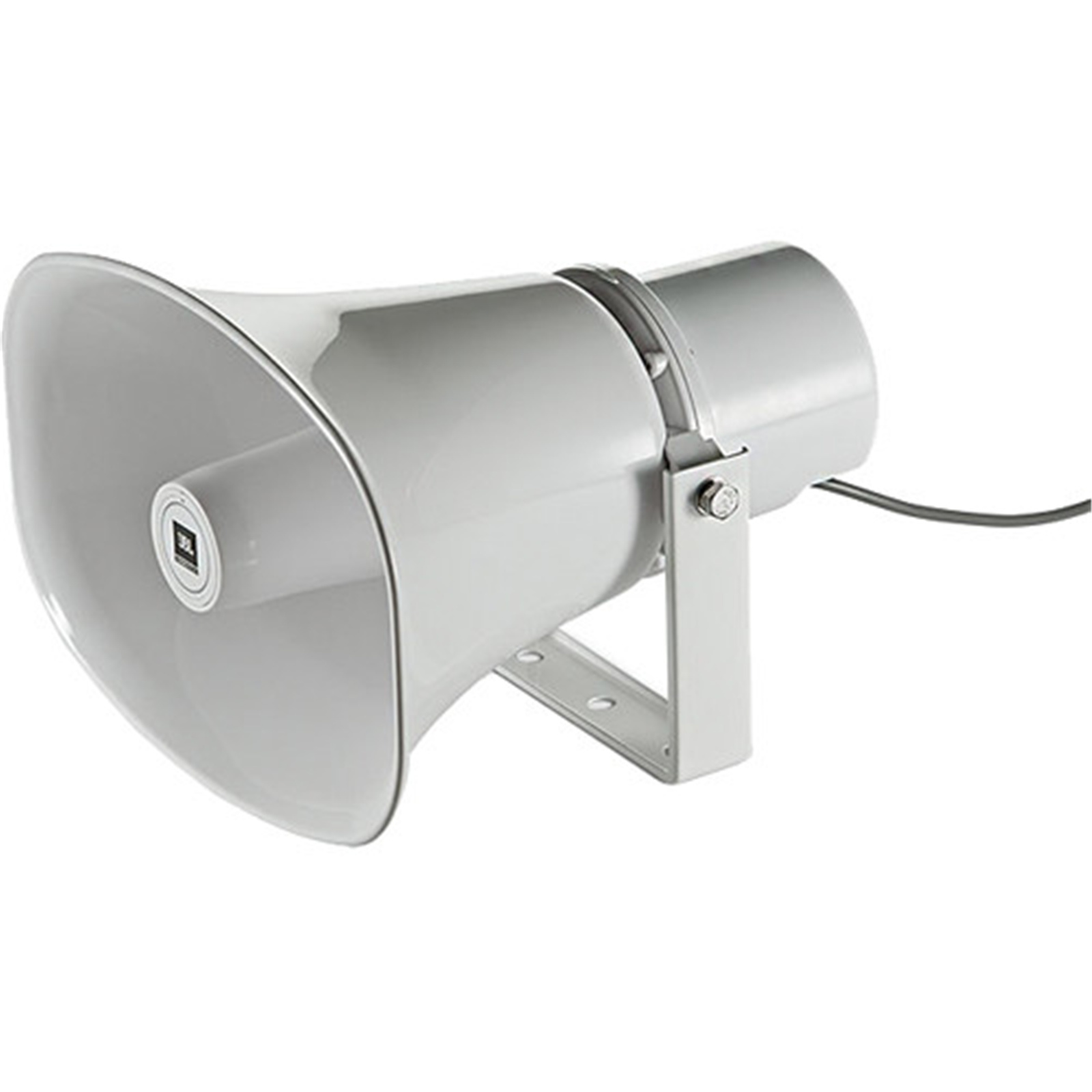

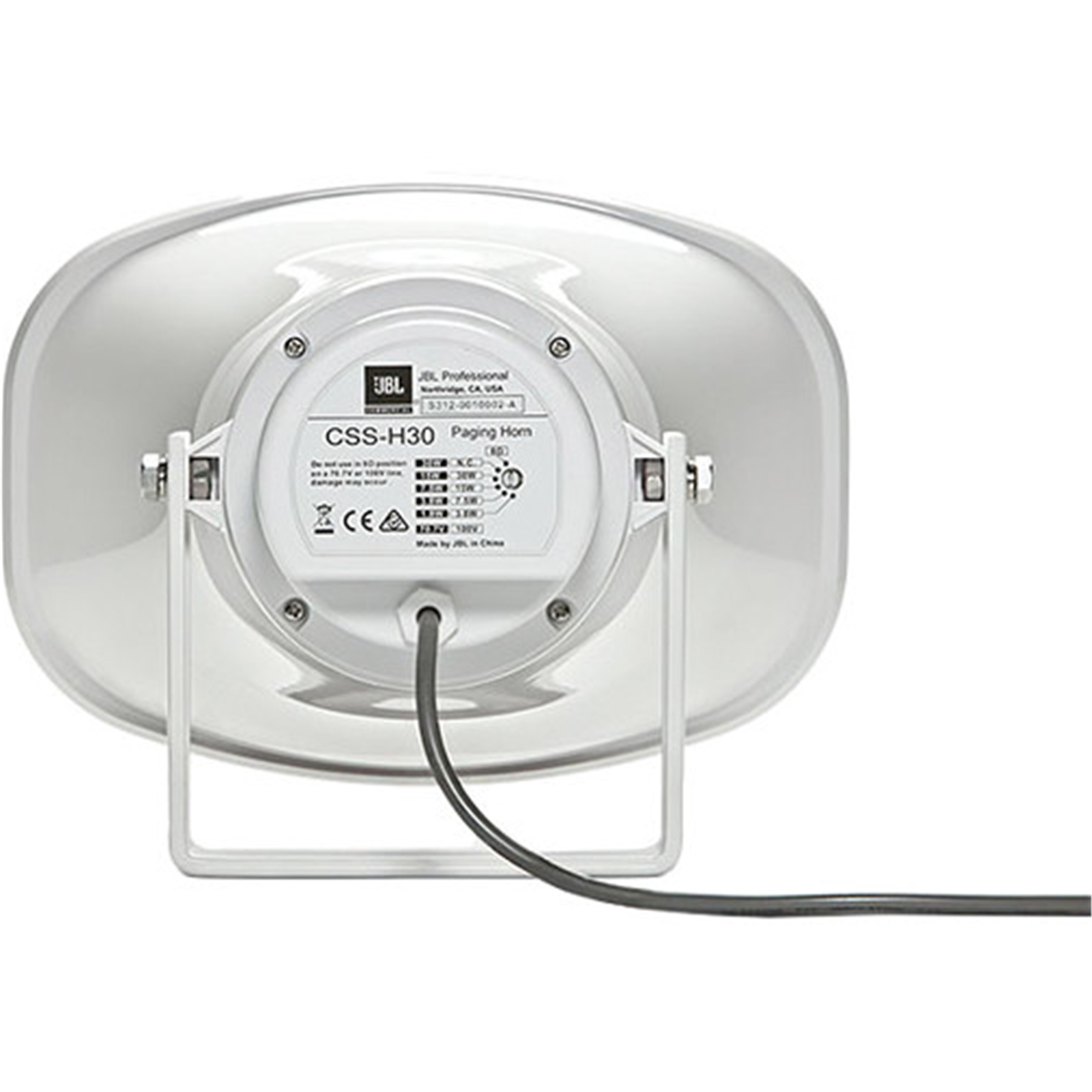

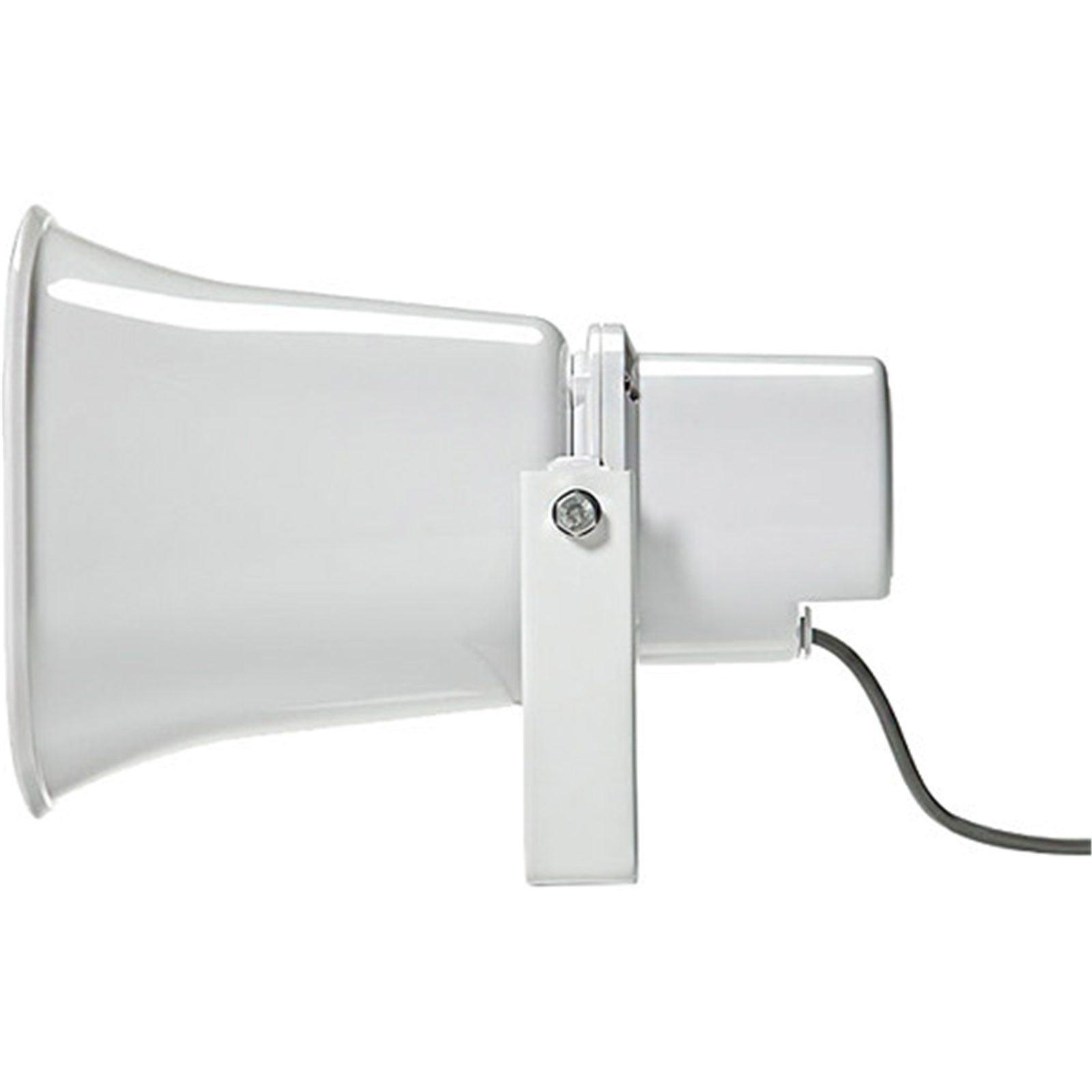

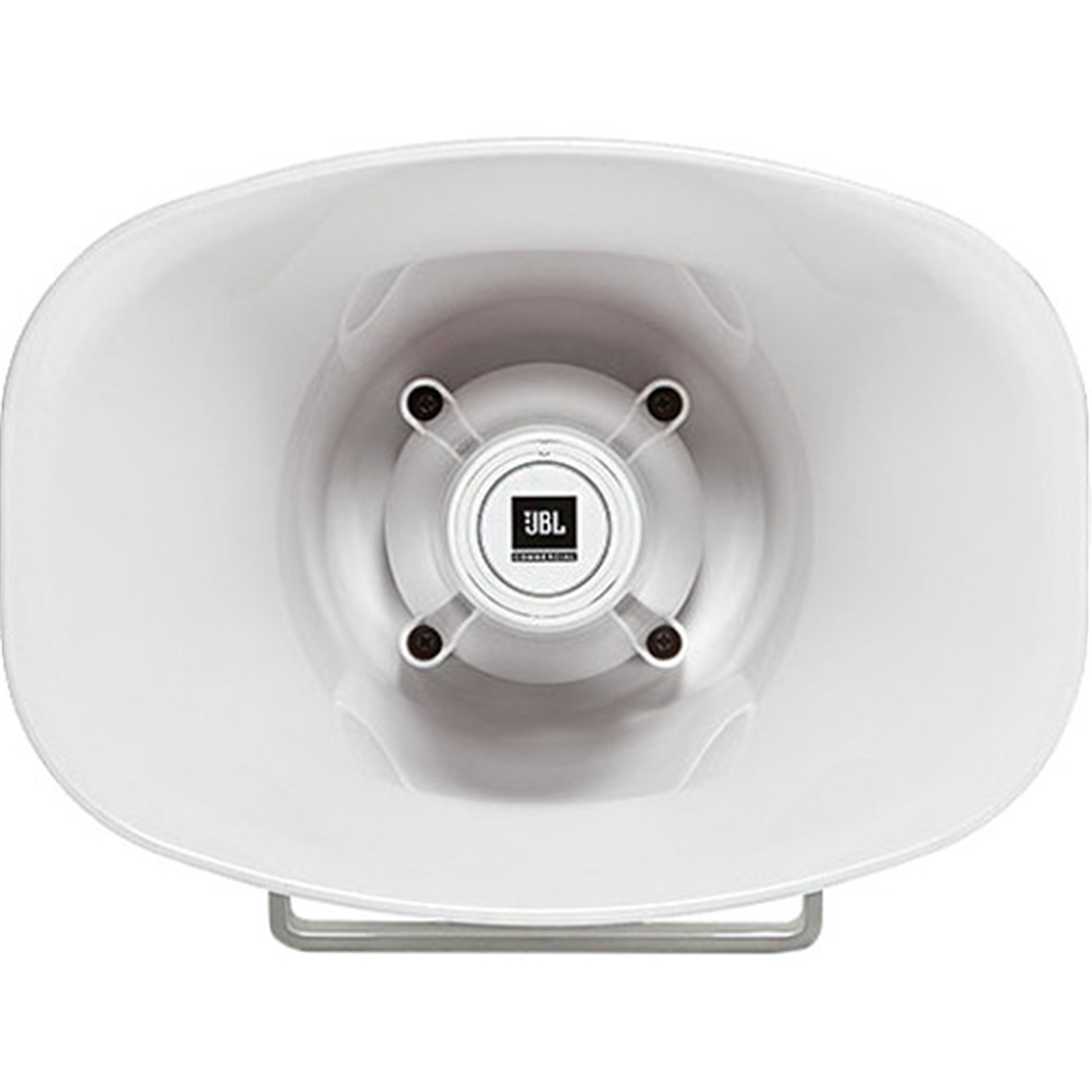

JBL PRO CSS-H30 30W PAGING HORN FOR 70V/100V OR 8OHMS

Brand: JBL PRO
MPN: CSS-H30
Part #: SPKJBL1135
UPC:

NEW ARRIVAL

PB Tech price

NZD $ 509 .57

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 08 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: JBL PRO
MPN: CSS-H30
Part #: SPKJBL1135
UPC:

Be the first to review this product

Colour

White

Sound Mode

Power Output (RMS)

30 Watts

Wireless Technology

3.5mm Connector

Optical Connector

RCA Connector

TRS Connector

View full specs

Returns & Warranty Bulk Quote Print Page

Features

30 Watt Paging Horn. The Commercial Solutions Series CSS-H30 Paging Horn provides excellent voice range clarity for public address systems, announcement/paging, intercom, security, alarm and industrial applications. Designed for demanding environmental conditions, the CSS-H30 is highly weather resistant (IP-65 rated) so it can be used in either indoor or outdoor applications. The focused coverage pattern allows the horn to project the sound a farther distance than is the case with wider-coverage paging horns. Typical applications for this product are public access areas, warehouses, factories, schools, recreational facilities, commercial buildings, distribution centers, civic centers, and other commercial sound and protectivesignaling systems.

- Excellent voice range clarity for announcement and paging.
- High sensitivity delivers high sound levels with minimal power amplification.
- Focused 50° horizontal by 70° vertical coverage for long throw capability.
- Phenolic diaphragm driver for outdoor durability and high reliability.
- UL-registered 30-watt multi-tap transformer, with 8 O direct bypass.
- Built-in high-pass filter enhances reliability by protecting against low frequency damage.
- Highly weather-resistant, with stainless steel bracket and hardware.

APPLICATION EXAMPLES

- Public Access Areas
- Warehouses
- Factories
- Schools
- Recreational Facilities
- Commercial Buildings
- Distribution Centers
- Civic Centers
- Other Commercial Sound and Protective Signaling Systems

Specifications

Frequency Range (-10dB)

380 Hz - 6 kHz

Coverage Angle

50°H x 70°V

Included High-Pass Filter

Passive 350 Hz high-pass filter built-in to protect against damage from frequencies below operational range.

Directivity Factor (Q)

15.8 (2 kHz)

Directivity Index (DI)

12 (2 kHz)

Power Rating

30 W (120 W peak), 100 hrs.

Sensitivity (1W, 2.83V@ 1m)

108 dB, ave. 1 kHz - 6 kHz112 dB at 1.4 kHz

Maximum SPL (1m)

123 dB cont ave. (129 dB peak), 1 kHz - 6 kHz; 127 dB cont ave. (133 dB peak), 1.4 kHz, 30W input, 8 ohm Setting

Impedance

30W/70V, NC/100V tap: 167 ohms 15W/70V, 30W/100V tap: 333 ohms 7.5W/70V, 15W/100V tap: 667 ohms 3.8W/70V, 7.5W/100V tap: 1333 ohms 1.9W/70V, 3.8W/100V tap: 2666 ohms 8 ohms at 8 ohm direct setting

Transformer Taps

70V: 30W, 15W, 7.5W, 3.8W, 1.9W100V: 30 W, 15W, 7.5W, 3.8W

Drivers

38 mm (1.5 in) diameter with phenolic diaphragm

Horn Material

ABS

Mounting Hardware

Stainless steel powder-coated U-bracket (yolk) with 3 x 10.4 mm (0.41 in) dia mounting holes, stainless steel exterior hardware.

Color

RAL9016 (horn and bracket)

Input Connectors

300 mm (12 in) pigtail to bare wire; entrance via watertight fitting. Wire colors: red = positive (+); black = negative (-).

Outdoor Capability

IP-65 rating per IEC529, salt spray per B117, stainless steel U-bracket and exterior hardware.

Safety Agency

Transformer UL Registered per UL1876 "Isolating Signal and Feedback Transformers for Use in Electronic Equipment"

Included Accessories

Stainless steel mounting bracket

Manufacturer Part No:

CSS-H30

Brand:

JBL PRO

Product Type:

UPC

Product Family:

Shipping Weight:

5 kg

PB Part No:

SPKJBL1135

Product Model:

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
