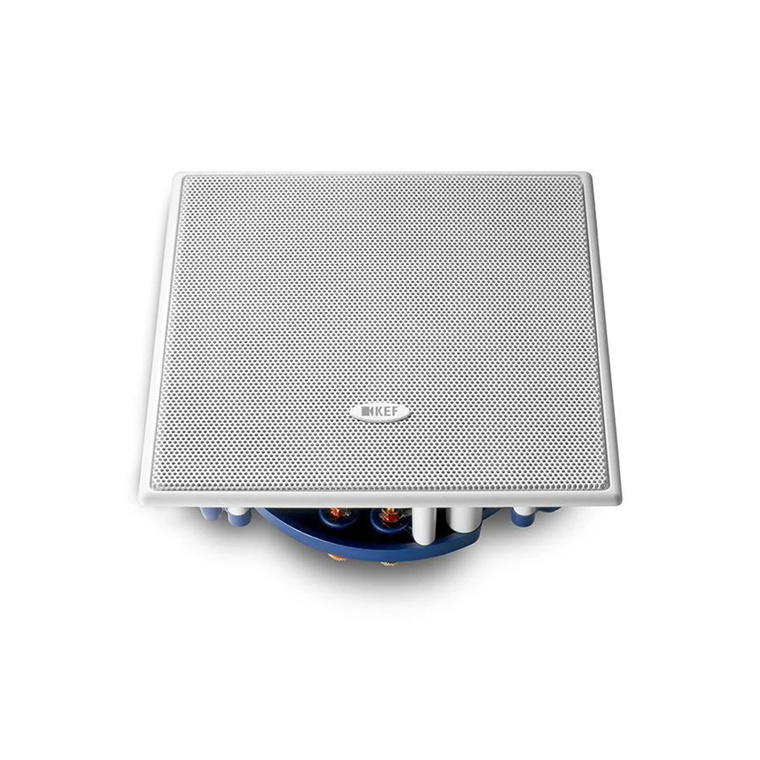

KEF CI130QS Square In-Wall Speaker

130mm (5.25") Uni-Q Driver - Ultra-Thin Bezel - 16mm (0.6") Aluminium Dome Tweeter with "Tangerine" Waveguide

PB Tech price
PB Tech price
NZD $ 423 .48
$ 423 .48

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

KEF CI130QS Square In-Wall Speaker

130mm (5.25") Uni-Q Driver - Ultra-Thin Bezel - 16mm (0.6") Aluminium Dome Tweeter with "Tangerine" Waveguide

  • Brand: KEF
  • MPN: CI130QS
  • Part #: SPKKEF1192
  • UPC: 637203208706
PB Tech price
NZD $ 423 .48 $ 423 .48
Out of stock
Delivery: Out of stock
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
Add To Compare
Stock Alerts
+ 1 More
Click or hover over image to enlarge
  • Brand: KEF
  • MPN: CI130QS
  • Part #: SPKKEF1192
  • UPC: 637203208706

Colour

White

Sound Mode

Not Specified

Power Output (RMS)

Not Specified

Wireless Technology

Not Specified

3.5mm Connector

Not Specified

Optical Connector

Not Specfied

RCA Connector

Not Specified

TRS Connector

Not Specified

View full specs
Returns & Warranty Bulk Quote Print Page

Features



The stylish Ci130QS's thin bezel and narrow rim allow for flawless visual integration into your wall or ceiling. KEF's patented Uni-Q driver spreads sound over a wider area enabling you to use less speakers and still experience an even sound-stage.

KEF's patented Uni-Q driver array

Featuring KEF's sophisticated 'sit anywhere' Uni-Q driver array, which places the tweeter in the acoustic centre of the bass/midrange cone, this allows both the tweeter and woofer to act as a single point source that disperses the sound widely and evenly throughout the room. Together with the discreet Ultra Thin Bezel (UTB) design, offering the slimmest possible visible rim around the speaker, the Ci Q Series range gives you tremendous freedom to position the speakers where you please.

Fast and Easy to Install

KEF's Ci loudspeaker design makes them so quick and easy to install that once the wire is run and the hole is cut in your wall or ceiling you can be listening to music in less than two minutes.

Key Features

-UTB™ Ultra-Thin Bezel
-130mm (5.25in.) Uni-Q driver
-19mm (0.75in.) Aluminium dome tweeter and 'tangerine' waveguide
-Magnetic grille
-Paintable grille and bezel
-Weather Resistant
-IP64 Certified
-Gold plated spring loaded binding posts

Specifications

NOMINAL IMPEDANCE

8 Ohm

SENSITIVITY

87dB (2.83V/ 1m)

CROSSOVER FREQUENCIES

3.8kHz

FREQUENCY RESPONSE

45Hz - 34kHz (±6dB) open backed

DRIVE UNITS

LF: 130mm (5.25in.)
HF: 19mm (0.75in.) Uni-Q

RECOMMENDED AMPLIFIER POWER

10 - 100W

PRODUCT EXTERNAL DIMENSION (H X W X D)

184 x 184 x 84 mm (7.24 x 7.24 x 3.26 in.)

CUT-OUT DIMENSIONS (H X W)

158 x 158 mm (6.22 x 6.22 in.)

MOUNTING THICKNESS

Ceiling Thickness (Maximum) : 24mm (0.95in.)
Ceiling Thickness (Minimum) : 6mm (0.24in.)

MOUNTING DEPTH FROM SURFACE

77.9mm (3.07in.)

OPTIONAL ROUGH IN FRAME

RIF130S

OPTIONAL REAR ENCLOSURE

RNC130S

NET WEIGHT

1.4kg (3.1lbs.)

Manufacturer Part No:
CI130QS
Brand:
KEF
Product Type:
Square In-Wall Speaker
UPC
637203208706
Product Family:
-
Shipping Weight:
1.9 kg
PB Part No:
SPKKEF1192
Product Model:
CI130QS
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
