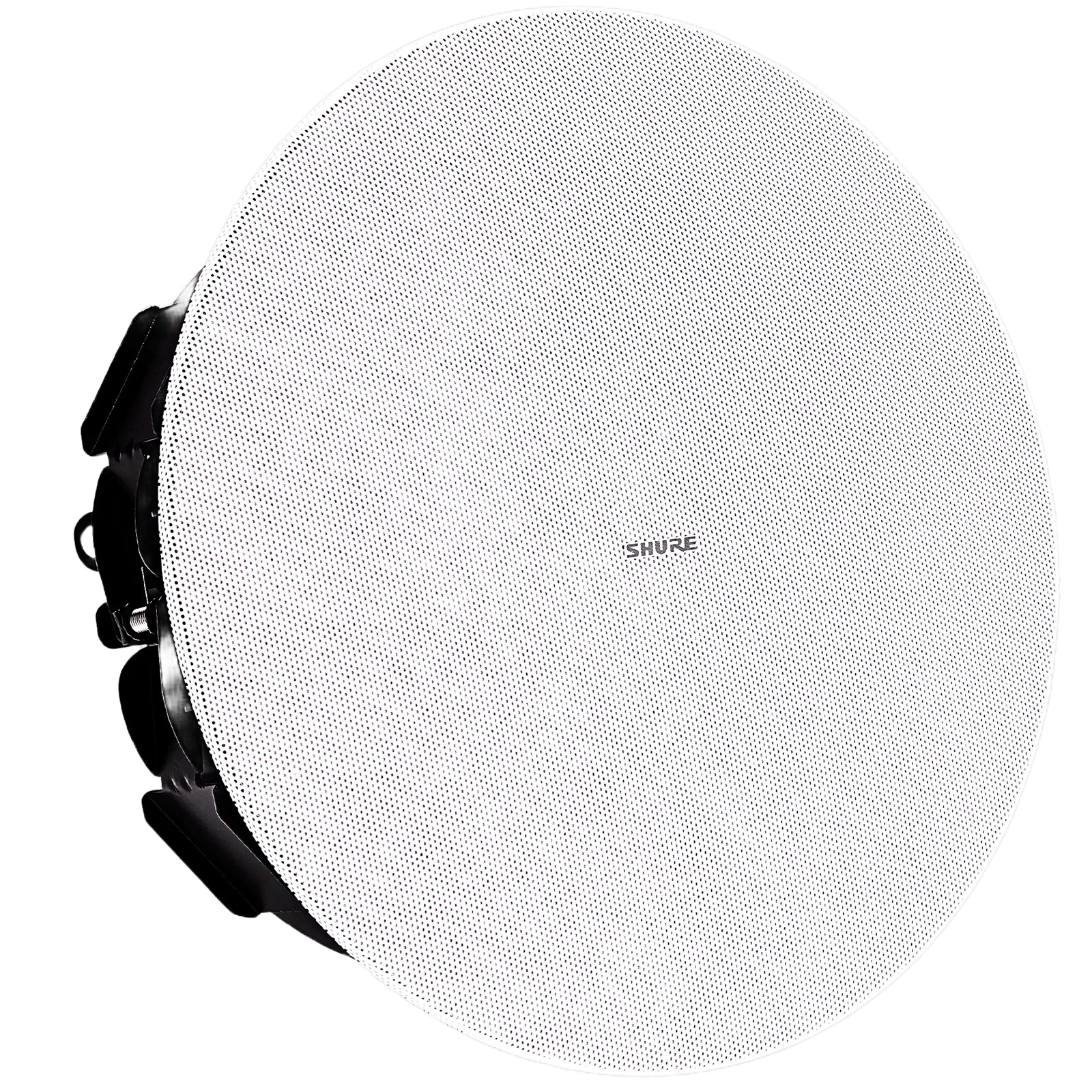

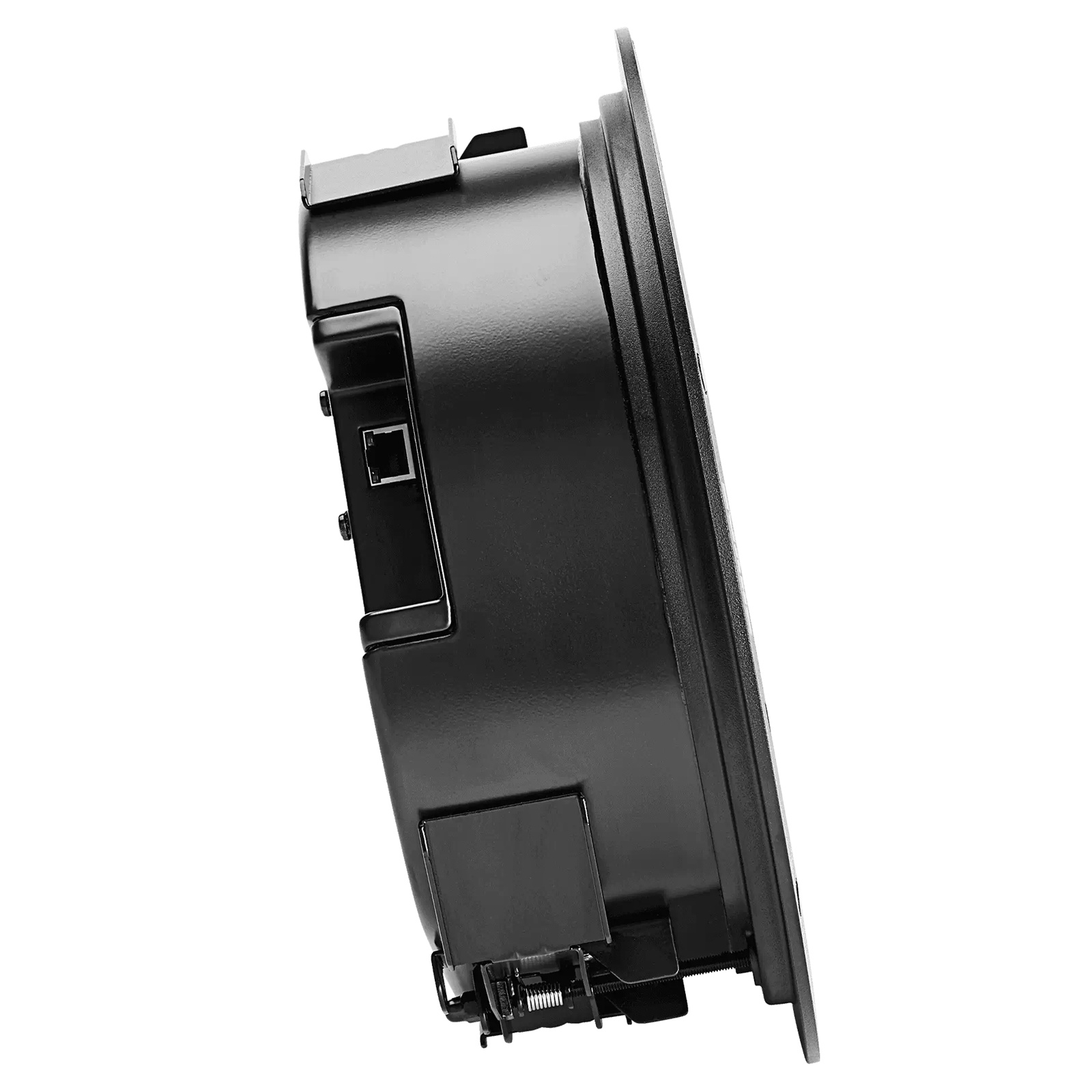

Shure MXN5W - Networked Loudspeaker - POE - White - 2 Dante inputs - 1 Dante output - Low-profile Design

Brand: Shure
MPN: MXN5W-C
Part #: SPKSHU1000
UPC:

Out of stock

Delivery: Out of stock

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Shure
MPN: MXN5W-C
Part #: SPKSHU1000
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Provides high-quality speech reproduction for AV conferencing applications. PoE-enabled with a low-profile design optimized for easy installation in drop ceiling configurations. Deployed and controlled via software, this networked loudspeaker does not require a separate amplifier or outboard DSP. Integrates seamlessly with Shure's ecosystem of networked hardware and software for a complete audio solution.

Software-based configuration and control

- Design and deploy every device in your audio chain with Shure Designer System Configuration software
- Supports standards-based security protocols to manage access and protect data, including 802.1x, secure boot/storage, and AES encryption for control and audio data.
- Dante Domain Manager compatible
- AES67 compatible

Loudspeaker technical elements

- Pre-tuned frequency response optimized for voice intelligibility in AV conferencing applications
- Low-profile, shallow-can design compatible with most drop ceiling installations

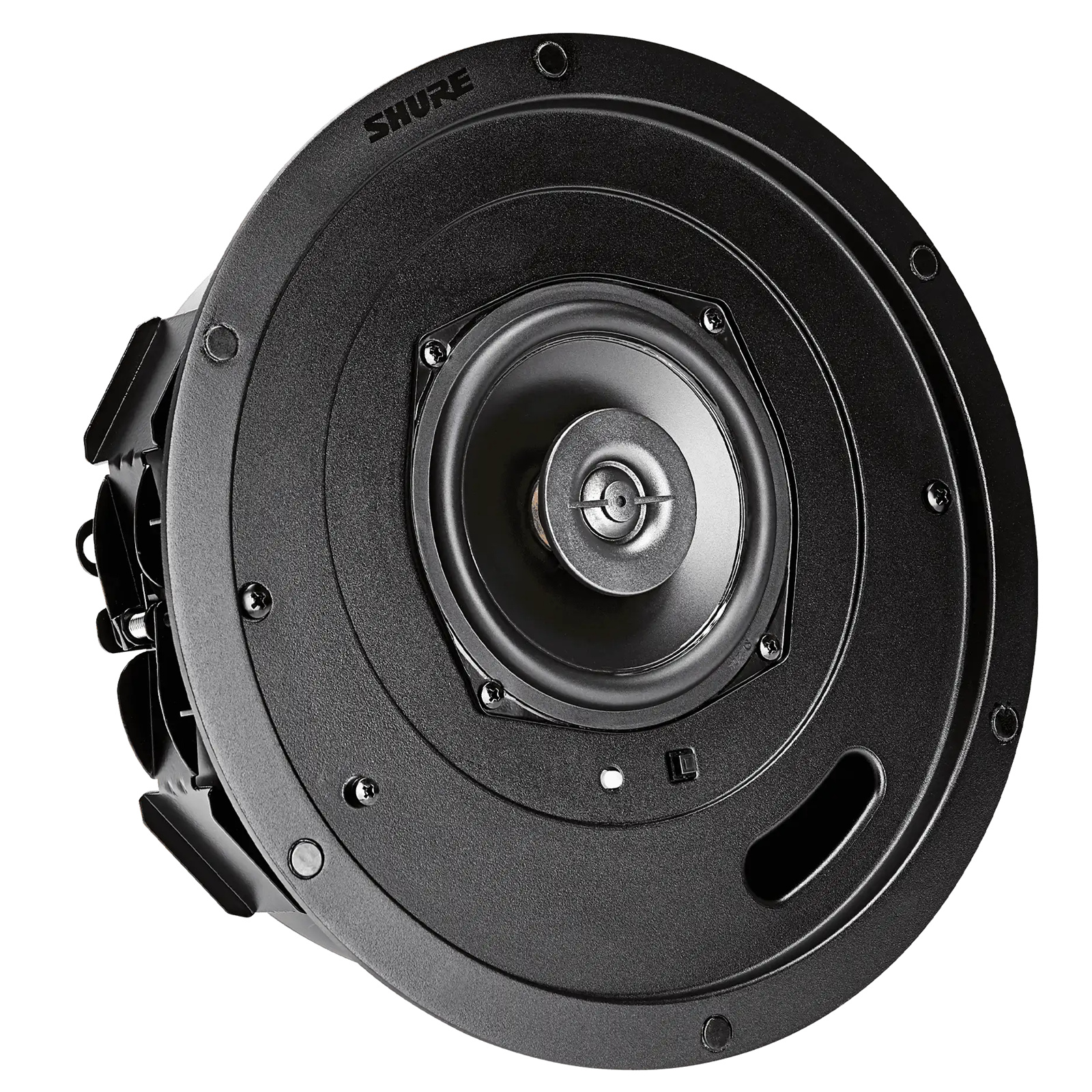

- 2-way driver system with 5.25 in (13.3cm) woofer
- PoE/PoE+ enabled, eliminating the need for an outboard amplifier
- Integrated Shure DSP Utilities: EQ, delay, limiter, and signal/tone generator
- 2 Dante inputs and 1 Dante output

Clean design elements

- Aesthetic design subtly blends into drop ceiling environments
- Removable magnetic and paintable grille seamlessly covers the entire loudspeaker
- Removable magnetic Shure logo
- UL 2043 plenum rated
- Tile bridge or New Construction Bracket accessories for quick and easy mounting

The Microflex™ MXN5W-C Networked Ceiling Loudspeaker provides high-quality speech reproduction for AV conferencing applications. Gone is the need for a separate amplifier or an outboard DSP, the PoE-powered MXN5 is the ideal loudspeaker solution when used as part of a Shure networked conferencing audio system. Combined with Microflex Advance Array Microphones and IntelliMix® DSP, the full Shure networked systems ecosystem delivers premium audio performance with unmatched ease of deployment, with the added confidence of Shure Audio Encryption and Dante Domain Manager compatibility.

Specifications

General

Compatibility

Shure Microflex Advance MXA920 / Microflex Advance MXA910 / Microflex Advance MXA710 / Microflex Advance MXA310 / Microflex P300 / Microflex ANIUSB-MATRIX / Microflex MXN5-C / Microflex Advance MXA Network Mute Button / Microflex IntelliMix Room / Microflex Shure Designer Software

Inputs/Outputs

Audio I/O

1x RJ45 Input/Output

Frequency Response

120 Hz to 20 kHz (- 3dB)

Maximum Output Level

Power over Ethernet (PoE): 92 dB SPL
PoE Plus: 98 dB SPL (at 3.3" / 1 m)

Latency

1.5 ms (Not Including Dante Latency)

DSP

Delay, Limiter, Signal Generator, Equalizer (4-Band Parametric)

Angle of Coverage

-6 dB at 2 kHz: 180 Degrees
-6 dB at 10 kHz: 107 Degrees

Power

Power Source

PoE

Power Consumption

24 W (Maximum)

Physical

Mounting

Back: Multiple Ceiling

Colour

White

Environmental Resistance

Certifications

PlenumUL2043, CANICES-003(B)/NMB-003(B), CE

Operating Conditions

20 to 104°F / -6 to 40°C

Storage Conditions

-20 to 165°F / -28 to 73°C

Dimensions

12 x 12 x 4" / 304.8 x 304.8 x 101.6 mm

Weight

6.5 lb / 2.95 kg

Manufacturer Part No:

MXN5W-C

Brand:

Shure

Product Type:

UPC

Product Family:

Shipping Weight:

0.2 kg

PB Part No:

SPKSHU1000

Product Model:

MXN5W

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
