Supermicro LP PCIe 4.0 x8 Hybrid NVMe/SATA M.2 RAID 0/1 Carrier, SAS3808 RAID Controller

PB Tech price
PB Tech price
NZD $ 424 .71
$ 424 .71
$424.71  +GST
$424.71

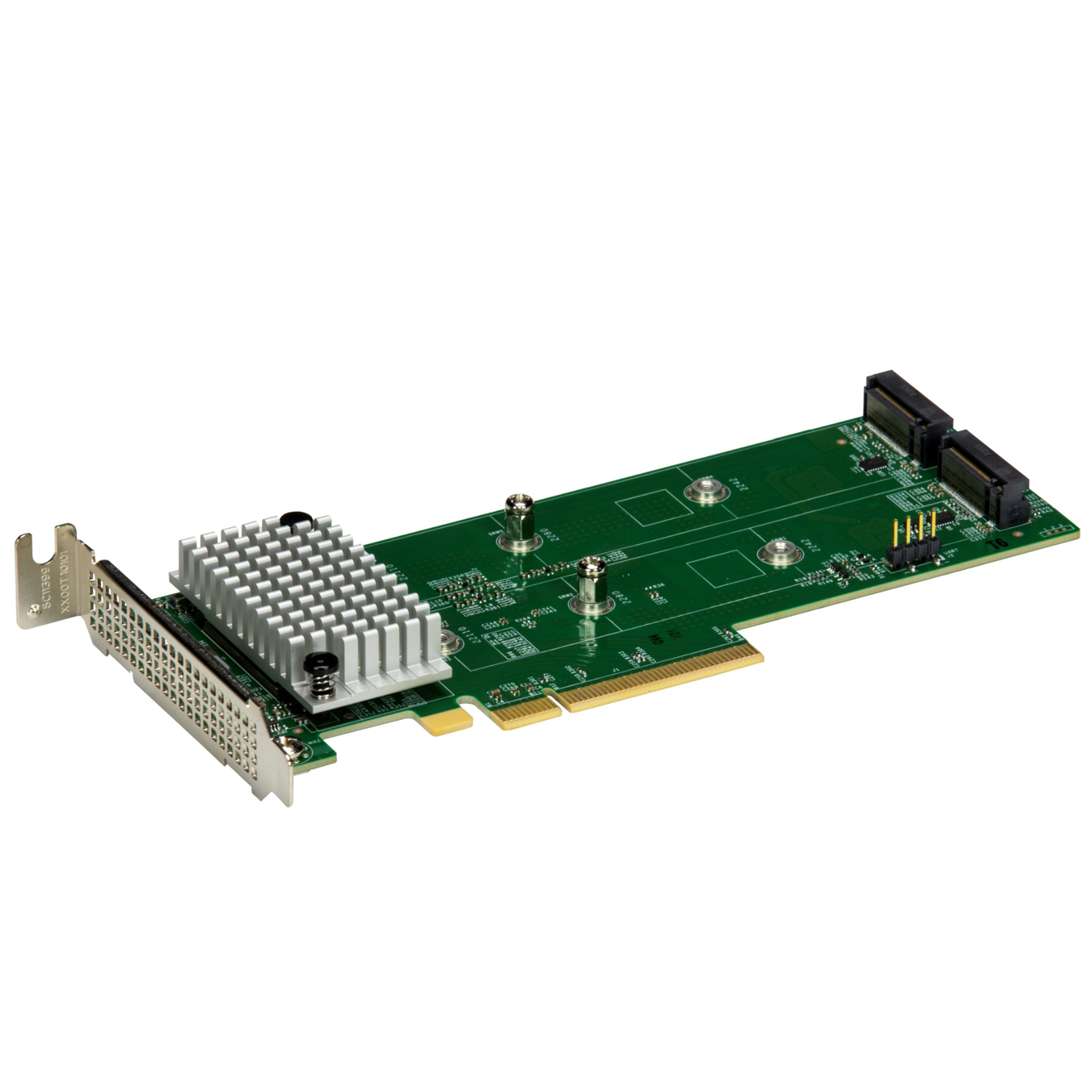

Supermicro LP PCIe 4.0 x8 Hybrid NVMe/SATA M.2 RAID 0/1 Carrier, SAS3808 RAID Controller

  • Brand: Supermicro
  • MPN: AOC-SLG4-2H8M2-O
  • Part #: SVPSPM4282
  • UPC: 672042517855
PB Tech price
NZD $ 424 .71 $ 424 .71


Delivery: Order now and it ships today
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$424.71  +GST
$424.71
  • Brand: Supermicro
  • MPN: AOC-SLG4-2H8M2-O
  • Part #: SVPSPM4282
  • UPC: 672042517855

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the Supermicro LP PCIe 4.0 x8 Hybrid NVMe/SATA M.2 RAID 0/1 Carrier,...
Supermicro LP PCIe 4.0 x8 Hybrid NVMe/SATA M.2 RAID 0/1 Carrier, SAS3808 RAID Controller
Total:
NZD $ 620 .47
NZD $ 620 .47
Buy together and save $3.37 $3.37

Features

Supermicro Low Profile 2x PCIe Gen 4 Hybrid NVMe/SATA M.2 RAID Carrier

The Supermicro MegaRAID Low Profile AOC-SLG4-2H8M2 is a PCIe Gen 4.0 x8 M.2 SSD carrier card that enables the user to add up to two NVMe or SATA M.2 SSDs. M.2 solid state technology is an optimized, high-performance, scalable storage solution, effectively streamlined for enterprise and client systems that leverage the cutting-edge power of PCI Express 4.0 technology. AOC-SLG4-2H8M2 supports adjustable stand-offs in 22110, 2280, & 2242 M.2 SSD form factors with RAID 0 and RAID 1.

Product Note: Supermicro AOC-SLG4-2H8M2, as a Gen 4 NVMe M.2 adapter, is carrying its new accessory - a uniquely designed heatsink - when being compared to the previous gen product - AOC-SLG3-2H8M2 - for Gen 3 NVMe M.2 and without heatsink. While adopting 22x110mm M.2s, it is suggested to ONLY select the M.2s qualified by referencing each system's AVL with AOC-SLG4-2H8M2.

Key Features

Broadcom 3808 SAS controller, dual M-Key sockets, 16 Gb/s per port, with RAID 0 and 1.

- Broadcom SAS3808 I/O RAID Controller
- x8 PCIe Gen4 Host interface
- Dual M-Key sockets (for 2x M.2 SSD)
- Adjustable stand-offs supporting 22110, 2280, & 2242 M.2 SSD form factors
- Support NVMe Gen 4 (16 Gbps) M.2 modules and SATA Gen 3 (6 Gbps) M.2 modules
- Supports RAID 0 and RAID 1
- Support MCTP over PCIe/ I2C
- Support BMC-enabled management
- Support secure erase
- Support hardware secure boot
- Support on-board LEDs for SSD Activity and Status
- UEFI Configuration utility
- OS Support: Windows, Linux, and VMWare
- Power Consumption: 7W (AOC only, maximum; M.2 power consumption excluded)
- Thermal operating range: System dependent (55°C or higher w/ enough airflow)

Specifications

L x H

6.6" x 2.71"

Weight

0.25 lbs

Validated Platforms

Servers

AS -1014S-WTRT
AS -1015CS-TNR
AS -1024US-TRT
AS -1114CS-TNR
AS -1115CS-TNR
AS -1125HS-TNR
AS -2015CS-TNR
AS -2015HS-TNR
AS -2025HS-TNR
AS -2114S-WN24RT
AS -2115GT-HNTF
AS -2124BT-HNTR
AS -2124GQ-NART
AS -3015MR-H8TNR
AS -4125GS-TNRT
AS -4125GS-TNRT2
SBA-4119SG
SYS-121C-TN2R
SYS-110P-FDWTR
SYS-110P-WTR
SYS-111C-NR
SYS-111E-FWTR
SYS-111E-WR
SYS-120C-TN10R
SYS-120U-TNR
SYS-121C-TN10R
SSG-121E-NES24R
SYS-121H-TNR
SYS-211E-FRN2T
SYS-220GP-TNR
SYS-221H-TNR
SYS-221HE-TNR
SYS-221HE-TNRD
SYS-241E-TNRTTP
SSG-520P-ACTR12H
SYS-521C-NR
SYS-521E-WR
SYS-530MT-H8TNR
SSG-540P-E1CTR36L
SYS-611C-TN4R
SYS-620C-TN12R
SSG-620P-E1CR24H
SYS-620U-TNR
SYS-621C-TN12R
SYS-621P-TR
SSG-631E-E1CR16H
SSG-640P-E1CR36L
SYS-740A-T
SYS-821GE-TNHR

Manufacturer Part No:
AOC-SLG4-2H8M2-O
Brand:
Product Type:
-
UPC
672042517855
Product Family:
-
Shipping Weight:
0.3 kg
PB Part No:
SVPSPM4282
Product Model:
-
Warranty: 36 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
