Supermicro 510P-WT Barebone, 1U, 1x LGA4189, 8 DIMM, 4x Hot-Swap / 4x Hybrid NVMe, 2x 10G RJ-45, 3x PCIe 4.0 x16, 1x PCIe 3.0 M.2 2280/22110, 1x 600W Power Supply

PB Tech price

NZD $ 2,010 .10

$ 2,010 .10

Out of stock

Supermicro 510P-WT Barebone, 1U, 1x LGA4189, 8 DIMM, 4x Hot-Swap / 4x Hybrid NVMe, 2x 10G RJ-45, 3x PCIe 4.0 x16, 1x PCIe 3.0 M.2 2280/22110, 1x 600W Power Supply

Brand: Supermicro
MPN: SYS-510P-WT
Part #: SVRSPM710104
UPC:

PB Tech price

NZD $ 2,010 .10

Out of stock

Delivery: Out of stock

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Supermicro
MPN: SYS-510P-WT
Part #: SVRSPM710104
UPC:

Be the first to review this product

Server Type

Barebone

Form Factor

1U Rackmount

CPU Sockets

CPU Physical Cores

DIMM Slots

System Memory

RAID Support

RAID 0, 1, 5, 10

Power Supply

Single

View full specs

Returns & Warranty Bulk Quote Print Page

Features

Key Features

- Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP.

- 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® DCPMM

- 2 PCI-E 4.0 x16 (FHFL) slots, 1 PCI-E 4.0 x16 (LP) slot

- Intel® Ethernet Controller X550 2x 10GbE RJ45

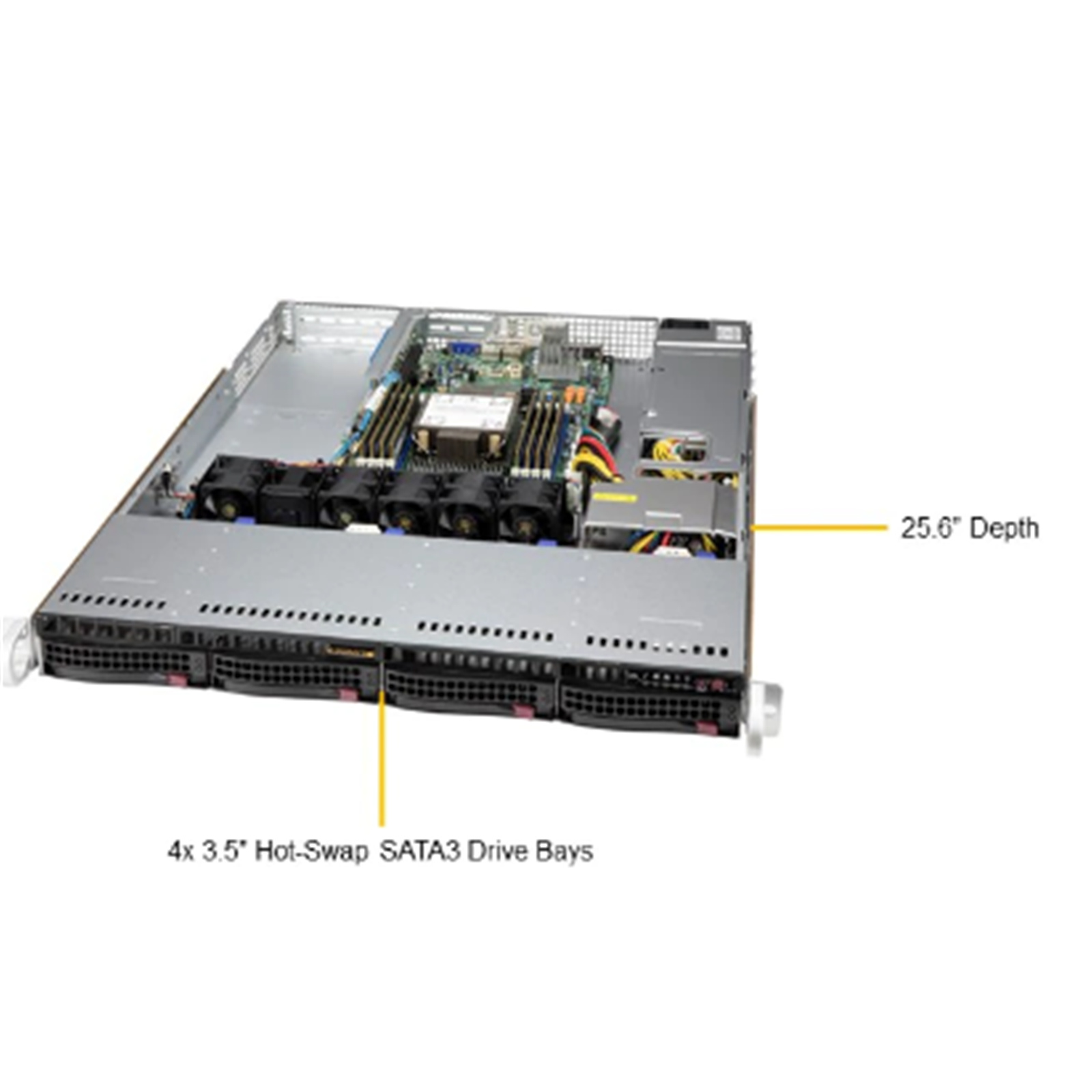

- 4x hot-swap 3.5'' Hybrid SATA3/NVMe drive bays, SAS3 with additional SAS controller card; Onboard 1x NVMe/SATA M.2

- Single Platinum 600W Power Supply

Specifications

Motherboard

Model

Super X12SPW-TF

Processor

CPU

Single Socket P+ (LGA-4189)
3rd Gen Intel® Xeon® Scalable processors
Support CPU TDP 270W

Cores

Up to 36C/72T; Up to 60MB Cache

System Memory

Memory

Memory Capacity: 8 DIMM slots
Up to 2TB: 8x 256 GB DRAM
Up to 3TB: 4x 256 GB DRAM and 4x 512 GB PMem
Memory Type: 3200/2933/2666MHz ECC DDR4 RDIMM;LRDIMM
Intel® Optane™ persistent memory 200 series

Memory Voltage

1.25 V

Error Detection

Yes

On-Board Devices

SATA

SATA3 (6Gbps); RAID 0/1/5/10 support

NVMe

NVMe; RAID 0/1/5/10 support

Chipset

Intel® C621A

Network Connectivity

2x 10GbE BaseT with Intel® X550

IPMI

Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output

SATA

10 SATA (6Gbps) port(s)

LAN

1 RJ45 Dedicated IPMI LAN port
2 RJ45 10GBase-T LAN ports

USB

3 USB port(s) (2 headers; 1 Type A)
4 USB 3.2 Gen 1 port(s) (2 headers; 2 rear)
2 USB 2.0 port(s) (2 rear)

Video

1 VGA 2 port(s)

Serial Port

2 COM Port(s) (1 header; 1 rear)

DOM

2 SuperDOM (Disk on Module) port with built-in power

System BIOS

BIOS Type

AMI 32MB SPI Flash EEPROM

Management

Software

IPMI2.0
Redfish API
SSM
SPM
KVM with dedicated LAN
SUM
NMI

Power Configurations

ACPI/APM Power Management

PC Health Monitoring

CPU

7+1 Phase-switching voltage regulator
Monitors for CPU Cores, Chipset Voltages, Memory

FAN

Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control
Temperature
Monitoring for CPU and chassis environment
Thermal Control for fan connectors

Chassis

Form Factor

1U Rackmount

Model

CSE-815TS-605WBP2

Dimensions and Weight

Height

1.7" (43mm)

Width

17.2" (437mm)

Depth

25.6" (650mm)

Package

8.5" (H) x 23.5" (W) x 33.7" (D)

Weight

Net Weight: 22 lbs (9.98 kg)
Gross Weight: 46 lbs (20.87 kg)

Front Panel

Buttons

Power On/Off
System Reset
UID button

LEDs

Device Activity
LAN 1 Activity
LAN 2 Activity
Power status
System information

Expansion Slots

PCI-Express (PCI-E)

Slot 1: PCI-E 4.0 x16 FHFL
Slot 2: PCI-E 4.0 x16 FHFL
Slot 3: PCI-E 4.0 x16 LP

Drive Bays / Storage

Drive Bays

4x 3.5" NVMe/SATA drive bays (4x 3.5" NVMe hybrid)
M.2
1x PCI-E 3.0 x 4 and SATA
M-key, 2280, 22110

Peripheral Bays

2x 2.5" drive bays

System Cooling

Fans

1 AOC cooling Fan(s) (optional)
5 counter-rotation PWM 40x40x56mm Fan(s)

Power Supply

Type

1U 600W Multi Output Power Supply PMbus

Total Output Power

600W

Dimension(W x H x L)

76 x 40.4 x 279.4 mm

AC Input

600W: 100-240Vac / 3A-7.5A / 50-60Hz

+12V

Max: 49A / Min: 0.5A

5V SB

Max: 3A / Min: 0A

Certification Platinum Level

Certified94%+ Platinum Level

Operating Environment

Environmental Spec.

Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 70°C (-40°F to 158°F)
Operating Relative Humidity:
   8% to 90% (non-condensing)
Non-operating Relative Humidity:
   5% to 95% (non-condensing)

Manufacturer Part No:

SYS-510P-WT

Brand:

Supermicro

Product Type:

Barebone,

UPC

Product Family:

Shipping Weight:

20 kg

PB Part No:

SVRSPM710104

Product Model:

510P-WT

Warranty: 36 months *
