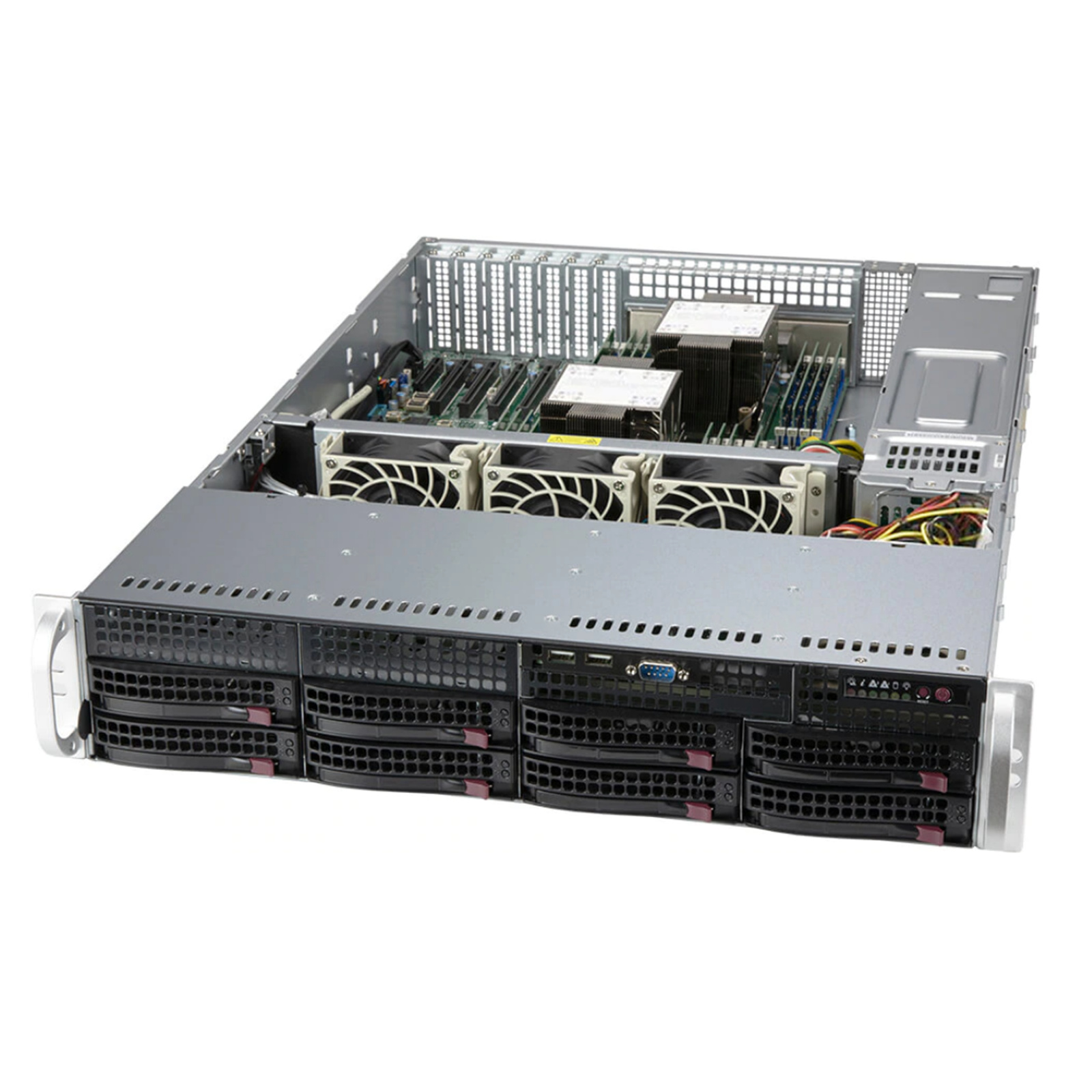

Supermicro 620P-TRT Barebone, 2U, 2x LGA4189, 16 DIMM, 8x 3.5" Hot-Swap, 2x 10G RJ-45, 4x PCIe 4.0 x16 LP, 2x PCIe 4.0 x8 LP, 1x M.2 2280/22110, 2x 1200W Redundant Power Supplies

PB Tech price

NZD $ 3,926 .03

$ 3,926 .03

Out of stock

Supermicro 620P-TRT Barebone, 2U, 2x LGA4189, 16 DIMM, 8x 3.5" Hot-Swap, 2x 10G RJ-45, 4x PCIe 4.0 x16 LP, 2x PCIe 4.0 x8 LP, 1x M.2 2280/22110, 2x 1200W Redundant Power Supplies

Brand: Supermicro
MPN: SYS-620P-TRT
Part #: SVRSPM720103
UPC:

PB Tech price

NZD $ 3,926 .03

Out of stock

Delivery: Out of stock

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Supermicro
MPN: SYS-620P-TRT
Part #: SVRSPM720103
UPC:

Be the first to review this product

Server Type

Barebone

Form Factor

2U Rackmount

CPU Sockets

CPU Physical Cores

DIMM Slots

System Memory

RAID Support

RAID 0, 1, 5, 10

Power Supply

Dual Redundant

View full specs

Returns & Warranty Bulk Quote Print Page

Features

Key Features

- Dual sockets P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
- CPU TDP supports Up to 270W TDP
- 3 UPI up to 11.2 GT/s

- Intel® C621A Chipset

- Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz, Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz
- Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 18 DIMM slots (P1-DIMMB2 and P2-DIMMB2 are reserved for Intel® Optane Persistent Memory 200 Series only)

- 4 PCI-E 4.0 x16 Low Profile (LP)
- 2 PCI-E 4.0 x8 Low Profile (LP)
- Dual 10GBase-T LAN with Intel® X550 Ethernet Controller

Specifications

Motherboard

Model

Super X12DPi-NT6

Processor

CPU

Dual Socket P+ (LGA-4189)
3rd Gen Intel® Xeon® Scalable processors
Support CPU TDP 270W

System Memory

Memory

Memory Capacity: 16 DIMM slots
Up to 4TB: PMem and DRAM
Memory Type: 3200MHz ECC LRDIMM/RDIMM DDR4
Intel® Optane™ persistent memory 200 series

On-Board Devices

Chipset

Intel® C621A

Network Connectivity

2x 10GbE port(s)

IPMI

Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN suppor

Input / Output

LAN

1 decicated IPMI LAN port

USB

2 USB 2.0 port(s) (2 front)
4 USB 3.0 port(s) (4 rear)

Video

1 VGA port(s)

Serial Port

2 COM Port(s) (1 front; 1 rear)

DOM

2 SuperDOM (Disk on Module) port

System BIOS

BIOS Type

AMI 32MB SPI Flash EEPROM

Management

Software

Supermicro Out of Band (OOB) License (included in the unit)
IPMI2.0
Redfish API
SSM
Intel® Node Manager
SPM
KVM with dedicated LAN
SUM
NMI

Power Configurations

ACPI/APM Power Management

PC Health Monitoring

CPU

4+1 Phase-switching voltage regulator
Monitors for CPU Cores, Chipset Voltages, Memory

FAN

Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control

Temperature

Monitoring for CPU and chassis environment
Thermal Control for fan connectors

Chassis

Form Factor

2U Rackmount

Model

CSE-825BTS-R1K23LPP1

Dimensions and Weight

Height

3.5" (89mm)

Width

17.2" (437mm)

Depth

25.5" (647mm)

Package

11.4" (H) x 26.7" (W) x 34.5" (D)

Weight

Net Weight: 35.5 lbs (16.1 kg)
Gross Weight: 69 lbs (31.2 kg)

Available Color

Black

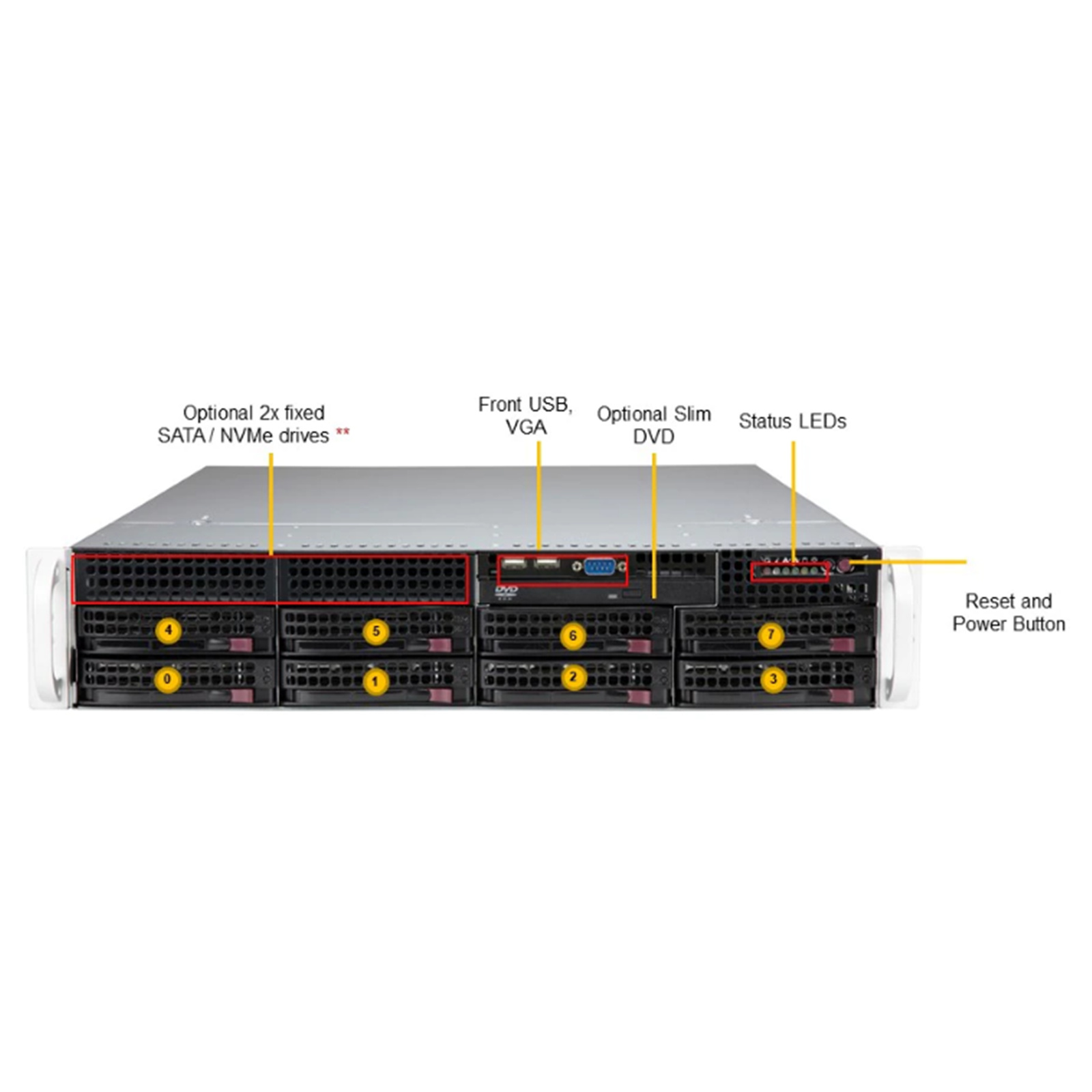

Front Panel

Buttons

Power On/Off
System Reset

LEDs

HDD activity
Network activity
Power status
System information (overheat/UID)

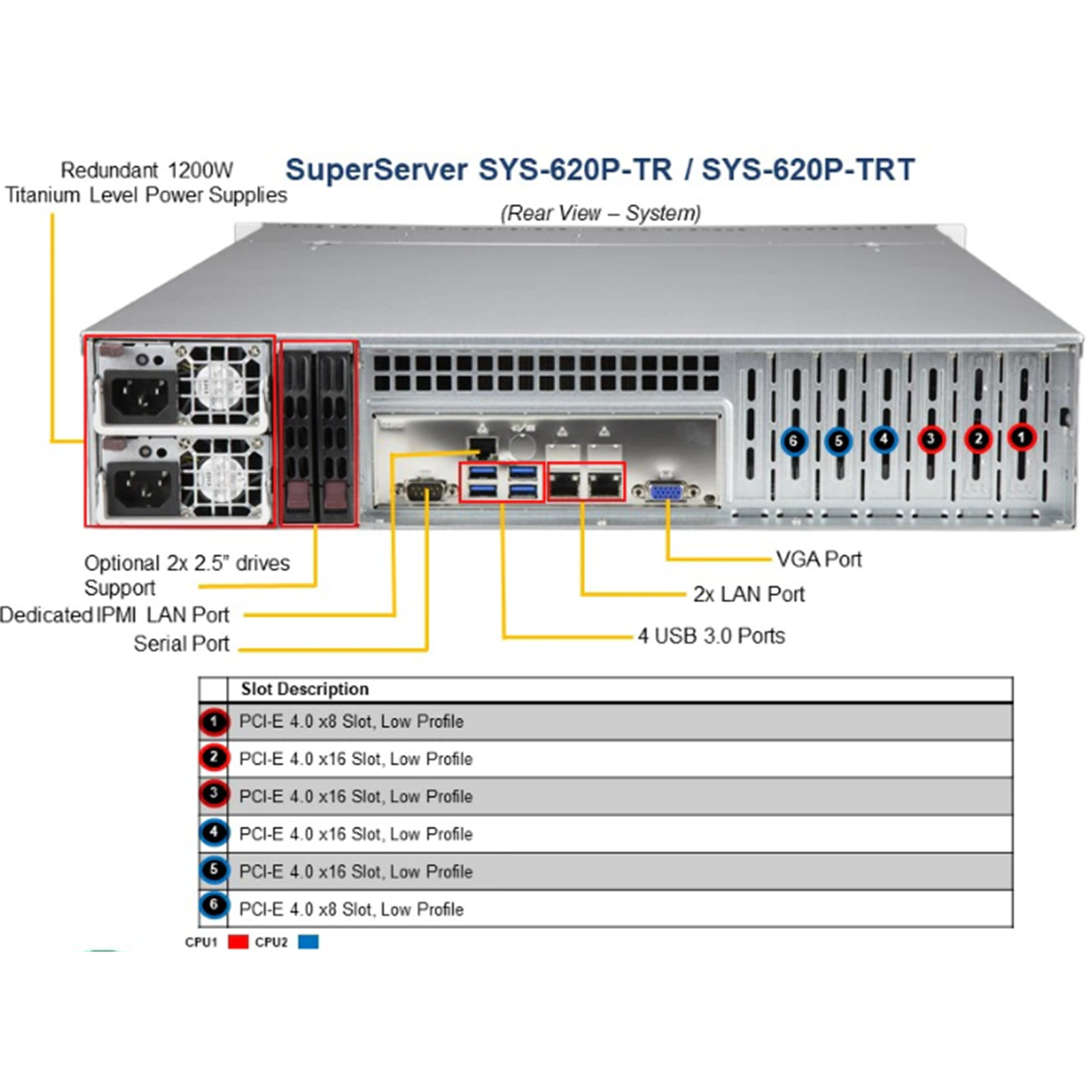

Expansion Slots

PCI-Express (PCI-E)
Slot 1: PCI-E 4.0 x8 LP
Slot 2: PCI-E 4.0 x16 LP
Slot 3: PCI-E 4.0 x16 LP
Slot 4: PCI-E 4.0 x16 LP
Slot 5: PCI-E 4.0 x16 LP
Slot 6: PCI-E 4.0 x8 LP

Drive Bays / Storage

Hot-swap

8x 3.5" hot-swap SATA3 drive bays
M.2
1 M.2 NVMe

Peripheral Bays

1x slim DVD drive bays (optional)

System Cooling

Fans

3 heavy duty fans with optimal fan speed control

Power Supply

Power supply

AC 1200W, Titanium Level, Redundancy,PMBUS 1.2, +12V/+5Vsb, 360x76x40 mm,HF,RoHS/REACH

Dimension (W x H x L)

76 x 40 x 336 mm

Output Type

Gold Finger

Certification

Titanium Level94%+ Titanium Level

Operating Environment

RoHS

RoHS Compliant

Environmental Spec.

Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (Non-Condensing)
Non-operating Relative Humidity:
   5% to 95% (Non-Condensing)

Manufacturer Part No:

SYS-620P-TRT

Brand:

Supermicro

Product Type:

Barebone,

UPC

Product Family:

Shipping Weight:

20 kg

PB Part No:

SVRSPM720103

Product Model:

620P-TRT

Warranty: 36 months *
