Supermicro 620P-ACR16L Barebone, 2U, 2x LGA4189, 16 DIMM 12x 3.5" Hot-Swap / 4x Hybrid NVMe, 4x 3.5" Mid-Mount, Broadcom 3816 SAS HBA, 2x 10G RJ-45, 1x M.2 2280/22110, 2x 1600W Redundant Power Supplies

PB Tech price

NZD $ 4,429 .04

$ 4,429 .04

Out of stock

Supermicro 620P-ACR16L Barebone, 2U, 2x LGA4189, 16 DIMM 12x 3.5" Hot-Swap / 4x Hybrid NVMe, 4x 3.5" Mid-Mount, Broadcom 3816 SAS HBA, 2x 10G RJ-45, 1x M.2 2280/22110, 2x 1600W Redundant Power Supplies

Brand: Supermicro
MPN: SSG-620P-ACR16L
Part #: SVRSPM720107
UPC:

PB Tech price

NZD $ 4,429 .04

Out of stock

Delivery: Out of stock

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Supermicro
MPN: SSG-620P-ACR16L
Part #: SVRSPM720107
UPC:

Be the first to review this product

Server Type

Barebone

Form Factor

2U Rackmount

CPU Sockets

CPU Physical Cores

DIMM Slots

System Memory

RAID Support

SAS HBA Only

Power Supply

Dual Redundant

View full specs

Returns & Warranty Bulk Quote Print Page

Features

Key Applications

- Enterprise Server
- iSCSI SAN
- HPC, Data Center
- Database Processing & Storage
- Corporate Database

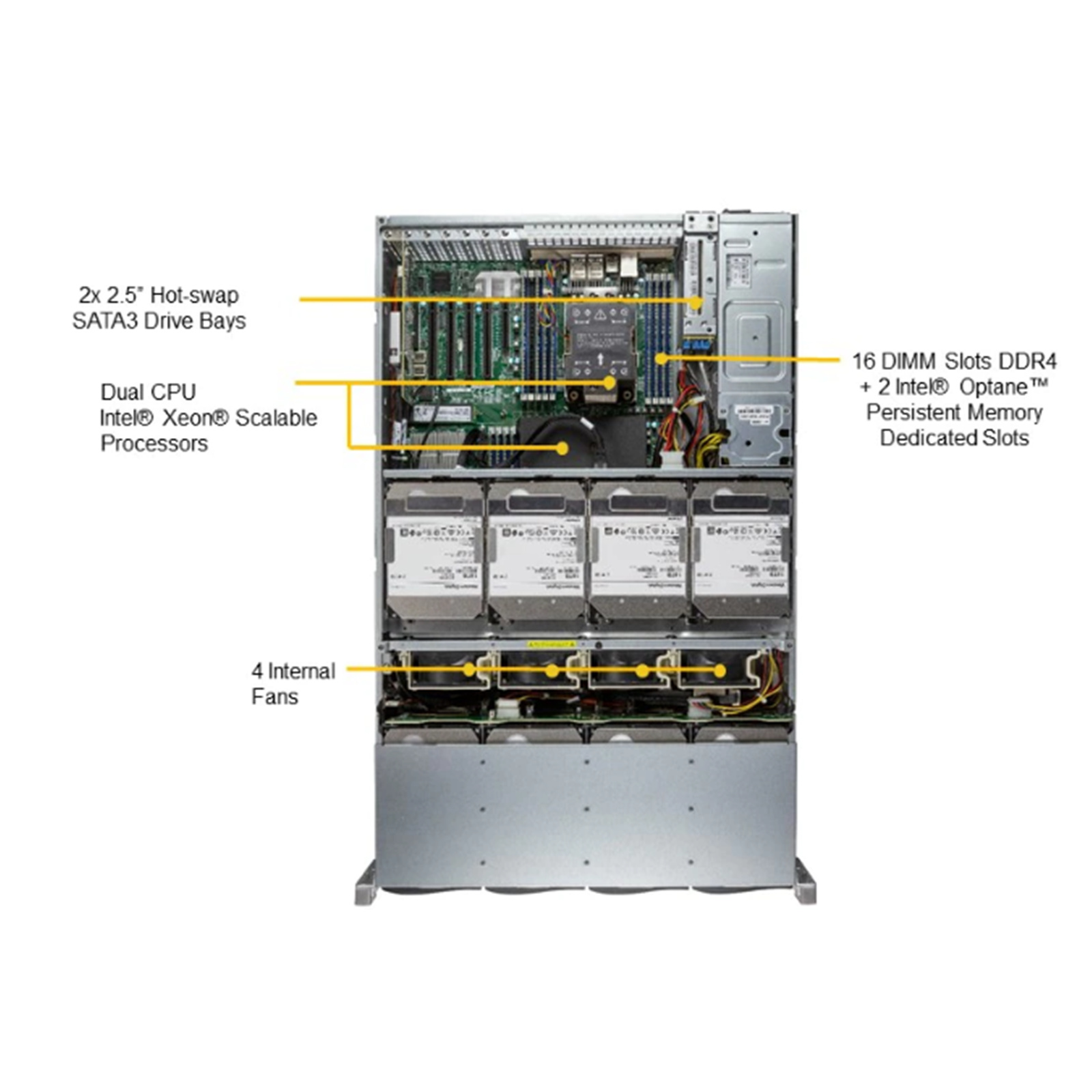

Key Features

- Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors

- 16 ECC DDR4-3200: LRDIMM/RDIMM + 2 Intel® Optane™ Persistent Memory Dedicated Slots

- 2x 10Gbe

- 16x 3.5" hot-swap hybrid SATA/SAS drive bays (4 NVMe Hybrid Ports); 2 Rear SATA Slots; onboard 1 M.2 NVMe

- 3 heavy duty fans with optimal fan speed control; 1 Air Shroud

- 1600W Redundant Power Supplies Titanium Level (96%)

- Broadcom® 3816 Controller

Specifications

Motherboard

Model

Super X12DPi-NT6

Processor

CPU

Dual Socket P+ (LG-4189)
3rd Gen Intel® Xeon® Scalable processors
Support CPU TDP 120-270W

System Memory

Memory

Memory Capacity: 16 DIMM slots
Up to 4TB: 16x 256 GB DRAM
Memory Type: 3200MHz ECC DDR4 RDIMM;LRDIMM;DCPMM

Note

2 extra DIMM slots available for Intel® Optane™ DCPMM @ 2666MHz

Memory Voltage

1.2 V

Error Detection

ECC

On-Board Devices

Chipset

Intel® C621A

Network Connectivity

2x 10GbE BaseT with Intel® X550

IPMI

Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

Input / Output

LAN

1 RJ45 Dedicated IPMI LAN port
2 RJ-45 10Gbase-T ports

USB

4 USB 3.0 port(s) (4 Rear_USB)

Video

1 VGA port(s)

Serial Port

1 COM Port(s) (1 rear)

DOM

2 SuperDOM (Disk on Module) port

System BIOS

BIOS Type

AMI 128MB SPI Flash EEPROM

Management

Software

IPMI 2.0
SUM
NMI
Watch Dog
SuperDoctor® 5

Power Configurations

ACPI Power Management
Power-on mode for AC power recovery

PC Health Monitoring

CPU

4+1 Phase-switching voltage regulator
Monitors for CPU Cores, Chipset Voltages, Memory

FAN

Fans with tachometer monitoring
Pulse Width Modulated (PWM) fan connectors
Status monitor for speed control

Temperature

Monitoring for CPU and chassis environment
Thermal Control for fan connectors

Chassis

Form Factor

2U Rackmount

Model

CSE-829HE1C4-R1K62LPB

Dimensions and Weight

Height

3.5"

Width

17.3"

Depth

27.75"

Package

12" (H) x 27" (W) x 39" (D)

Weight

Net Weight: 15.42 lbs (35.42 kg)
Gross Weight: 62 lbs (28.12 kg)

Available Color

Black

Front Panel

Buttons

Power On/Off

LEDs

HDD activity
Network activity
Power status
System information (overheat/UID)

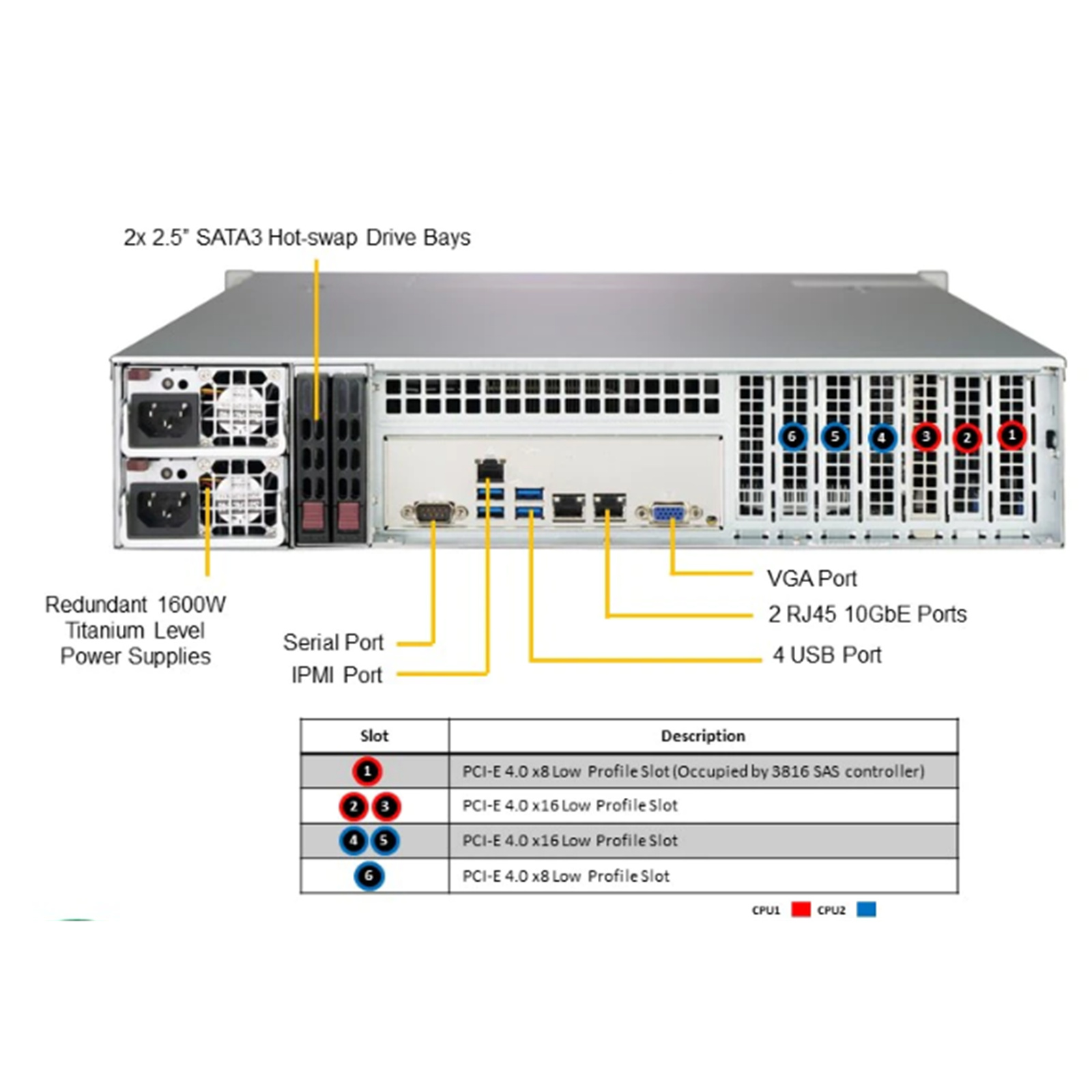

Expansion Slots

PCI-Express (PCI-E)

Slot 1: PCI-E 4.0 x8 LP
Slot 2: PCI-E 4.0 x16 LP
Slot 3: PCI-E 4.0 x16 LP
Slot 4: PCI-E 4.0 x16 LP
Slot 5: PCI-E 4.0 x16 LP
Slot 6: PCI-E 4.0 x8 LP

Note

PCIe slot 1 is occupied by the Storage Controller

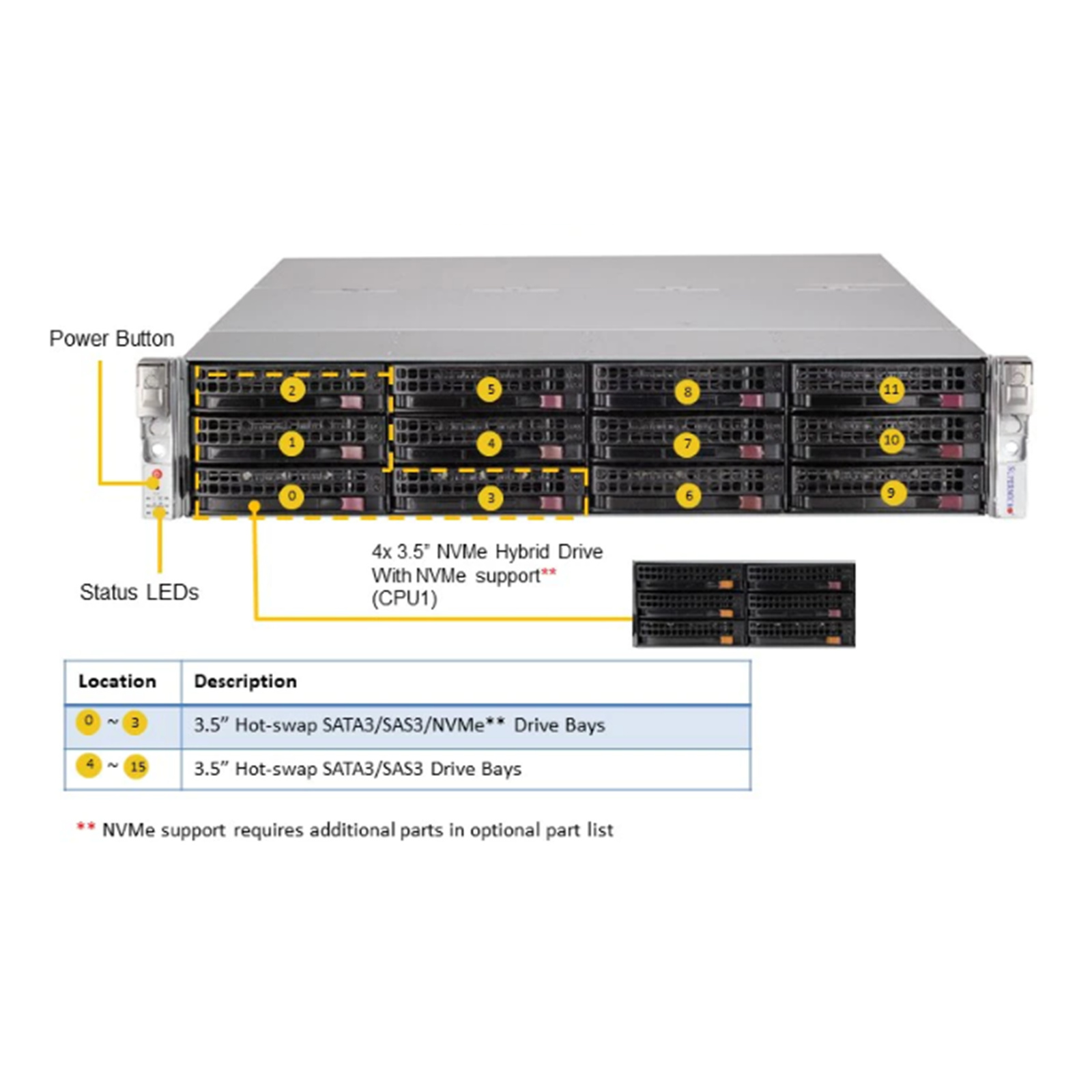

Drive Bays / Storage

Hot-swap

16x 3.5" hot-swap SATA3/SAS3 drive bays (4x 3.5" NVMe hybrid)

M.2

1 M.2 NVMe

System Cooling

Fans

4 Heavy Duty 8cm Fan(s)

Power Supply

Power

1600W Redundant Power Supplies with PMBus

Dimension (W x H x L)

73.5 x 40 x 203 mm

AC Input

1000W: 100-127Vac / 50-60Hz
1600W: 200-240Vac / 50-60Hz
+12V
Max: 83A / Min: 0A (100Vac-127Vac)
Max: 133A / Min: 0A (200Vac-240Vac)
12V SB
Max: 2.1A / Min: 0A

Output Type

AC-Input

Certification

Titanium Level94%+ Titanium Level

Operating Environment

RoHS

RoHS Compliant

Environmental Spec.

Operating Temperature:
   10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
   -40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
   8% to 90% (Non-Condensing)
Non-operating Relative Humidity:
   5% to 95% (Non-Condensing)

Manufacturer Part No:

SSG-620P-ACR16L

Brand:

Supermicro

Product Type:

Barebone,

UPC

Product Family:

Shipping Weight:

20 kg

PB Part No:

SVRSPM720107

Product Model:

620P-ACR16L

Warranty: 36 months *
