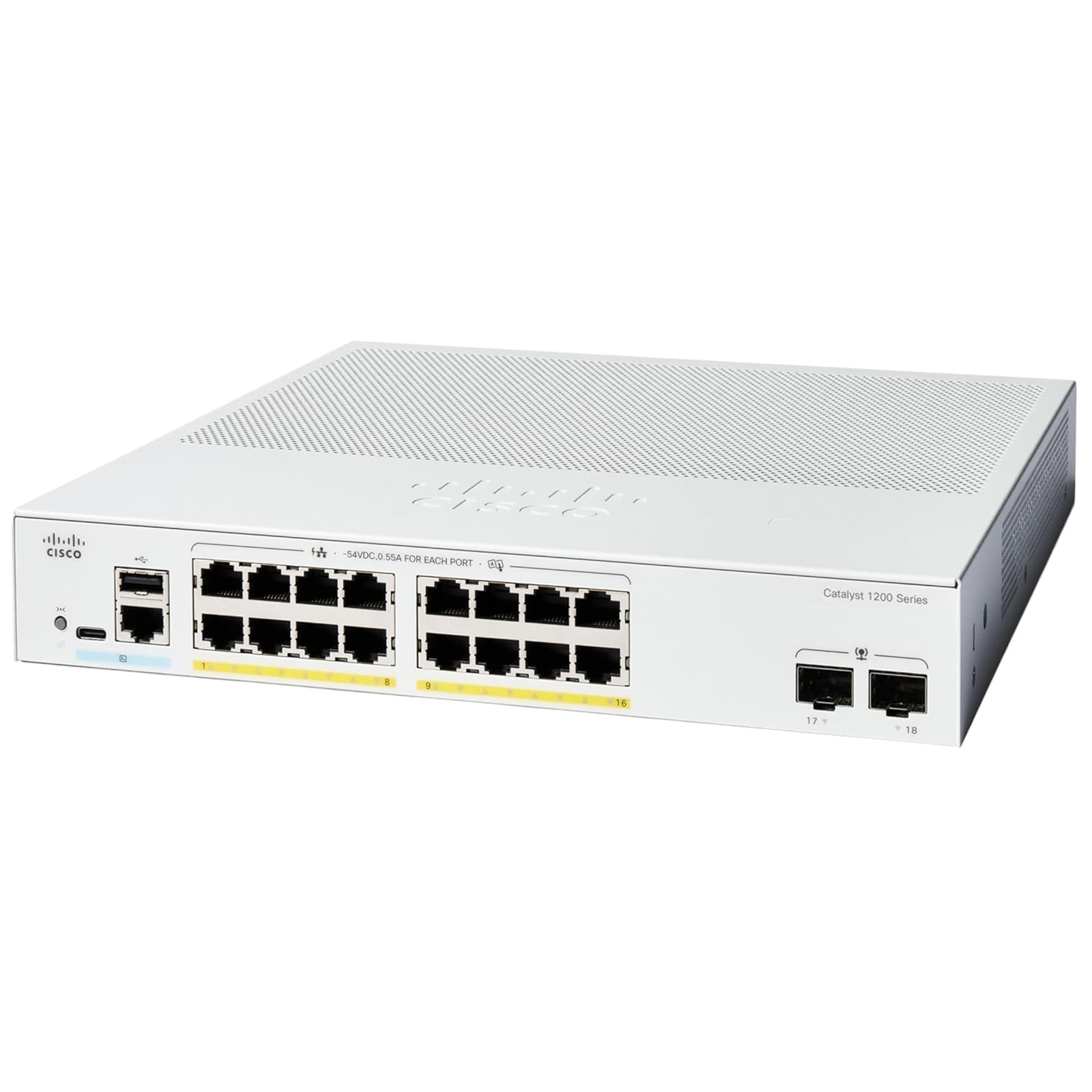

Cisco Catalyst 1200 Switch 16-port GE PoE 2x1G SFP
- Brand: Cisco
- MPN: C1200-16P-2G
- Part #: SWHCIS0157
- UPC:889728521666
Product URL: https://www.pbtech.com/pacific/product/SWHCIS0157/Cisco-Catalyst-1200-Switch-16-port-GE-PoE-2x1G-SFP
Features
Cisco Catalyst 1200 Switch 16-port GE PoE 2x1G SFP
The Cisco Catalyst 1200 Series is the next generation of affordable smart switches, combining powerful performance and reliability with a complete suite of the features you need for a small or medium-sized business network. The switches operate on customized Linux OS software and provide flexible management options, comprehensive security capabilities, and Layer 3 static routing features far beyond those of an unmanaged or consumer-grade switch, at a lower cost than for fully managed switches. When you need a reliable solution to share online resources and connect computers, phones, and wireless access points, the Catalyst 1200 Series smart switches provide the ideal solution at an affordable pricing point.
Business Applications
Whether you require basic, high-speed connectivity for your computers and servers or a comprehensive voice, data, and wireless technology solution, the Cisco Catalyst 1200 Series Switches can meet your business needs. Possible deployment scenarios include:
High-speed desktop connectivity: The 1200 Series switches can quickly and securely connect employees working in small offices with one another and with all of the printers, servers, and other networking devices they use. High performance and reliable connectivity help speed up file transfers and data processing, improve network uptime, and keep your employees productive.
Flexible wireless connectivity: The 1200 Series switches work with Cisco and third-party wireless solutions to extend the reach of your network. With security features, Power over Ethernet Plus (PoE+), VLAN, and Quality of Service (QoS), these switches are the perfect foundation to add enterprise-grade wireless solutions to a network. The capability of up to 30W of power per port provided through the Ethernet cable means you can easily deploy Cisco Business wireless access points to maximize workforce productivity.
Unified communications: The 1200 Series provides QoS features that enable you to prioritize delay-sensitive traffic in your network and converge all of your communications solutions, such as IP telephony and video surveillance, onto a single Ethernet network. Cisco offers a complete portfolio of IP telephony and other unified communications products designed for small businesses, and the 1200 Series switches have been rigorously tested to help ensure easy integration and full compatibility with these and other products.
Features and Benefits
The Cisco Catalyst 1200 Series switches provide all of the features you need to create a basic enterprise-class network at an affordable price. These features include:
Easy configuration and management: The 1200 Series switches are designed to be easy to deploy and use by small and medium-sized businesses or the partners that serve them:
- The Cisco Business Dashboard is designed to manage the 1200 Series switches and lets you easily customize the interface and widgets to proactively manage your network. The switches support an embedded probe as well as direct management, eliminating the need to set up a separate hardware or virtual machine onsite. The device onboarding wizard simplifies the setup and onboading of new devices to the network. For more information, visit https://www.cisco.com/go/cbd.
- The Cisco Network Plug and Play solution provides a simple, secure, unified, and integrated offering to ease new device rollouts or for provisioning updates to an existing network. The solution provides a unified approach to provisioning Cisco routers, switches, and wireless devices with a near-zero-touch deployment experience.
- The redesigned modern web user interfaces reduce the time required to deploy, troubleshoot, and manage the network. Configuration wizards simplify the most common configuration tasks and provide the ultimate tool for anyone to set up and manage the network.
- The switches support an external Bluetooth dongle that plugs into the USB port on the switch and allows a Bluetooth-based RF connection with external laptops and tablets. Laptops and tablets can access the switch Command-Line Interface (CLI) using a Telnet or Secure Shell (SSH) client over Bluetooth. The GUI can be accessed over Bluetooth with a browser.
Reliability and performance: The Cisco Catalyst 1200 Series Switches have been tested to deliver the high performance and reliability you would expect from a Cisco switch and help you prevent costly downtime. The switches speed file transfer times, improve slow and sluggish networks, keep your vital business applications available, and help your employees respond more quickly to customers and each other. With a network based on Catalyst 1200 Series switches, you can address all of your business communications and connectivity needs and reduce the total cost of ownership of your technology infrastructure. The 1200 Series switches support 10 Gigabit Ethernet uplinks on select models, so you can build a high-performance and future-ready network to support your thriving business.
Layer 3 static routing: This capability allows you to segment your network into separate workgroups and communicate across VLANs without degrading application performance. As a result, you can manage internal routing with your switches and dedicate your router to external traffic and security, helping your network run more efficiently.
Power over Ethernet: The 1200 Series switches are available with PoE+ on Gigabit Ethernet models. This capability enables you to deploy IP telephony, wireless, video surveillance, and other solutions with just a single network cable, thereby eliminating the need for separate power supplies or cabling. PoE+ provides up to 30W of power per port, ideal for deployments of 802.11ac wireless access points, Pan-Tilt-Zoom (PTZ) IP cameras, video phones, and thin client devices, delivering more flexibility and investment protection.
Network security: The 1200 Series switches provide the security and network management features you need to maintain a high level of security for your business, keep unauthorized users off the network, and protect your business data. The switches include integrated network security to reduce the risk of a security breach, with IEEE 802.1X port security to control access to your network, Denial-of-Service (DoS) attack prevention to increase network uptime during an attack, and extensive Access Control Lists (ACLs) to protect sensitive portions of the network from unauthorized users and guard against network attacks.
Flexible and compact design: The sleek and compact design provides additional deployment flexibility, including installation outside the wiring closet, such as in retail stores, open-plan offices, and classrooms, without disturbing the environment.
An energy-efficient solution: The 1200 Series switches are designed to be energy efficient and eco-friendly without compromising performance. They help conserve energy by optimizing power use, which helps protect the environment and lowers your energy costs. Power-saving features include:
- Support for the Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption by monitoring the amount of traffic on an active link and putting the link into a sleep state during quiet periods.
- Automatic power shutoff on ports when a link is down.
- Fanless design in most models, which reduces power consumption, increases reliability, and provides quieter operation.
Peace of mind and investment protection: The 1200 Series switches offer the reliable performance, investment protection, and peace of mind you expect from a Cisco switch.
Specifications
Genral Information
Brand
Cisco
Model
C1200-16P-2G
Capacity in millions of packets per second (mpps) (64-byte packets)
26.78
Switching capacity in gigabits per second (Gbps)
36.0
Number of ports that support PoE
16
Power dedicated to PoE
120W
System power consumption
110V=17.4W
220V=17.2W
Power consumption (with PoE)
110V=143.9W
220V=141.4W
Heat dissipation (BTU/hr)
490.7
Idle Power
110V=10.4W
220V=10.2W
Total system ports
18x Gigabit Ethernet
RJ-45 ports
16x Gigabit Ethernet
Combo ports (RJ-45 + Small Form-Factor Pluggable [SFP])
2x SFP
USB port
USB Type C port on the front panel of the switch for easy file and image management as well as console port
Buttons
Reset button
Cabling type
Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T
LEDs
System, Link/Act, PoE, Speed
Flash
512 MB
CPU
Dual-core ARM at 1.4 GHz
DRAM
1 GB DDR4
Packet buffer
1.5MB
Dimensions
268 x 297 x 44 mm (10.56 x 11.69 x 1.73 in)
Weight
2.38 kg (5.25 lb)
Certifications
UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A
Layer 2 switching
Spanning Tree Protocol (STP)
Standard 802.1d spanning tree support
Fast convergence using 802.1w (Rapid Spanning Tree Protocol [RSTP]), enabled by default
Multiple spanning tree instances using 802.1s (MSTP); 8 instances are supported
Per-VLAN Spanning Tree Plus (PVST+); 126 instances are supported
Rapid PVST+ (RPVST+); 126 instances are supported
Port grouping/link aggregation
Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)
Up to 4 groups
Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad Link Aggregation Group (LAG)
VLAN
Support for up to 255 active VLANs simultaneously
Port-based and 802.1Q tag-based VLANs
Management VLAN
Guest VLAN
Auto Surveillance VLAN (ASV)
Voice VLAN
Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS. Voice Services Discovery Protocol (VSDP) delivers networkwide zero-touch deployment of voice endpoints and call control devices
Generic VLAN Registration Protocol (GVRP) and Generic Attribute Registration Protocol (GARP)
Enable automatically propagation and configuration of VLANs in a bridged domain
Internet Group Management Protocol (IGMP) versions 1, 2, and 3 snooping
Limits bandwidth-intensive multicast traffic to only the requesters; supports 255 multicast groups (source-specific multicasting is also supported)
IGMP querier
Used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
Head-of-Line (HOL) blocking
HOL blocking prevention
Loopback detection
Provides protection against loops by transmitting loop protocol packets out of ports on which loop protection has been enabled. It operates independently of STP
Layer 3 routing
IPv4 routing
Wire-speed routing of IPv4 packets
Up to 32 static routes and up to 16 IP interfaces
IPv6 routing
Wire-speed routing of IPv6 packets
Layer 3 interface
Configuration of Layer 3 interface on physical port, LAG, VLAN interface, or loopback interface
Classless Interdomain Routing (CIDR)
Support for CIDR
Dynamic Host Configuration Protocol (DHCP) relay at Layer 3
Relay of DHCP traffic across IP domains
User Datagram Protocol (UDP) relay
Relay of broadcast information across Layer 3 domains for application discovery or relaying of Bootstrap Protocol (BootP)/DHCP packets
Security
Secure Sockets Layer (SSL)
Encrypts all HTTPS traffic, allowing secure access to the browser-based management GUI in the switch
SSH Protocol
SSH is a secure replacement for Telnet traffic. Secure Copy (SCP) also uses SSH. SSH v1 and v2 are supported.
IEEE 802.1X (authenticator role)
RADIUS authentication, guest VLAN, single/multiple host mode, and single/multiple sessions
STP loopback guard
Provides additional protection against Layer 2 forwarding loops (STP loops)
Secure Core Technology (SCT)
Ensures that the switch will receive and process management and protocol traffic no matter how much traffic is received
Secure Sensitive Data (SSD)
A mechanism to manage sensitive data (such as passwords, keys, and so on) securely on the switch, populating this data to other devices and a secure auto-configuration. Access to view the sensitive data as plain text or encrypted is provided according to the user-configured access level and the access method of the user
Trustworthy systems
Trustworthy systems provide a highly secure foundation for Cisco products
Run-time defenses (Executable Space Protection [X-Space], Address Space Layout Randomization [ASLR], Built-In Object Size Checking [BOSC])
Port security
Ability to lock source MAC addresses to ports and limit the number of learned MAC addresses
RADIUS
Supports RADIUS authentication for management access. Switch functions as a client
Storm control
Broadcast, multicast, and unknown unicast
DoS prevention
DoS attack prevention
Multiple user privilege levels in CLI
Level 1, 7, and 15 privilege levels
ACLs
Support for up to 512 rules
Drop or rate limit based on source and destination MAC, VLAN ID, IPv4 or IPv6 address, IPv6 flow label, protocol, port, Differentiated Services Code Point (DSCP)/IP precedence, TCP/UDP source and destination ports, 802.1p priority, Ethernet type, Internet Control Message Protocol (ICMP) packets, IGMP packets, TCP flag; ACL can be applied on both ingress and egress sides
Time-based ACLs supported
Quality of service
Priority levels
8 hardware queues
Scheduling
Strict priority and Weighted Round-Robin (WRR) queue assignment based on DSCP and Class of Service (802.1p/CoS)
Class of service
Port based, 802.1p VLAN priority based, IPv4/v6 IP precedence/Type of Service (ToS)/DSCP based, Differentiated Services (DiffServ), classification and re-marking ACLs, trusted QoS
Rate limiting
Ingress policer, egress shaping and rate control per VLAN, per port, and flow based
Congestion avoidance
A TCP congestion avoidance algorithm is required to reduce and prevent global TCP loss synchronization
Standards
Standards
IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3ad Link Aggregation Control Protocol, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, IEEE 802.3 ad LACP, IEEE 802.1D (STP), IEEE 802.1Q/p VLAN, IEEE 802.1w RSTP, IEEE 802.1s Multiple STP, IEEE 802.1X Port Access Authentication, IEEE 802.3af, IEEE 802.3at, RFC 768, RFC 783, RFC 791, RFC 792, RFC 793, RFC 813, RFC 879, RFC 896, RFC 826, RFC 854, RFC 855, RFC 856, RFC 858, RFC 894, RFC 919, RFC 920, RFC 922, RFC 950, RFC 951, RFC 1042, RFC 1071, RFC 1123, RFC 1141, RFC 1155, RFC 1157, RFC 1213, RFC 1215, RFC 1286, RFC 1350, RFC 1442, RFC 1451, RFC 1493, RFC 1533, RFC 1541, RFC 1542, RFC 1573, RFC 1624, RFC 1643, RFC 1700, RFC 1757, RFC 1867, RFC 1907, RFC 2011, RFC 2012, RFC 2013, RFC 2030, RFC 2131, RFC 2132, RFC 2233, RFC 2576, RFC 2616, RFC 2618, RFC 2665, RFC 2666, RFC 2674, RFC 2737, RFC 2819, RFC 2863, RFC 3164, RFC 3411, RFC 3412, RFC 3413, RFC 3414, RFC 3415, RFC 3416, RFC 4330
Management
Cisco Business Dashboard
Support for embedded probe for Cisco Business Dashboard running on the switch. Eliminates the need to set up a separate hardware or virtual machine for the Cisco Business Dashboard probe onsite
Cisco Business mobile app
Mobile app for Cisco Business switch and wireless products. Helps to set up a local network in minutes and provide easy management at your fingertips.
Cisco Network Plug and Play (PnP) agent
The Cisco Network PnP solution provides a simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or for provisioning updates to an existing network. The solution provides a unified approach to provision Cisco routers, switches, and wireless devices with a near-zero-touch deployment experience.
Supports Cisco PnP Connect
Web user interface
Built-in switch configuration utility for easy browser-based device configuration (HTTP/HTTPS). Supports configuration, wizards, system dashboard, system maintenance, and monitoring
Basic and advanced mode for maximum operational efficiency
SNMP
SNMP versions 1, 2c, and 3 with support for traps, and SNMP v3 User-Based Security Model (USM)
