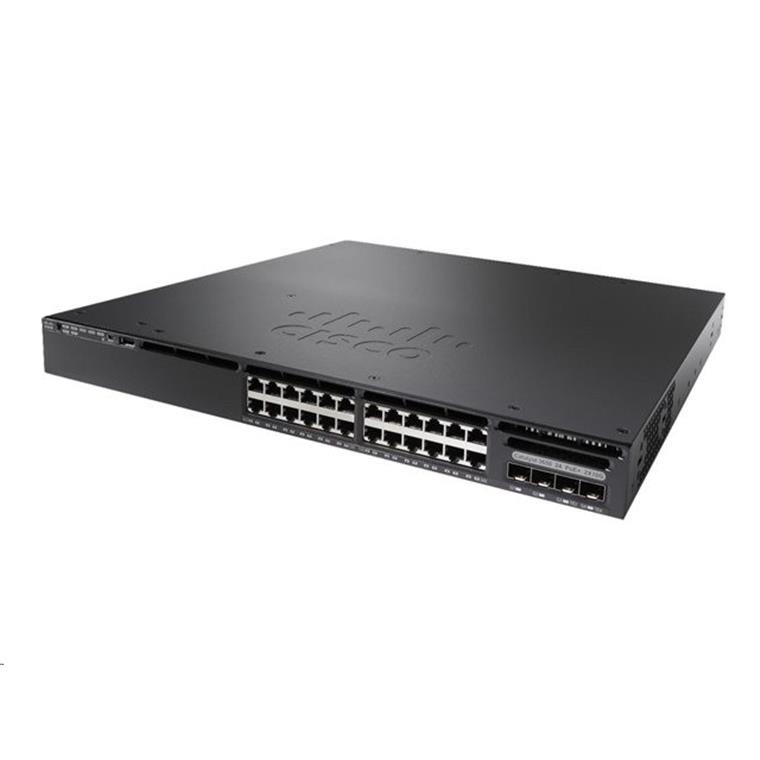

Cisco Catalyst WS-C3650-24TD-S, 24-Port Gigabit Stackable IP Base Layer 3 Managed Unified Access Switch, 2x 10G SFP+ Uplinks

The Digital Transformation: Converged Wired and Wireless Access

The promise of digital for your business is all about innovating more quickly while reducing risk, cost, and complexity. Your network will form the foundation of your business's transformation. But supporting your digital organization will require your network to move beyond just connectivity to be a platform for insights, automation, and security. This is the power of the Cisco® Digital Network Architecture (DNA). Cisco DNA is a monumental shift on how to design and build networks. The Cisco Catalyst® 3650 Series, as part of the Cisco DNA portfolio of next-generation enterprise-class standalone or stackable Ethernet and Multigigabit Ethernet access layer switches, securely enables time-saving virtualization, greater automation, and valuable analytics data that directly address your evolving business needs, including less cost to install and operate. The Cisco Catalyst 3650 Series provides capabilities that are ideally suited to support the convergence of wired and wireless access. The new Cisco Unified Access™ Data Plane (UADP) application-specific integrated circuit (ASIC) powers the switch and enables uniform wired-wireless policy enforcement, application visibility, flexibility, and application optimization. This convergence is built on the resilience of the new and improved Cisco StackWise®-160 technology. The Cisco Catalyst 3650 Series Switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE®), and modular and field-replaceable redundant fans and power supplies. The 3650 Series switches also come in a 12-inch lower depth form factor so that you can deploy them in tight wiring closets in remote branches and offices where depth of the switch is a concern.

Product Overview

-   Integrated wireless controller capability with:
  -  Up to 40G of wireless capacity per switch (48-port models)
  -  Support for up to 50 access points and 1000 wireless clients on each switching entity (switch or stack)
-   24 and 48 10/100/1000 data and PoE+ models with energy-efficient Ethernet (EEE) supported ports
-   24 and 48 100-Mbps and 1-, 2.5-, 5-, and 10-Gbps (multigigabit) Cisco UPOE models with EEE[1]
-   Five fixed-uplink models with four Gigabit Ethernet, two 10 Gigabit Ethernet, four 10 Gigabit Ethernet, eight 10 Gigabit Ethernet, or two 40 Gigabit Ethernet Quad Small Form-Factor Pluggable Plus (QSFP+) ports
-   24-port and 48-port 10/100/1000 PoE+ models with lower noise and reduced depth of 11.62 inches for shallow depth cabinets in enterprise, retail, and branch-office environments
-   Optional Cisco StackWise-160 technology that provides scalability and resiliency with 160 Gbps of stack throughput
-   Dual redundant, modular power supplies and three modular fans providing redundancy[2]
-   Support for external power system RPS 2300 on the 3650 mini SKUs for power redundancy
-   Full IEEE 802.3at (PoE+) with 30W power on all ports in 1 rack unit (RU) form factor
-   Cisco UPOE with 60W power per port in 1 rack unit (RU) form factor
-   IEEE 802.3bz (2.5/5 G/s BASE-T) to go beyond 1 Gb/s with existing Cat5e and Cat6
-   IEEE 802.3ba AV Bridging (AVB) built-in to provide better AV experience for including improved time synchronization and QoS.
-   Software support for IPv4 and IPv6 routing, multicast routing, modular quality of service (QoS), Flexible NetFlow (FNF) Version 9, and enhanced security features
-   Single universal Cisco IOS® Software image across all license levels, providing an easy upgrade path for software features
-   DNA services delivered through Cisco ONE™ Software, providing simplified, high-value solutions with license portability and flexibility
-   Enhanced limited lifetime warranty (E-LLW) with next business day (NBD) advance hardware replacement and 90-day access to Cisco Technical Assistance Center (TAC) support
