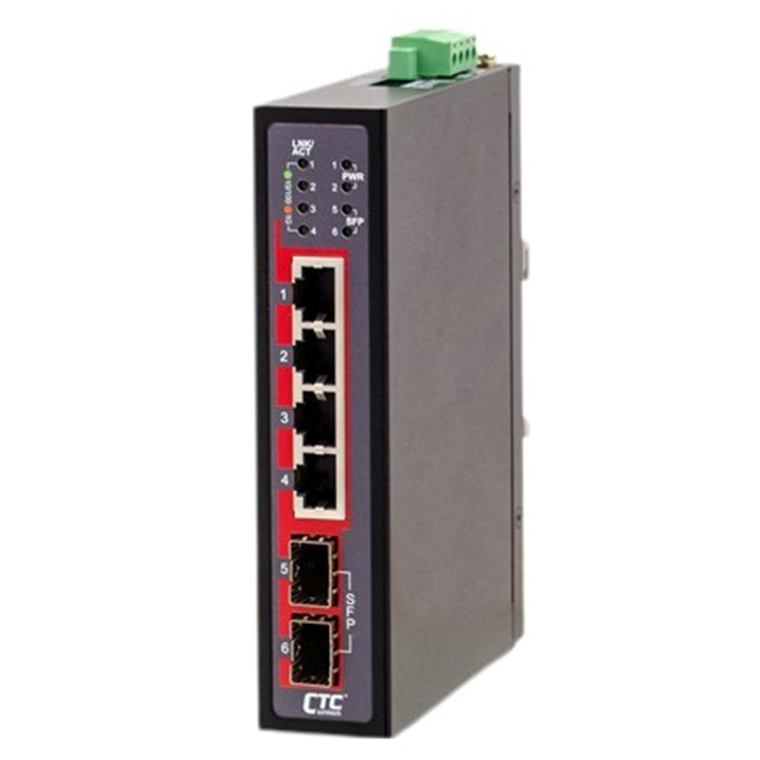

AMDEX CTC UNION 4 Port Gigabit + 2x SFP Unmanaged Switch. -40C +75C. 4x 10/100/1000Base-T, plus2x100/1000Base-X SFP (Total 6 ports). 4KV Surge Protection. Din Rail with Screws Included.

PB Tech price
PB Tech price
NZD $ 425 .22
$ 425 .22
$425.22  +GST
$425.22

AMDEX CTC UNION 4 Port Gigabit + 2x SFP Unmanaged Switch. -40C +75C. 4x 10/100/1000Base-T, plus2x100/1000Base-X SFP (Total 6 ports). 4KV Surge Protection. Din Rail with Screws Included.

  • Brand: AMDEX
  • MPN: IGS-402CS-E
  • Part #: SWHCTC1055
  • UPC:
PB Tech price
NZD $ 425 .22 $ 425 .22
In stock at NZ Logistics Centre
Delivery: Order now and it ships on 09 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$425.22  +GST
$425.22
Add To Compare
Stock Alerts
Click or hover over image to enlarge
  • Brand: AMDEX
  • MPN: IGS-402CS-E
  • Part #: SWHCTC1055
  • UPC:

10 Gigabit

No

10 Gigabit Ports

0 Ports

Form Factor

DIN Rail

Management Level

Unmanaged

Number of Ports

6 Ports

PoE

No

PoE Ports

N/A

PoE Budget

N/A

View full specs
Returns & Warranty Bulk Quote Print Page

Features

The IGS-402CS-E is a 6-port unmanaged industrial-grade Ethernet switch that provides stable and reliable Ethernet transmission. Housed in rugged DIN rail or wall mountable enclosures, the switch is designed for harsh environments, such as industrial networking, security automation applications, IP Surveillance, and intelligent transportation systems (ITS) and is also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications. Standard operating temperature ranges (-40 to 75°C) to fulfil the special needs of industrial automation applications.

- 4KV surge protection for UTP and SFP ports
- Wide operating temperature -40°C~75°C
- P30 rugged metal housing and fanless
- 12/24/48V DC (9.6~60V DC) redundant dual input power
- Supports DIP switch to set broadcast storm protection, SFP Auto/Force Mode, SFP 100M/1000M; RJ45 Auto/force mode, 10M/100M, Full/half.
- Supports flow control
- Provides broadcast storm protection
- DIN Rail mounting or wall mounting

Specifications

IEEE Standard

IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX and 100Base-FX Fast Ethernet
IEEE 802.3ab 1000Base-T Gbit/s Ethernet over twisted pair
IEEE 802.3z 1000Base-X Gigabit Ethernet over fiber-optic
IEEE 802.3x Flow Control and Back Pressure

Switch Architecture

Back-plane (Switching Fabric): 12 Gbps

Data Processing

Store and Forward

Flow Control

IEEE 802.3x flow control, back pressure flow control

MAC Address Table

4K

Packet Buffer Size

1.75Mbit

Max Frame Size

1522Bytes

Jumbo Frame

10K Byte

Network Connector

4x RJ-45 for 10/100/1000Base-T Auto Negotiation Speed or Force Mode, Auto MDI/MDI-X function, Full/Half duplex

Network Cable

UTP/STP Cat. 5e cable or above
EIA/TIA-568 100-ohm (100meter)

Network Cable

Fiber Cable (Multi-mode): 50/125um, 62.5/125um
Fiber Cable (Single-mode): 9/125um

Protocols

CSMA/CD

LED

Per unit: Power 1 (Green), Power 2 (Green)
Per RJ-45 port : 10/100M Link/Act (Green)
1000M Link/Act (Amber)
SFP Fiber port: 100 Link/Active (Green)
1000 Link/Active (Amber)

DIP SW

DIP 1 Broadcast Protection
OFF : Enable ON : Disable
DIP 2 Off: Fiber Auto
On: Fiber Force Mode
DIP 3 SFP Fiber Speed
OFF: Giga ON: 100M
DIP 4 RJ45 Mode
OFF: Auto ON: Force
DIP 5 RJ45 Speed
OFF: 100M ON: 10M
DIP 6 RJ45 Duplex
OFF: Full ON: Half

Reverse Polarity Protection

Supported for Power Input

Overload Current Protection

Supported

Power Supply

Redundant dual 12/24/48VDC (9.6~60VDC) input power (Removable terminal block)

Power Consumption

12VDC 5.8W
24VDC 6.5W
48VDC 8.2W

Removable Terminal Block

Provides 2 Redundant power, 4 Pin

Operating Temperature

-40 ~ 75°C (IGS-402CS-E)

Operating Humidity

5% to 95% (Non-condensing)

Storage Temperature

-40 ~ 85°C

Housing

Rugged metal, IP30 Protection and fanless

Dimensions

106x 31.6x 142mm (D X W X H)

Weight

420g

Installation Mounting

DIN Rail mounting, or wall mounting (Optional)

MTBF

862,267Hours (MIL-HDBK-217)

Manufacturer Part No:
IGS-402CS-E
Brand:
AMDEX
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
SWHCTC1055
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
