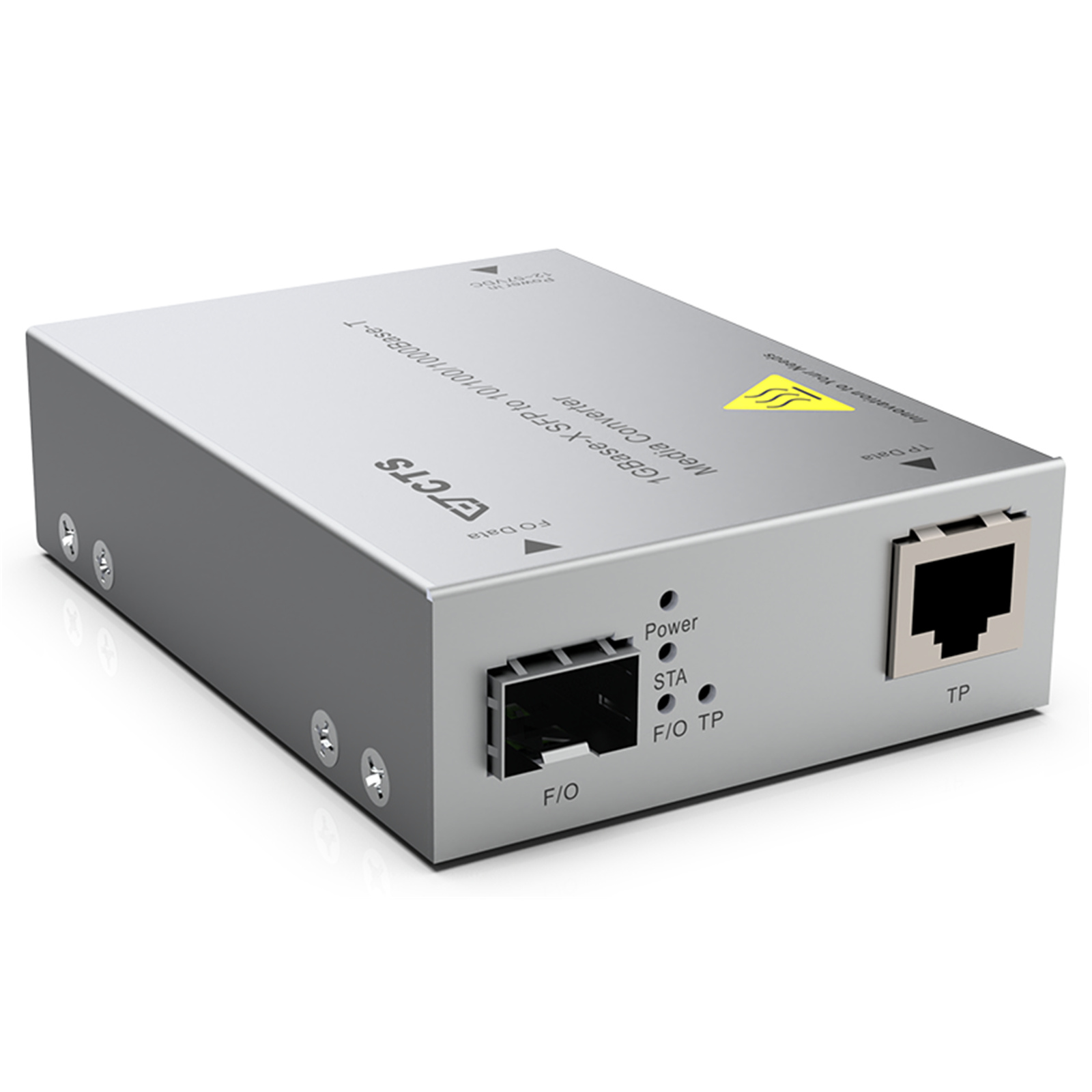

AMDEX CTS 1GBase-X SFP to 10/100/1000 Base-T Rugged Media Converter. Operating Temperature -40°Cto75°C (Environmental). Optional Slim Mount & Power Supply Not Included.
Out of stock
AMDEX CTS 1GBase-X SFP to 10/100/1000 Base-T Rugged Media Converter. Operating Temperature -40°Cto75°C (Environmental). Optional Slim Mount & Power Supply Not Included.
- Brand: AMDEX
- MPN: SRC-3002SFP
- Part #: SWHCTC1057
- UPC:
- Brand: AMDEX
- MPN: SRC-3002SFP
- Part #: SWHCTC1057
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Media Converters





AMDEX CTS 1GBase-X SFP to 10/100/1000 Base-T Rugged Media Converter. Operating Temperature -40°Cto75°C (Environmental). Optional Slim Mount & Power Supply Not Included.
- Brand: AMDEX
- MPN: SRC-3002SFP
- Part #: SWHCTC1057

Product URL: https://www.pbtech.com/pacific/product/SWHCTC1057/AMDEX-CTS-1GBase-X-SFP-to-101001000-Base-T-Rugged
Features
Connection Technology System (CTS) SRC-3002SFP stands out as a robust media converter, designed to operate efficiently within a broad temperature range spanning from -40 to 75°C. Its functionality extends to converting 100/1000Base-X SFP to a 10/100/1000Base-T RJ-45 port, ensuring full compliance with IEEE 802.3, 802.3u, 802.3ab, and 802.3z standards.
In addition to its rugged capabilities, the SRC-3002SFP, despite being an unmanaged media converter, offers users intuitive configurability and monitoring options. This is facilitated through the DIP switch and LED indicator on its panel. The DIP switch empowers users to control various functions, including Link Alarm, Data-diode, and more.
These user-friendly attributes contribute to the SRC-3002SFP's versatility, transforming it into not just a straightforward product but a comprehensive solution for diverse needs.
Link Alarm
Alert users to connectivity issues as copper and fibre optic interfaces are designed to be link-interdependent. Link down on either side will result in the other's disconnection
Wall-mounting Installation
Supports wall-mounting installation method
Adjustable Fiber Speed
Adjust the fibre speed manually and compatible with more network applications
-40°C ~ 75°C
To boasts an extended temperature range, enabling operation from -40°C~75°C
DIN-rail Installation
Supports DIN-rail installation method
Data-diode
The Data-Diode function is tailored for this scenario, allowing users to customize it for single or bi-directional transmission, along with the specified direction

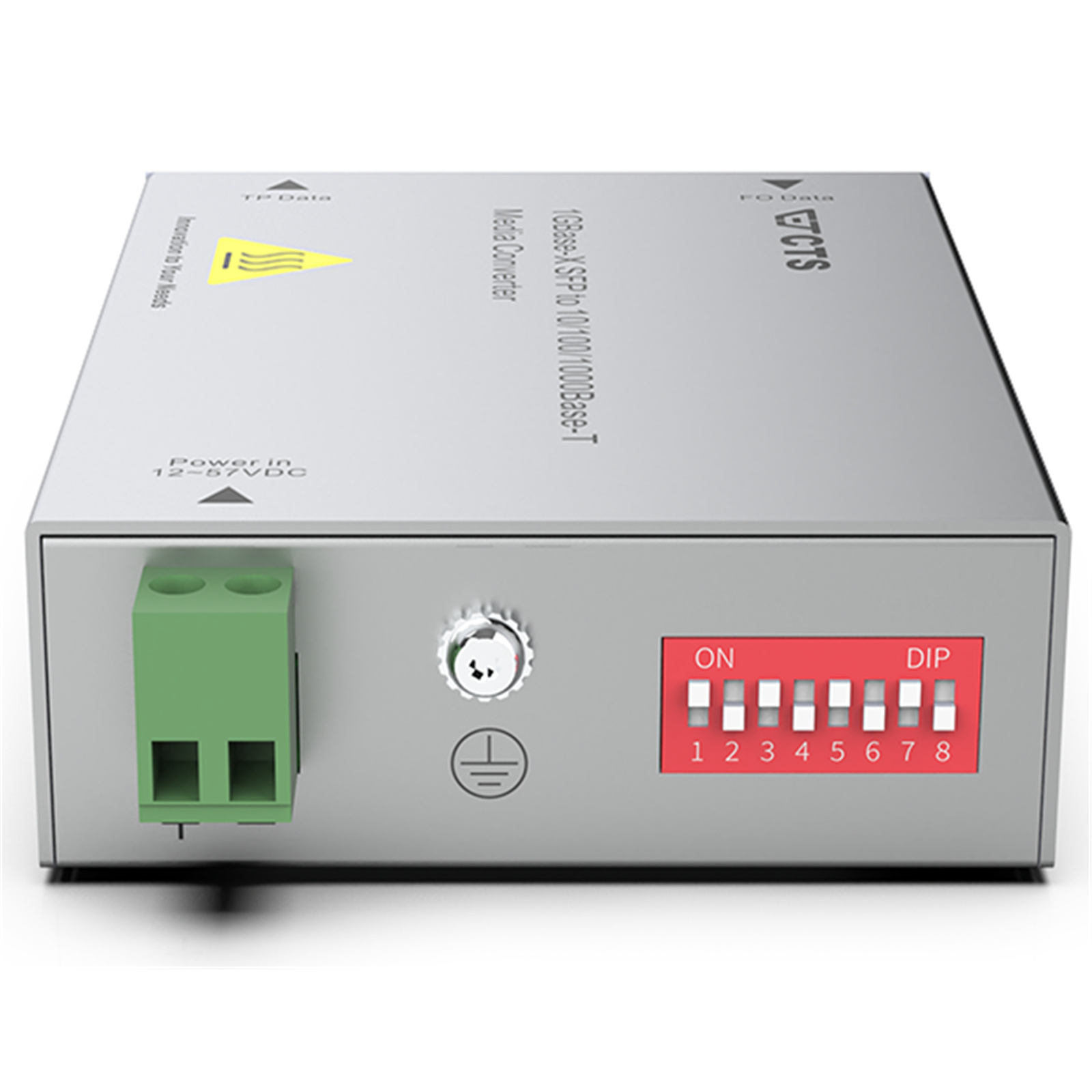

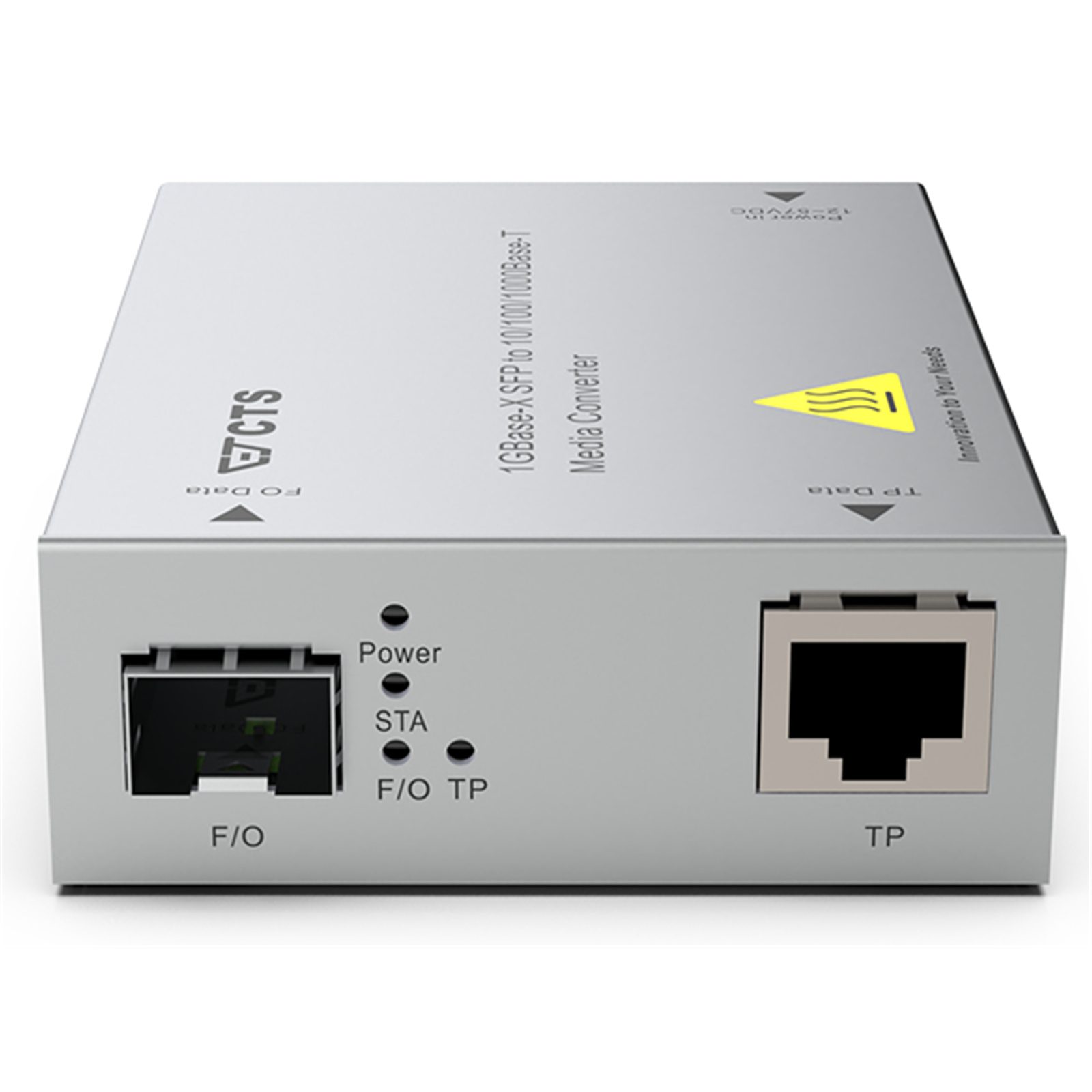

Hardware Overview
Specifications
General
Model
SRC-3002SFP
Fiber Slot
Speed(Mbps): 100/1000
Type: SFP
Slot: 1
TP Port
Speed(Mbps): 10/100/1000
Port: 1
Support Power Source
1 x 12~57V DC with 2-pin removable terminal block
1 x 12~57V DC
Interface
1 x 100/1000Base-X SFP Slot
1 x 10/100/1000Base-T RJ-45
LED
Power, Status,
TP Link/Act/Speed, F/O Link/Act/Speed
Power Requirement
DC Input: 12~57V (2-pin removable terminal block or DC jack)
Max. Power Consumption: 2.45W (8.36 BTU/h)
Hardware
MAC Address Table: 2K
Non-blocking Switching Fabric: 4Gbps
Throughput @ 64Bytes: 2.9Mpps
Jumbo Frame: 9K Bytes
Packet Buffer: 1Mbit
Store and Forward Switching Mechanism
Auto-Cross over for MDI/MDI-X in TP port
Auto-Negotiation in TP Port
Full/Half Duplex Mode Operation
Environmental Condition
Operation
-40°C~75°C
Storage Temperature
-40°C~85°C
Humidity
5%~95% RH, Non-Condensing
Dimension & Weight
Size
71 x 94 x 26mm (W x D x H)
Weight
190 g
Housing
Aluminum(Upper), Iron(Bottom), IP30
Safety
EMC/Safety
FCC Class A, CE
ESD
- Air Discharge: +/-8kV
- Contact Discharge: +/-4kV
EFT
- DC Power: +/-0.5kV
Surge Protection: +/-3kV
