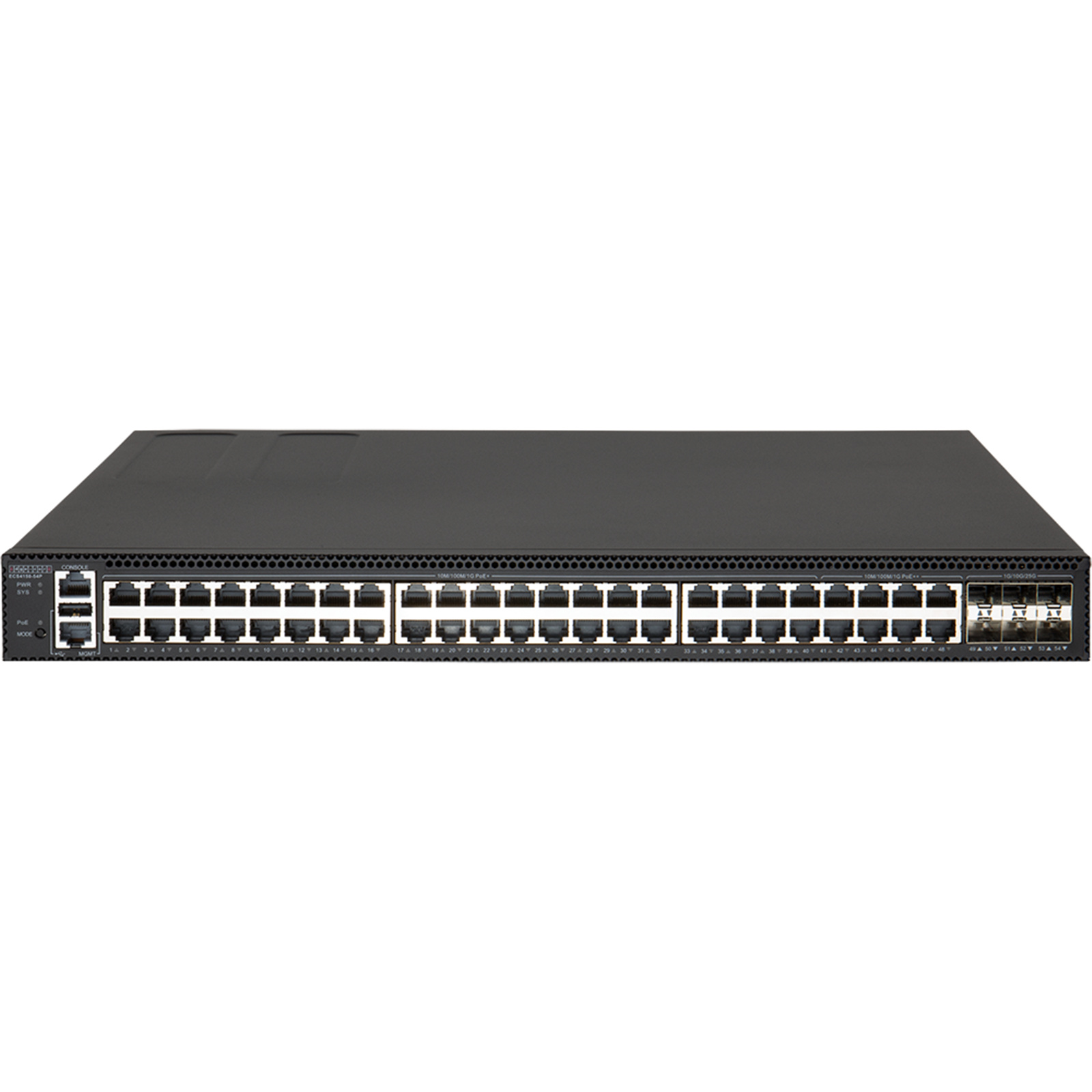

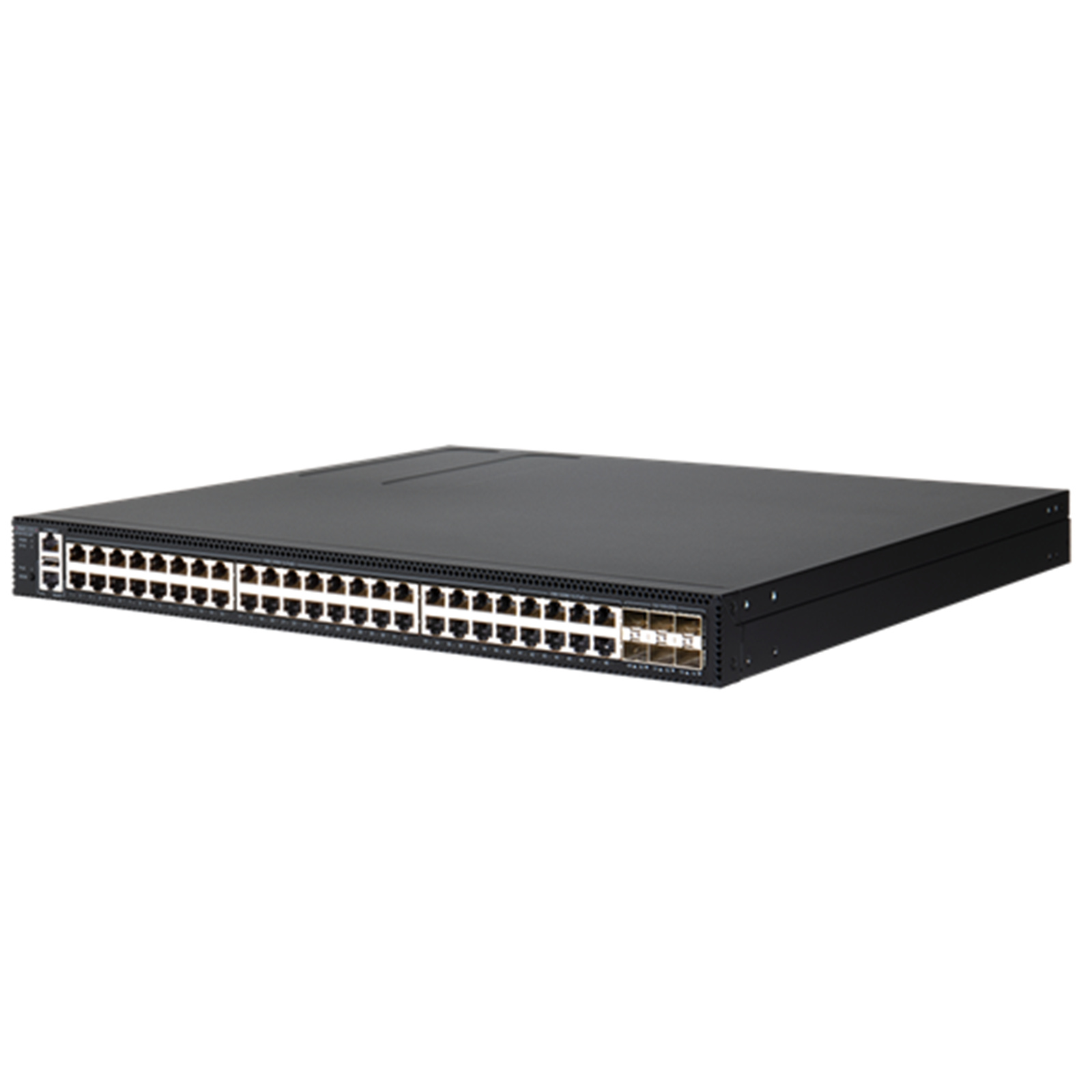

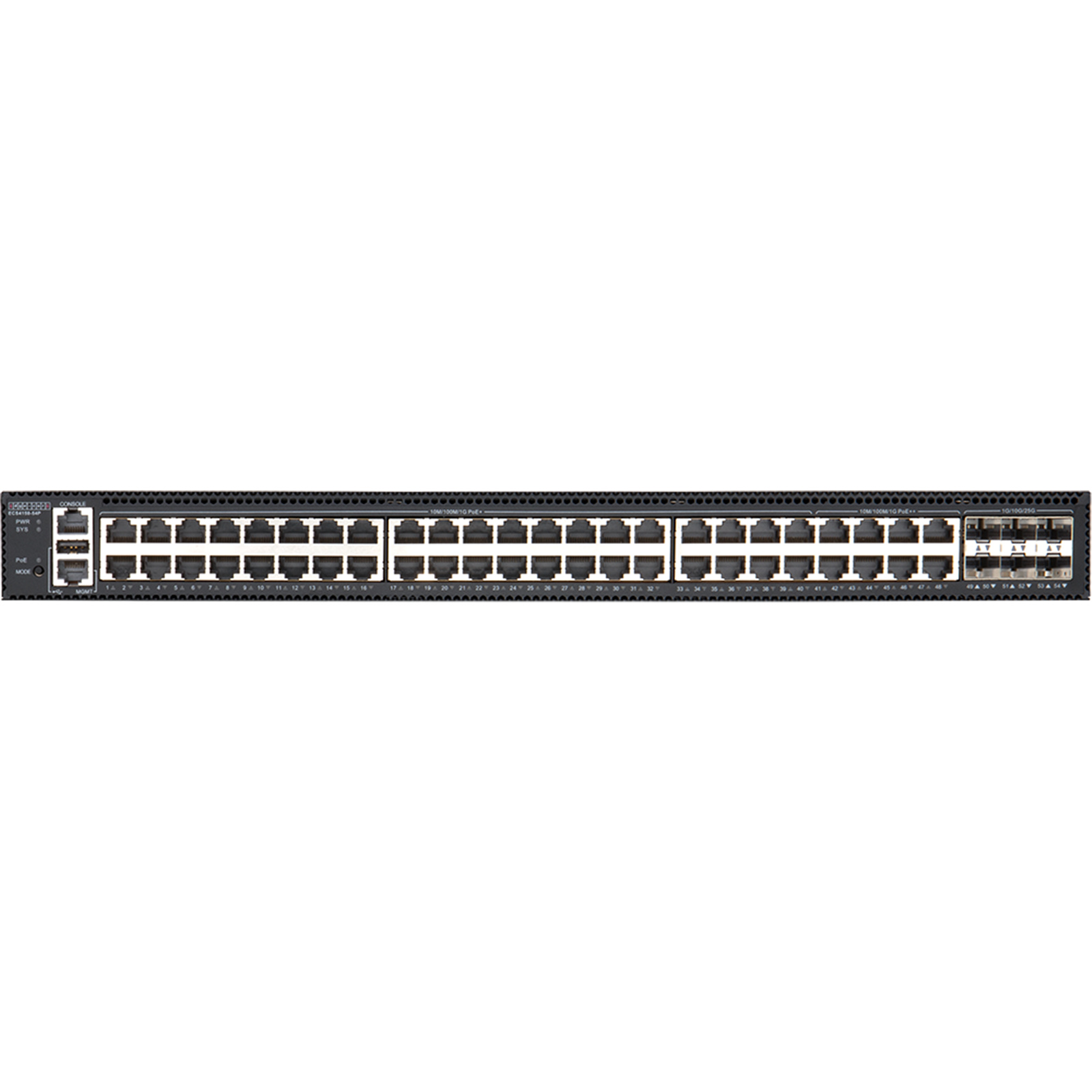

Edgecore 48 Port Managed L2+/L3 Lite PoE Gigabit Ethernet Switch with 6 x SFP28 25G UplinkPorts.IPv6 Management. 90 Watts PoE++.
Edgecore 48 Port Managed L2+/L3 Lite PoE Gigabit Ethernet Switch with 6 x SFP28 25G UplinkPorts.IPv6 Management. 90 Watts PoE++.
- Brand: Edgecore
- MPN: ECS4150-54P
- Part #: SWHEDG1101
- UPC:
- Brand: Edgecore
- MPN: ECS4150-54P
- Part #: SWHEDG1101
- UPC:
Features
The Edgecore ECS4150-28T switch is a Gigabit Ethernet access switch with four 10G SFP+ uplinks. The switch is ideal for Internet Service Providers (ISPs) and Multiple System Operators (MSOs) wanting to provide home users with triple-play services with up to a Gigabit of bandwidth. This switch is also positioned as Cloud Edge access switch to connect IOT and other devices in Enterprises and SMB deployments. It is also an ideal Gigabit access switch for SMB, enterprise, and campus networks.
The ECS4150-28P is a PoE switch which can provide up to 30 Watts to Power Devices such as Wireless Access Point, VoIP Phone, Surveillance camera, IoT devices etc over Cat 5 UTP cable eliminate the need for individual power source. The ECS4150-28T/ECS4150-28P is packed with features that bring high availability, comprehensive security, robust multicast control, and advance QoS to the network edge, while maintaining simple management. The switch also supports the most advance IPv6 management, IPv6 security, and IPv6 multicast control in accordance with the growth of IPv6 deployment.
- Best price-performance Gigabit Ethernet access switch with 10G uplinks
- Low power consumption with a fanless and noiseless design
- ITU-T G.8032 ERPS L2 Ring protection with <50 convergence time
- Comprehensive and field-proven software features for ISP/ Carrier to provide broadband access, IPTV services
- L2+/ Lite L3 feature upgrades the L2 switch with routing functionality
- Enhanced Security,IPv6 and Multicast features
- Simple management (CLI, SNMP, Web, ecCLOUD, TIP OLS)
- Complete Private MIB to fully control and monitor the switch via customer's EMS
Interfaces
1.RJ-45 management port
2.48 x RJ-45 10/100/1000BASE-T PoE ports (ECS4150-54P)
3.6 x SFP28 25G uplink ports
4. USB management port
5.RJ-45 console port

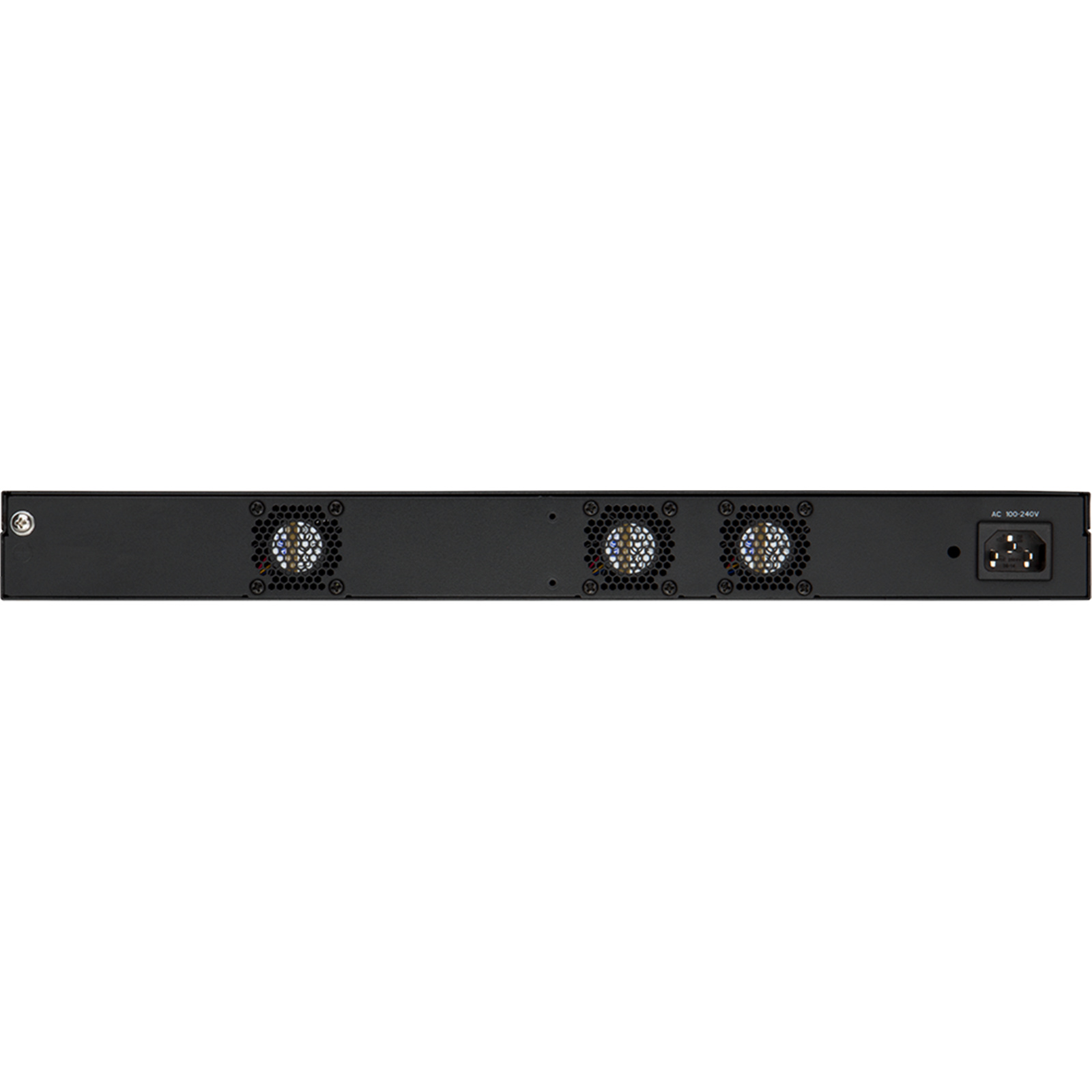

6.AC power input
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Switches
Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch -...
TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch
TP-Link TL-SG105 5-Port 10/100/1000Mbps Desktop Switch
TP-Link TL-SG108PE 8-Port Gigabit Easy Smart PoE Switch with 4...
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE...
Edgecore 48 Port Managed L2+/L3 Lite PoE Gigabit Ethernet Switch with 6 x SFP28 25G UplinkPorts.IPv6 Management. 90 Watts PoE++.
- Brand: Edgecore
- MPN: ECS4150-54P
- Part #: SWHEDG1101
Product URL: https://www.pbtech.com/pacific/product/SWHEDG1101/Edgecore-48-Port-Managed-L2L3-Lite-PoE-Gigabit-Eth
Features
The Edgecore ECS4150-28T switch is a Gigabit Ethernet access switch with four 10G SFP+ uplinks. The switch is ideal for Internet Service Providers (ISPs) and Multiple System Operators (MSOs) wanting to provide home users with triple-play services with up to a Gigabit of bandwidth. This switch is also positioned as Cloud Edge access switch to connect IOT and other devices in Enterprises and SMB deployments. It is also an ideal Gigabit access switch for SMB, enterprise, and campus networks.
The ECS4150-28P is a PoE switch which can provide up to 30 Watts to Power Devices such as Wireless Access Point, VoIP Phone, Surveillance camera, IoT devices etc over Cat 5 UTP cable eliminate the need for individual power source. The ECS4150-28T/ECS4150-28P is packed with features that bring high availability, comprehensive security, robust multicast control, and advance QoS to the network edge, while maintaining simple management. The switch also supports the most advance IPv6 management, IPv6 security, and IPv6 multicast control in accordance with the growth of IPv6 deployment.
- Best price-performance Gigabit Ethernet access switch with 10G uplinks
- Low power consumption with a fanless and noiseless design
- ITU-T G.8032 ERPS L2 Ring protection with <50 convergence time
- Comprehensive and field-proven software features for ISP/ Carrier to provide broadband access, IPTV services
- L2+/ Lite L3 feature upgrades the L2 switch with routing functionality
- Enhanced Security,IPv6 and Multicast features
- Simple management (CLI, SNMP, Web, ecCLOUD, TIP OLS)
- Complete Private MIB to fully control and monitor the switch via customer's EMS
Interfaces
1.RJ-45 management port
2.48 x RJ-45 10/100/1000BASE-T PoE ports (ECS4150-54P)
3.6 x SFP28 25G uplink ports
4. USB management port
5.RJ-45 console port
6.AC power input
Specifications
Product Model
ECS4150-54P
Port
RJ-45 10/100/1000BASE-T Ports
48
SFP28 25G Uplink Ports
6
RJ-45 Console Port
1
USB port
1
Performance
Switching Capacity
396 Gbps
Forwarding Rate
295 Mpps
NAND Flash Memory
256 MB
DRAM
1 GB
MAC Address Table
32 K
Jumbo Frames
10 KB
Auto-negotiation, Auto-MDI/MDIX
Yes
Mechanical
Dimension (W x D x H) mm
442 x 420 x 43.6
Weight
5.5 W
Power Supply
AC 100-240 VAC, 50/60 Hz
Yes
Max System Power Consumption (Watts)
835 W
PoE
IEEE 802.3af
Yes
IEEE 802.3at
Yes
IEEE 802.3bt
Yes
Power budget
740 W
Auto disable exceeding power budget
Yes
Dynamic power allocation
Yes
Environmental
Operating Temperature
-5 ~ 45ºC
Storage Temperature
-40 ~ 70ºC
Operating Humidity (non-condensing)
5% to 95%
Storage Humidity (non-condensing)
5% to 95%
Environmental Regulation compliance: WEEE
Yes
Environmental Regulation compliance: RoHS
Yes
Certification
FCC Class A
Yes
CE
Yes
Safety Compliance: CB
Yes
Safety Compliance: UL
Yes
