Edimax GS-5208PLGV2 10-Port Gigabit Long Range PoE+ Web Smart Switch with 2x SFP Slots. 8x POE Ports + 2SFP.IEEE 802.3af/at PoE/PoE+ Compliant Power Budget 84W. POE Support up to 200M.
Edimax GS-5208PLGV2 10-Port Gigabit Long Range PoE+ Web Smart Switch with 2x SFP Slots. 8x POE Ports + 2SFP.IEEE 802.3af/at PoE/PoE+ Compliant Power Budget 84W. POE Support up to 200M.
- Brand: Edimax
- MPN: GS-5208PLGV2
- Part #: SWHEDM1047
- UPC:
- Brand: Edimax
- MPN: GS-5208PLGV2
- Part #: SWHEDM1047
- UPC:
Similar in-stock products available at PB Tech right now
Features
Foster Global Businesses | Build Your High Performing Company

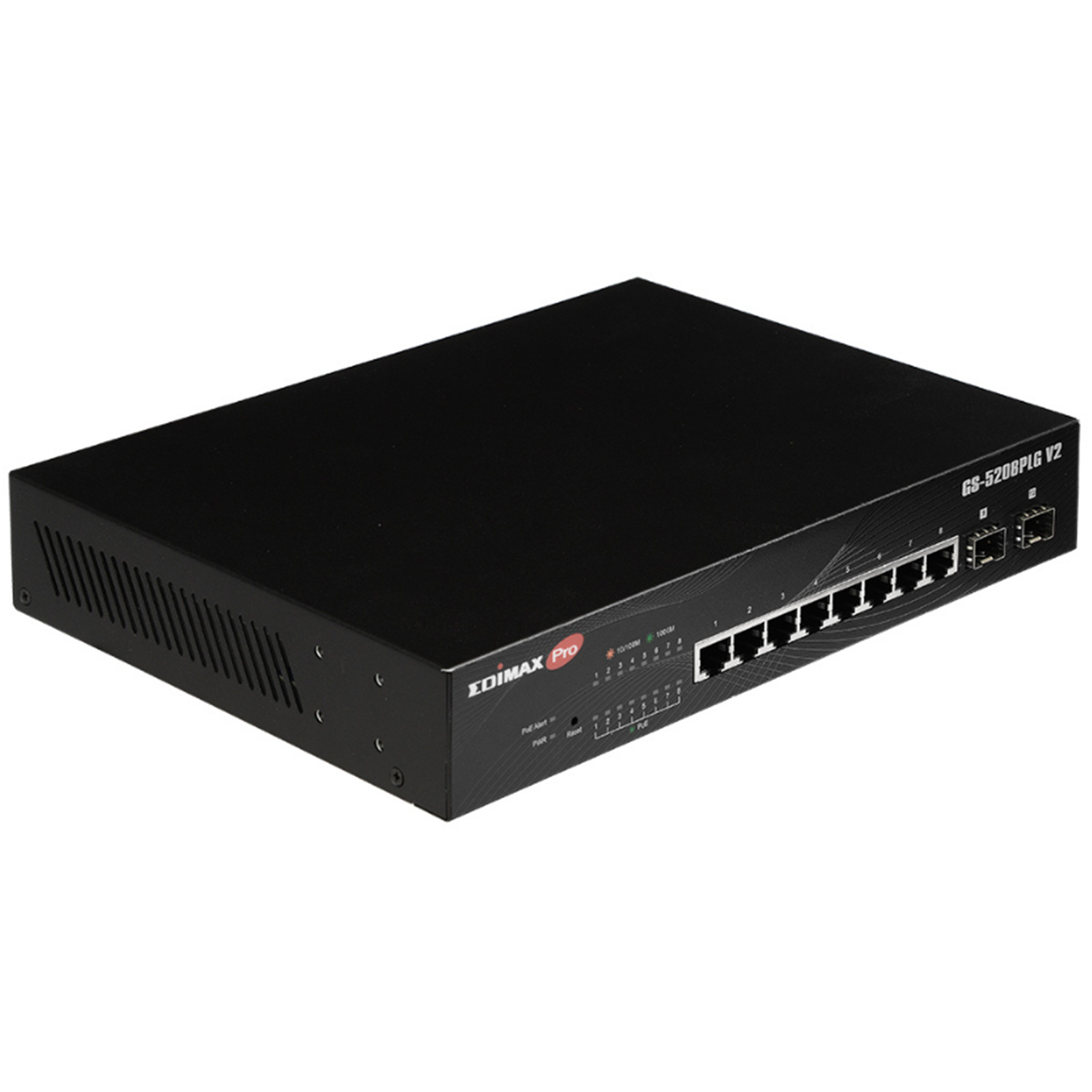

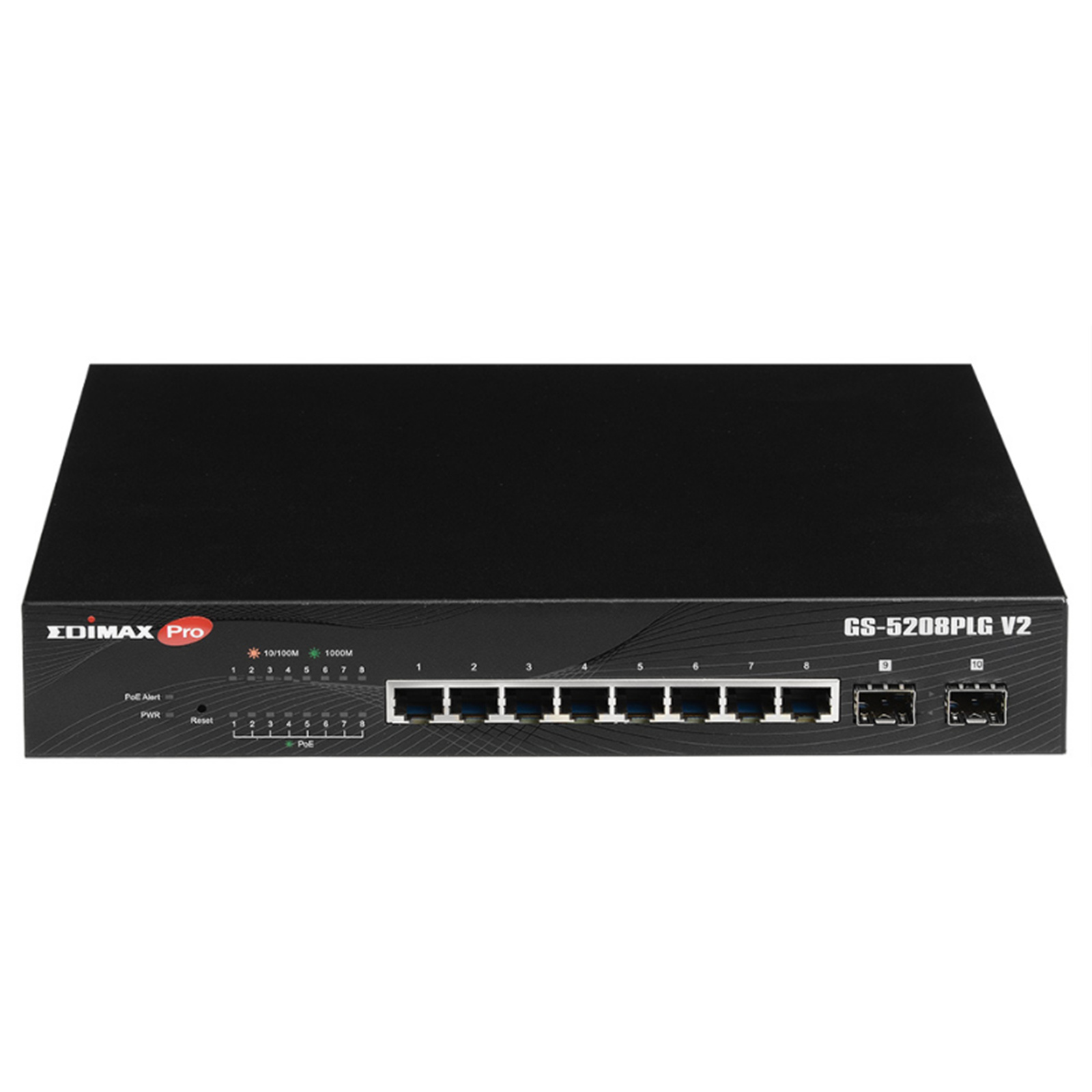

The EDIMAX Pro GS-5208PLG V2 is a web-smart switch with 8 Gigabit PoE+ and 2 Gigabit SFP ports. Designed for medium to small network environments, its standard 19-inch 1U rack-mount brackets allow for integration with the most widely used mounting systems on the market. The Edimax GS-5208PLG V2 is a superb choice to boost your network environment's performance and efficiency.
Powerful Optical GbE | 2 x Gigabit SFP Uplink
8 GbE ports for high-speed connections and up to 2 Gbps of fiber-optic uplinking capability allowing the GS-5208PLG V2 to be easily deployed in multiple physical locations, such as branches, retails, or remote workgroup environments for larger network access.
Let Safety be Known
The built-in power backfeed protection/ PoE detection function keeps the PoE network safe and efficient.
Strong Ability to Proceed Data
With 20Gbps backplane bandwidth and a forwarding rate of 14.88Mpps, the GS-5208PLG V2 provides maximum available bandwidth without delay.
Web Smart Management
The web-based management features include QoS, 802.1Q VLAN, IPv4/IPv6, Port Trunking, Port Mirroring, IGMP Snooping v1/v2/v3, Broadcast Storm Control, Access Control List (ACL), etc.
Guaranteed 200 Meters | Going the Distance
While general Ethernet switches have a distance restriction of 100 meters, the GS-5208PLG V2 long-range mode provides extended power and data delivery distance to 200 meters (656 ft.) at 10Mbps full-duplex operation on a per-port basis. It's ideal for long-distance applications such as IP cameras, VoIP phones, access points, and PoE-enabled IoT devices at remote locations.
Safe Power Backfeed Protection
Each port is equipped with power backfeed protection to avoid damaging the PoE ports while the non-standard PSE (Power Sourcing Equipments) are connected.
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Switches
Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch -...
TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch
TP-Link TL-SG105 5-Port 10/100/1000Mbps Desktop Switch
TP-Link TL-SG108PE 8-Port Gigabit Easy Smart PoE Switch with 4...
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE...
Edimax GS-5208PLGV2 10-Port Gigabit Long Range PoE+ Web Smart Switch with 2x SFP Slots. 8x POE Ports + 2SFP.IEEE 802.3af/at PoE/PoE+ Compliant Power Budget 84W. POE Support up to 200M.
- Brand: Edimax
- MPN: GS-5208PLGV2
- Part #: SWHEDM1047
Product URL: https://www.pbtech.com/pacific/product/SWHEDM1047/Edimax-GS-5208PLGV2-10-Port-Gigabit-Long-Range-PoE
Features
Foster Global Businesses | Build Your High Performing Company
The EDIMAX Pro GS-5208PLG V2 is a web-smart switch with 8 Gigabit PoE+ and 2 Gigabit SFP ports. Designed for medium to small network environments, its standard 19-inch 1U rack-mount brackets allow for integration with the most widely used mounting systems on the market. The Edimax GS-5208PLG V2 is a superb choice to boost your network environment's performance and efficiency.
Powerful Optical GbE | 2 x Gigabit SFP Uplink
8 GbE ports for high-speed connections and up to 2 Gbps of fiber-optic uplinking capability allowing the GS-5208PLG V2 to be easily deployed in multiple physical locations, such as branches, retails, or remote workgroup environments for larger network access.
Let Safety be Known
The built-in power backfeed protection/ PoE detection function keeps the PoE network safe and efficient.
Strong Ability to Proceed Data
With 20Gbps backplane bandwidth and a forwarding rate of 14.88Mpps, the GS-5208PLG V2 provides maximum available bandwidth without delay.
Web Smart Management
The web-based management features include QoS, 802.1Q VLAN, IPv4/IPv6, Port Trunking, Port Mirroring, IGMP Snooping v1/v2/v3, Broadcast Storm Control, Access Control List (ACL), etc.
Guaranteed 200 Meters | Going the Distance
While general Ethernet switches have a distance restriction of 100 meters, the GS-5208PLG V2 long-range mode provides extended power and data delivery distance to 200 meters (656 ft.) at 10Mbps full-duplex operation on a per-port basis. It's ideal for long-distance applications such as IP cameras, VoIP phones, access points, and PoE-enabled IoT devices at remote locations.
Safe Power Backfeed Protection
Each port is equipped with power backfeed protection to avoid damaging the PoE ports while the non-standard PSE (Power Sourcing Equipments) are connected.
Specifications
HARDWARE
Ports
8 x RJ45 10/100/1000Base-T Gigabit ports
2 x SFP 1000Base-X Gigabit uplinks ports
Transmission Method
Store and forward
Buttons
Reset button
LED Indicators
Per Port: Link/Act, PoE: Act/Status, Per Unit: Power
Power Input

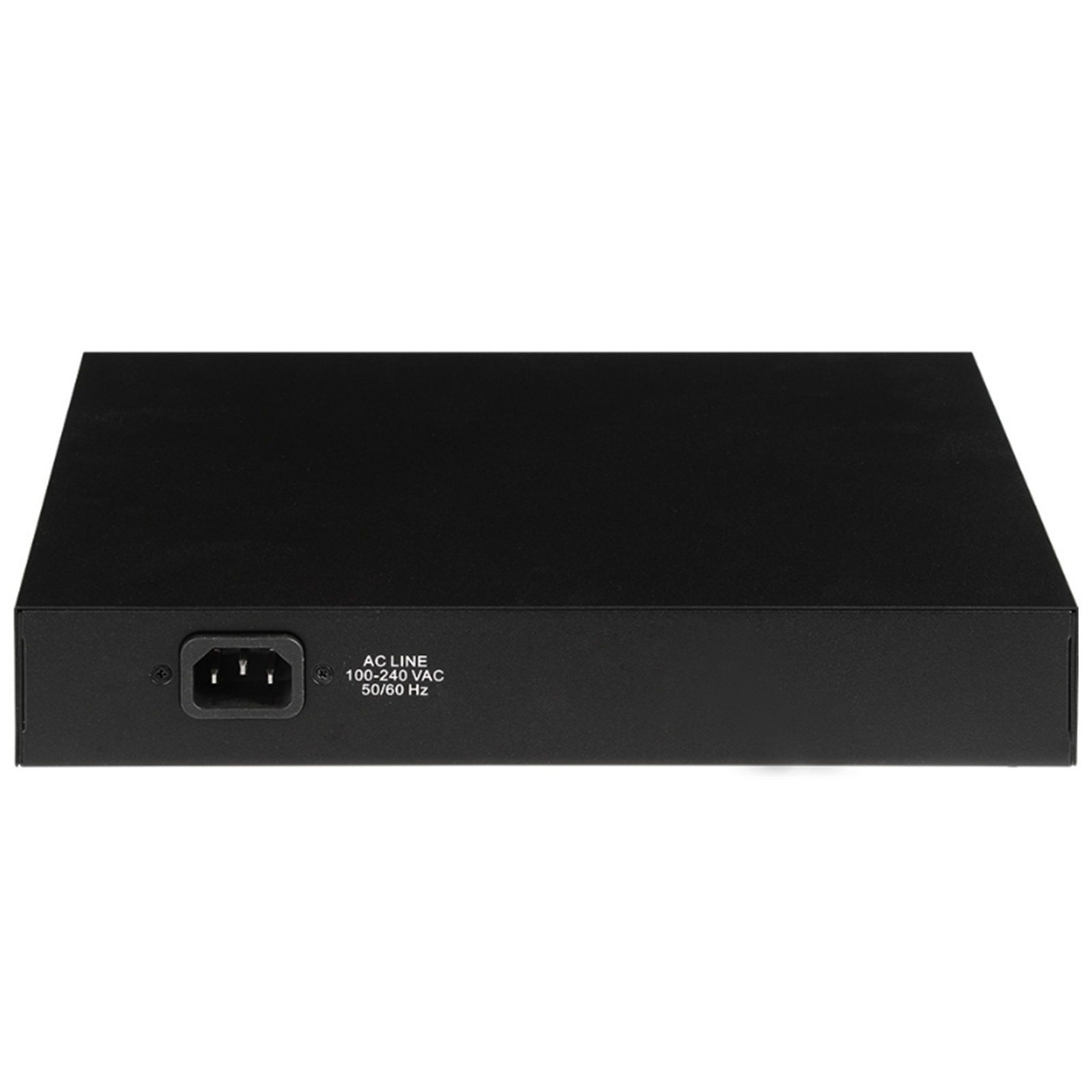

100-240V AC, 50-60 Hz, internal power supply
Total Power Budget
85W
Mounting
Desktop / Rack-mount (Rack-mount kit included)
Housing
Metal
Fan
Fanless
Dimensions (L x W x H)
265 (W) x 184 (D) x 44 (H) mm
Weight
1.42kg
PERFORMANCE
Switching Capacity
20Gbps
MAC Address
4K
Jumbo Frames
9.2K Bytes
Buffery Memory
1.5Mb
Filtering / Forwarding Rates
Max. 14.88Mpps
1000Mbps port - 1,488,000pps
100Mbps port - 148,800pps
10Mbps port - 14,880pps
POWER OVER ETHERNET
Standard
IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
Power Output
Up to 30W per port
Pin Assignment
1/2(+), 3/6(-) End-Span (mode A)
Management
PoE status, PoE on/off
PoE Long Range
Guaranteed PoE long distance to 200 meters at 10Mbps
Power Backfeed Protection
Built-in
SMART FEATURES
Quality of Service (QoS)
Port-based QoS
IEEE802.1p QoS,
4 Priority Queues
Scheduling algorithm
VLAN
Up to 10 VLANs
802.1Q tag-based VLAN
Port Trunking
IEEE 802.3ad LACP
Mirror
Port mirroring both on ingress and egress traffic
IGMP Snooping
IGMP v1/v2/v3 snooping
Block unknown multicast traffic
Multicast groups: 128
Security
Broadcast Storm control
Management
User Interface: Web-based Management
User Account: Login account configuration
Firmware Upgrade: Firmware Upgrade by WEB
Loop Detection/Prevention
ENVIRONMENT
Temperature
Operating Temperature: 0~50°C (32~122°F)
Storage Temperature: -40~70°C (-40~158°F)
Humidity (Non-condensing)
Operating Humidity: 10~90% (NonCondensing)
Storage Humidity: 10~90% (NonCondensing
STANDARDS COMPLIANCE
Standards
IEEE 802.3 10BaseT Ethernet
IEEE 802.3u 100BaseTX Fast Ethernet
IEEE 802.3ab 1000BaseT Gigabit Ethernet
IEEE 802.3x Full-duplex and Flow Control
IEEE 802.3ad LACP
IEEE 802.3az Energy Efficient Ethernet
IEEE 802.1Q VLAN
IEEE 802.1p Quality of Service (QoS)
IEEE 802.3af Power Over Ethernet (PoE)
IEEE 802.3at Power Over Ethernet Plus (PoE+)
Certifications
FCC, CE
