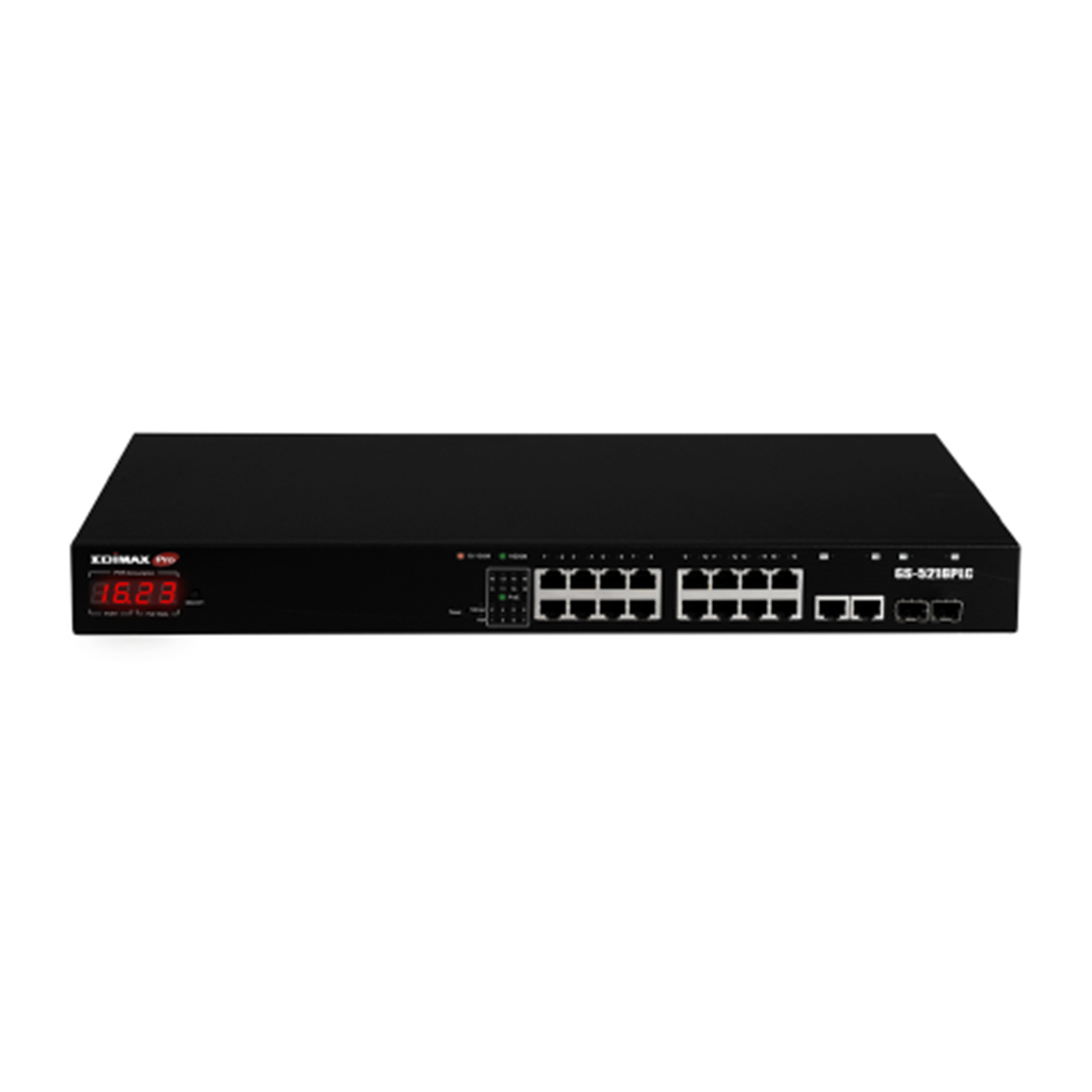

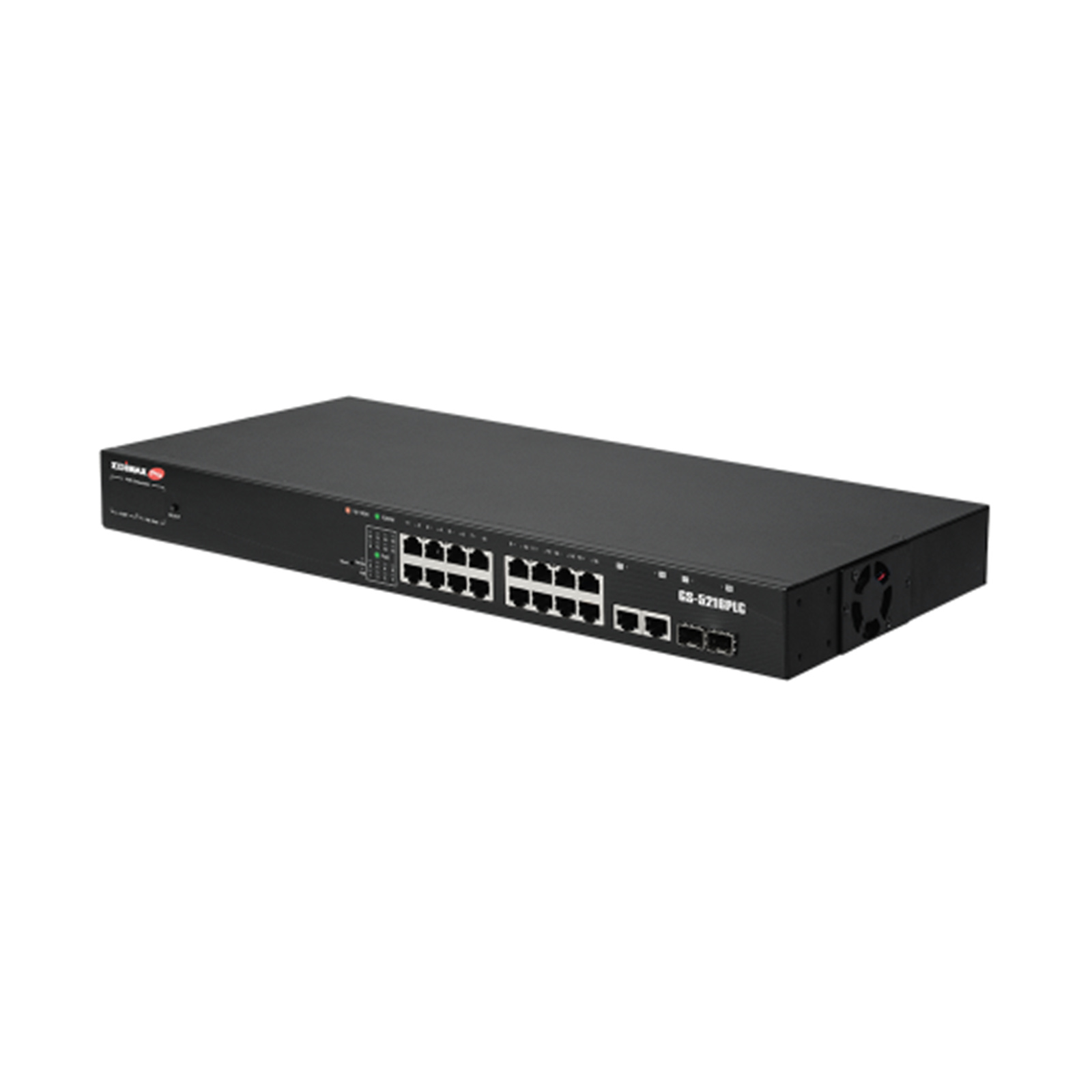

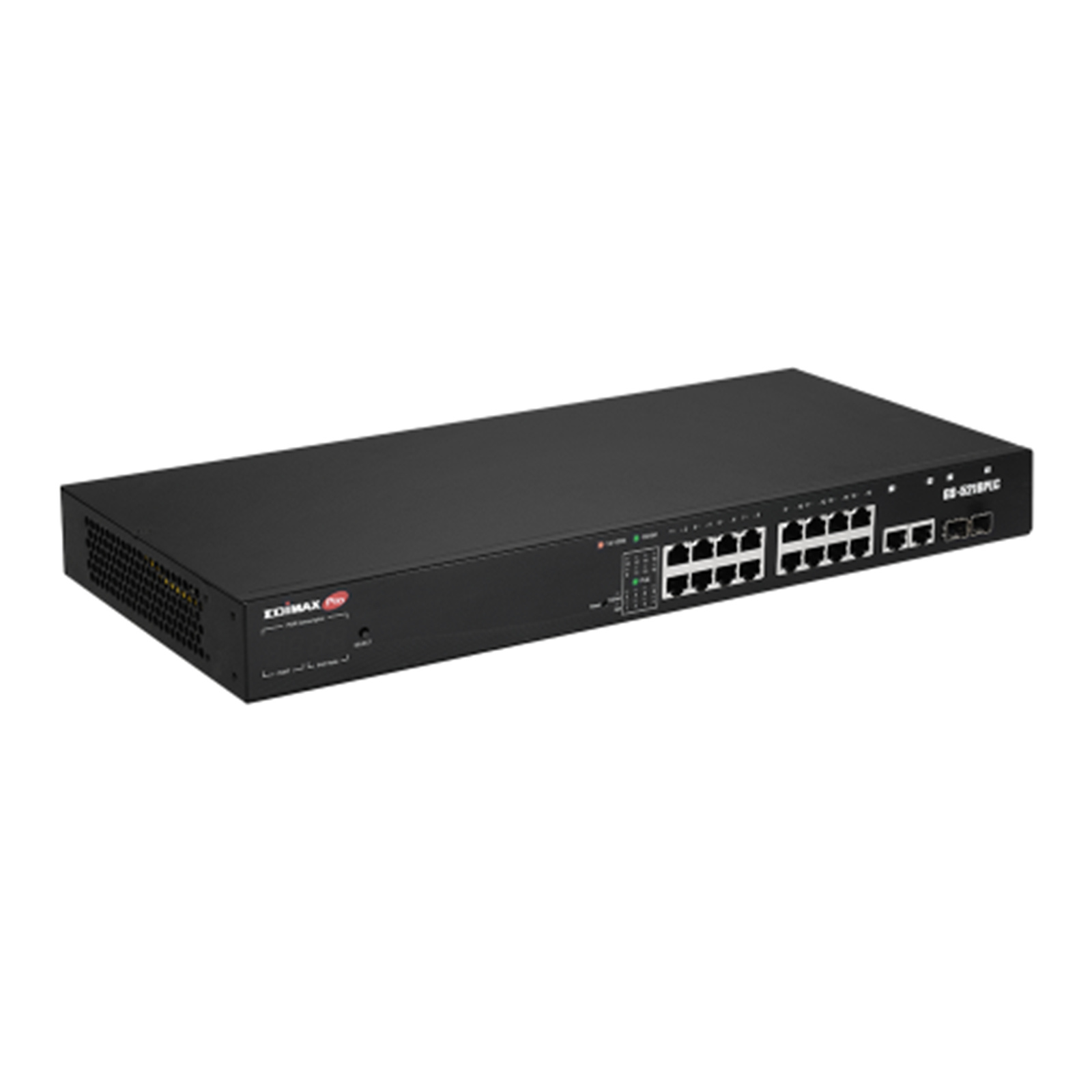

Edimax 16-Port Surveillance Long Range Gigabit PoE+ Web Smart Switch with 2 Gigabit RJ45 & 2 SFPPorts. Max Power Budget 280W. Supports PoE up to 200m. IEEE 802.3af/at PoE Compliant. IP Surveillance VLAN
Edimax 16-Port Surveillance Long Range Gigabit PoE+ Web Smart Switch with 2 Gigabit RJ45 & 2 SFPPorts. Max Power Budget 280W. Supports PoE up to 200m. IEEE 802.3af/at PoE Compliant. IP Surveillance VLAN
- Brand: Edimax
- MPN: GS-5216PLC
- Part #: SWHEDM1049
- UPC:
- Brand: Edimax
- MPN: GS-5216PLC
- Part #: SWHEDM1049
- UPC:
Similar in-stock products available at PB Tech right now
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Switches
Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch -...
TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch
TP-Link TL-SG105 5-Port 10/100/1000Mbps Desktop Switch
TP-Link TL-SG108PE 8-Port Gigabit Easy Smart PoE Switch with 4...
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE...
Edimax 16-Port Surveillance Long Range Gigabit PoE+ Web Smart Switch with 2 Gigabit RJ45 & 2 SFPPorts. Max Power Budget 280W. Supports PoE up to 200m. IEEE 802.3af/at PoE Compliant. IP Surveillance VLAN
- Brand: Edimax
- MPN: GS-5216PLC
- Part #: SWHEDM1049
Product URL: https://www.pbtech.com/pacific/product/SWHEDM1049/Edimax-16-Port-Surveillance-Long-Range-Gigabit-PoE
Features
Surveillance VLAN 18-Port Gigabit PoE+ Long Range Web Smart Switch with 2 Gigabit RJ45/SFP Combo Ports
GS-5216PLC
- Supports ONVIF standard which is compatible with working ONVIF compliant Profiles G/S/A/C/T/M devices to provide fast and easy system settings, device discovery, and user authentication.
- PoE powered devices (PD) alive check to enhance the reliability of the network. If a PD fails to respond, the GS-5216PLC will reboot the PD.
- IEEE 802.3af/at PoE compliant, up to 30W per port (total power budget: 280W) for powering PoE-enabled devices.
- Guaranteed PoE long distance to 200 meters.
- 4-digit LED display showing total PoE power, available power, and power consumption.
- Dual-firmware image for robust failover mechanisms. It can activate the backup firmware right away while the current one faces problems.
- IP Surveillance VLAN and Voice VLAN to enhance video & voice quality and security.
- Auto-detection of powered devices (PD) and power consumption levels.
- Power backfeed protection to avoid damaging the PoE ports.
- DHCP snooping to protect the integrity of the legitimate DHCP server and its operations.
- Supports SNMP v3, Access Control List (ACL), QoS, CoS, STP, 802.1Q VLAN, IPv4/IPv6, Port Trunking, IGMP v1/v2/v3 Snooping and Port Mirroring.
- Hot-swappable fan and 19-inch 1U rack-mount design.
Specifications
Hardware
Ports
16 x RJ45 10/100/1000Base-T Gigabit ports
2 x RJ45 /SFP Gigabit combo uplinks
Transmission Method
Store and forward
Buttons
Reset button
PoE power budget status selection button
LED Indicators
Per Port: Link/Act, PoE: Act/Status, Per Unit: Power
Power Input
100-240V AC, 50-60 Hz, internal power supply
Total Power Budget 280W
Fan
1 x Fan with hot-swappable fan tray
Dimensions (L x W x H)
441 × 196 × 44 mm
Weight
3.03kg
PERFORMANCE
Switching Capacity
36Gbps
Forwarding Rate
26.7Mpps (64-byte package size)
MAC Address
8K
Jumbo Frames
9K Bytes
Buffer Memory
4.1Mb
Filtering / Forwarding Rates
1000Mbps port - 1,488,000pps
100Mbps port - 148,800pps
10Mbps port - 14,880pps
POWER OVER ETHERNET
Standard
IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
Power Output
Up to 30W per port
Pin Assignment
1/2(+), 3/6(-) End-Span (mode A)
Management
PoE status, PoE on/off, PoE PD alive check, per port priority setting
PoE Long Range
Guaranteed PoE long range to 200 meters at 10Mbps
Backfeed Protection
Built-in
SMART FEATURES
Quality of S ervice (QoS)
Rate limiting on packets sent and received by an interface
Eight queues on each port
WRR, SP, WRR+SP queue scheduling algorithms
Re-marking of the 802.1p priority and DSCP priority
Rate limiting in each queue and traffic shaping on ports
Class of Service (CoS)
IEEE 802.1p class of service (SPQ, WRR)
Port-based CoS
IP TOS precedence
802.1p VLAN Information based CoS
DSCP based CoS
TCP/UDP Based CoS
Spanning Tree
IEEE 802.1d Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
VLAN
Up to 200 VLANs and 4096 VLAN IDs
802.1Q tag-based VLAN
Port-based VLAN
Surveillance VLAN
Voice VLAN
MAC VLAN
GVRP
IPV6
IPv6 over Ethernet (RFC 2464)
Dual-stack (RFC 4213)
ICMPv6 (RFC 4884)
Neighbor discovery (RFC 4861)
Auto configuration
Static IPv6 address and prefix length
Static IPv6 default gateway
IPv6 duplicate address detection
Port Trunking
IEEE 802.3ad LACP Trunk-Static trunk up to 8 trunk groups
IGMP Snooping
IGMP v1/v2/v3 snooping
Port Mirroring
Port mirroring both on ingress and egress traffic
Security
RADIUS
AAA
Management Access
Authentication Manager
Port Security
Protected Port
Storm Control
DoS
Dynamic ARP Inspection
DHCP Snooping
IP Source Guard
Management
User Interface: Web-based management
User Account: Login account configuration
Firmware Upgrade: Firmware upgrade by WEB
Syslog: Support event log, alarm log and security log
ENVIRONMENT
Temperature
Operating: 0 ~ 50?
Storage: -40 ~ 70?
Humidity (Non-condensing)
Operating: 10 ~ 90%
Storage: 10 ~ 90%
STANDARDS COMPLIANCE
Standards
IEEE 802.3 10BaseT Ethernet
IEEE 802.3u 100BaseTX Fast Ethernet
IEEE 802.3ab 1000BaseT Gigabit Ethernet
IEEE 802.3z 1000BaseSX/LX
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet (PoE+)
IEEE 802.3x Full-duplex and flow control
IEEE 802.1p Quality of Service (QoS)
IEEE 802.1x Port-based Network Access Control(PNAC)
IEEE 802.1Q Virtual LANs VLANs
IEEE 802.1d Spanning Tree Protocol(STP)
IEEE 802.1w Rapid Spanning Tree Protocol(RSTP)
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.3az Energy Efficient Ethernet
Certifications
FCC Class A, CE, ONVIF Compliant
