Edimax GS-5654LX 54-Port Gigabit Web Smart Switch with 6x SFP+ 10G Ports 48x Ethernet Ports + 6 SFP+10GUplink Ports. 216 Gbps Backplane Bandwidth. Alive Check, DHCP Snooping, QoS, CoS, STP, 802.1Q
Out of stock
Edimax GS-5654LX 54-Port Gigabit Web Smart Switch with 6x SFP+ 10G Ports 48x Ethernet Ports + 6 SFP+10GUplink Ports. 216 Gbps Backplane Bandwidth. Alive Check, DHCP Snooping, QoS, CoS, STP, 802.1Q
- Brand: Edimax
- MPN: GS-5654LX
- Part #: SWHEDM1051
- UPC:
- Brand: Edimax
- MPN: GS-5654LX
- Part #: SWHEDM1051
- UPC:
Product is out of stock. View similar products in-stock at PB Tech
Features
Empower your Enterprise with EDIMAX Intelligent Network Switches
The EDIMAX Pro GS-5654LX web-smart switch comes with a web-based user interface, 48 Gigabit ports, and 6 SFP+ ports for 10 Gigabit uplinks. The Gigabit connectivity fully utilizes the power of your office networking for demanding tasks, such as data backup, video conferencing, IP surveillance, high volume transaction processing, large file transferring, and more.
Powerful 10GbE | 6 x 10GbE SFP+ Uplink
48 GbE ports for high-speed connections and up to 60 Gbps of fiber-optic uplinking capability allowing the GS-5654LX to be easily deployed in multiple physical locations, such as branches, retails, or remote workgroup environments for larger network access.
Intuitive and Powerful
The switch features smart and simple network monitoring tools that allow for improved network efficiency and security.
Strong Ability to Proceed Data
With 216Gbps backplane bandwidth and a forwarding rate of 160.7Mpps, the GS-5654LX provides maximum available bandwidth without delay.
Robust Failover Mechanisms
The GS-5654LX has two firmware stored for backup. It can activate the backup firmware right away while the current one faces problems.
Intelligent Thermal Control | Power Saving Implementation
With a dedicated and intelligent microchip for system cooling control, the GS-5654LX can measure and control fan speeds, also turn on/off each fan for power saving and noise reduction.
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Switches
Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch -...
TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch
TP-Link TL-SG105 5-Port 10/100/1000Mbps Desktop Switch
TP-Link TL-SG108PE 8-Port Gigabit Easy Smart PoE Switch with 4...
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE...
Edimax GS-5654LX 54-Port Gigabit Web Smart Switch with 6x SFP+ 10G Ports 48x Ethernet Ports + 6 SFP+10GUplink Ports. 216 Gbps Backplane Bandwidth. Alive Check, DHCP Snooping, QoS, CoS, STP, 802.1Q
- Brand: Edimax
- MPN: GS-5654LX
- Part #: SWHEDM1051
Product URL: https://www.pbtech.com/pacific/product/SWHEDM1051/Edimax-GS-5654LX-54-Port-Gigabit-Web-Smart-Switch
Features
Empower your Enterprise with EDIMAX Intelligent Network Switches
The EDIMAX Pro GS-5654LX web-smart switch comes with a web-based user interface, 48 Gigabit ports, and 6 SFP+ ports for 10 Gigabit uplinks. The Gigabit connectivity fully utilizes the power of your office networking for demanding tasks, such as data backup, video conferencing, IP surveillance, high volume transaction processing, large file transferring, and more.
Powerful 10GbE | 6 x 10GbE SFP+ Uplink
48 GbE ports for high-speed connections and up to 60 Gbps of fiber-optic uplinking capability allowing the GS-5654LX to be easily deployed in multiple physical locations, such as branches, retails, or remote workgroup environments for larger network access.
Intuitive and Powerful
The switch features smart and simple network monitoring tools that allow for improved network efficiency and security.
Strong Ability to Proceed Data
With 216Gbps backplane bandwidth and a forwarding rate of 160.7Mpps, the GS-5654LX provides maximum available bandwidth without delay.
Robust Failover Mechanisms
The GS-5654LX has two firmware stored for backup. It can activate the backup firmware right away while the current one faces problems.
Intelligent Thermal Control | Power Saving Implementation
With a dedicated and intelligent microchip for system cooling control, the GS-5654LX can measure and control fan speeds, also turn on/off each fan for power saving and noise reduction.
Specifications
HARDWARE
Ports

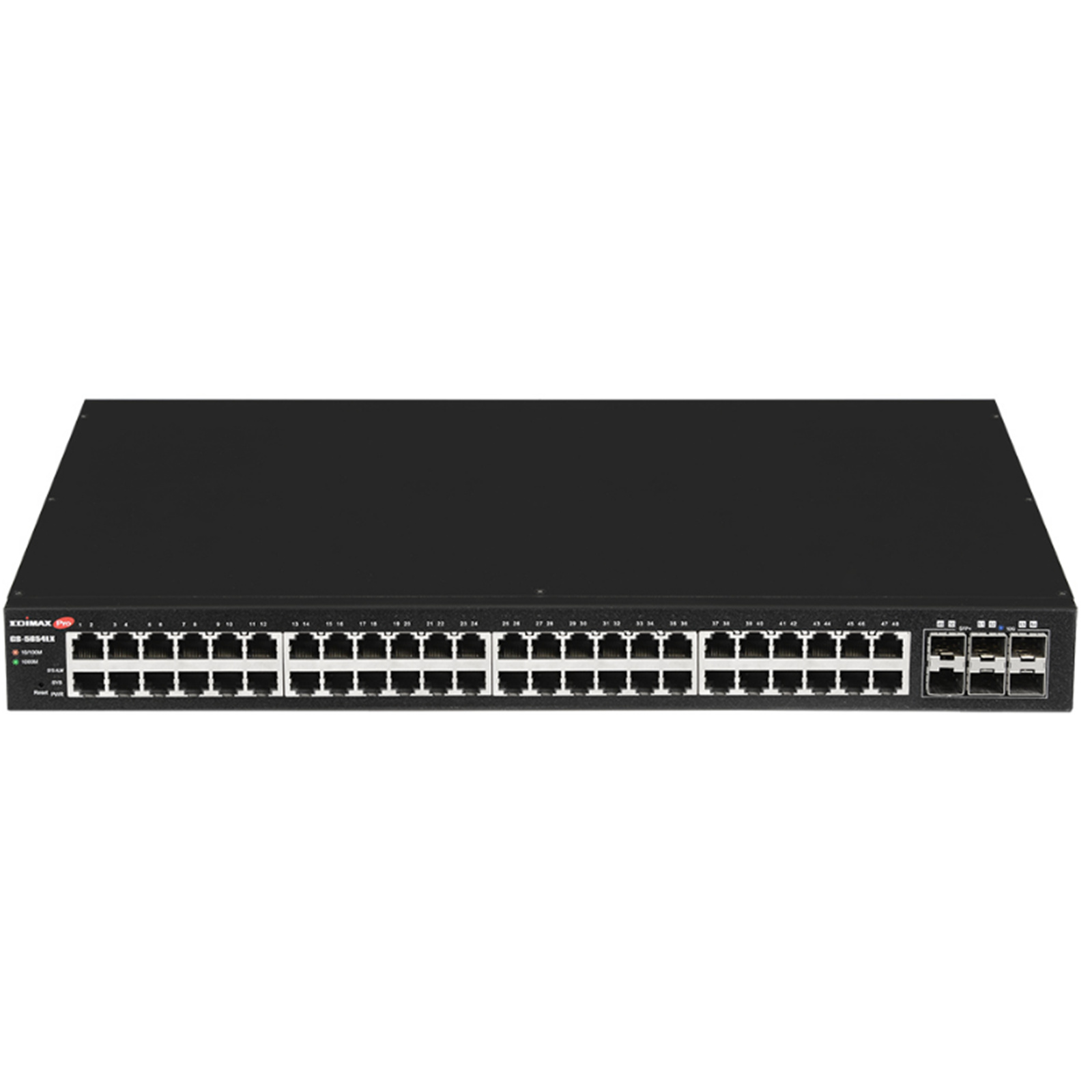

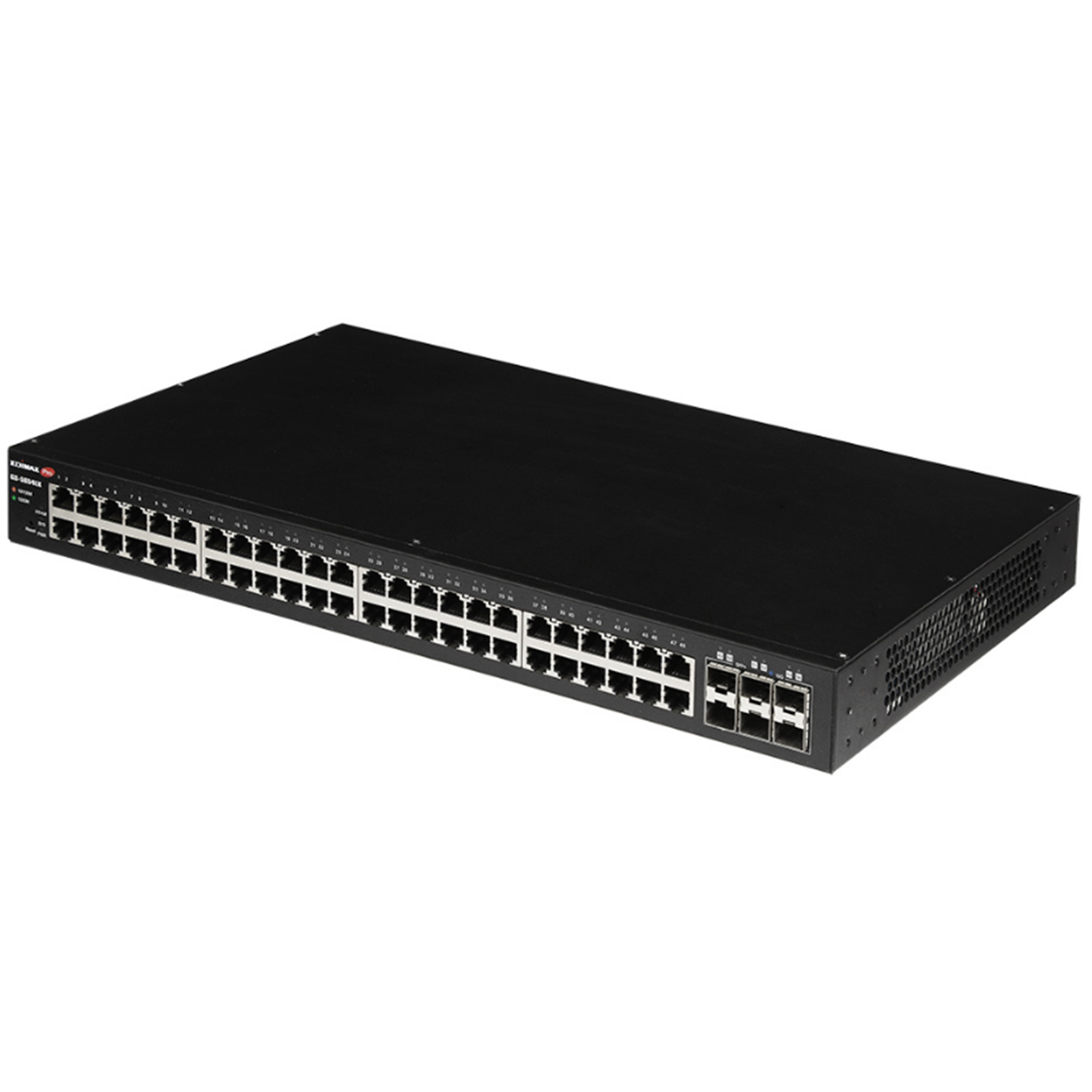

48 x RJ45 10/100/1000Base-T Gigabit ports
6 x SFP+ 10GBase-X 10 Gigabit uplinks ports

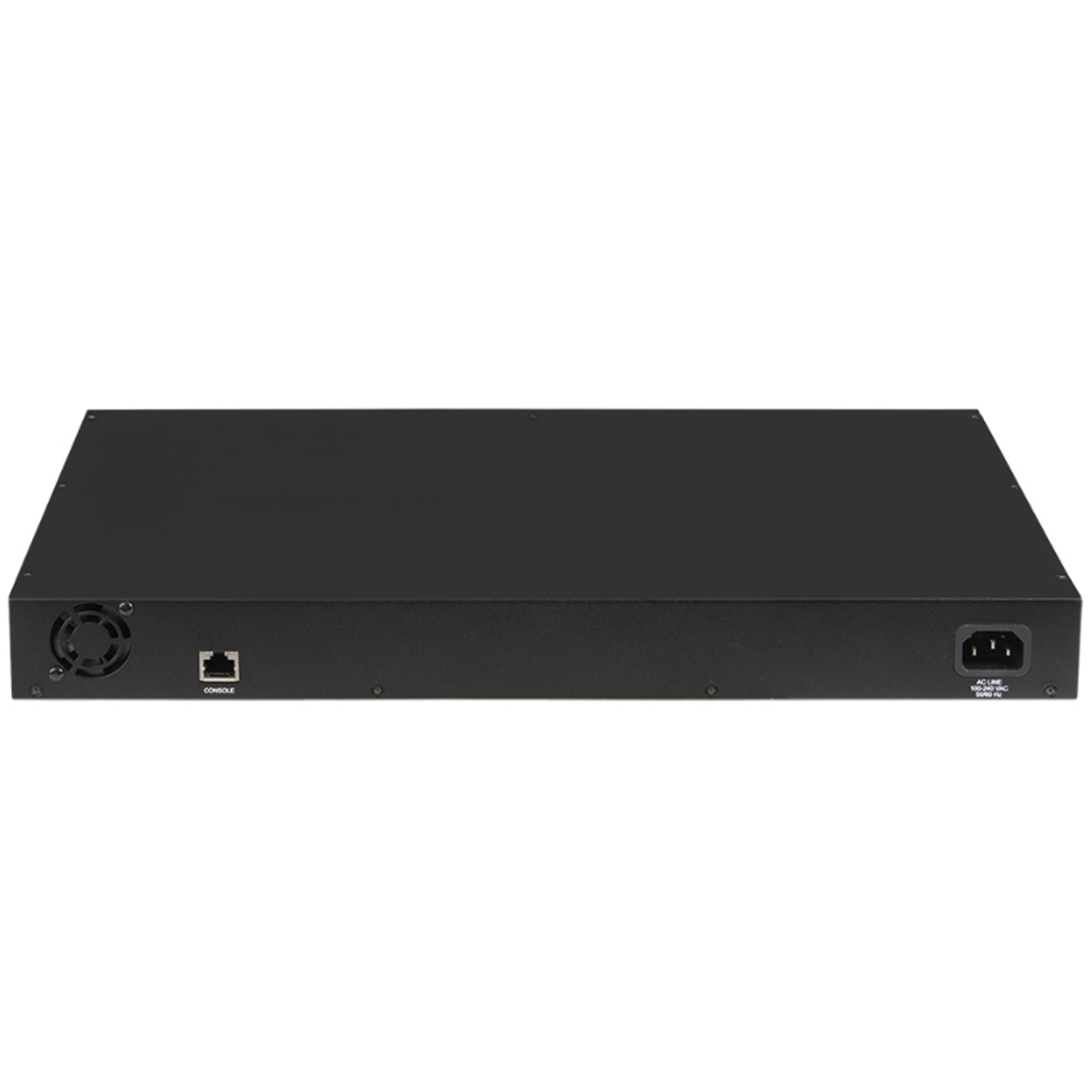

1 x RJ45 Console port
Buttons
Reset button
LED Indicators
Per Port: Link/Act
Per Unit: SYS (System), PWR (Power)
Power Input
100-240V AC, 50-60 Hz, internal power supply
Mounting
Desktop / Rack-mount (Rack-mount kit included)
Housing
Metal
Fan

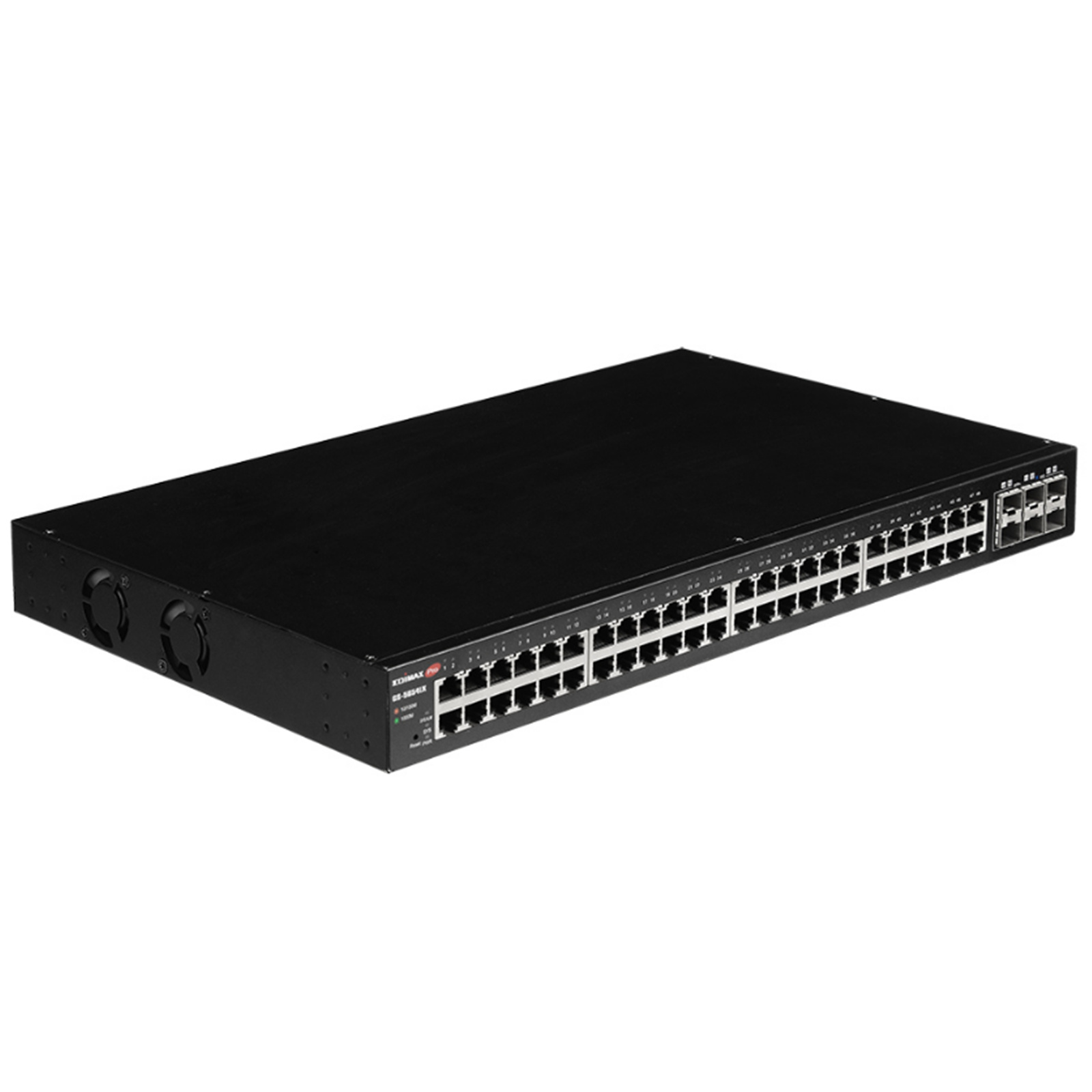

3 x Fan with Intelligent Thermal Controller
Dimensions (L x W x H)
441(W) x 270(D) x 45(H) mm
Weight
4.05kg
PERFORMANCE
Switching Capacity
216Gbps
MAC Address
32K
Jumbo Frames
12K Bytes
Filtering / Forwarding Rates
Max. 160.7Mpps (64-byte package size)
10000Mbps port - 14,880,000pps
1000Mbps port - 1,488,000pps
100Mbps port - 148,800pps
10Mbps port - 14,880pps
SMART FEATURES
Quality of Service (QoS)
Rate limiting on packets sent and received by an interface
Eight queues on each port
WRR, SP, WRR+SP queue scheduling algorithms
Re-marking of the 802.1p priority and DSCP priority
Rate limiting in each queue and traffic shaping on ports
Class of Service (CoS)
IEEE 802.1p class of service (SPQ, WRR)
Port-based CoS
IP TOS precedence
802.1p VLAN Information based CoS
DSCP based CoS
TCP/UDP Based CoS
Spanning Tree
IEEE 802.1d Spanning Tree Protocol (STP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
VLAN
Up to 256 VLANs and 4096 VLAN IDs
802.1Q tag-based VLAN
Port-based VLAN
Surveillance VLAN
Voice VLAN
MAC VLAN
GVRP
IPV6
IPv6 over Ethernet (RFC 2464)
Dual-stack (RFC 4213)
ICMPv6 (RFC 4884)
Neighbor discovery (RFC 4861)
Auto configuration
Static IPv6 address and prefix length
Static IPv6 default gateway
IPv6 duplicate address detection
Port Trunking
IEEE 802.3ad LACP Trunk-Static trunk up to 8 trunk groups
IGMP Snooping
IGMP v1/v2/v3 snooping
Block unknown multicast traffic
Port Mirroring
Port mirroring both on ingress and egress traffic
Security
RADIUS
AAA
Management Access
Authentication Manager
Port Security
Protected Port
Storm Control
DoS
Dynamic ARP Inspection
DHCP Snooping
IP Source Guard
Management
User Interface: Web-based management
User Account: Login account configuration
Firmware Upgrade: Firmware upgrade by WEB
Syslog: Support event log, alarm log and security log
Dual-firmware image for robust failover mechanisms.
ENVIRONMENT
Temperature
Operating Temperature: 0~50°C (32~122°F)
Storage Temperature: -40~70°C (-40~158°F)
Humidity (Non-condensing)
Operating Humidity: 10~90% (NonCondensing)
Storage Humidity: 10~90% (NonCondensing)
