Edimax IGS-1005 Industrial 5-Port Gigabit DIN Rail Switch.Data Delivery up to 200m 10Mbps Full- Duplex.Supports QoS 802.1p for Video & Voice Traffic Priority. Dual Power Inputs, Surge Protectiion. IP30.
Edimax IGS-1005 Industrial 5-Port Gigabit DIN Rail Switch.Data Delivery up to 200m 10Mbps Full- Duplex.Supports QoS 802.1p for Video & Voice Traffic Priority. Dual Power Inputs, Surge Protectiion. IP30.
- Brand: Edimax
- MPN: IGS-1005
- Part #: SWHEDM1054
- UPC:
- Brand: Edimax
- MPN: IGS-1005
- Part #: SWHEDM1054
- UPC:
Features
EDIMAX Industrial 5-Port Gigabit DIN Rail Switch.Data Delivery up to 200m @10Mbps Full-Duplex. Supports QoS 802.1p for Video & Voice Traffic Priority. Dual Power Inputs, Surge Protectiion. IP30.
- 5 Gigabit Ethernet ports
- 6KV Surge protection to avoid damage to the switch and connected devices
- Power redundancy by providing Dual-DC power inputs to ensure stable and reliable network service
- P-fail relay with alarm and notification when an event of power failure occurs
- Supports QoS 802.1p for video & voice traffic priority
- Wide operating temperature range of -20°C ~+70°C
- Guaranteed long distance to 200 meters
- Flexible deployment with DIN-Rail mounting kit and wall-mount feature
- IP30-rated, fanless rugged industrial design for harsh environments
6KV Surge & Power BackFeed Protection
Supports 6KV lightning surge and power backfeed protection for connected devices from non-standard power sources. Further avoiding damage done to the switch and connected devices.
Wide Temperature Range
The industrial switch operates with a wide temperature range from -20°C ~ 70°C for industrial network deployment in extreme hot and freezing environments.
PoE Long Range Guaranteed 200M
Provides the PoE long-range solution with a guarantee of 200 meters ideal for surveillance and parking lot applications.
Reliable Power Redundancy
Supports power redundancy with three power inputs to decrease unexpected risk and ensures stable and reliable network service quality.
QoS with Improved Traffic Efficiency
Supports 802.1p QoS for ensuring first priority voice and video traffic for reduced package loss, lower latency and jitter on the network.
Flexible DIN-Rail & Wall Mount
The switch is designed with flexibility for DIN-rail mounts or wall-mount deployment.
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Switches
Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch -...
TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch
TP-Link TL-SG105 5-Port 10/100/1000Mbps Desktop Switch
TP-Link TL-SG108PE 8-Port Gigabit Easy Smart PoE Switch with 4...
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE...
Edimax IGS-1005 Industrial 5-Port Gigabit DIN Rail Switch.Data Delivery up to 200m 10Mbps Full- Duplex.Supports QoS 802.1p for Video & Voice Traffic Priority. Dual Power Inputs, Surge Protectiion. IP30.
- Brand: Edimax
- MPN: IGS-1005
- Part #: SWHEDM1054
Product URL: https://www.pbtech.com/pacific/product/SWHEDM1054/Edimax-IGS-1005-Industrial-5-Port-Gigabit-DIN-Rail
Features
EDIMAX Industrial 5-Port Gigabit DIN Rail Switch.Data Delivery up to 200m @10Mbps Full-Duplex. Supports QoS 802.1p for Video & Voice Traffic Priority. Dual Power Inputs, Surge Protectiion. IP30.
- 5 Gigabit Ethernet ports
- 6KV Surge protection to avoid damage to the switch and connected devices
- Power redundancy by providing Dual-DC power inputs to ensure stable and reliable network service
- P-fail relay with alarm and notification when an event of power failure occurs
- Supports QoS 802.1p for video & voice traffic priority
- Wide operating temperature range of -20°C ~+70°C
- Guaranteed long distance to 200 meters
- Flexible deployment with DIN-Rail mounting kit and wall-mount feature
- IP30-rated, fanless rugged industrial design for harsh environments
6KV Surge & Power BackFeed Protection
Supports 6KV lightning surge and power backfeed protection for connected devices from non-standard power sources. Further avoiding damage done to the switch and connected devices.
Wide Temperature Range
The industrial switch operates with a wide temperature range from -20°C ~ 70°C for industrial network deployment in extreme hot and freezing environments.
PoE Long Range Guaranteed 200M
Provides the PoE long-range solution with a guarantee of 200 meters ideal for surveillance and parking lot applications.
Reliable Power Redundancy
Supports power redundancy with three power inputs to decrease unexpected risk and ensures stable and reliable network service quality.
QoS with Improved Traffic Efficiency
Supports 802.1p QoS for ensuring first priority voice and video traffic for reduced package loss, lower latency and jitter on the network.
Flexible DIN-Rail & Wall Mount
The switch is designed with flexibility for DIN-rail mounts or wall-mount deployment.
Specifications
HARDWARE
Ports

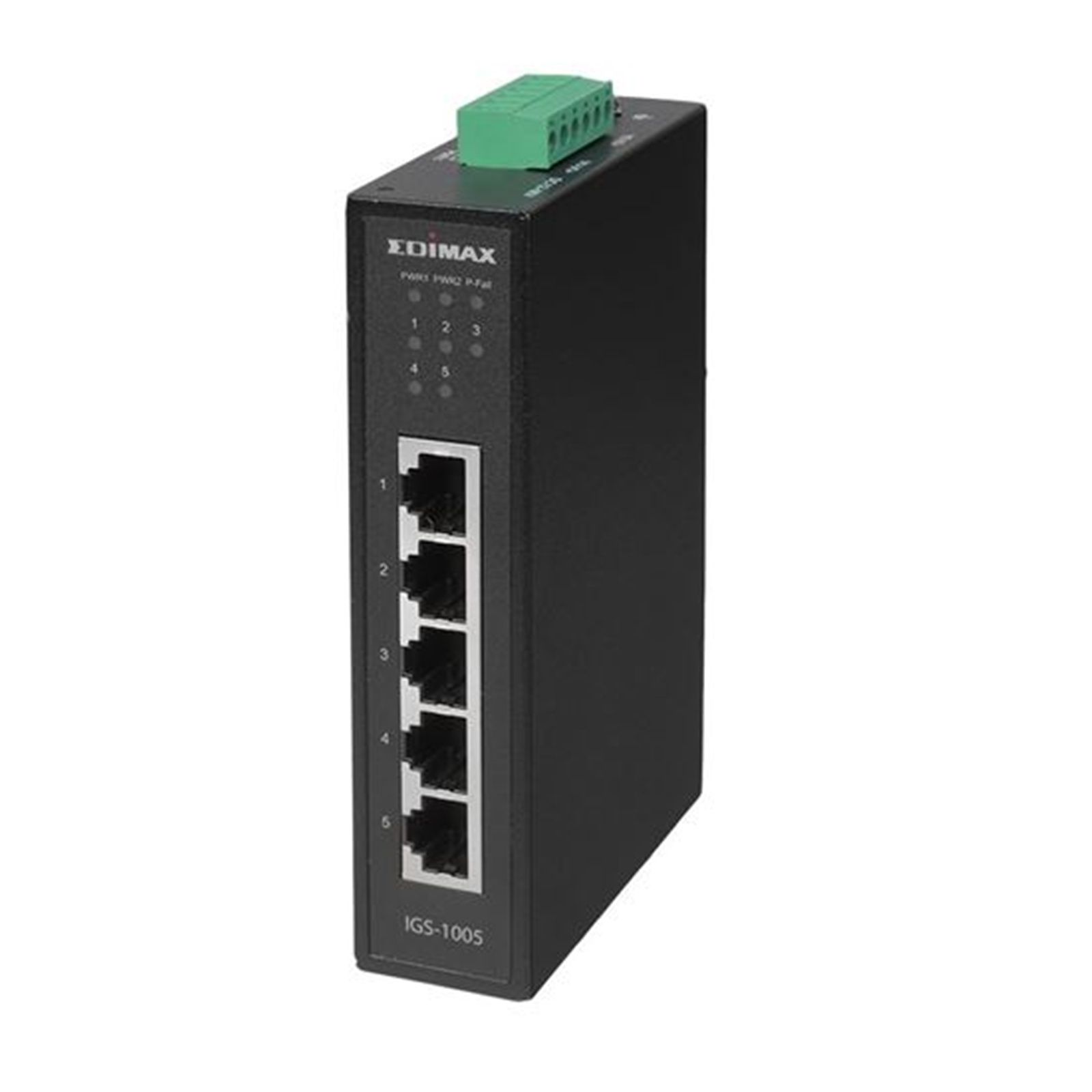

5x RJ-45 10/100/1000Base-T Gigabit Ports
Connector

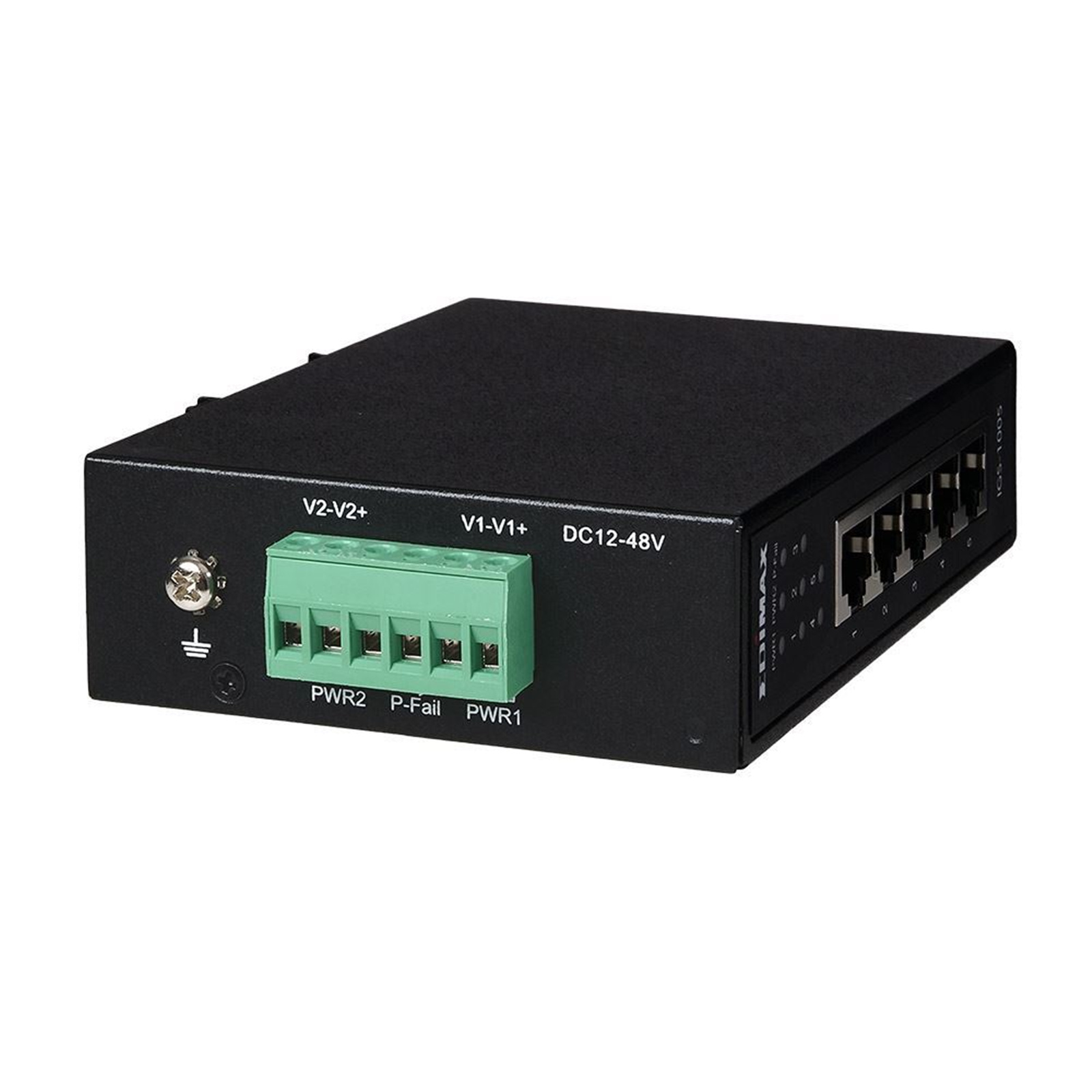

Removable 6-pin Terminal Block (Pin1/2 for Power 1, Pin 3/4 for P-Fail (Power failure Alarm Relay), Pin 5/6 for Power 2)
Grounding Point with Screw
LED Indicators
Per Port: Link/Act
Per Unit: PWR1, PWR2, P-Fail
Power Input
External Power Supply
- Power Input: 12V~48V DC, 2.5A (Terminal Block)
- Redundant Power Input: 12V~48V DC, 2.5A (Terminal Block)
Mounting
DIN-rail Mount (DIN-rail Mount Kit Included) / Wall Mount
Housing
Metal, IP30-rated
Fan
Fanless
Dimensions
127.5(H) x 30(D) x 83.6(W) mm
Weight
387g
PERFORMANCE
Switching Capacity
10Gbps
MAC Address
2K
Buffer Memory
2Mb
Jumbo Frame
9KB
Transmission Method
Store and Forward
Filtering / Forwarding Rates
Max. 7.44Mpps
?1000Mbps port - 1,488,000pps
100Mbps port - 148,800pps
10Mbps port - 14,880pps
Advanced Feature
IEEE 802.1p Quality of Service (QoS)
Long Range Guaranteed 200 Meters at 10Mbps
OTHER
Protection
Reverse Polarity
Overload Current
6KV Surge per RJ45 Port
MTBF
>1,000,000 hours @25°C (Mean Time Between Failure)
Standards
IEEE 802.3 10BaseT Ethernet
IEEE 802.3u 100BaseTX Fast Ethernet
IEEE 802.3ab 1000BaseT Gigabit Ethernet
IEEE 802.1p QoS (Quality of Service)
IEEE 802.3x Full-duplex and flow control
IEEE 802.3az Energy-efficient Ethernet
Environmental Condition
Operating Temperature: -20°C~70°C
Storage Temperature: -40°C~85°C
Operating Humidity: 10%~95% (NonCondensing)
Storage Humidity: 10%~95% (NonCondensing)
Certification
CE, FCC, BSMI
