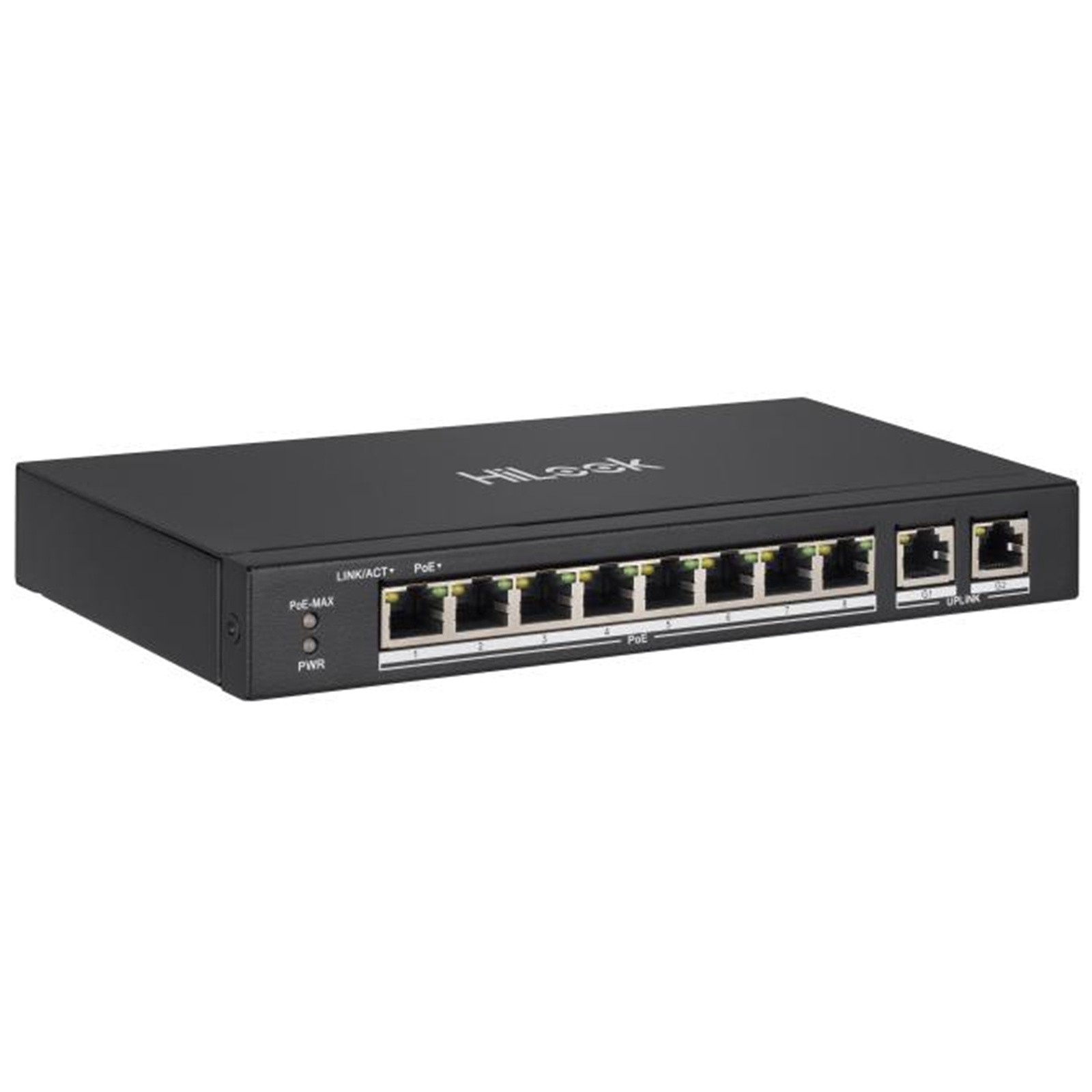

HiLook NS-0310P-60 8-Port 10/100M Unmanaged PoE Switch (Max 60W)

HiLook NS-0310P-60 8-Port 10/100M Unmanaged PoE Switch (Max 60W)

  • Brand: HiLook
  • MPN: NS-0310P-60
  • Part #: SWHHLK0310
  • UPC:
In stock at NZ Logistics Centre
Delivery: Order now and it ships on 08 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
Sign in to your commercial account or apply online now to view the price and order this product
Add To Compare
Stock Alerts
Click or hover over image to enlarge
  • Brand: HiLook
  • MPN: NS-0310P-60
  • Part #: SWHHLK0310
  • UPC:

10 Gigabit

N/A

10 Gigabit Ports

N/A

Form Factor

Not Specified

Management Level

Unmanaged

Number of Ports

10 Ports

PoE

Yes

PoE Ports

8 Ports

PoE Budget

60 Watts

View full specs
Returns & Warranty Bulk Quote Print Page

Features

NS-0310P-60 switches are layer 2 unmanaged PoE switches, providing advanced PoE power supply technology based on high-performance access to ensure stable data upload. The switches support long-range functions.

- 8x 10/100Mbps PoE ports, and and 2x Gigabit RJ45 port.
- IEEE 802.3at/af standard for PoE ports (Max. 60W PoE output).
- IEEE 802.3, IEEE 802.3u, IEEE 802. 3x, IEEE 802.3z and IEEE 802.3ab standard.
- 6kV surge protection for PoE ports.
- Up to 250m long-range transmission.
- Wire-speed forwarding.
- Store-and-forward switching.
- Solid high-strength metal shell.
- Reliable fan-free design.

Front panel

Back panel

Dimension (unit: mm)

Specifications

General

Model

NS-0310P-60

Shell

Metal material, fan-free design

Net Weight

0.555

Dimension (L × H × D)

217.6 mm × 103.35 mm × 27.8 mm (8.57" × 4.07" × 1.09")

Operating Temperature

-10°C to 40°C (14°F to 104°F)

Storage Temperature

-40°C to 85 °C -40°F to 185°F)

Operating Humidity

5% to 95% (no condensation)

Storage Humidity

5% to 95% (no condensation)

Power Supply

48 VDC, 1.35 A

Power Consumption in Idle

< 5 W

Power Souce

65 W

Max. Power Consumption

65 W

PoE Power Supply

PoE Standard

Ports 1 to 8: IEEE 802.3af, IEEE 802.3at

PoE Power Pin

Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.

PoE Port

Ports 1 to 8

Max. Port Power

Ports 1 to 8: 30 W

PoE Power Budget

60 W

Network Parameters

Port Number

8 × 10/100Mbps PoE ports, and and 2 × Gigabit RJ45 ports

Port Type

RJ45 port, full duplex, MDI/MDI-X adaptive

Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab

Forwarding Mode

Store-and-forward switching

Working Mode

Standard mode (default), Extend mode

Ports for Long-Distance Transmission

Ports 1 to 8

MAC Address Table

16 K

Switching Capacity

5.6 Gbps

Packet Forwarding Rate

4.1664 Mpps

Internal Cache

4 Mbits

Dialing Function

Long Range

Ports 1 to 8: up to 250 m.

Approval

EMC

FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000- 3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)

Safety

UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CELVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)

Chemistry

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Manufacturer Part No:
NS-0310P-60
Brand:
HiLook
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
3 kg
PB Part No:
SWHHLK0310
Product Model:
NS-0310P-60
Warranty: 24 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
