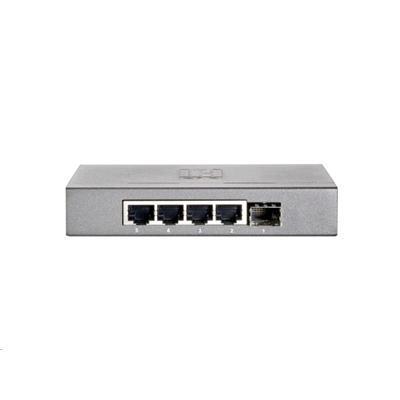

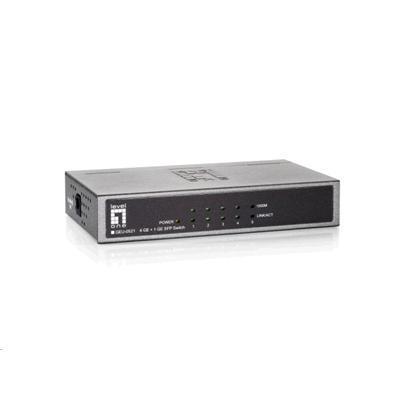

LevelOne GEU-0521 10/100/1000 Mbps (Gigabit) 5-Port Desktop Sized Ethernet Switch, Metal Chassis, 4

PB Tech price

NZD $ 128 .70

$ 128 .70

LevelOne GEU-0521 10/100/1000 Mbps (Gigabit) 5-Port Desktop Sized Ethernet Switch, Metal Chassis, 4

Brand: LevelOne
MPN: GEU-0521
Part #: SWHLEL0120
UPC:

PB Tech price

NZD $ 128 .70

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 12 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: LevelOne
MPN: GEU-0521
Part #: SWHLEL0120
UPC:

Be the first to review this product

Form Factor

Desktop

Management Level

Number of Ports

5 Ports

PoE Ports

0 Ports

PoE Budget

Stacking

Uplink Ports

View full specs

Returns & Warranty Bulk Quote Print Page

Features

Key Features

- 4 Gigabit Ethernet ports and 1 Gigabit SFP slot
- 9K jumbo frames to increase data transfer rates
- 1000Mbps-Full-duplex, 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX
- Supports 1K MAC address auto-learning and auto-aging
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- Provides wall or desktop mounting
- Quick and easy installation

Overview

LevelOne GEU-0521 is 5-port SOHO Gigabit Ethernet Switch that is designed for small or medium network
environment to strengthen its network connection. This product is compact in size, making it ideal for SOHO users with limited space. This product is easy to install. It is a superb choice for expanding your network.

High-Speed Networking
The GEU-0521 provides an excellent solution for expanding your Gigabit network. By Gigabit speed, this product provides high flexibility and high bandwidth connectivity to servers, workstations and other attached devices. It enables you to save time transferring large files.

Auto-MDI/MDI-X
Every copper port can automatically sense your type of cable, so there is no need for crossover cables whether you are connecting this switch to another switch or to a computer.

Auto-Negotiation
Every port can automatically sense if the connected network devices are running at 10Mbps, 100Mbps or 1000Mbps and Half/Full-Duplex mode, and adjust accordingly.

Non-Blocking
This switch receives and forwards traffic seamlessly with its non-blocking wire-speed. Every port simultaneously supports up to 2000Mbps of bandwidth in full-duplex mode. This feature provides full wire speed to the connected devices and allows you to run a smooth network.

Store and Forward
By this function, this switch can maximize network performance while minimizing the propagation of bad network packets.

Specifications

Standards
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3ab 1000BaseT
IEEE 802.3z 1000BaseSX/LX
IEEE 802.3x Flow Control

Features

Number of Ports:
5 (4-port RJ-45 + 1-port SFP open slot)

MAC Address:
1K

Buffer Memory:
104KB

Jumbo Frames:
9 KB

Transmission Method: Store and Forward

Filtering/Forwarding Rates
1000Mbps port - 1,488,000pps
100Mbps port - 148,800pps
10Mbps port - 14,880pps

Transmission Media

RJ-45:
10BaseT Cat. 3, 4, 5 UTP/STP
100BaseTX Cat. 5 UTP/STP
1000BaseT Cat. 5E UTP/STP

1000BaseSX:
62.5/125µm Multi Mode Fiber optic cable, up to 220 m
50/125µm Multi Mode Fiber optic cable, up to 550 m

1000BaseLX:
9/125µm Single Mode Fiber optic cable

Led Indicators

Per Port:
Link/Act, 1000M

Per Unit:
Power

Power Supply
DC5V 2A for EU and AU
DC5V 2.5A for US and UK

Power Consumption
10 Watts (Max)

Dimensions
130 × 77 × 24 mm (L x W x H)

Weight
0.28 kg

Operating Temperature
0°C ~ 40°C

Storage Temperature
-20°C ~ 90°C

Humidity
10% ~ 90% RH (non-condensing)

Certifications
FCC Class B, CE

Manufacturer Part No:

GEU-0521

Brand:

LevelOne

Product Type:

UPC

Product Family:

Shipping Weight:

3 kg

PB Part No:

SWHLEL0120

Product Model:

Warranty: 24 months *
