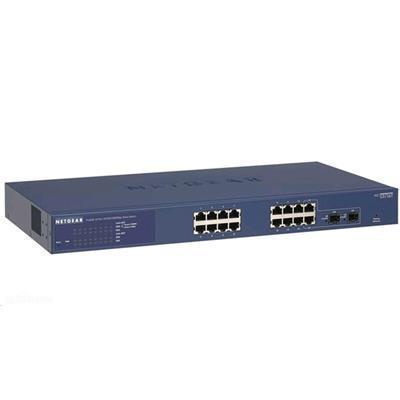

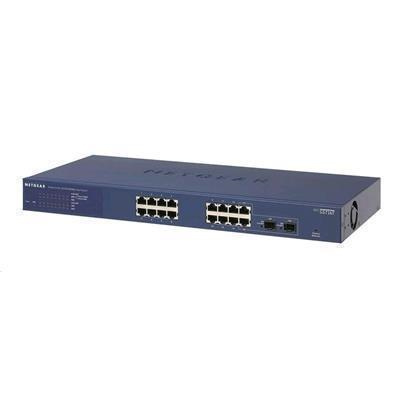

NETGEAR 16-Port Gigabit Ethernet Smart Switch (GS716Tv3) - Managed with 2 x 1G SFP, Desktop/Rackmount, and ProSAFE Limited Lifetime Protection
- Brand: Netgear
- MPN: GS716T-300AJS
- Part #: SWHNGR2636798
- UPC:606449098266
Product URL: https://www.pbtech.com/pacific/product/SWHNGR2636798/NETGEAR-16-Port-Gigabit-Ethernet-Smart-Switch-GS71
Features
Switches with Essential L2 Features for SMB Networks
NETGEAR Smart Managed Switches offer powerful L2 and L2+/Layer 3 Lite features, better PoE functionality, and enhanced performance and usability. They are purposely designed for converged networks where voice, video, data are all carried on a single network platform. These switches are optimized for network efficiency, operational cost savings, and ease of management. This series of switches offers 8 to 52 port configurations both in Fast Ethernet and Gigabit Ethernet with PoE options. All switches come with Gigabit SFP ports for fiber connectivity. These switches are the ideal solution for businesses looking for the best combination of features, performance, and value.
Designed for Converged Networks, Big or Small
- PoE and PoE+ Support available for all configurations
- Auto Voice VLAN for fast and reliable deployment of VoIP
- Auto Video VLAN, following the same concept of Auto Voice, help speed up your deployment of IP-based surveillance systems
- Static routing, helps route internal traffic for more efficient use of network resources
- IGMP and MLD snooping, provides advanced multicast filtering
Build a Future-Proof Network with NETGEAR
- Solid performance with a non-blocking architecture, 8K MAC address table, 256 VLANs, 480 shared ACL entries, 32static routes, and 1,024 Multicast Groups
- Comprehensive IPv6 management, QoS and ACL, ensuring investment protection and a smooth migration to IPv6-based networking
- PoE+ support on all PoE models with the GS728TPP providing PoE+ support on all ports, adding the flexibility to add power-hungry devices such as video phone, PTZ camera and 11ac Wireless APs into the network in the future
- The presence of SFP ports provide necessary fiber uplinks, while dedicated SFP ports on many models further builds uplink redundancy and failover, improving reliability and availability for network virtualization
- Energy Efficient Ethernet (IEEE802.3az) support for more energy savings in the future when more EEE-compliant end devices come to market
- Advanced QoS with IPv4/IPv6 ingress traffic filtering (ACLs) and prioritization (QoS - Diff Serv)
- Dynamic VLAN assignment for easy user authentication and location-independent access to network
Network Development Made Easy
- Auto Voice VLAN for easy development of VoIP
- Auto Video for simple deployment of IP Surveillance
- ACL Wizard for a guided tour to set up your network access control
- Smart Control Center, a powerful tool for multi-switch discovery, deployment, monitoring and firmware upgrades
- PoE Timer for scheduling the on/off time of your PoE powered devices
Smart IT, not Big IT
- Easy to manage via web-Based Management GUI or Smart Control Center for multi-switch deployment
- Standard-based technology, ensuring interoperability with any standard-based devices in the existing network
- Dual firmware images, improving reliability and uptime to your network
Specifications
Network Protocol and Standards CompatibilityIEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3x full-duplex flow control
Interfaces
GS724T: 24 RJ-45 connectors for 10BASE-T, 100BASE-TX, and 1000BASE-T (Auto Uplink on all ports)
GS716t: 16 RJ-45 connectors for 10BASE-T, 100BASE-TX and 1000BASE-T (Auto Uplink on all ports)
2 Dual Personality SFP slots for fiber Gigabit Ethernet modules
Administrative Switch Management
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1W Rapid Spanning Tree Protocol
IEEE 802.1S Multiple Spanning Tree Protocol
Auto-voice VLAN
SNMPv1, v2c, v3
RFC 1213 MIB II
RFC 1643 Ethernet Interface MIB
RFC1493 Bridge MIB
Jumbo Frame Support (up to 9KB)
IEEE 802.1Q Tag VLAN
GS716T: 128 Static VLANs
GS724T: 128 Static VLANs
IEEE 802.1p (Class of Service)
DSCP - L3 QoS
Port-based ingress/egress rate limiting
IEEE 802.3ad static or dynamic link aggregration (LACP)
DHCP client function
Broadcast storm control
Port mirroring (many-to-one)
Port setting
Green features: Power saving by cable length (<10m). Power saving by auto power when link down
IGMP snooping v1/v2
IEEE 802.1x (RAIDUS)
Access control list (ACL) - MAC, IP
SNTP
IEEE 802.1ab LLDp
Protected ports**
HTTP and HTTPS
Auto denial-of-service (DoS) prevention
Syslog
Ping & traceroute
Web-based configuration, anywhere on the network
Smartwizard Discovery Utility program auto discovers devices (up to 254 agents/switches); set system configuration to each agent
Configuration backup/restore (easy to configure more than one switch)
Password access control
Firmware upgradeable
Support of Ehternet audio/video (EAV)*
Active Flow Control
Full-duplex IEEE 802.3x pause frame flow control
Half-duplex back-pressure control
Performance Specifications
Forwarding modes: Store-and-forward
Bandwidth: GS724T = 48 Gbps, GS716T = 32 Gbps
Network latency:
GS716T average latency 4.5 us for 100 Mbps with 64 bytes
GS724T average latency 4.5 us for 100 Mbps with 64 bytes
Buffer memory: 512 KB embedded memory per unit
Priority queues: 4
Priority queuing: Weighted Round Robin (WRR)
Address database size: 8,000 media access control (MAC) addresses per system
Addressing: 48-bit MAC address
Mean time between failures (MTBF):
- GS716T: 401,205 hours
- GS724T: 465,998 hours
Acoustic Noise:
- GS724T = 34.4 dBA
- GS716T = 33 dBA
LEDs
Unit: Power
Per port: Link, activity, speed, duplex
Power Supply
Maximum Power Consumption:
- GS716T - 16.5W
- GS724T - 21.5W
100-240V AC/50-60 Hz universal input
Physical Specifications
Dimensions (h x w x d):
- GS716T: 43 x 440 x 205 mm (1.7 x 17.3 x 8 in)
- GS724T: 43 x 440 x 205 mm (1.7 x 17.3 x 8 in)
Weight:
- GS716T: 2.56 kg (5.64 lb)
- GS724T: 2.66 kg (5.86 lb)
Environmental Specifications
Operating temperature: 32° to 131°F (0° to 55° C)
Storage temperature: -4° to 158°F (-20° to 70° C)
Operating humidity: 90% maximum relative humidity, non-condensing
Storage humidity: 95% maximum relative humidity, non-condensing
Operating altitude: 10,000 ft (3,000 m) maximum
Storage altitude: 10,000 ft (3,000 m) maximum
Electromagnetic Compliance
CE mark, commercial
FCC Part 15 Class A
VCCI Class A
EN 55022 (CISPR 22)
EN 55024 (CISPR 24)
C-Tick
Safety Agency Approvals
UL listed (UL 1950)/cUL
IEC 950/EN 60950
CE mark, commercial
CUL 60950 (Listed)/EN 60950 (Low Voltage Directive)
CB
CCC
Modules
NETGEAR ProSafe AGM731F 1000BASE-SX SFP GBIC Module with LC connectors for 50um or 62.5um multi-mode fiber cable
NETGEAR ProSafe AGM732F Fiber 1000BASE-LX SFP GBIC Module with LC connectors for 9um single-mode fiber cable
NETGEAR ProSafe AGM733 Fiber 1000BASE-ZX SFP GBIC Module with LC connectors for 9um single-mode fiber cable
Warranty
NETGEAR Lifetime Warranty
OnCall 24x7, Category 1
PMB0331-100 (US)
PMB0331 (non-US)
XPressHW, Category 1
PRR0331
Package Contents
16- or 24-port Gigabit Smart Switch (GS716T or GS724T)
Rubber footpads
Power cord
Rack-mount kit
Smart Switch resource CD
Smart Switch installation guide
Warranty/support information card
