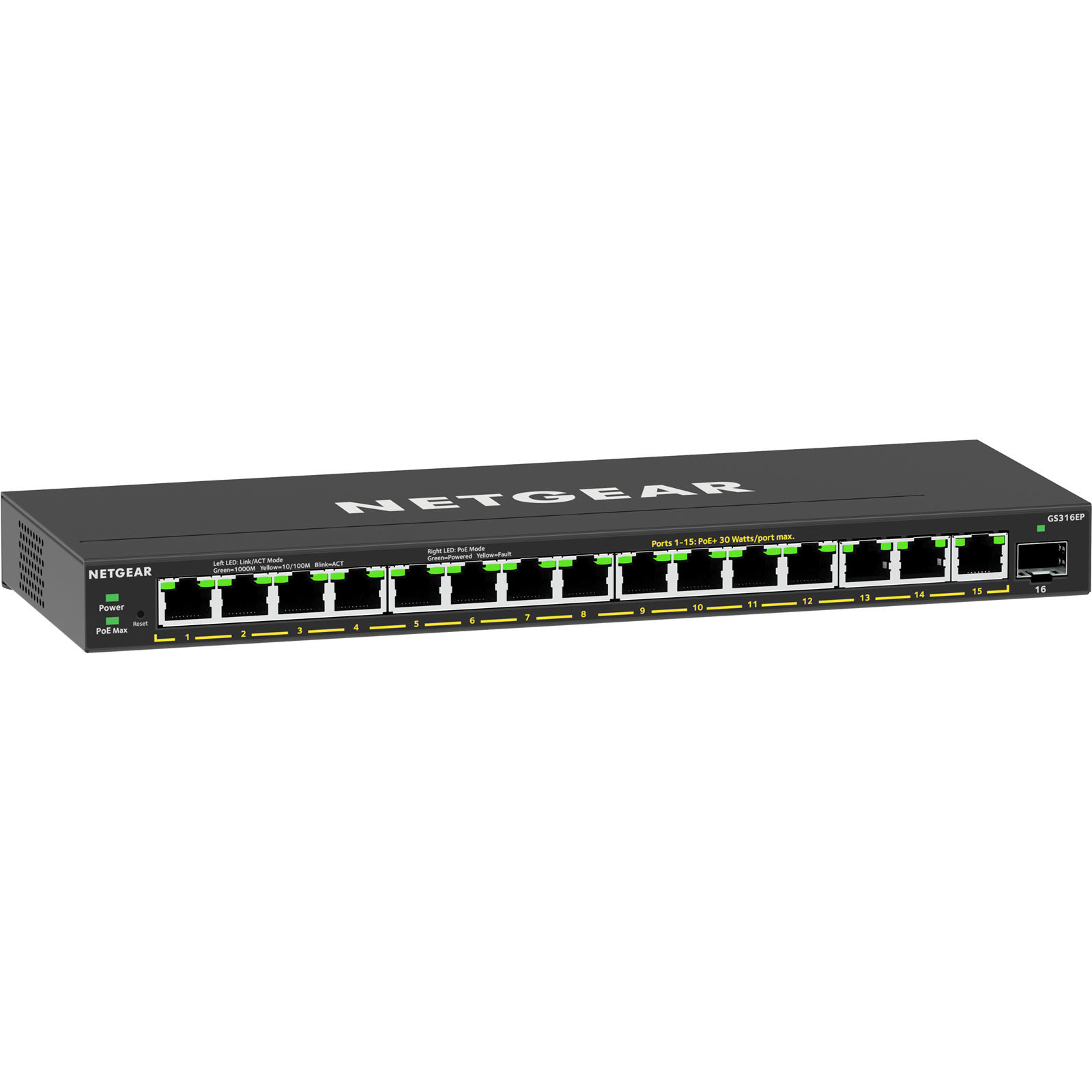

NETGEAR GS316EPP 16-Port High-Power PoE+ Gigabit Ethernet Plus Switch (231W) with 1 SFP Port
Out of stock
NETGEAR GS316EPP 16-Port High-Power PoE+ Gigabit Ethernet Plus Switch (231W) with 1 SFP Port
- Brand: Netgear
- MPN: GS316EPP-100AUS
- Part #: SWHNGR316231
- UPC: 606449154399
- Brand: Netgear
- MPN: GS316EPP-100AUS
- Part #: SWHNGR316231
- UPC: 606449154399
Features
NETGEAR 16 Port PoE Gigabit Ethernet Plus Switch
- Gigabit Ethernet - 16 ports provide up to 1000 Mbps of dedicated, non-blocking bandwidth each
- PoE+ Support - 15 PoE+ ports provide a total of 180W of power so you can power and connect your devices with a single wire
- Advanced PoE Controls - Manage PoE prioritization, PoE power limit per port, PoE scheduling and more for simple control over all PoE-powered devices
- Non-Blocking Switching - 10Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices
- Fanless Design - Silent operation makes this switch perfect for noise-sensitive environments
- Versatile Mounting Options - Install your switch on your desktop or mount it to your wall with the hardware provided in the box
New and improved Plus switches
Along with the already great Plus features, GS316EP enhances your business networking experience even more with exciting new features: advanced PoE controls with uninterrupted PoE and more, business-friendly GUI, simplified VLAN and QoS set-up, and multi-language support.
Meet Your Business Needs
This Plus Switch is packed with network-optimizing features including VLANs, QoS, and IGMP Snooping at an affordable price.
Power for PoE+ Devices
Deliver power and network connectivity to all your PoE+ devices, including wireless access points, door locks, and many more.
Easy Management
Setup is simple - just plug and play. Configure your network using a user-friendly web GUI.
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Switches
Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch -...
TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch
TP-Link TL-SG105 5-Port 10/100/1000Mbps Desktop Switch
TP-Link TL-SG108PE 8-Port Gigabit Easy Smart PoE Switch with 4...
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE...
NETGEAR GS316EPP 16-Port High-Power PoE+ Gigabit Ethernet Plus Switch (231W) with 1 SFP Port
- Brand: Netgear
- MPN: GS316EPP-100AUS
- Part #: SWHNGR316231
- UPC:606449154399
Product URL: https://www.pbtech.com/pacific/product/SWHNGR316231/NETGEAR-GS316EPP-16-Port-High-Power-PoE-Gigabit-Et
Features
NETGEAR 16 Port PoE Gigabit Ethernet Plus Switch
- Gigabit Ethernet - 16 ports provide up to 1000 Mbps of dedicated, non-blocking bandwidth each
- PoE+ Support - 15 PoE+ ports provide a total of 180W of power so you can power and connect your devices with a single wire
- Advanced PoE Controls - Manage PoE prioritization, PoE power limit per port, PoE scheduling and more for simple control over all PoE-powered devices
- Non-Blocking Switching - 10Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices
- Fanless Design - Silent operation makes this switch perfect for noise-sensitive environments
- Versatile Mounting Options - Install your switch on your desktop or mount it to your wall with the hardware provided in the box
New and improved Plus switches
Along with the already great Plus features, GS316EP enhances your business networking experience even more with exciting new features: advanced PoE controls with uninterrupted PoE and more, business-friendly GUI, simplified VLAN and QoS set-up, and multi-language support.
Meet Your Business Needs
This Plus Switch is packed with network-optimizing features including VLANs, QoS, and IGMP Snooping at an affordable price.
Power for PoE+ Devices
Deliver power and network connectivity to all your PoE+ devices, including wireless access points, door locks, and many more.
Easy Management
Setup is simple - just plug and play. Configure your network using a user-friendly web GUI.
Specifications
Features
10/100/1000 RJ45 Copper Ports (Auto Uplink)
16
Enclosure
Metal
Connector Type
Metal
PoE
# of PoE ports
15
# PoE+ 802.3at Ports
15
SFP ports
1
Total PoE/PoE+ Budget
231W
Advanced PoE Controls
Yes
PoE Scheduling
Yes
Uninterrupted PoE
Yes
Performance Specification
Forwarding modes
Store-and-forward
Bandwidth
32Gbps
Max MAC entries
4K
Buffer Size
192KB
Energy Efficient Ethernet (IEEE 802.3az) compliant
Yes
Priority queuing
WRR
Jumbo frame support
10,000 bytes
Acoustic noise level @ 25° C (dBA) (ANSI-S10.12)
0
Mean Time Between Failures (MTBF) @ 25° C
570,435 hrs
L2 Services - VLANS
VLAN (# Supported)
64
IEEE 802.1Q VLAN Tagging
Yes
Port-based VLANs
Yes
L2 Services - Availability
Link Aggregation/Port Trunking
Yes
Number of Static Manual LAGs and # of members
8/8
L2 Services - Multicast Filtering
IGMP snooping (v1, v2, and v3)
Yes
Block unknown multicast
Yes
Supported Multicast groups
128
L3 Services - DHCP
DHCP client
Yes
Quality of Service
Rate Limiting
Yes
DSCP
Yes
IEEE 802.1p COS
Yes
Port-based VLAN
Yes
TOS
Yes
WRR (Weighted Round Robin)
Yes
Strict Priority queue technology
No
IEEE Network Protocols
IEEE Network Protocols
- IEEE 802.3 Ethernet
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3u 100BASE-T
- EEE 802.1p Class of Service
- IEEE 802.1Q VLAN Tagging
- IEEE 802.3x Full-duplex Flow Control
- IEEE 802.3af PoE
- IEEE 802.3at PoE+
Management
System Password
Yes
Web browserbased management GUI
Yes
PC Utility
No
Port Mirroring
Yes
Max number of source ports allowed (one-to-one port mirroring)
1
Many-to-one Port Mirroring
Yes
Cable Test Utility
Yes
FW Upgrade Thru Plus Utility (TFTP)
No
Config download (to Switch) thru Plus Utility
No
Config upload (to server)
Yes
LEDs
Per port
Speed, Link, Activity, PoE
Per device
Power, System, PoE Max
Physical Specifications
Dimensions (W x D x H)
286 x 102 x 27 mm
(11.26 x 4.02 x 1.06 in)
Weight
0.883 kg
(1.95 lb)
Environmental Specifications
Operating temperature
32° to 104°F (0° to 40°C)
Operating Humidity (relative)
90% maximum relative humidity (RH), non-condensing
Operating Altitude
10,000 ft (3,000 m) maximum
Storage temperature
- 4° to 158°F (-20° to 70°C)
Storage Humidity (relative)
95% maximum relative humidity (RH), non-condensing
Storage Altitude
10,000 ft (3,000 m) maximum
Electromagnetic Emissions and Immunity
Certifications
CE mark, commercial
FCC Part 15 class B
CE/EN55032/24
VCCI
ACMA
CSA safety
KC
BSMI
