TP-Link TL-SF1005LP 5-Port 10/100Mbps Desktop PoE Switch with 4-Port PoE (Max 41W)
Out of stock
TP-Link TL-SF1005LP 5-Port 10/100Mbps Desktop PoE Switch with 4-Port PoE (Max 41W)
- Brand: TP-Link
- MPN: TL-SF1005LP
- Part #: SWHTPL10051
- UPC:
- Brand: TP-Link
- MPN: TL-SF1005LP
- Part #: SWHTPL10051
- UPC:
Product is out of stock. View similar products in-stock at PB Tech
Features

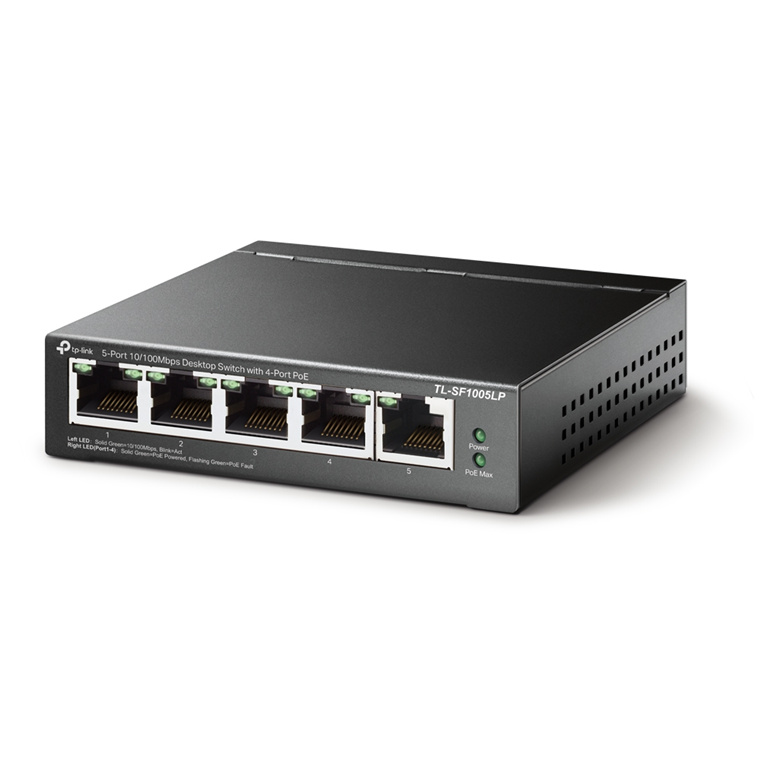

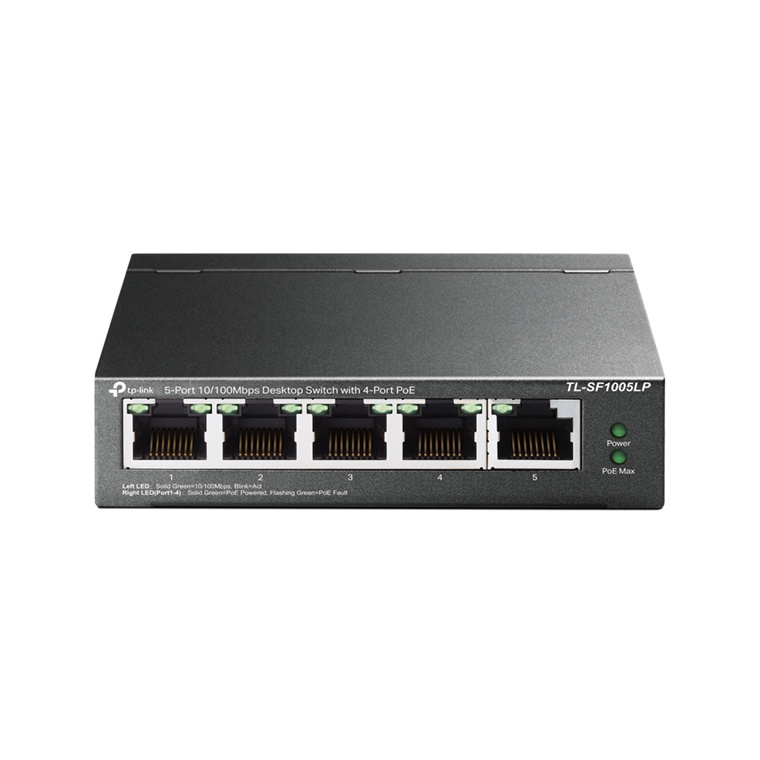

TL-SF1005LP 5-Port 10/100Mbps Desktop PoE Switch with 4-Port PoE
- 5x 10/100 Mbps RJ45 ports
- 4x PoE ports transfer data and power on individual cables
- Works with IEEE 802.3af compliant PDs
- Up to 250 m data and power transmitting range under Extend Mode**
- Priority Mode ensures high priority of ports 1-2 to guarantee the quality of sensitive application
- Supports PoE Power up to 41 W for all PoE ports*
- Plug and play with no configuration required
Professional Fast Ethernet Switch with 4 PoE Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m
Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications

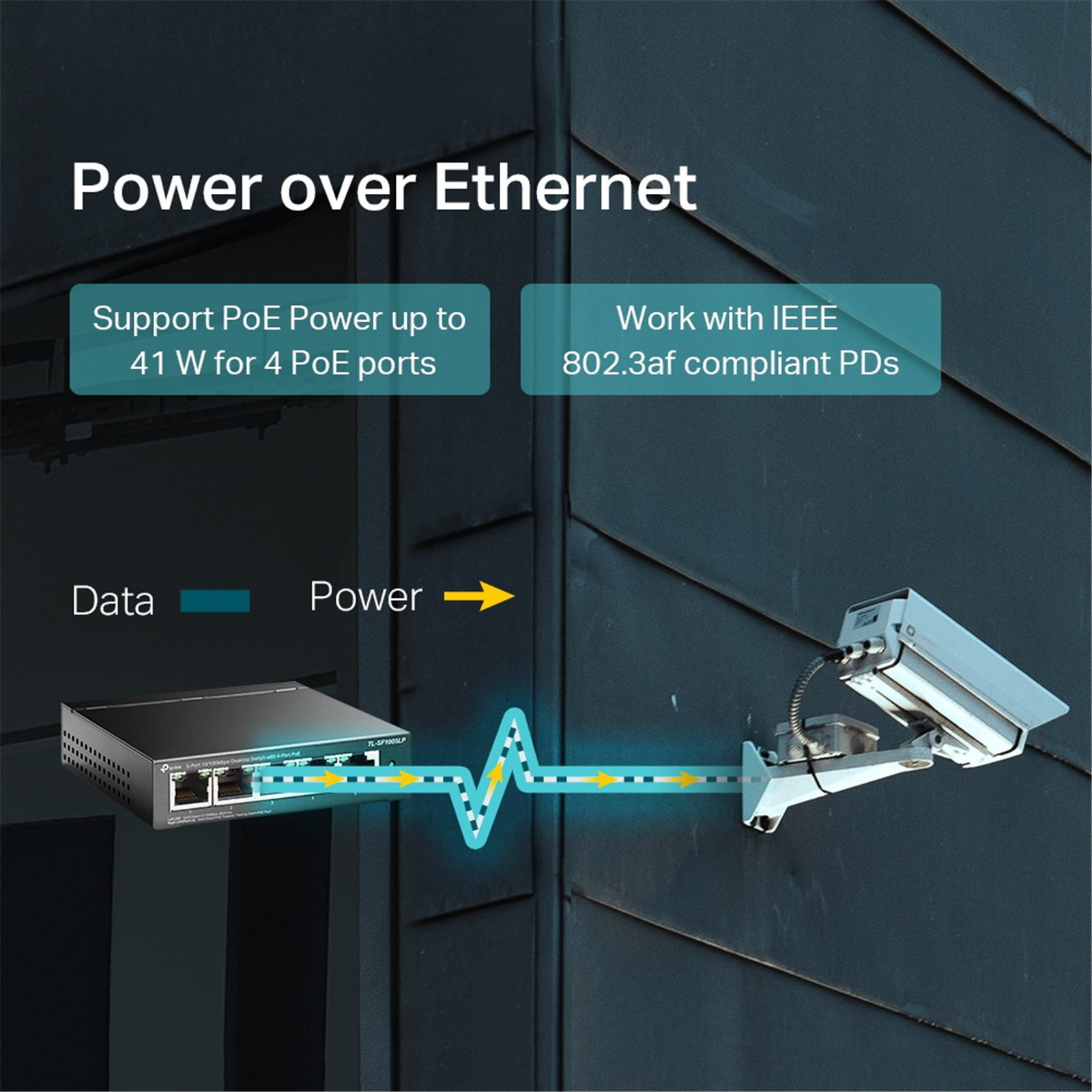

Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

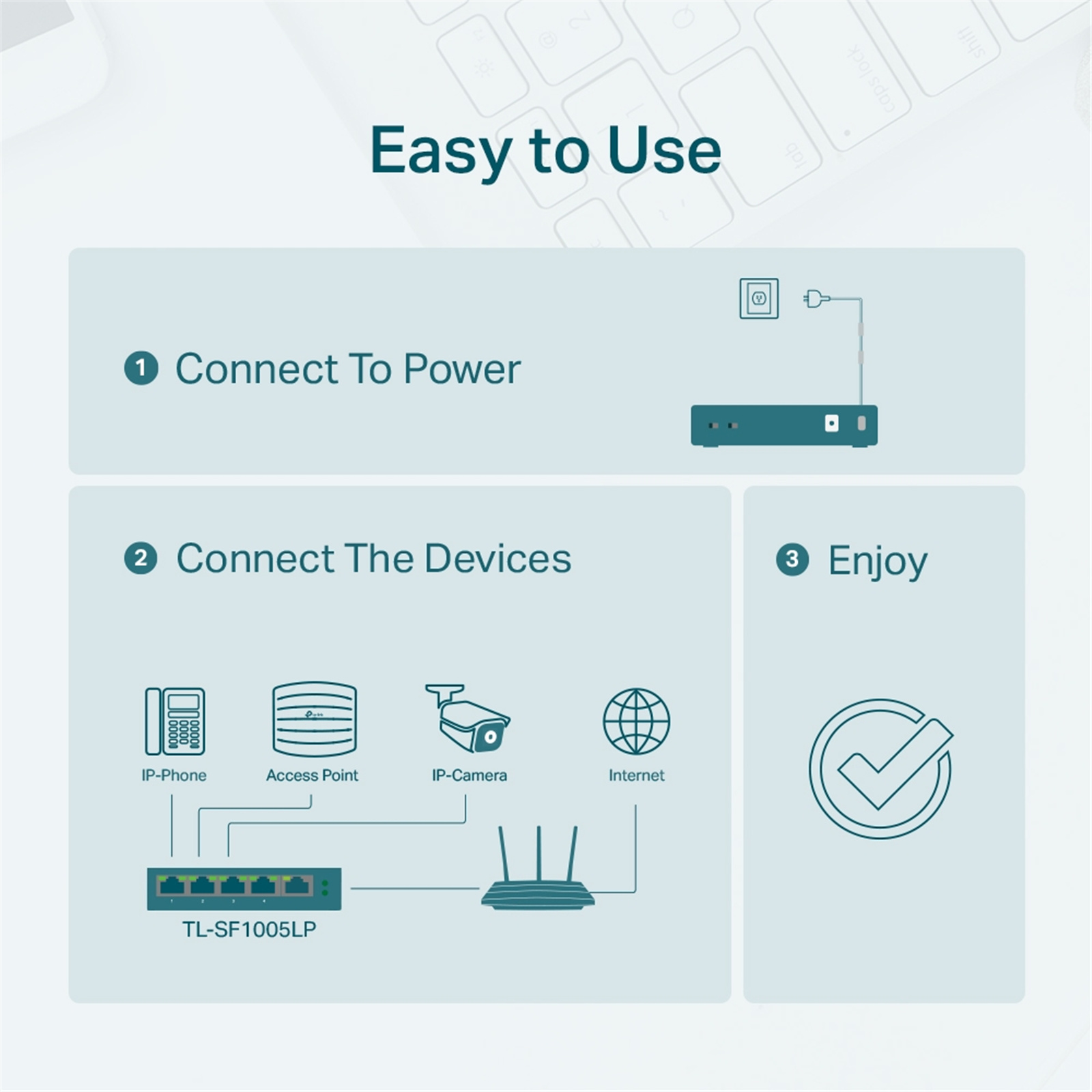

Plug and Play, No Configuration Required
Ideal for IP Surveillance -Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m**-perfect for IP Camera deployment in large areas.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
Priority Video, Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1-2 when one-touch Priority Mode is on.

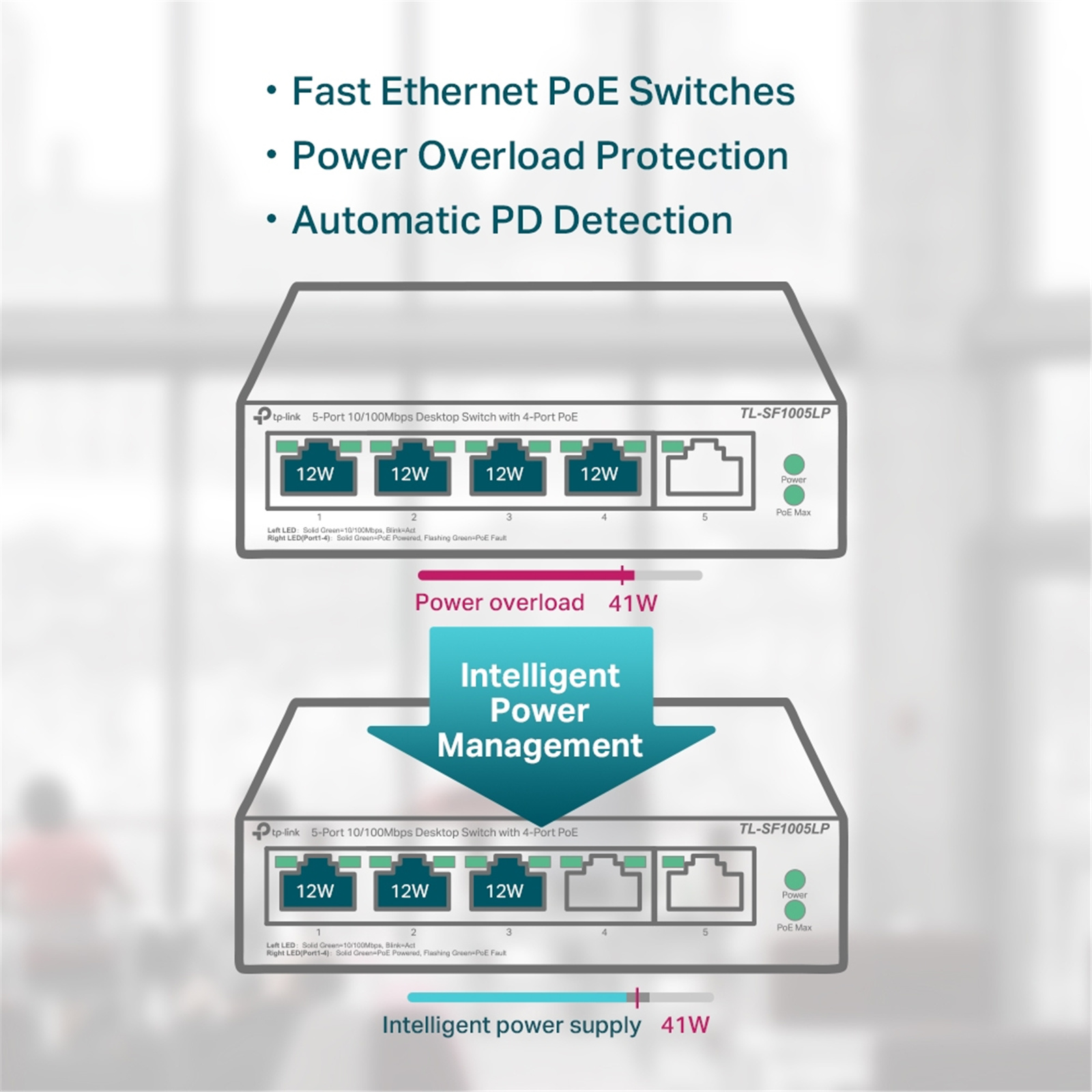

Intelligent Power Management
When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port's power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SF1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1005LP delivers switching performance you can depend on.
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
Specifications
Reviews
Accessories
Delivery & Pick-up
Returns & Warranty
Popular Switches
TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch
Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch -...
TP-Link TL-SG1008D 8-Port Gigabit Unmanaged Switch
TP-Link TL-SG108 8-Port Gigabit Unmanaged Switch - 1GbE x8
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE...
TP-Link TL-SF1005LP 5-Port 10/100Mbps Desktop PoE Switch with 4-Port PoE (Max 41W)
- Brand: TP-Link
- MPN: TL-SF1005LP
- Part #: SWHTPL10051
Product URL: https://www.pbtech.com/pacific/product/SWHTPL10051/TP-Link-TL-SF1005LP-5-Port-10100Mbps-Desktop-PoE-S
Features
TL-SF1005LP 5-Port 10/100Mbps Desktop PoE Switch with 4-Port PoE
- 5x 10/100 Mbps RJ45 ports
- 4x PoE ports transfer data and power on individual cables
- Works with IEEE 802.3af compliant PDs
- Up to 250 m data and power transmitting range under Extend Mode**
- Priority Mode ensures high priority of ports 1-2 to guarantee the quality of sensitive application
- Supports PoE Power up to 41 W for all PoE ports*
- Plug and play with no configuration required
Professional Fast Ethernet Switch with 4 PoE Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m
Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications
Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Plug and Play, No Configuration Required
Ideal for IP Surveillance -Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m**-perfect for IP Camera deployment in large areas.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
Priority Video, Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1-2 when one-touch Priority Mode is on.
Intelligent Power Management
When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port's power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SF1005LP are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1005LP delivers switching performance you can depend on.
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
Specifications
HARDWARE FEATURES
Interface
5× 10/100 Mbps RJ45 Ports (Ports 1-4 support 802.3af PoE)
AUTO Negotiation
AUTO MDI/MDIX
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
Fan Quantity
Fanless
Physical Security Lock
Yes
External Power Supply
External Power Adapter (Output: 53.5 V DC / 0.81 A)
Packet Forwarding Rate
0.744 Mpps
PoE Ports (RJ45)
Standard: 802.3 af compliant
PoE Ports: Ports 1-4
Power Supply: 41 W
Mac Address Table
2K
Jumbo Frame
2 KB
Switching Capacity
1 Gbps
Dimensions ( W x D x H )
3.9 x 3.9 x 1.0 in (100 x 98 x 25 mm)
Max Power Consumption
1.9 W (220 V / 50 Hz, no PD connected)
47 W (220 V / 50 Hz, with 41 W PD connected)
Max Heat Dissipation
6.48 BTU/h(no PD connected)
160.27 BTU/h(with 41 W PD connected)
SOFTWARE FEATURES
Transmission Method
Store-And-Forward
Advanced Functions
Compatible With IEEE 802.3af/at Compliant PDs
Extend Mode Button (Ports 1-4)
Priority Mode Button (Ports 1-2)
Mac Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
OTHERS
Certification
FCC, CE, RoHS
Package Contents
TL-SF1005LP
Power Adapter
Installation Guide
Environment
Operating Temperature: 0-40 ? (32-104 ?)
Storage Temperature: -40-70 ? (-40-158 ?)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensing
