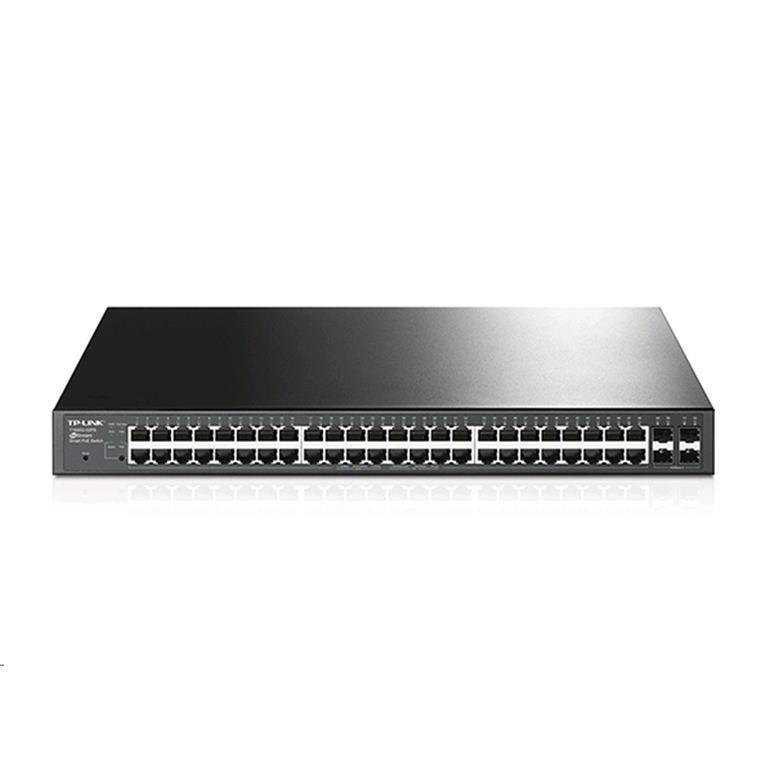

TP-Link T1600G-52PS 48-Port Gigabit Smart PoE+ Switch with 4 x SFP Slots (Max 384W)

Overview

With 48 802.3at/af PoE compliant Gigabit Ethernet ports and a power supply of 384 W, the T1600G-52PS JetStream 48-Port Gigabit Smart PoE+ Switch with 4 SFP Slots from TP-Link is designed to support a variety of devices from IP cameras, to access points, and more. In addition to the numerous PoE Gigabit Ethernet ports, this TP-Link switch also comes equipped with 4 Gigabit SFP slots supporting a variety of small form factor pluggable devices and fibre channel applications. This T1600G-52PS also contains 3 built-in fans to keep everything cool when pushing the switch to it's limits. Once installed, this TP-Link switch offers a wealth of Layer 2 and Layer 2+ features, including static routing to help route internal traffic, 802.1Q VLAN tagging, port mirroring, link aggregation, 802.3x flow control, and more. For network maintainence TP-Link has included features such as loop back detection, cable diagnostics, and IGMP snooping. Securing the network has also been simplified thanks to IP-MAC-port binding, port security, storm control, and HDCP snooping, while 802.1X compliance offers an added level of authentication for users attempting to gain access to the network.


IEEE 802.3at/af-Compliant Power over Ethernet

The T1600G-52PS provides 48 10/100/1000Mbps RJ45 Ports that support 802.3at/af-compliant PoE, with a total PoE power supply up to 384W to power any 802.3at/af compliant power device. Compact and fl­exible, the T1600G-52PS is ideal to ­flexibly use PoE to deploy wireless access points or IP-based network surveillance cameras for projects or small business networks.


L2 and L2+ Features

The T1600G-52PS supports rich L2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Group and 802.3x Flow Control function. Besides, the switch provides advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Moreover, T1600G-52PS supports L2+ feature-static routing, which is a simple way to provide segmentation of the network with internal routing through the switch and helps network traffic for more efficient use.


Secure Networking

The T1600G-52PS supports IP-MAC-Port Binding, Port Security, Storm control and DHCP Snooping which protect against broadcast storms, ARP attacks, etc. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, and even VLAN ID. Moreover, the switch supports 802.1X, which allows network clients to be authenticated through external Radius servers. Guest VLAN function supports to enable the non-802.1X clients to access the specific network resource.


Advanced QoS Features

To integrate voice, data, and video service on one network, the switch applies QoS policies. Administrators can designate the priority of the traffic based on a variety of means, including Port Priority, 802.1P Priority, and DSCP Priority, to ensure that voice and video are clear, smooth, and jitter free.


Enterprise Level Management Features

The T1600G-52PS supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface (GUI) or industry-standard Command Line Interface (CLI), SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events. And comprehensive IPv6 supporting management ensures a smooth migration to IPv6-based network. Besides, it also supports Dual Image, which provides reduced down-time for the switches, when the image is being upgraded / downgraded.
