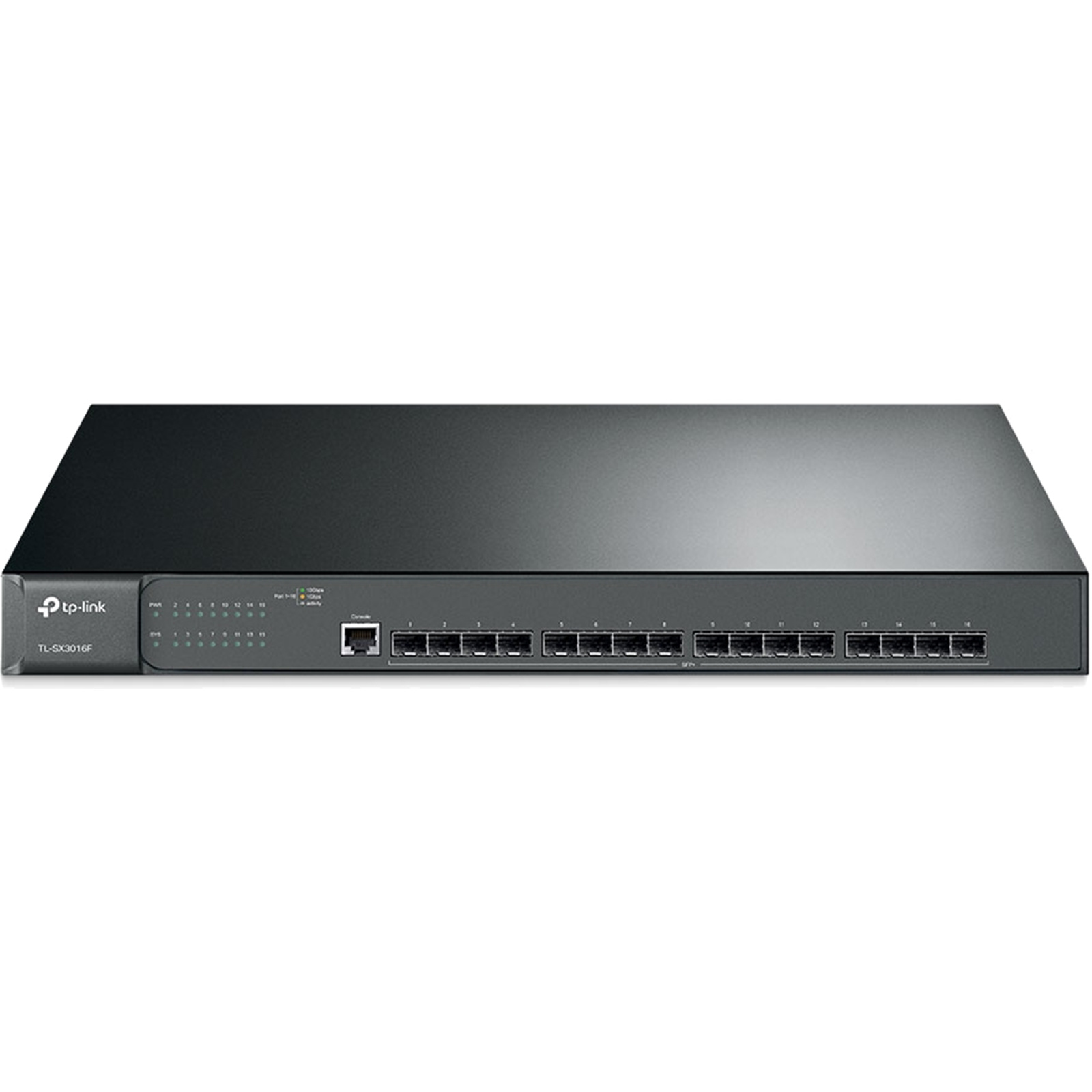

TP-Link Omada SX3016F 16-Port 10GE SFP+ L2+ Managed Switch

Model

TL-SX3016F

General

Interface

16 10GE SFP+ Slots

Console

1 RJ45 Console Port, 1 Micro-USB Console Port

Flash

32 MB

DRAM

256 MB

Port Standard

IEEE 802.3z: 1000BASE-X Gigabit Ethernet (Optical fiber)
IEEE 802.3ae: 10 Gigabit Ethernet over fiber

Performance

Switching Capacity

320 Gbps

Packet Forwarding Rate

238.08 Mpps

MAC Address Table

32K

Packet Buffer

24 Mbit

Transmission Method

Store and Forward

Number of IP Interfaces

16

Number of Static Routers

48 (IPv4, IPv6)

Jumbo Frame

9 KB

Physical & Environment

Dual Redundant Power Supply

2 Fixed AC Power Supply

Power Supply

100-240 V AC~50/60 Hz

Max Power Consumption

32.74 W (220 V/50 Hz)

Max Heat Dissipation

111.71 BTU/hr (220 V/50 Hz)

Standby Power Consumption

13.33 W (110 V/60 Hz)

Dimensions (W x D x H)

17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)

Fan Quantity

1

Installation

Rack Mountable

Operating Temperature

0 °C to 45 °C (32 °F to 113 °F)

Storage Temperature

-40 °C to 70 °C (-40 °F to 158 °F)

Operation Humidity

10% to 90% RH, non-condensing

Storage Humidity

5% to 90% RH, non-condensing

Certification

CE, FCC, RoHS

Software Features

SDN Support

- Support Omada Hardware Controller (OC200/OC300), Software Controller
- Automatic Device Discovery
- Batch Configuration
- Batch Firmware Upgrading
- Intelligent Network Monitoring
- Abnormal Event Warnings
- Unified Configuration
- Reboot Schedule

L3 Features

- 16 IPv4/IPv6 Interfaces
- Static Routing
   - 48 static routes
- Static ARP
   - 128 static entries
- 512 ARP Entries
- Proxy ARP
- Gratuitous ARP
- DHCP Server
- DHCP Relay
   - DHCP interface relay
   - DHCP VLAN relay
- DHCP L2 Relay

L2 Features

- Link Aggregation
   - Static link aggregation
   - 802.3ad LACP
   - Up to 8 aggregation groups and up to 8 ports per group
- Spanning Tree Protocol
   - 802.1d STP
   - 802.1w RSTP
   - 802.1s MSTP
   - STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect, Loop Protect
- Loopback Detection
   - Port based
   - VLAN based
- Flow Control
   - 802.3x Flow Control
   - HOL Blocking Prevention
- Mirroring
   - Port Mirroring
   - CPU Mirroring
   - One-to-One
   - Many-to-One
   - Tx/Rx/Both

L2 Multicast

- Supports 1000 (IPv4, IPv6) IGMP groups
- IGMP Snooping
   - IGMP v1/v2/v3 Snooping
   - Fast Leave
   - IGMP Snooping Querier
   - IGMP Authentication
- IGMP Authentication
- MVR
- MLD Snooping
   - MLD v1/v2 Snooping
   - Fast Leave
   - MLD Snooping Querier
   - Static Group Config
   - Limited IP Multicast
- Multicast Filtering: 256 profiles and 16 entries per profile

VLAN

- VLAN Group (802.1q VLAN)
   - Max 4K VLAN Groups
- 802.1Q Tagged VLAN
- MAC VLAN: 30 entries (10 entries for TL-SG3210XHP-M2)
- Protocol VLAN: Protocol Template 16, Protocol VLAN 16 (Protocol Template 16 and Protocol VLAN 12 for TL-SX3008F and TL-SX3016F)
- Private VLAN
- GVRP
- VLAN VPN
   - VLAN Mapping
   - VLAN Replace
- Voice VLAN

QoS

- 8 priority queues
- 802.1p CoS/DSCP priority
- Queue scheduling
   - SP (Strict Priority)
   - WRR (Weighted Round Robin)
   - SP+WRR
- Bandwidth Control
   - Port/Flow based Rating Limiting
- Smoother Performance
- Action for Flows
   - QoS remark (802.1P Remark, DSCP Remark)

ACL

- MAC ACL
   - Source MAC
   - Destination MAC
   - VLAN ID
   - User Priority
   - Ether Type
- IP ACL
   -Source IP
   - Destination IP
   - Fragment
   - IP Protocol
   - TCP Flag
   - TCP/UDP Port
   - DSCP/IP TOS
- Combined ACL
- IPv6 ACL
- Policy
   - Mirroring
   - Redirect
   - Rate Limit
   - QoS Remark
- ACL apply to Port/VLAN
- Time-based ACL

Security

- IP-MAC-Port Binding
   -512 Entries
   - DHCP Snooping
   - ARP Inspection
   - IPv4 Source Guard
- IPv6-MAC
-Port Binding
   -512 Entries
   - DHCPv6 Snooping
   - ND Detection
   - ND Snooping
   - IPv6 Source Guard
- DoS Defend
- DHCP Filter
- Static/Dynamic Port Security
   - Up to 64 MAC addresses per port
- Broadcast/Multicast/Unknown-unicast Storm Control
   - kbps/ratio/pps control mode
- 802.1X
   - Port base authentication
   - Mac base authentication
   - VLAN Assignment
   - MAB
   - Guest VLAN
   - Support RADIUS authentication and accountability
- AAA (including TACACS+)
- Port Isolation
- Secure web management through HTTPS with SSLv3/TLS 1.2
- Secure Command Line Interface (CLI) management with SSHv1/SSHv2
- IP/Port/MAC based access control

ISP Features

- 802.3ah Ethernet Link OAM
- L2PT (Layer 2 Protocol Tunneling)
- PPPoE ID Insertion
- Device Link Detect Protocol (DLDP)
- sFlow
- DDM

Management

- Web-based GUI
- Command Line Interface (CLI) through consoleport, telnet
- SNMPv1/v2c/v3
   - Trap/Inform
   - RMON (1, 2, 3, 9 groups)
- SDM Template
- DHCP/BOOTP Client
- 802.1ab LLDP/LLDP-MED
- DHCP Auto Install
- Dual Image, Dual Configuration
- CPU Monitoring
- Cable Diagnostics
- Password Recovery
- SNTP
- System Log

IPv6 Support

- IPv6 Dual IPv4/IPv6
- Multicast Listener Discovery (MLD) Snooping
- IPv6 ACL
- IPv6 Interface
- Static IPv6 Routing
- IPv6 neighbor discovery (ND)
- Path maximum transmission unit (MTU) discovery
- Internet Control Message Protocol (ICMP) version 6
- TCPv6/UDPv6
- IPv6 applications
   - DHCPv6 Client
   - Ping6
   - Tracert6
   - Telnet (v6)
   - IPv6 SNMP
   - IPv6 SSH
   - IPv6 SSL
   - Http/Https
   - IPv6 TFTP

MIBs

- MIB II (RFC1213)
- Interface MIB (RFC2233)
- Ethernet Interface MIB (RFC1643)
- Bridge MIB (RFC1493)
- P/Q-Bridge MIB (RFC2674)
- RMON MIB (RFC2819)
- RMON2 MIB (RFC2021)
- RADIUS Accounting Client MIB (RFC2620)
- RADIUS Authentication Client MIB (RFC2618)
- Remote Ping, Traceroute MIB (RFC2925)
- Support TP-Link Private MIB
