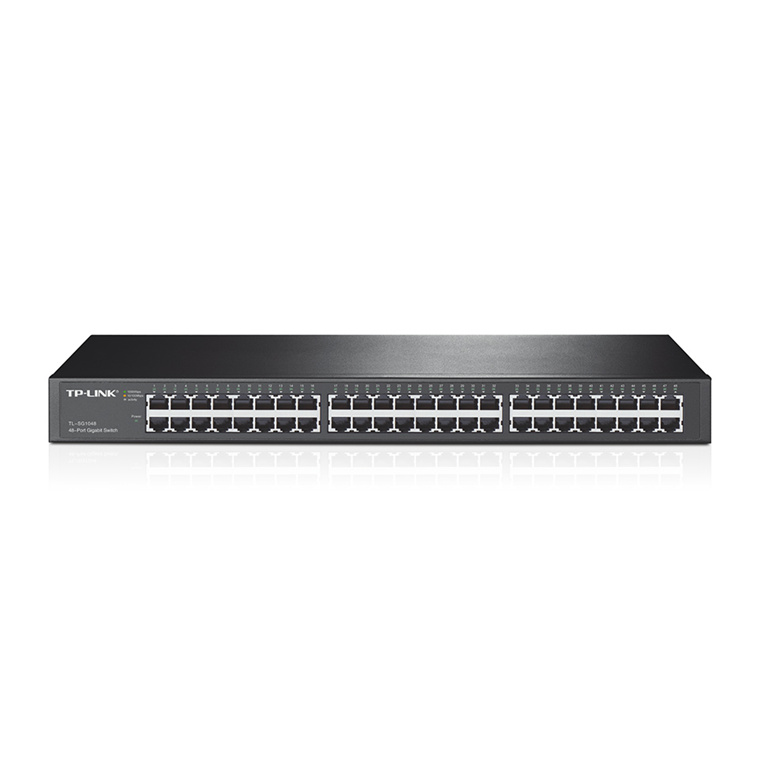

TP-Link TL-SG1048 48-Port Gigabit Rackmount Switch

PB Tech price
PB Tech price
NZD $ 477 .44
$ 477 .44
$477.44  +GST
$477.44

TP-Link TL-SG1048 48-Port Gigabit Rackmount Switch

  • Brand: TP-Link
  • MPN: TL-SG1048
  • Part #: SWHTPL1049
  • UPC:
1
PB Tech price
NZD $ 477 .44 $ 477 .44
In stock at NZ Logistics Centre
Delivery: Order now and it ships on 16 Sep
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$477.44  +GST
$477.44
Add To Compare
Stock Alerts
Click or hover over image to enlarge
  • Brand: TP-Link
  • MPN: TL-SG1048
  • Part #: SWHTPL1049
  • UPC:

Form Factor

1U Rackmount

Management Level

Unmanaged

Number of Ports

48 Ports

PoE

Yes

PoE Ports

0 Ports

PoE Budget

N/A

Stacking

No

Uplink Ports

0

View full specs
Returns & Warranty Bulk Quote Print Page

What PB Tech customers are saying about this product...

See More Reviews

"PBTech recommended plug and played unmanaged switched installed without drama. Happy customer. Excellent service as always."

G
By: Guest 03/07/21

COMBO DEALS: Frequently Bought Together

Create your own combo deal with any of the items below and the TP-Link TL-SG1048 48-Port Gigabit Rackmount Switch
TP-Link TL-SG1048 48-Port Gigabit Rackmount Switch
TP-Link Tapo L930-5 Smart Light Strip -5M, RGB Multicolour, Dimmable
TP-Link Tapo L530E Smart Wi-Fi RGB LED Light Bulb E27 - 2 Pack
Total:
NZD $ 562 .22
NZD $ 562 .22
TP-Link Tapo L930-5 Smart Light Strip -5M, RGB Multicolour, Dimmable
TP-Link Tapo L930-5 Smart Light Strip -5M, RGB Multicolour, Dimmable

TP-Link Tapo L930-5 Smart Light Strip -5M, RGB Multicolour, Dimmable

Ships on 09 Sep
NZD

$57.04

$57.04

TP-Link Tapo L530E Smart Wi-Fi RGB LED Light Bulb E27 - 2 Pack
TP-Link Tapo L530E Smart Wi-Fi RGB LED Light Bulb E27 - 2 Pack

TP-Link Tapo L530E Smart Wi-Fi RGB LED Light Bulb E27 - 2 Pack

Ships tomorrow
NZD

$27.74

$27.74

Features



Feature:

  • Innovative energy-efficient technology saves power up to 18%
  • 100% Data filtering rate eliminates all error packets
  • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
  • Non-blocking switching architecture forwards and filters packets at full wire-speed for maximum throughput
  • 96Gbps Switching Capacity
  • Auto MDI/MDIX eliminates the need for crossover cables
  • Supports MAC address auto-learning and auto-aging
  • Support the port N-Way Auto-Negotiation, Store and Forward.
  • Compact size design for desktops, Rackmountable
  • Plug and Play design simplifies installation

What This Product Does

The 48-Port Gigabit Switch TL-SG1048 is designed to meet the needs of the most demanding workgroup and departmental connectivity requirements. A reliable, easy-to-use switch without the complexity of management, the TL-SG1048 provides 48 10/100/1000Mbps ports. The TL-SG1048 combines ease of use with unsurpassed performance resulting in an exceptional value for any cost-conscious network administrator who wants the best possible solution at the best possible price.

TP-LINK Green Technology

This new generation The 48-Port Gigabit Rackmount Switch TL-SG1048 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

Ease of Use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Compact size shell make it ideal for desktops with limited space while it is also Rackmountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.

High Performance

The TL-SG1048 features non-blocking wire-speed architecture with a 96Gbps switching capacity for maximum data throughput. An 8K MAC address table provides scalability for even the largest networks. It also supports 802.3x Flow Control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission.

Specifications

Standards and Protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
Interface 48 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity 2
Power Supply 100-240VAC, 50/60Hz
Power Consumption Maximum: 29.8W (220V/50Hz)
Dimensions ( W x D x H ) 17.32*8.7*1.73 in.(440*220*44 mm)
PERFORMANCE
Switching Capacity 96Gbps
Packet Forwarding Rate 71.4Mpps
MAC Address Table 8K
Buffer Memory 16Mb
Jumbo Frame 10KB
Transfer Method Store-and-Forward
OTHERS
Certification FCC, CE, RoHS
Package Contents 48-Port Gigabit Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet
Environment Operating Temperature: 0?~40? (32?~104?);
Storage Temperature: -40?~70? (-40?~158?);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
Manufacturer Part No:
TL-SG1048
Brand:
TP-Link
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
4.3 kg
PB Part No:
SWHTPL1049
Product Model:
TL-SG1048
Warranty: 36 months *
