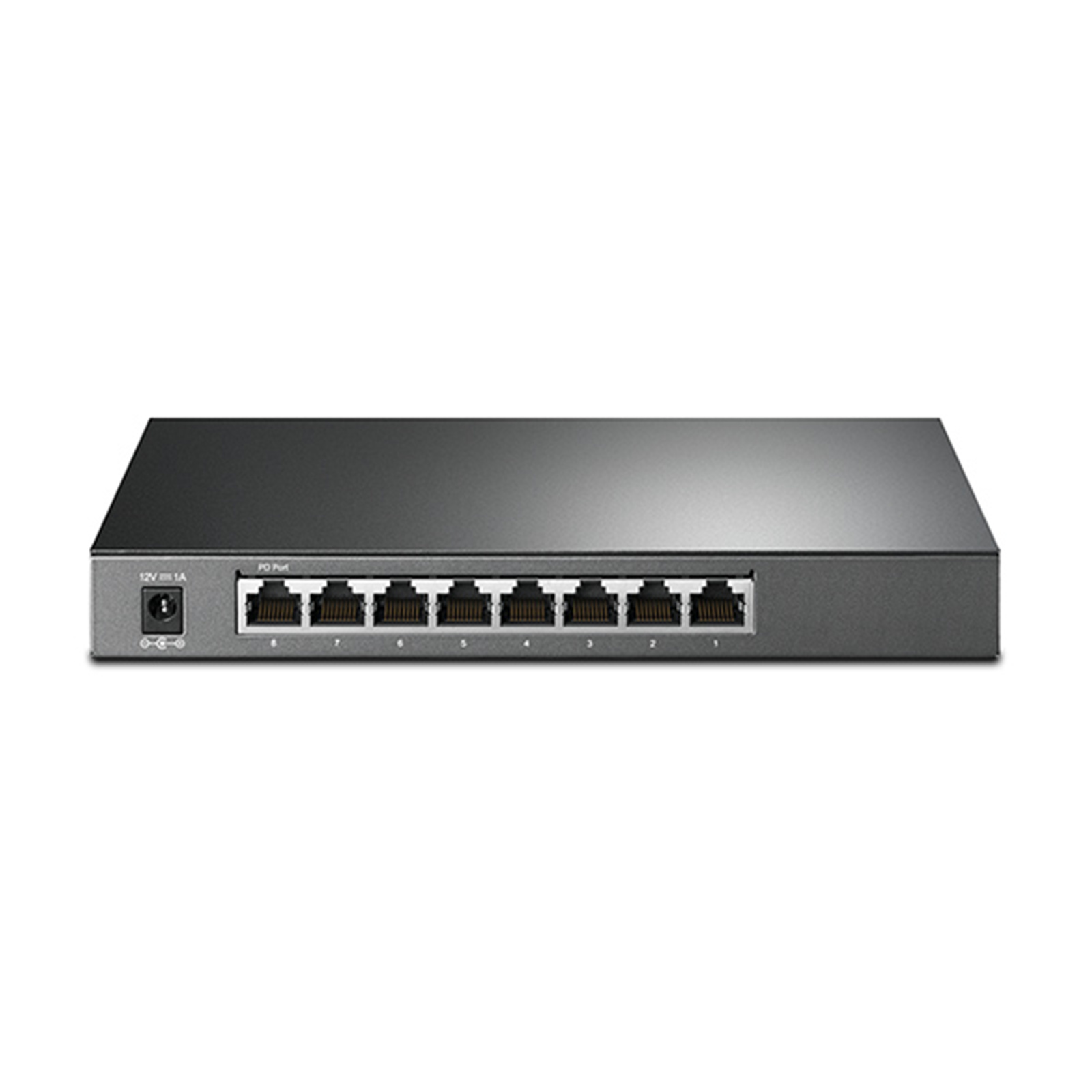

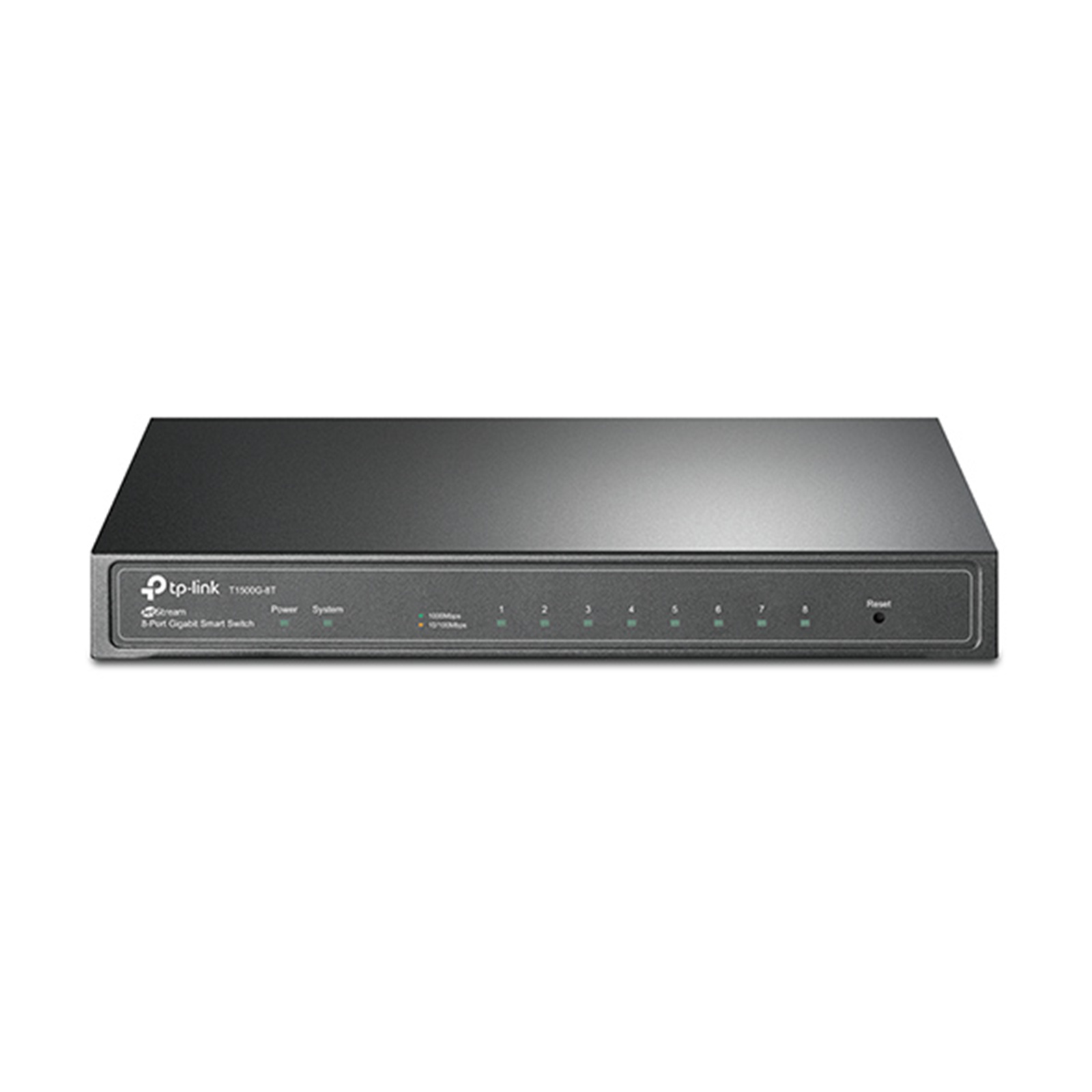

TP-Link T1500G-8T 8-Port Gigabit Smart Switch
Out of stock
- Brand: TP-Link
- MPN: T1500G-8T
- Part #: SWHTPL1508
- UPC:
Product is out of stock. View similar products in-stock at PB Tech
Features
Specifications
Reviews
Accessories
Delivery & Pick-up
Returns & Warranty
Popular Switches





TP-Link T1500G-8T 8-Port Gigabit Smart Switch
- Brand: TP-Link
- MPN: T1500G-8T
- Part #: SWHTPL1508

Product URL: https://www.pbtech.com/pacific/product/SWHTPL1508/TP-Link-T1500G-8T-8-Port-Gigabit-Smart-Switch
Features
JetStream 8-Port Gigabit Smart Switch
-Powered by standard 802.3af compliant PoE source or direct DC power supply
-Gigabit Ethernet connections on all ports provide full speed of data transferring
-Advanced security features include IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, and Radius Authentication
-L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
-WEB/CLI managed modes, SNMP, RMON bring abundant management features
-Dual Firmware Image improves reliability and up-time of your network
Specifications
Standards and Protocols
IEEE 802.3i/ IEEE 802.3u /IEEE 802.3ab/ IEEE802.3z/ IEEE 802.3ad/ IEEE 802.3x/ IEEE 802.3af PD/ IEEE 802.1d/ IEEE 802.1s/ IEEE 802.1w/ IEEE 802.1q/ IEEE 802.1/x IEEE 802.1p
Interface
8 10/100/1000Mbps RJ45 Ports
Port8 obtain power from PoE source
(Auto-Negotiation/Auto MDI/MDIX)
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity
Fanless
Power Supply
12VDC/1A External Power Adapter or powered by 802.3af PoE
PD Port (RJ45)
Port 8 power device port which can power up the switch by IEEE802.3af power source
Dimensions ( W x D x H )
8.2 x 5.0 x 1.0 in. (209 x 126 x 26 mm)
Max Power Consumption
5.8W
Max Heat Dissipation
19.6 BTU/h
PERFORMANCE
Bandwidth/Backplane
16Gbps
Packet Forwarding Rate
11.9Mpps
MAC Address Table
8K
Jumbo Frame
9216 Bytes
OTHER
Certification
CE, FCC, RoHS
Package Contents
T1500G-8T Power Adapter Installation Guide Resource CD Rubber Feet
Environment
Operating Temperature: 0?~40? (32?~104?);
Storage Temperature: -40?~70? (-40?~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
