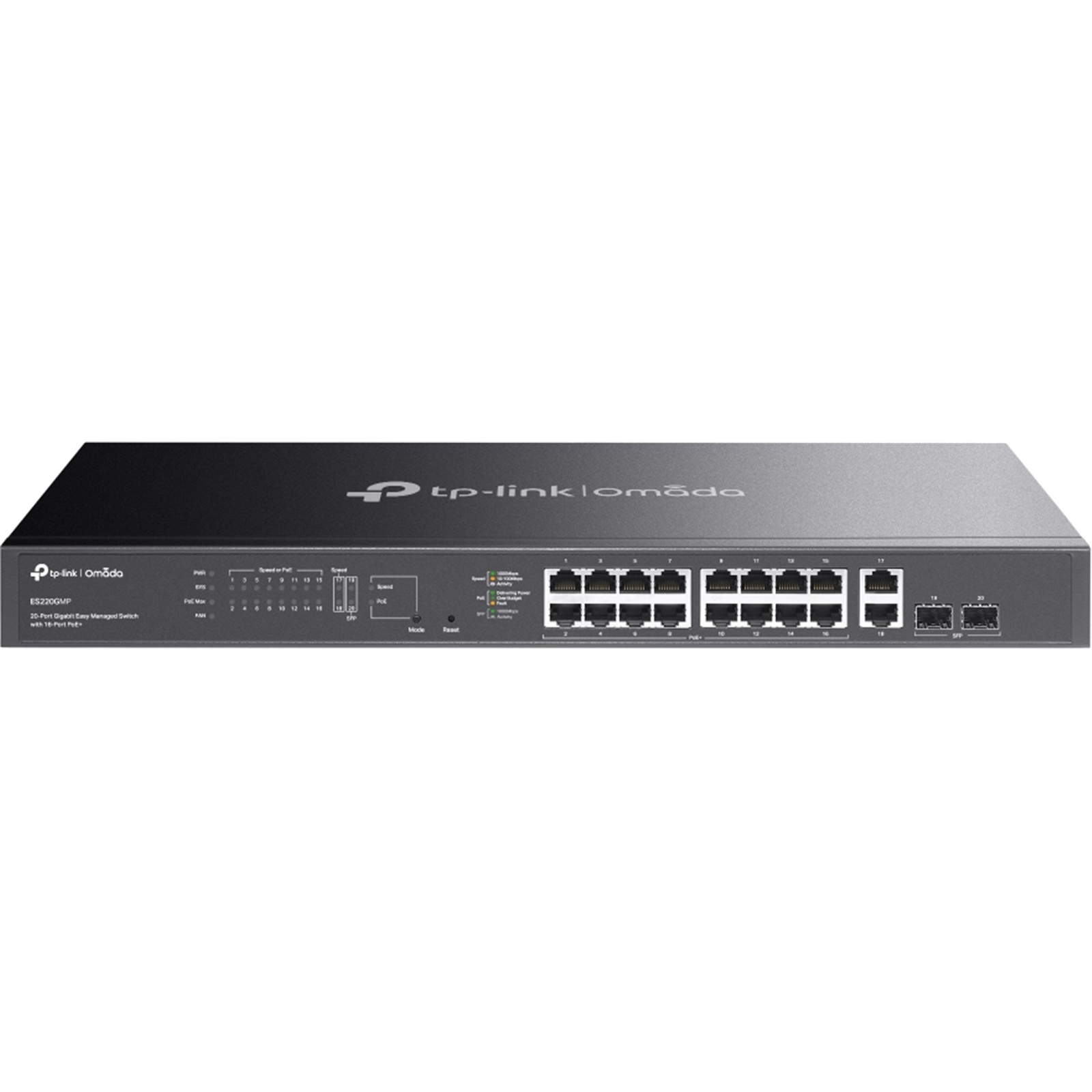

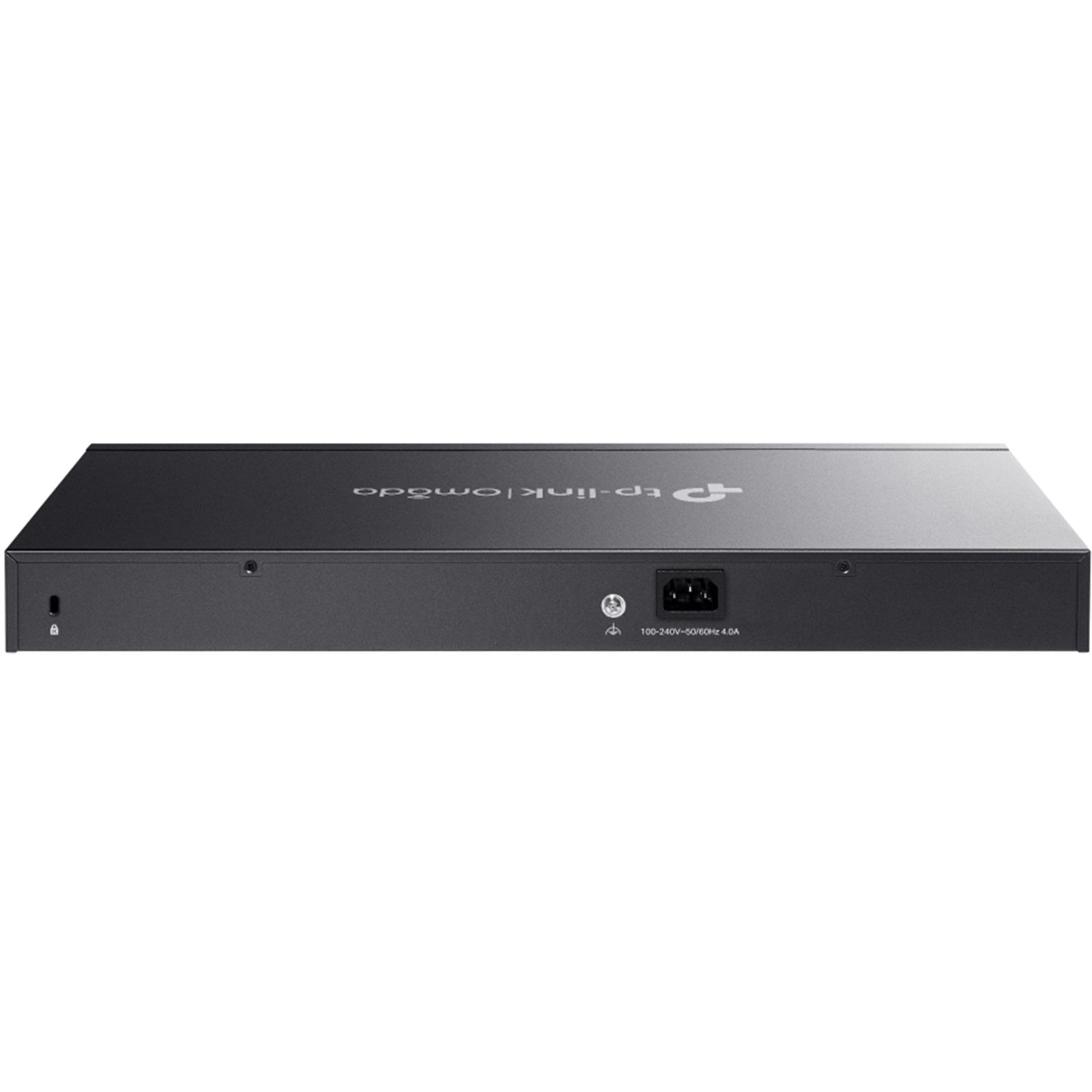

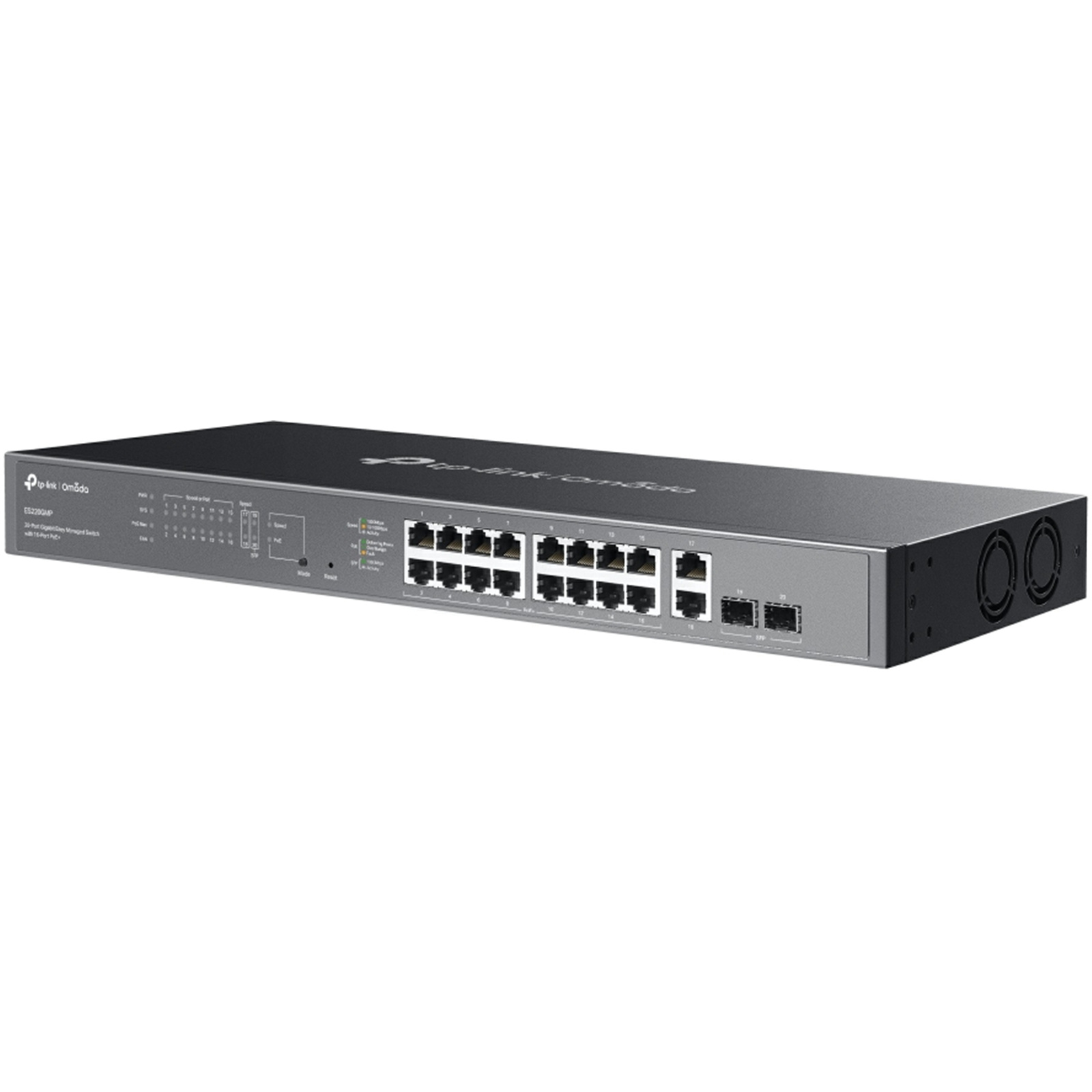

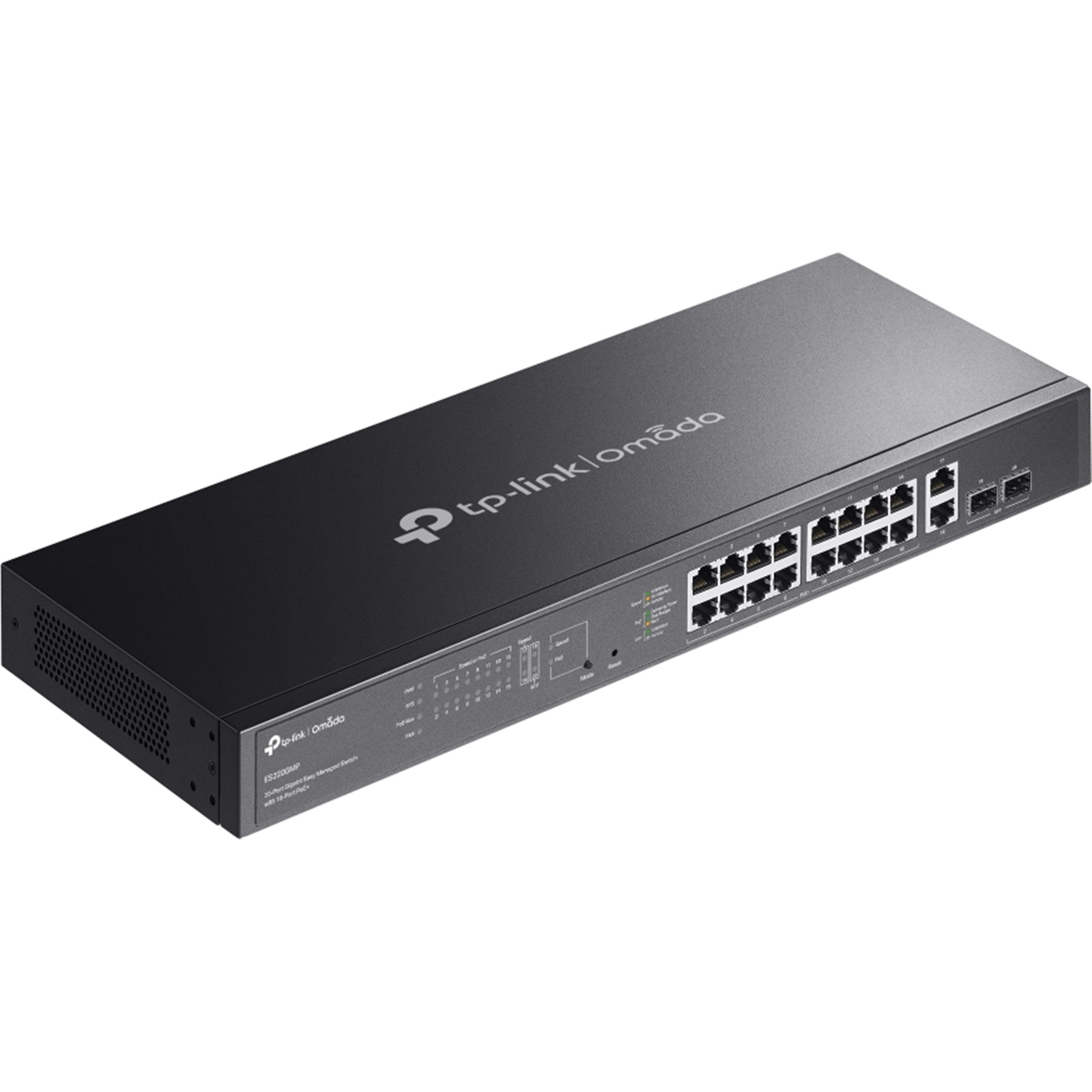

TP-Link Omada ES220GP 20-Port Gigabit Easy Managed PoE Switch (150W) - SFP x2, 1GbE PoE+ x16
TP-Link Omada ES220GP 20-Port Gigabit Easy Managed PoE Switch (150W) - SFP x2, 1GbE PoE+ x16
- Brand: TP-Link
- MPN: ES220GP
- Part #: SWHTPL2202
- UPC:
- Brand: TP-Link
- MPN: ES220GP
- Part #: SWHTPL2202
- UPC:
Similar in-stock products available at PB Tech right now
Features
ES220GMP
Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+
- 16x Gigabit 802.3af/at-compliant PoE+ RJ45 ports
- 2x Gigabit RJ45 port, 2x Gigabit SFP port
- 250W Power Budget, with up to 30W for each PoE port*
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralised Cloud Management via the web or the Omada app[2]
- Up to 250m PoE**, QoS[4], PoE Auto Recovery[3], and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Durable metal casing and rack-mountable design
Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+ - ES220GMP
- 20x Gigabit Ports (16x PoE+, 2x RJ45, 2x SFP)
- 250 W Total PoE Budget*
- Up to 250m PoE Transmission**
- Easy Centralised Management[2]
- Automatic Loop Prevention
- PoE Auto Recovery[3]
- Traffic Separation
- Traffic Prioritisation[4]
Omada Cloud Essentials - A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use cloud-based management option for the Omada networking system[1], covering access points, switches, and gateways. It enables simple, centralised network management and monitoring with essential features, making it ideal for surveillance networks and small businesses that don't require the complexity of larger operations.
*Please go to https://omada.tplinkcloud.com to log in with your TP-Link ID.
- Lifetime Free Cloud without Any Additional Fees
- Exists Entirely in the Cloud. No Hardware or Software Controller Needed
- Cloud Centralised Management for Multiple Sites
- Access Anytime via Omada App or Web
- Easy Setup, Use, and Maintenance
- Unlimited Management Scale
- Zero-Touch Provisioning (ZTP) without Unboxing *The gateway requires one-step configuration
- Upgrade to Standard with a Seamless Subscription *Available from Q2 2025.
Abundant Functions for Reliable Surveillance Networking
- Transmission Distance up to 250 m**
- Priority Video Quality Guaranteed[4]
- Secure Traffic Separation via Port Isolation
- PoE Auto Recovery[3]
Multiple Application Scenarios
Surveillance
Works with IP Cameras
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers
[1]The Omada Cloud-Based Controller offers the Essentials version of cloud services for free, while the Standard version, which includes advanced features, requires a license.
[2]These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.
[3]This switch supports PoE Auto Recovery under Standalone Mode (managed separately without a controller) and supports manual PoE Recovery under Controller Mode (centrally managed with a controller).
[4]QoS and Priority Mode are supported under Standalone Mode.
*PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors.
**The speed of the ports that support 250m PoE transmission will be downgraded to 10 Mbps. Actual transmission distance may vary depending on the quality of the cables.
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Switches
TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch
Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch -...
TP-Link TL-SG1008D 8-Port Gigabit Unmanaged Switch
TP-Link TL-SG108 8-Port Gigabit Unmanaged Switch - 1GbE x8
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE...
TP-Link Omada ES220GP 20-Port Gigabit Easy Managed PoE Switch (150W) - SFP x2, 1GbE PoE+ x16
- Brand: TP-Link
- MPN: ES220GP
- Part #: SWHTPL2202
Product URL: https://www.pbtech.com/pacific/product/SWHTPL2202/TP-Link-Omada-ES220GP-20-Port-Gigabit-Easy-Managed
Features
ES220GMP
Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+
- 16x Gigabit 802.3af/at-compliant PoE+ RJ45 ports
- 2x Gigabit RJ45 port, 2x Gigabit SFP port
- 250W Power Budget, with up to 30W for each PoE port*
- Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
- Centralised Cloud Management via the web or the Omada app[2]
- Up to 250m PoE**, QoS[4], PoE Auto Recovery[3], and Port Isolation for reliable surveillance networking
- Automatic Loop Prevention, VLAN, and IGMP Snooping
- Durable metal casing and rack-mountable design
Omada 20-Port Gigabit Easy Managed Switch with 16-Port PoE+ - ES220GMP
- 20x Gigabit Ports (16x PoE+, 2x RJ45, 2x SFP)
- 250 W Total PoE Budget*
- Up to 250m PoE Transmission**
- Easy Centralised Management[2]
- Automatic Loop Prevention
- PoE Auto Recovery[3]
- Traffic Separation
- Traffic Prioritisation[4]
Omada Cloud Essentials - A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use cloud-based management option for the Omada networking system[1], covering access points, switches, and gateways. It enables simple, centralised network management and monitoring with essential features, making it ideal for surveillance networks and small businesses that don't require the complexity of larger operations.
*Please go to https://omada.tplinkcloud.com to log in with your TP-Link ID.
- Lifetime Free Cloud without Any Additional Fees
- Exists Entirely in the Cloud. No Hardware or Software Controller Needed
- Cloud Centralised Management for Multiple Sites
- Access Anytime via Omada App or Web
- Easy Setup, Use, and Maintenance
- Unlimited Management Scale
- Zero-Touch Provisioning (ZTP) without Unboxing *The gateway requires one-step configuration
- Upgrade to Standard with a Seamless Subscription *Available from Q2 2025.
Abundant Functions for Reliable Surveillance Networking
- Transmission Distance up to 250 m**
- Priority Video Quality Guaranteed[4]
- Secure Traffic Separation via Port Isolation
- PoE Auto Recovery[3]
Multiple Application Scenarios
Surveillance
Works with IP Cameras
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers
[1]The Omada Cloud-Based Controller offers the Essentials version of cloud services for free, while the Standard version, which includes advanced features, requires a license.
[2]These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.
[3]This switch supports PoE Auto Recovery under Standalone Mode (managed separately without a controller) and supports manual PoE Recovery under Controller Mode (centrally managed with a controller).
[4]QoS and Priority Mode are supported under Standalone Mode.
*PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors.
**The speed of the ports that support 250m PoE transmission will be downgraded to 10 Mbps. Actual transmission distance may vary depending on the quality of the cables.
Specifications
HARDWARE FEATURES
Interface
16× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+)
2× 10/100/1000 Mbps RJ45 Port
2× Gigabit SFP Slot
Auto-Negotiation/Auto MDI/MDIX
Fan Quantity
2
Installation
Rackmountable
Physical Security Lock
Yes
Power Supply
100-240V AC, 50/60Hz
PoE Ports (RJ45)
Standard: 802.3af PoE and 802.3at PoE+ compliant
PoE Ports: 16 ports
PoE Budget: 250W available for all PoE+ ports, 30W max per port
Fast PoE & Perpetual PoE
PoE Auto Recovery[3]
Up to 250m PoE transmission distance**
Dimensions ( W x D x H )
17.3 × 7.1 × 1.7 in.(440 × 180 × 44 mm)
Surge Protection
±6kV
PERFORMANCE
Switching Capacity
40 Gbps
Packet Forwarding Rate
29.76 Mpps
MAC Address Table
8K
Packet Buffer Memory
4 Mbit
Jumbo Frame
15 KB
SOFTWARE FEATURES
Quality of Service
Port-based/802.1p/DSCP QoS
8 Priority Queues
Priority Schedule Mode - WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control - Port-Based Rating Limit
Storm Control - Multiple Control Modes (kbps/pps)
Broadcast/Multicast/Unknown-Unicast Control[4]
L2 Features
Static Link Aggregation
Loop Prevention / Loopback Detection
Flow Control - 802.3x Flow Control
Mirroring - Port Mirroring, One-to-One, Many-to-One, Ingress/Egress/Both
Port Statistics - Port Mirror Status, Traffic Statistics
802.1ab LLDP
L2 Multicast
IGMP Snooping - IGMP v1/v2/v3 Snooping, Fast Leave
VLAN
MTU VLAN
Port-Based VLAN
802.1Q Tag VLAN - Max 32 VLAN Groups, 4K VID
Transmission Method
Store-And-Forward
Management Features
Omada App
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller
Cloud Access
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning
Yes. Requires the use of Omada Cloud-Based Controller
Management Features
Web-based GUI
DHCP Client
Cable Diagnostics
Automatic Device Discovery[2]
Batch Configuration[2]
Batch Firmware Upgrading[2]
Unified Configuration[2]
OTHERS
Certification
FCC, CE, RoHS
Package Content
ES220GMP
Power Cord
Mounting Brackets
Rubber Feet
Screws
Installation Guide
Environment
Operating Temperature: -5℃~50℃ (23℉~122℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Notes
[1] The Omada Cloud-Based Controller offers the Essentials version of cloud services for free, while the Standard version, which includes advanced features, requires a license.
[2] These functions require the use of the Omada Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller (Omada Cloud Standard or Omada Cloud Essentials). Go to the Omada Cloud-Based Controller (Omada Cloud Standard) Product List or Omada Cloud Essentials Product List to find all the supported models.
[3] This switch supports PoE Auto Recovery under Standalone Mode (managed separately without a controller) and supports manual PoE Recovery under Controller Mode (centrally managed with a controller).
[4] QoS and Priority Mode are supported under Standalone Mode.
* PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors.
** The speed of the ports that support 250m PoE transmission will be downgraded to 10 Mbps. Actual transmission distance may vary depending on the quality of the cables.
