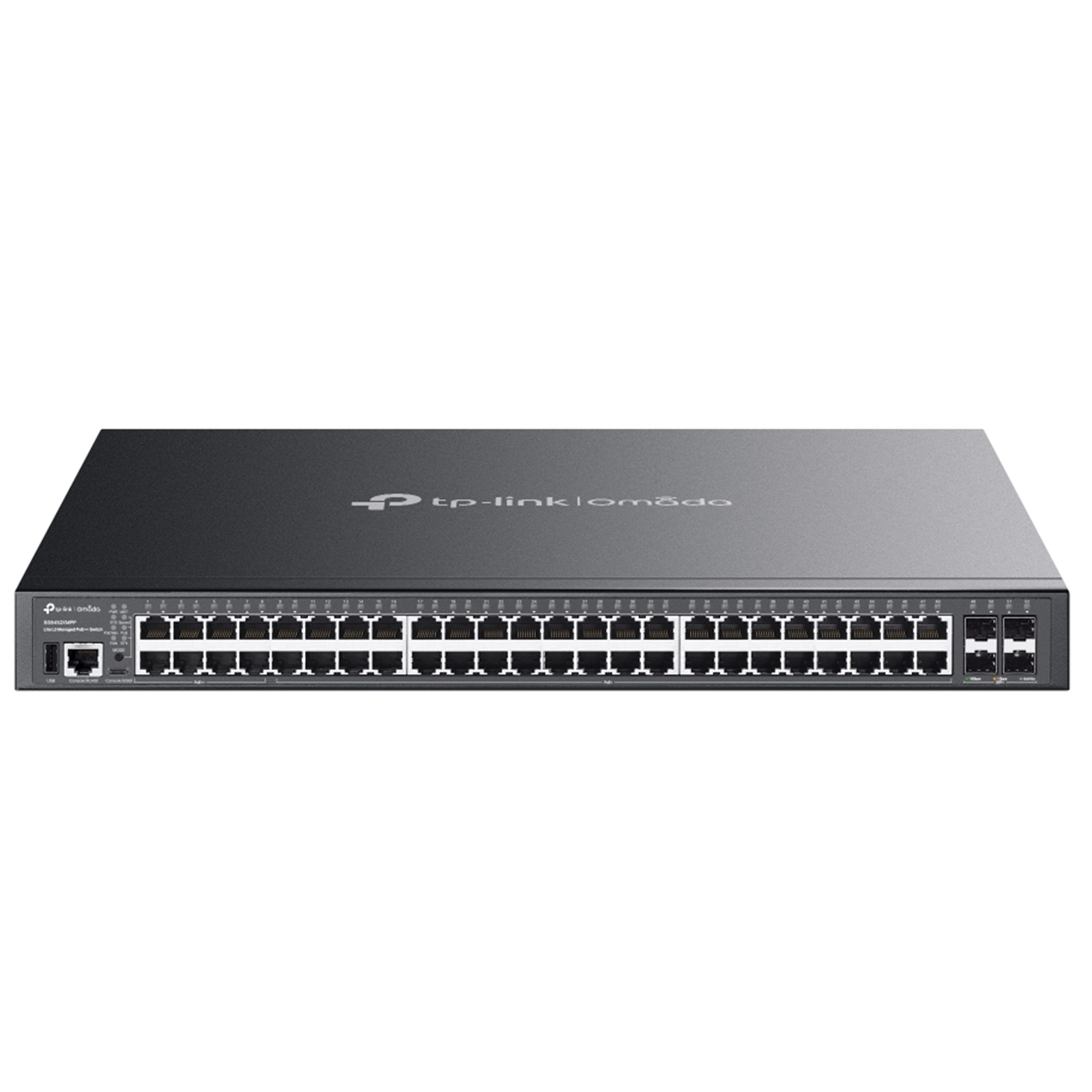

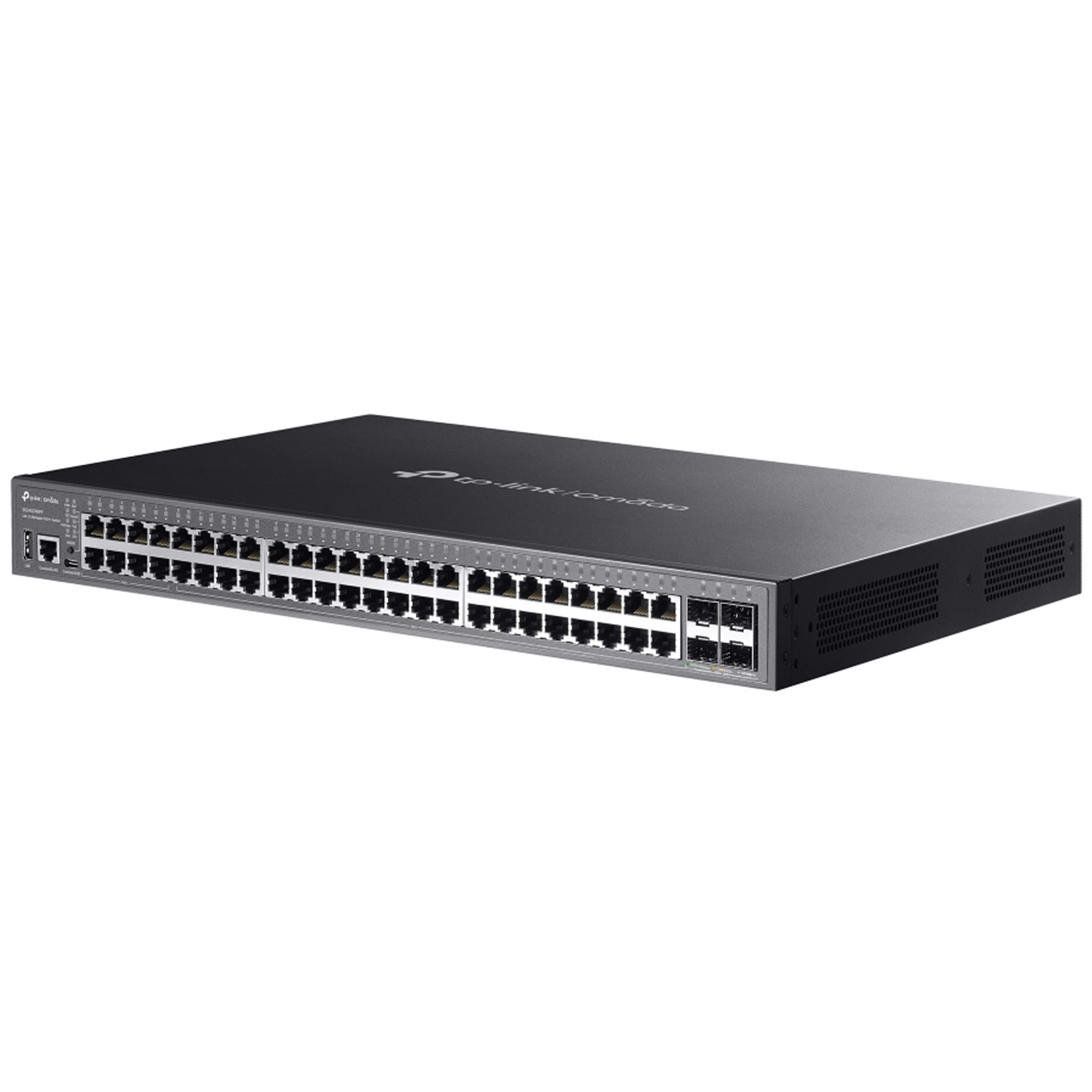

TP-Link Omada SG5452XMPP 52-Port 10G Stackable L3 Managed PoE Switch (770W) - 10G SFP+ x4, 1GbE PoE++ x8, 1GbE PoE+ x40
Out of stock
TP-Link Omada SG5452XMPP 52-Port 10G Stackable L3 Managed PoE Switch (770W) - 10G SFP+ x4, 1GbE PoE++ x8, 1GbE PoE+ x40
- Brand: TP-Link
- MPN: SG5452XMPP
- Part #: SWHTPL5452
- UPC:
- Brand: TP-Link
- MPN: SG5452XMPP
- Part #: SWHTPL5452
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Switches
Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch -...
TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch
TP-Link TL-SG105 5-Port 10/100/1000Mbps Desktop Switch
TP-Link TL-SG108PE 8-Port Gigabit Easy Smart PoE Switch with 4...
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE...
TP-Link Omada SG5452XMPP 52-Port 10G Stackable L3 Managed PoE Switch (770W) - 10G SFP+ x4, 1GbE PoE++ x8, 1GbE PoE+ x40
- Brand: TP-Link
- MPN: SG5452XMPP
- Part #: SWHTPL5452
Product URL: https://www.pbtech.com/pacific/product/SWHTPL5452/TP-Link-Omada-SG5452XMPP-52-Port-10G-Stackable-L3
Features
Omada 48-Port Gigabit Stackable Lite L3 Managed PoE++ Switch with 4� 10G Slots
- 8� Gigabit 802.3af/at/bt PoE++ ports (Max 90W per port)
- 40� Gigabit 802.3af/at PoE+ ports (Max 30W per port)
- 4� 10 Gbps SFP+ slots
- Up to 770W total PoE budget*
- Fast PoE and Perpetual PoE
- Physical stacking up to 4 units for built-in redundancy and performance
- L3 features: RIP, OSPF, Static Routing, and DHCP Server/Relay
- Security strategies: ACL, Port Security, DoS Defend, 802.1X
- ERPS supports rapid protection and recovery in a ring topology
- Centralized cloud management via the Omada SDN controller
- Standalone management via web, CLI, SNMP, and RMON
What This Product Does
Omada SG5452XMPP is a dependable entry-level L3 managed PoE++ switch tailored for the access layer, featuring L3 routing, fast 10 Gbps wired speeds, and stacking options. It boasts a 770W PoE budget,* 48� gigabit RJ45 ports (8� PoE++, 40� PoE+), 4� 10 Gbps SFP+ slots, physical stacking ability, and centralized management. Integrated with strong security and extensive management features, the SG5452XMPP offers a reliable networking solution for SMEs, and ISPs.
IEEE 802.3af/at/bt-compliant Power over Ethernet
8� IEEE 802.3af/at/bt-compliant and 40� IEEE 802.3af/at-compliant PoE ports supply up to 770W total power to 802.3af, 802.3at, and 802.3bt devices.* Set up wireless access points, surveillance cameras, IP phones, and other PoE devices quickly and easily, without the hassle and cost of installing power cabling. Perpetual PoE ensures an uninterrupted power supply to connected devices even during switch reboots. Additionally, the switch retains PoE power settings across reboots, thanks to fast PoE functionality.
High-speed Connectivity and Powerful Stacking
48� gigabit RJ45 ports and 4� 10 Gbps SFP+ slots provide up to 176 Gbps switching capacity per unit. Up to 4 units of physical stacking empower the networking structure with built-in redundancy and performance.
Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, DHCP Server, and DHCP Relay are supported.
Highly Available
ERPS (Ethernet Ring Protection Switching) ensures rapid protection and recovery in ring topologies, which is essential for maintaining network uptime in medium business environments.
Enhanced Security Functions
Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.
Omada SDN
Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).? The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management-all controlled from a single interface.
Apart from the ability to be centrally managed via the web or the Omada app, SG5452XMPP is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.
Specifications
HARDWARE FEATURES
Interface
- 48× 10/100/1000 Mbps RJ45 Ports (8× PoE++, 40× PoE+)
- 4× 1/10 Gbps SFP+ Slots**
- 1× USB 2.0 Port
- 1× RJ45 Console Port
- 1× USB Type-C Console Port
Fan Quantity
3
Power Supply
100-240 V~ 50/60 Hz
PoE Ports (RJ45)
- Standard: 802.3af/at/bt compliant
- PoE++ Ports: Ports 1~8 (up to 90W per Port)
- PoE+ Ports: Ports 9~48 (up to 30W per Port)
- Power Budget: 770W*
- Fast PoE
- Perpetual PoE
Dimensions ( W x D x H )
17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
Mounting
Rackmountable
Max. Power Consumption
- 893.6 W (220V/50Hz) ( with 770 W PD connected @ 25 °C)
- 942.7 W (110V/60Hz) ( with 770 W PD connected @ 25 °C)
Max Heat Dissipation
- 3047.18 BTU/hr (220V/50Hz) ( with 770 W PD connected @ 25 °C)
- 3214.61 BTU/hr (110V/60Hz) ( with 770 W PD connected @ 25 °C)
PERFORMANCE
Switching Capacity
176 Gbps per Unit
Stacking
- Stacking Number: 4
- Stacking Port: 10G SFP+ Slot (uplink ports can be used as stacking ports)
- Stacking Bandwidth: Up to 40 Gbps (max 2 stacking ports)
Packet Forwarding Rate
130.94 Mpps
MAC Address Table
16 K
Packet Buffer Memory
12 Mbit
Jumbo Frame
9 KB
SOFTWARE FEATURES
Quality of Service
- Class of Service
- 8 Queues of Priority
- Port Priority
- IEEE 802.1p Priority
- DSCP Priority
- Queue Min-Bandwidth
- Schedule Mode (SP, WRR, SP+WRR)
- Bandwidth Control
- Rate Limit
- Storm Control
- Voice VLAN
- User-Defined OUI
- Smoother Performance
- Action for Flows
- QoS remark (802.1P Remark, DSCP Remark)
L3 Features
- IP Interfaces:
- IPv4: Max 128, IPv6: Max 128
- Static Routing
- IPv4 Max 512, IPv6: Max 128
- Host Route Table: Max 1,024 entries
- RIP: Version v1/v2, Max 1,796
- OSPF: Version v2/v3; v2: Max 1,796, v3: Max 450
- Static ARP: 512 static entries
- Dynamic ARP: 2,000 dynamic entries
- Proxy ARP
- DHCP Server:
- Max 64 IP Pools
- Max 1,000 Manual Binding Entries
- DHCP Relay:
- Relayed Interface
- Relayed VLAN
L2 and L2+ Features
- Link Aggregation
- Spanning Tree Protocol
- Port-based and VLAN-based Loopback Detection
- 802.3x Flow Control
- ERPS
- Mirroring
- RSPAN
- MAC Address Table
- Multicast
- IGMP Snooping
- MLD Snooping
- L2 Multicast Table: Max 2,000
- Fast Leave
- Multicast VLAN Registration (MVR)
- Static Multicast Groups
- Multicast Filtering
Advanced Features
- Automatic Device Discovery†
- Batch Configuration†
- Batch Firmware Upgrading†
- Intelligent Network Monitoring
- Abnormal Event Warnings†
- Unified Configuration†
- Reboot Schedule†
ISP Features
- 802.3ah Ethernet Link OAM
- L2PT (Layer 2 Protocol Tunneling)
- Device Link Detect Protocol (DLDP)
- DDM
- sFlow
VLAN
- Max 4K VLAN Group (802.1q VLAN)
- 802.1Q Tagged VLAN
- MAC VLAN Entries: 60
- Multicast VLAN
- Management VLAN
- VLAN VPN (QinQ): Max 256 entries
- GVRP
- Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries
- Voice VLAN
- Private VLAN
Security
- Port Isolation
- CPU-Defend
- ARP Inspection (Dynamic ARP Inspection)
- DoS Defend
- IP-MAC-Port Binding
-1,024 Entries
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard
- IPv6-MAC
-Port Binding
-1,024 Entries
- DHCPv6 Snooping
- ND Detection
- ND Snooping
- IPv6 Source Guard
- DHCP Filter
- Static/Dynamic Port Security
- Up to 64 MAC addresses per port
- Broadcast/Multicast/Unknown-unicast Storm Control
- kbps/ratio control mode
- 802.1X
- Port base authentication
- Mac base authentication
- VLAN Assignment
- MAB
- Guest VLAN
- RADIUS authentication and accountability support
- AAA (including TACACS+)
- Secure web management through HTTPS with SSLv3/TLS 1.2
- Secure Command Line Interface (CLI) management with SSHv2
- IP/Port/MAC-based access control
Management Features
Omada App
Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management
- Omada Cloud-Based Controller (Requires built-in version 5.15.22 or later)
- Omada Hardware Controller (Requires built-in version 5.15.20 or later)
- Omada Software Controller (Requires built-in version 5.15.20 or later)
Cloud Access
Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning
Yes. Requiring the use of the Omada Cloud-Based Controller.
Management Features
- Web-based GUI
- Command Line Interface (CLI) through console port, telnet
- SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
- SDM Template
- DHCP/BOOTP Client
- 802.1ab LLDP/LLDP-MED
- DHCP Auto Install
- Dual Image, Dual Configuration
- CPU Monitoring
- Cable Diagnostics
- Password Recovery
- SNTP
- System Log
- IEEE 802.3az Energy Efficient Ethernet (EEE)
OTHERS
Package Content
- SG5452XMPP Switch
- Power Cord
- Console Cable
- Rackmount Kits
- Rubber Feet
- Quick Installation Guide
System Requirements
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment
- Operating Temperature: -5 °C to 40 °C (23 °F to 104 °F)
- Storage Temperature: -40 °C to 70 ? (-40 °F to 158 ?)
- Operating Humidity: 10-90% RH non-condensing
- Storage Humidity: 5-90% RH non-condensing
