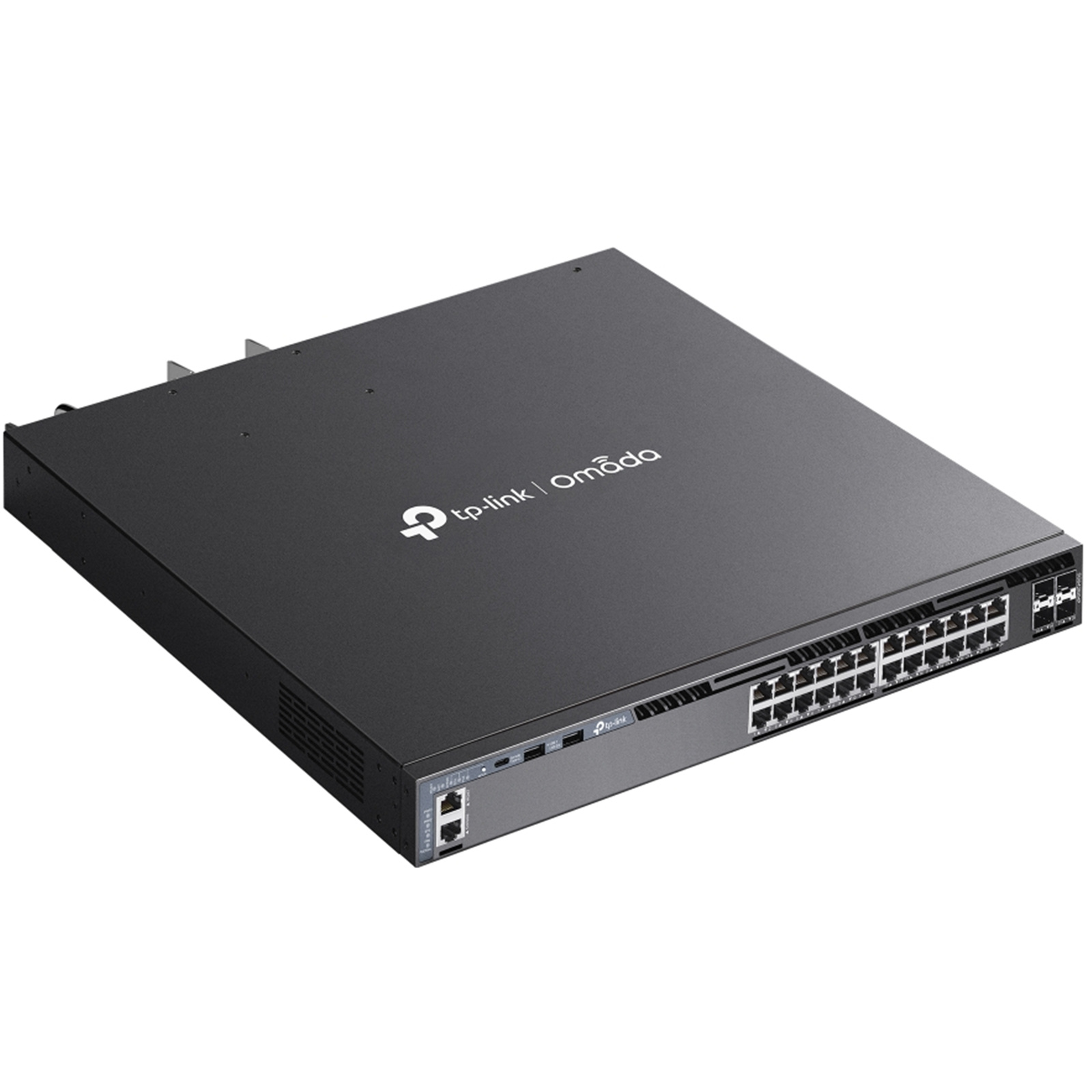

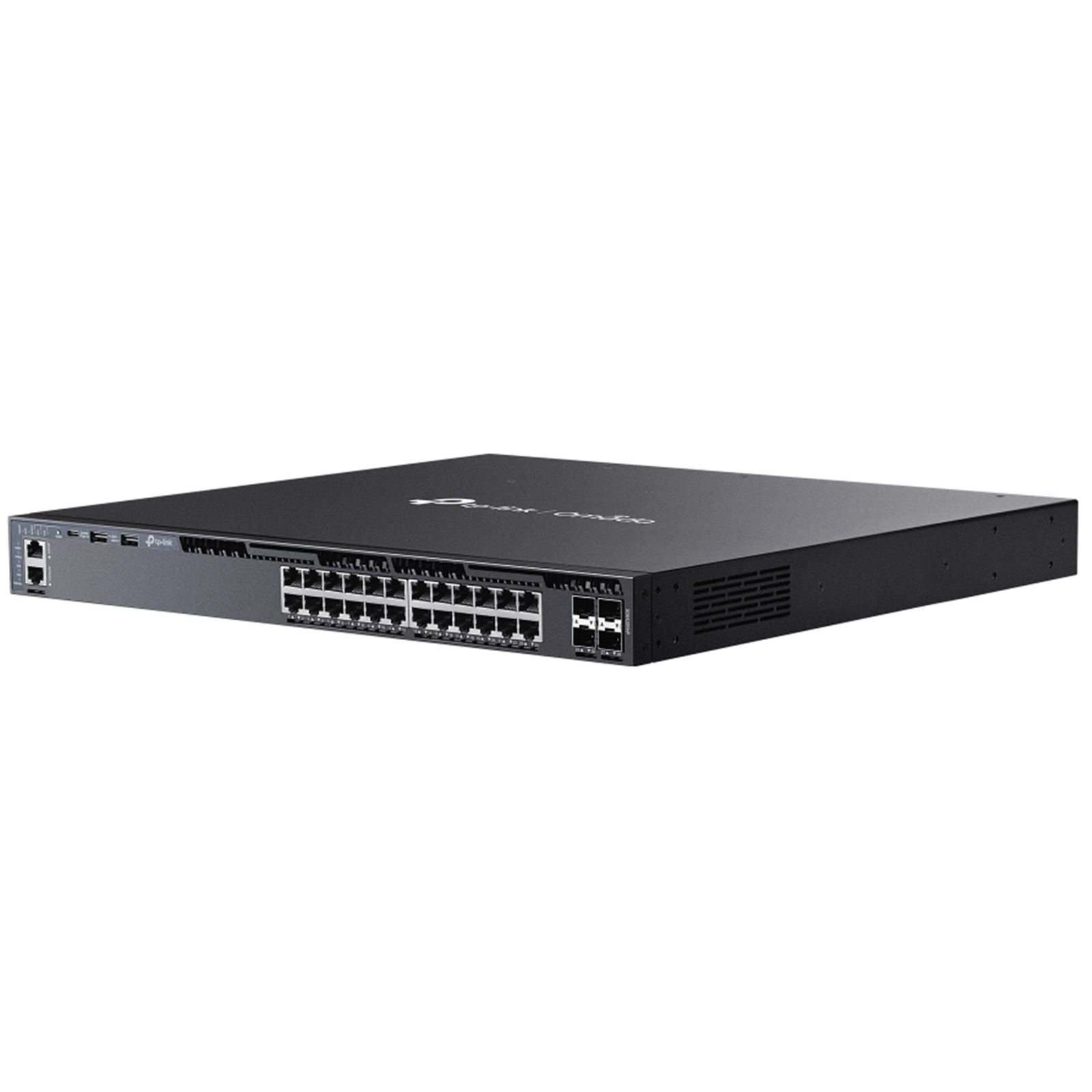

TP-Link Omada SG6428XHP 28-Port 10G Stackable L3 Managed PoE Switch (720W) - 10G SFP+ x4, 1GbE PoE+ x24

Out of stock

TP-Link Omada SG6428XHP 28-Port 10G Stackable L3 Managed PoE Switch (720W) - 10G SFP+ x4, 1GbE PoE+ x24

Free Cloud Management Anywhere, Anytime
  • Brand: TP-Link
  • MPN: SG6428XHP
  • Part #: SWHTPL6428
  • UPC:

Delivery: Out of stock
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
Sign in to your commercial account or apply online now to view the price and order this product
  • Brand: TP-Link
  • MPN: SG6428XHP
  • Part #: SWHTPL6428
  • UPC:

10 Gigabit

Yes

10 Gigabit Ports

4 Ports

Form Factor

Not Specified

Management Level

Managed L3

Number of Ports

24 Ports

PoE

Yes

PoE Ports

24 Ports

PoE Budget

720 Watts

Features

Omada 24-Port Gigabit Stackable L3 Managed PoE+ Switch with 4 10G Slots

- 24× Gigabit RJ45 PoE+ ports
- 4× 10 Gbps SFP+ slots
- Up to 720 W total PoE budget*
- Physical stacking for built-in redundancy and performance
- L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
- Security Strategies: ACL, Port Security, DoS Defend, 802.1X
- Highly Available with two field-replaceable power supplies,** VRRP, and ERPS
- Centralized cloud management via Omada SDN controllers
- Standalone management via web, CLI, SNMP, and RMON

What This Product Does

Omada SG6428XHP is a versatile L3 managed PoE+ switch, offering L3 routing, rapid 10 Gbps connectivity, stacking, and redundant power supplies, ideal for convergence layer applications. It boasts a 720 W PoE budget,* 24× gigabit RJ45 PoE+ ports, 4× 10 Gbps SFP+ slots, and physical stacking. With centralized management, robust security, and comprehensive management features, it is a dependable choice for SMB, enterprise, and ISP networks.

IEEE 802.3at/af-compliant Power over Ethernet

24× IEEE 802.3at/af-compliant PoE ports supply up to 720 W total power to 802.3at and 802.3af devices,* with each port supplying up to 30 W power. Set up wireless access points, surveillance cameras, IP phones, and other PoE devices quickly and easily, without the hassle and cost of installing power cabling.

High-speed Connectivity and Powerful Stacking

24× Gigabit RJ45 ports and 4× 10 Gbps SFP+ slots provide up to 128 Gbps switching capacity per unit. Up to 4 units of physical stacking with up to 512 Gbps switching capacity empower the networking structure with built-in redundancy and performance.

Abundant Layer 3 Capabilities

Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay are supported. PIM-DM multicast routing protocol guarantees efficient routing for multicast groups.

Highly Available

Optional field-replaceable and hot-swappable redundant power supplies and VRRP make it an ideal choice for reliable networking architecture.** ERPS supports rapid protection and recovery in a ring topology.

Enhanced Security Functions

Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.

Omada SDN

Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).‡ The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management-all controlled from a single interface.

Apart from the ability to be centrally managed via the web or the Omada app, SG6428XHP is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.

Specifications

HARDWARE FEATURES

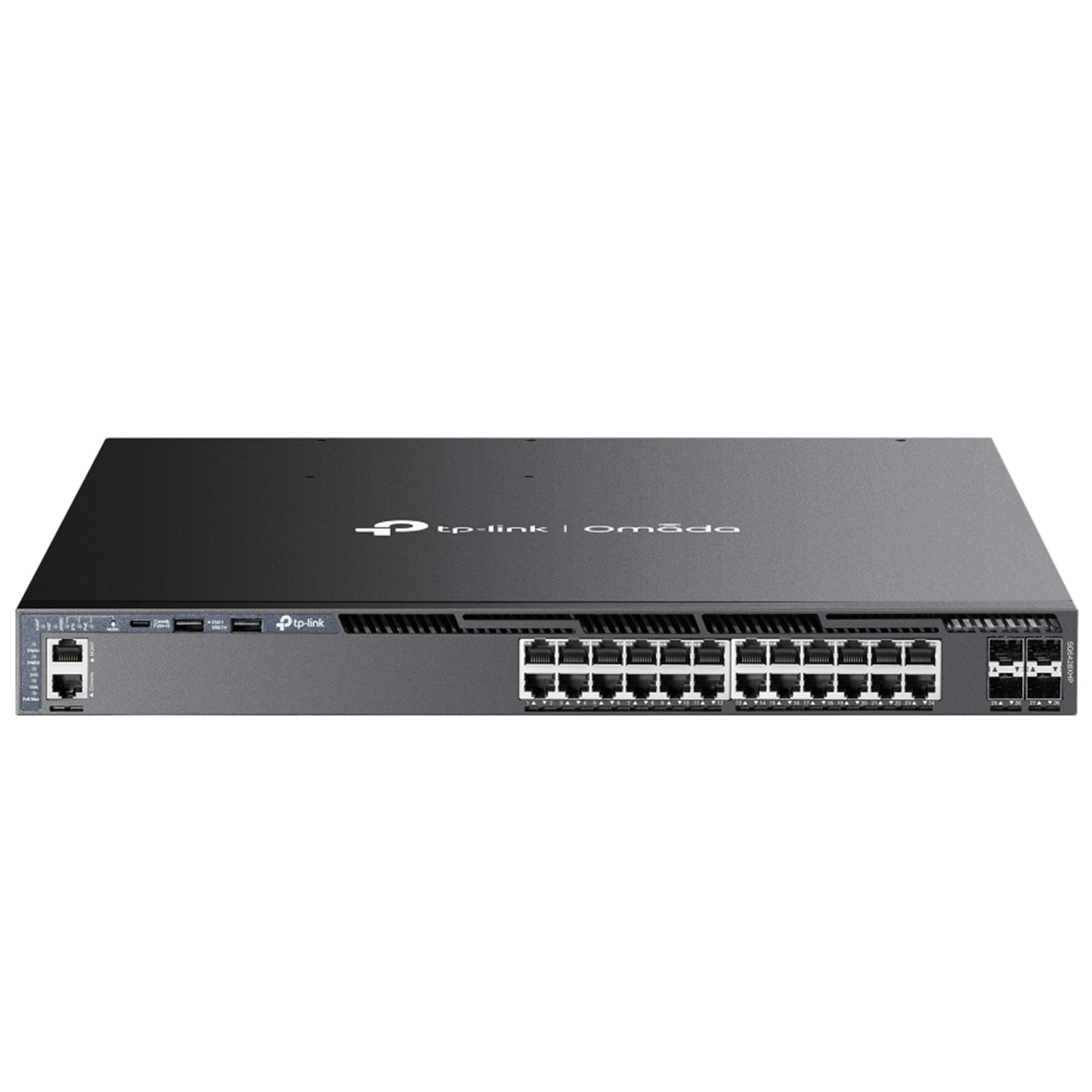

Interface

- 24× 10/100/1000 Mbps PoE+ RJ45 Ports
- 4× 10G SFP+ Slots
- 2× USB 2.0 Ports
- 1× RJ45 Console Port
- 1× USB Type-C Console Port
- 1× RJ45 Management Port

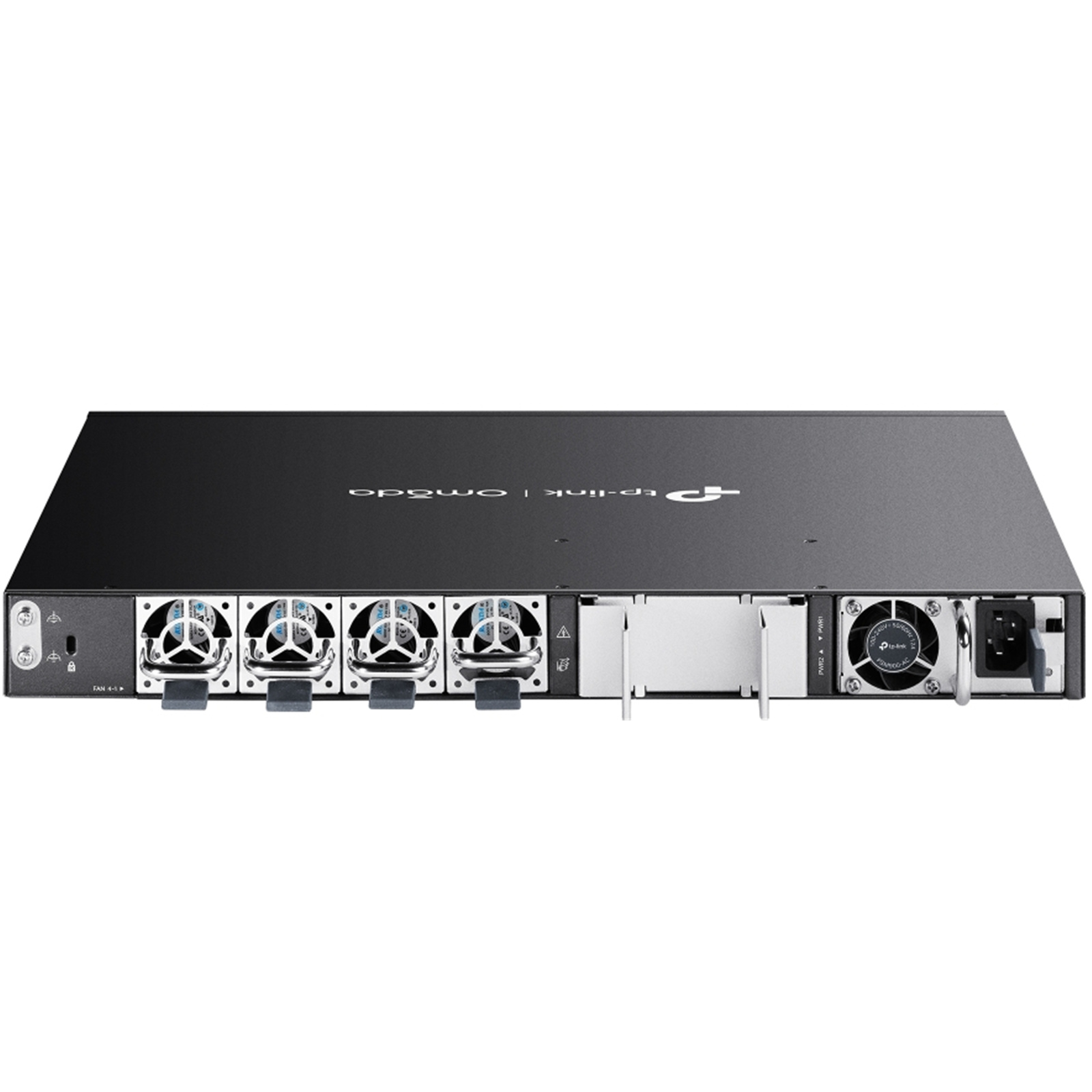

Fan Quantity

Four Field-replaceable and Hot-swappable Fans

Power Supply

Two Field-replaceable and Hot-swappable Power Supply Modules** (100-240 VAC, 50/60 Hz)
**Shipping with one PSM500-AC module by default, and another field-replaceable redundant power supply requires purchasing separately.

PoE Ports (RJ45)

- Standard: 802.3at/af compliant
- PoE+ Ports: 24 Ports, up to 30 W per port
- PoE Power Budget: up to 720 W*
*The total PoE budget varies with the power supply modules.

Dimensions ( W x D x H )

17.3 × 16.5 × 1.7 in (440 × 420 × 44 mm)

Mounting

Rackmountable

Max Power Consumption

- 42.9 W (110 V/60 Hz) (With no PD connected)
- 916.6 W (110 V/60 Hz) (With 720 W PD connected and powered by 2× PSM500-AC)

Max Heat Dissipation

- 146.29 BTU/hr (110 V/60 Hz) (With no PD connected)
- 3,125.61 BTU/hr (110 V/60 Hz) (With 720W PD connected and powered by 2× PSM500-AC)

PERFORMANCE

Switching Capacity

128 Gbps per Unit

Stacking

- Stacking Number: 4
- Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports)
- Stack Bandwidth: 20 Gbps Per Port (Full-Duplex)

Packet Forwarding Rate

95.2 Mpps

MAC Address Table

32 K

Packet Buffer Memory

3 MB

Jumbo Frame

9 KB

SOFTWARE FEATURES

Quality of Service

- Class of Service
- 8 Queues of Priority
- Port Priority
- IEEE 802.1p Priority
- DSCP Priority
- Queue Min-Bandwidth
- Schedule Mode (SP, WRR, SP+WRR)
- Bandwidth Control
- Rate Limit
- Storm Control
- Voice VLAN
- User-Defined OUI
- Smoother Performance
- Action for Flows
- QoS remark (802.1P Remark, DSCP Remark)

L3 Features

- IP Interfaces:
- IPv4: Max 256, IPv6: Max 256
- Static Routing
- Max 1,024, IPv6: Max 512
- Host Route Table: Max 6,100 entries
- RIP: Version v1/v2, Max 8,190
- OSPF: Version v2/v3; v2: Max 8,190, v3: Max 4,097
- VRRP: Version v2/v3, Max 64 groups
- ECMP: 256 entries, max 32 ECMP Nexthops per Destination
- Static ARP: 512 static entries
- Dynamic ARP: 7,680 dynamic entries
- Proxy ARP
- DHCP Server:
- Max 8K IP Pools
- Max 1,000 Manual Binding Entries
- DHCP Relay:
- Relayed Interface
- Relayed VLAN

L2 and L2+ Features

- Link Aggregation
- Spanning Tree Protocol
- Port-based and VLAN-based Loopback Detection
- 802.3x Flow Control
- Supports 2,048 IGMP groups
- ERPS
- Mirroring
- RSPAN
- MAC Address Table
- PIM-DM (IPv4)
- Multicast
- IGMP Snooping
- MLD Snooping
- L2 Multicast Table
- Fast Leave
- Multicast VLAN Registration (MVR)
- Static Multicast IP
- Multicast Filtering

Advanced Features

- Automatic Device Discovery†
- Batch Configuration†
- Batch Firmware Upgrading†
- Intelligent Network Monitoring†
- Abnormal Event Warnings†
- Unified Configuration†
- Reboot Schedule†

ISP Features:
- 802.3ah Ethernet Link OAM
- L2PT (Layer 2 Protocol Tunneling)
- Device Link Detect Protocol (DLDP)
- DDM
- sFlow

VLAN

- Max 4K VLAN Group (802.1q VLAN)
- 802.1Q Tagged VLAN
- MAC VLAN Entries: 200
- Multicast VLAN
- Management VLAN
- VLAN VPN (QinQ): Max 256 entries
- GVRP
- Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries
- VLAN VPN
- Voice VLAN
- Private VLAN

Security

- Port Isolation
- CPU-Defend
- ARP Inspection (Dynamic ARP Inspection)
- DoS Defend
- IP-MAC-Port Binding
- 1,024 Entries
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard
- IPv6-MAC
-Port Binding
-1,024 Entries
- DHCPv6 Snooping
- ND Detection
- ND Snooping
- IPv6 Source Guard
- DHCP Filter
- Static/Dynamic Port Security
- Up to 64 MAC addresses per port
- Broadcast/Multicast/Unknown-unicast Storm Control
- kbps/ratio control mode
- 802.1X
- Port base authentication
- Mac base authentication
- VLAN Assignment
- MAB
- Guest VLAN
- RADIUS authentication and accountability support
- AAA (including TACACS+)
- Secure web management through HTTPS with SSLv3/TLS 1.2
- Secure Command Line Interface (CLI) management with SSHv2
- IP/Port/MAC-based access control

MANAGEMENT

Omada App

Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management

- Omada Cloud-Based Controller
- Omada Hardware Controller
- Omada Software Controller

Cloud Access

Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning

Yes. Requiring the use of the Omada Cloud-Based Controller.

Management Features

- Web-based GUI
- Command Line Interface (CLI) through console port, telnet
- SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
- SDM Template
- DHCP/BOOTP Client
- 802.1ab LLDP/LLDP-MED
- DHCP Auto Install
- Dual Image, Dual Configuration
- CPU Monitoring
- Cable Diagnostics
- Password Recovery
- SNTP
- System Log
- EEE

OTHERS

Package Contents

- SG6428XHP Switch
- Power Cord
- RJ45 Console Cable
- Quick Installation Guide
- Rackmount Kit
- Rubber Feet

System Requirements

Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

Environment

- Operating Temperature: 0-45 ? (32-113 ?);
- Storage Temperature: -40-70 ? (-40-158 ?)
- Operating Humidity: 10-90% RH non-condensing
- Storage Humidity: 5-90% RH non-condensing

Manufacturer Part No:
SG6428XHP
Brand:
Product Type:
-
UPC
-
Product Family:
Omada
Shipping Weight:
3 kg
PB Part No:
SWHTPL6428
Product Model:
SG6428XHP
Warranty: 36 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
