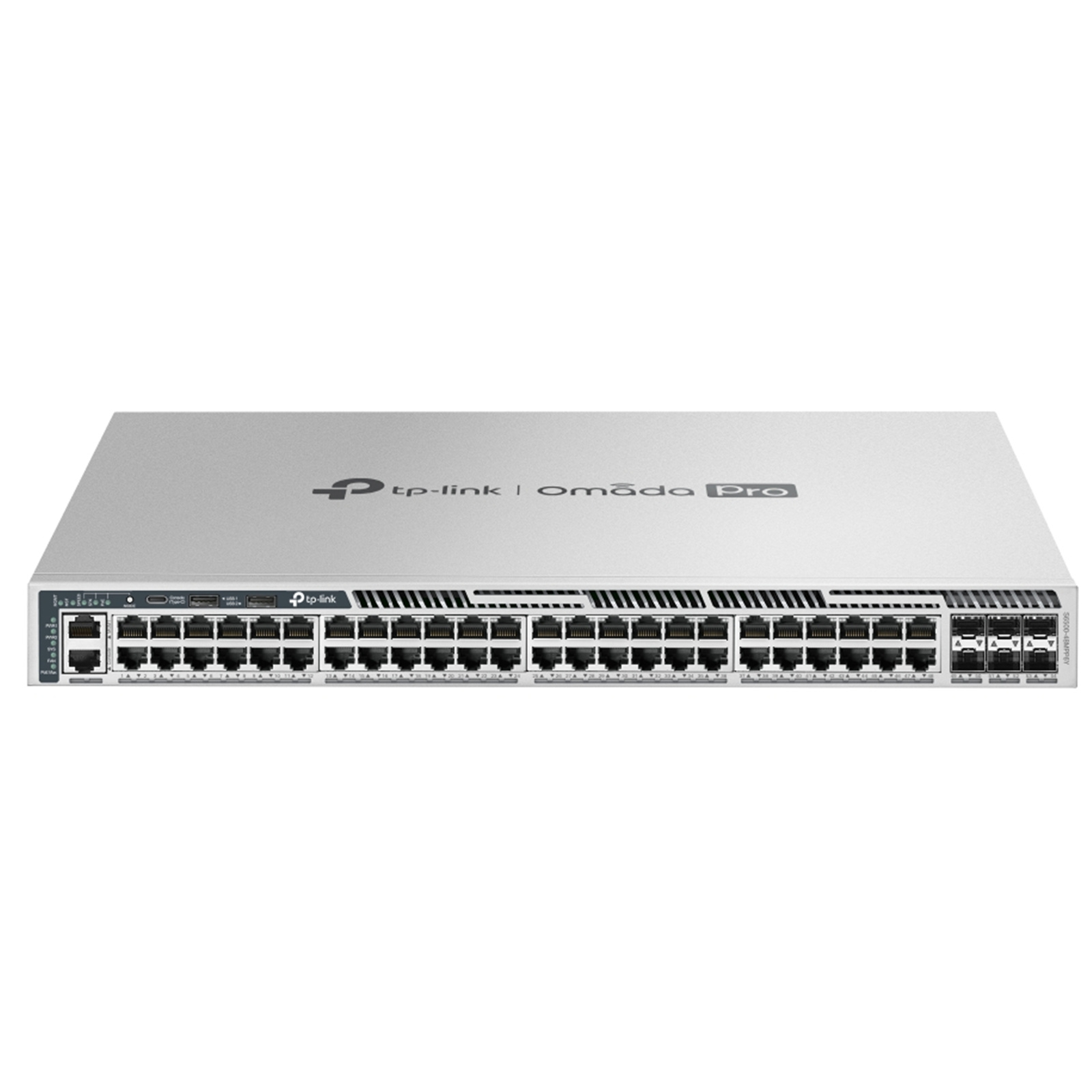

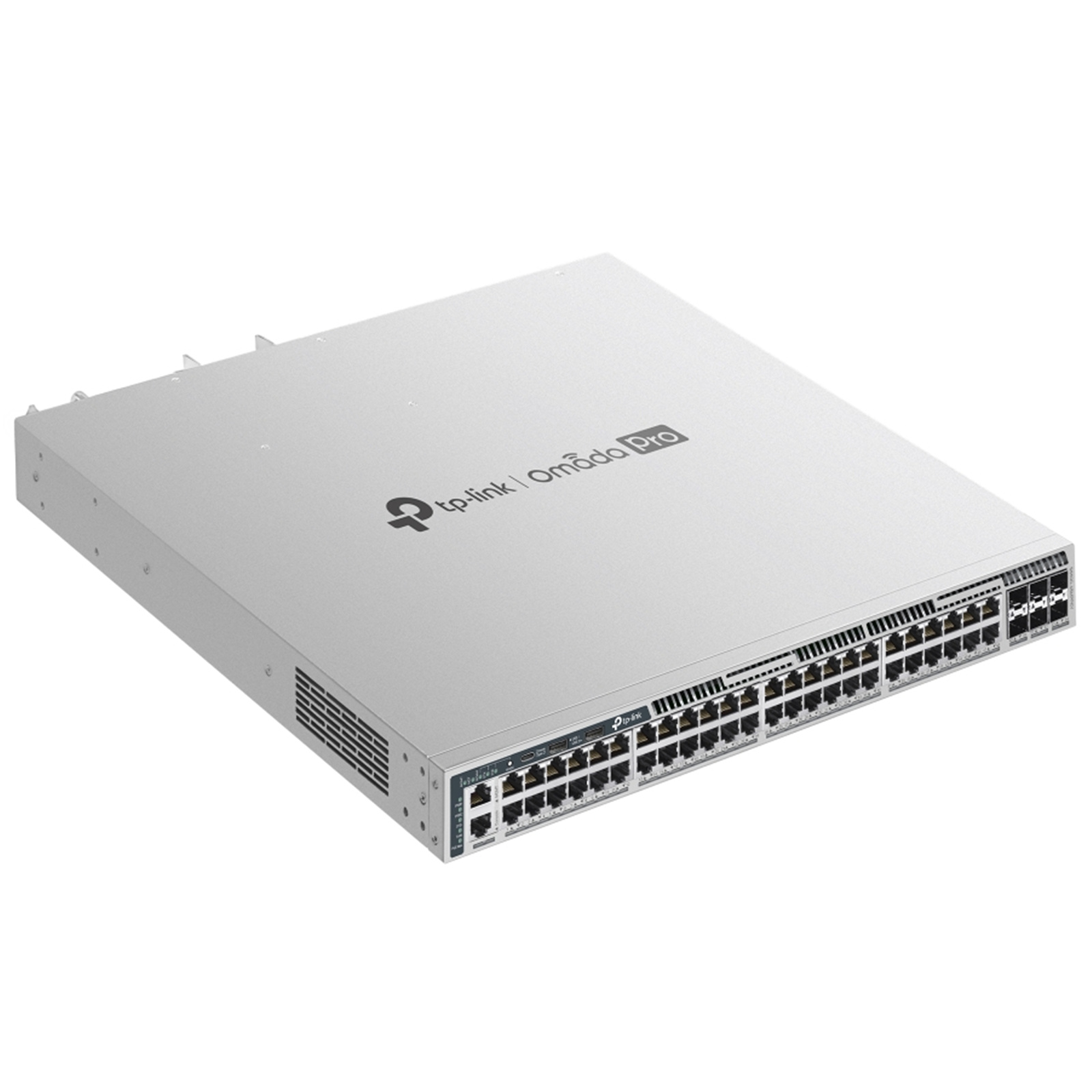

TP-Link Omada Pro S6500-48MPP6Y 54-Port 25G Stackable L3 Managed PoE Switch (1484W) - 25G SFP28 x6, 2.5G PoE++ x48
Features
- 48× 2.5 Gbps PoE++ RJ45 ports (up to 60 W PoE out per port)
- 6× 25 Gbps SFP28 slots
- Up to 1484 W total PoE budget*
- Physical stacking for built-in redundancy and performance
- L3 Features: OSPF, BGP, IS-IS, VRRP, PIM-SM/PIM-DM/PIM-SSM, ECMP, PBR
- Security Strategies: MACsec, Secure Boot, RADSEC, IMPB, SFTP, 802.1X, Port Security
- Highly available with two field-replaceable power supplies,** VRRP, ERPS, BFD
- Easy O&M: NETCONF, Configuration Rollback, Hot Patching, and RSPAN
- Centralized cloud management via the web or the Omada app***
What This Product Does
Omada Pro S6500-48MPP6Y is a high-performance L3 managed PoE++ switch tailored for the access layer, featuring L3 routing, fast 25 Gbps wired speeds, stacking options, and redundant power supply modules. It boasts a 1484 W PoE budget,* 48× 2.5 Gbps RJ45 PoE++ ports, 6× 25 Gbps SFP28 slots, physical stacking ability, and centralized management. Integrated with strong security, easy O&A, and extensive management features, S6500-48MPP6Y offers a dependable networking solution for enterprises, campus, and ISPs.
IEEE 802.3bt/at/af-compliant Power over Ethernet
48× IEEE 802.3bt/at/af-compliant PoE ports supply up to 1484 W total power to 802.3bt, 802.3at, and 802.3af devices,* with each port supplying up to 60 W power. Set up wireless access points, surveillance cameras, IP phones, and other PoE devices quickly and easily, without the hassle and cost of installing power cabling. Perpetual PoE ensures an uninterrupted power supply to connected devices even during switch reboots. Additionally, the switch retains PoE power settings across reboots, thanks to fast PoE functionality.
High-speed Connectivity and Powerful Stacking
48× 2.5 Gbps RJ45 ports and 6× 25 Gbps SFP28 slots provide up to 540 Gbps switching capacity per unit. Physical stacking of up to 12 units△ enhances network performance and redundancy.
Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network, such as OSPF, BGP, IS-IS, VRRP, PIM-SM/PIM-DM/PIM-SSM, ECMP, and PBR. In complex large-scale network environments, dynamic routing protocols automatically adapt to changes in network topology and select the best transmission path based on real-time network conditions to maintain stability.
Comprehensive Security Functions
Defend against a range of network threats with MACsec, Secure Boot, RADSEC, IMPB, SFTP, and 802.1X. MACsec works with the 802.1X protocol to ensure secure communication of all traffic on Ethernet links. Secure Boot protects the operating system from malicious attacks.
Highly Available
Two field-replaceable redundant power supplies** and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology, while BFD enables sub-second failure detection for rapid routing protocol rebalancing.
Easy Operation and Maintenance
The switch can be configured and managed based on the NETCONF protocol, reducing manual configuration errors and improving software upgrade efficiency. Configuration Rollback restores previous settings if errors occur. Hot patching technology allows software defects to be fixed without device restart, preventing business interruptions.
Omada Pro Integration
Integration into the Omada Pro system brings centralized cloud management and a series of management features, such as Zero-Touch Provisioning (ZTP) and Intelligent Anomaly Detection.*** Omada Pro's Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada Pro creates a highly scalable network-all controlled from a single interface.
Apart from central management via the web or Omada app, S6500-48MPP6Y can be managed through an intuitive web GUI or industry-standard CLI, both secured with SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support provide status polling and abnormal event notifications.
Build Features
Note
*The total PoE budget varies with the power supply modules.
**Ships with one PSM900-AC module by default, and another field-replaceable redundant power supply requires a separate purchase.
*** These functions require the use of the Omada Pro SDN Controller. Zero-Touch Provisioning requires the use of the Omada Pro Cloud-Based Controller.
**** Supports 12 units of physical stacking in standalone mode.
*****No more than two 10G RJ45/SFP+ modules (SM5310-T) are supported, and they can only be inserted into SFP+ slots 49&53.
******The 25G SFP28 slots support stacking only through 25G DAC/25G SFP28 modules rather than 10G DAC/10G SFP+ modules.
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Enterprise Switches
Ubiquiti Unifi USW-Pro-XG-10-PoE 12-Port 10G L3 Managed...
Ubiquiti Unifi USW-Mission-Critical 9-Port Gigabit L2 Managed PoE...
TP-Link Omada Pro S6500-48MPP6Y 54-Port 25G Stackable L3 Managed PoE Switch (1484W) - 25G SFP28 x6, 2.5G PoE++ x48
- Brand: TP-Link
- MPN: S6500-48MPP6Y
- Part #: SWHTPL6500
Product URL: https://www.pbtech.com/pacific/product/SWHTPL6500/TP-Link-Omada-Pro-S6500-48MPP6Y-54-Port-25G-Stacka
Features
- 48× 2.5 Gbps PoE++ RJ45 ports (up to 60 W PoE out per port)
- 6× 25 Gbps SFP28 slots
- Up to 1484 W total PoE budget*
- Physical stacking for built-in redundancy and performance
- L3 Features: OSPF, BGP, IS-IS, VRRP, PIM-SM/PIM-DM/PIM-SSM, ECMP, PBR
- Security Strategies: MACsec, Secure Boot, RADSEC, IMPB, SFTP, 802.1X, Port Security
- Highly available with two field-replaceable power supplies,** VRRP, ERPS, BFD
- Easy O&M: NETCONF, Configuration Rollback, Hot Patching, and RSPAN
- Centralized cloud management via the web or the Omada app***
What This Product Does
Omada Pro S6500-48MPP6Y is a high-performance L3 managed PoE++ switch tailored for the access layer, featuring L3 routing, fast 25 Gbps wired speeds, stacking options, and redundant power supply modules. It boasts a 1484 W PoE budget,* 48× 2.5 Gbps RJ45 PoE++ ports, 6× 25 Gbps SFP28 slots, physical stacking ability, and centralized management. Integrated with strong security, easy O&A, and extensive management features, S6500-48MPP6Y offers a dependable networking solution for enterprises, campus, and ISPs.
IEEE 802.3bt/at/af-compliant Power over Ethernet
48× IEEE 802.3bt/at/af-compliant PoE ports supply up to 1484 W total power to 802.3bt, 802.3at, and 802.3af devices,* with each port supplying up to 60 W power. Set up wireless access points, surveillance cameras, IP phones, and other PoE devices quickly and easily, without the hassle and cost of installing power cabling. Perpetual PoE ensures an uninterrupted power supply to connected devices even during switch reboots. Additionally, the switch retains PoE power settings across reboots, thanks to fast PoE functionality.
High-speed Connectivity and Powerful Stacking
48× 2.5 Gbps RJ45 ports and 6× 25 Gbps SFP28 slots provide up to 540 Gbps switching capacity per unit. Physical stacking of up to 12 units△ enhances network performance and redundancy.
Abundant Layer 3 Capabilities
Comes with abundant Layer 3 routing protocols that support a scalable network, such as OSPF, BGP, IS-IS, VRRP, PIM-SM/PIM-DM/PIM-SSM, ECMP, and PBR. In complex large-scale network environments, dynamic routing protocols automatically adapt to changes in network topology and select the best transmission path based on real-time network conditions to maintain stability.
Comprehensive Security Functions
Defend against a range of network threats with MACsec, Secure Boot, RADSEC, IMPB, SFTP, and 802.1X. MACsec works with the 802.1X protocol to ensure secure communication of all traffic on Ethernet links. Secure Boot protects the operating system from malicious attacks.
Highly Available
Two field-replaceable redundant power supplies** and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology, while BFD enables sub-second failure detection for rapid routing protocol rebalancing.
Easy Operation and Maintenance
The switch can be configured and managed based on the NETCONF protocol, reducing manual configuration errors and improving software upgrade efficiency. Configuration Rollback restores previous settings if errors occur. Hot patching technology allows software defects to be fixed without device restart, preventing business interruptions.
Omada Pro Integration
Integration into the Omada Pro system brings centralized cloud management and a series of management features, such as Zero-Touch Provisioning (ZTP) and Intelligent Anomaly Detection.*** Omada Pro's Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management. Omada Pro creates a highly scalable network-all controlled from a single interface.
Apart from central management via the web or Omada app, S6500-48MPP6Y can be managed through an intuitive web GUI or industry-standard CLI, both secured with SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support provide status polling and abnormal event notifications.
Build Features
Note
*The total PoE budget varies with the power supply modules.
**Ships with one PSM900-AC module by default, and another field-replaceable redundant power supply requires a separate purchase.
*** These functions require the use of the Omada Pro SDN Controller. Zero-Touch Provisioning requires the use of the Omada Pro Cloud-Based Controller.
**** Supports 12 units of physical stacking in standalone mode.
*****No more than two 10G RJ45/SFP+ modules (SM5310-T) are supported, and they can only be inserted into SFP+ slots 49&53.
******The 25G SFP28 slots support stacking only through 25G DAC/25G SFP28 modules rather than 10G DAC/10G SFP+ modules.
Specifications
HARDWARE FEATURES
Interface
48× 2.5G PoE++ RJ45 Ports
6× 1/10/25G SFP28 Slots
2× USB 2.0 Ports
1× RJ45 Console Port
1× USB Type-C Console Port
1× RJ45 Management Port
Fan Quantity
Four Field-replaceable and Hot-swappable Fans
Power Supply
Two Field-replaceable and Hot-swappable Power Supply Modules (100-240 VAC, 50/60 Hz)
Shipping with one PSM900-AC module by default, and another field-replaceable redundant power supply requires purchasing separately.
PoE Ports (RJ45)
Standard: 802.3at/af/bt compliant
PoE+ Ports: 48 Ports, up to 60 W per port
PoE Power Budget: up to 1484 W
*The total PoE budget varies with the power supply modules.
Dimensions ( W x D x H )
17.3 × 18.1 × 1.7 in (440 × 460 × 44 mm)
Mounting
Rackmountable
Max. Power Consumption
142.2 W (110 V/60 Hz) (With no PD connected)
1,887.4 W (110 V/60 Hz) (With 1484 W PD connected and powered by 2× PSM900-AC)
Max. Heat Dissipation
484.9 BTU/hr (110 V/60 Hz) (With no PD connected)
6,436.03 BTU/hr (110 V/60 Hz) (With 1484 W PD connected and powered by 2× PSM900-AC)
PERFORMANCE
Switching Capacity
540 Gbps per Unit
Stacking
Stacking Number: 12 (standalone mode)
Stacking Port: 25G SFP28 Slot (all uplink ports can be used as stacking ports)
Stack Bandwidth: Up to 300 Gbps (6 stacking ports)
Packet Forwarding Rate
401.7 Mpps
MAC Address Table
32 K
Packet Buffer Memory
3 MB
Jumbo Frame
9 KB
SOFTWARE FEATURES
Quality of Service
Class of Service
- 8 Queues of Priority
- Port Priority
- IEEE 802.1p Priority
- DSCP Priority
- Queue Min-Bandwidth
- Schedule Mode (SP, WRR, SP+WRR)
Bandwidth Control
- Rate Limit
- Storm Control
Voice VLAN
User-Defined OUI
Smoother Performance
Action for Flows
- QoS remark (802.1P Remark, DSCP Remark)
WRED profile: 16
L3 Features
L3 Interface: 256 (IPv4,IPv6)
Static Route: 1,024 IPv4, 512 IPv6
Host Route Table: Max 6,100 entries
IPv4 Network Router entries: 10,240 (shared with IPv6 Network Router entries)
IPv6 Network Router entries: 5,120 (shared with IPv4 Network Router entries)
ECMP: 256 entries, max 32 ECMP Nexthops per Destination
Static ARP: 512 static entries
Dynamic ARP: 7,680 dynamic entries
ND: 7680
DHCP Server: Max 64 IP pool, Max 8,000 IP entries
DHCPv4/v6 Relay
VRRP: Version v2/v3, Max 64 instances, Max 32 Virtual IP per instance
OSPFv2
- OSPF Instance: 16
- Network Entries: 256 entries
- Area Entries for Stub or NSSA: 16 per instance
- Area Range Entries: 16 per instance
- Virtual-link Entries: 16 per instance
OSPFv3
- Area Entries for Stub or NSSA: 16 per instance
- Area Range Entries: 16 per instance
RIPv1/v2
- Network Entries: 256
- Redistribute Entries: 20
RIPng
IS-IS
- IS-IS Interfaces: 128
- IS-IS Area Numbers: 3
- Max Redistribute Configs: 10
- IS-IS IPV6
- IS-IS BFD
BGP: Max 20 redistribute configs
PIM-SM/PIM-DM/PIM-SSM
- IP Multicast Route Entries: 1K
- PIM Neighbors: 256
- Max PIM Interfaces: 128
IGMP: Version v1/v2/v3, Max 2,048 multicast groups
BFD: 16 template numbers, 8 session numbers
PBR
uRPF
L2 and L2+ Features
Link Aggregation
Spanning Tree Protocol
Port-based and VLAN-based Loopback Detection
802.3x Flow Control
ERPS
Mirroring
RSPAN
MAC Address Table
Multicast
- IGMP Snooping
- MLD Snooping
- Multicast VLAN Registration (MVR)
- Max Multicast Table: 4K (IPv4, IPv6)
- Fast Leave
- Static Multicast Groups
- Multicast Filtering
- IGMP Snooping Authentication
Advanced Features
Automatic Device Discovery
Batch Configuration
Batch Firmware Upgrading
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
ISP Features:
802.3ah Ethernet Link OAM
L2PT (Layer 2 Protocol Tunneling)
Device Link Detect Protocol (DLDP)
DDM
sFlow
VLAN
Max 4K VLAN Group (802.1q VLAN)
802.1Q Tagged VLAN
MAC VLAN Entries: 200
Multicast VLAN
Management VLAN
VLAN VPN (QinQ): Max 256 entries
GVRP
Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries
Voice VLAN
Private VLAN
Security
Port Isolation
CPU-Defend
ARP Inspection (Dynamic ARP Inspection)
DoS Defend
IP-MAC-Port Binding
-1,024 Entries
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard
IPv6-MAC-Port Binding
-1,024 Entries
- DHCPv6 Snooping
- ND Detection
- ND Snooping
- IPv6 Source Guard
DHCP Filter
Static/Dynamic Port Security
- Up to 64 MAC addresses per port
Broadcast/Multicast/Unknown-unicast Storm Control
- kbps/ratio control mode
802.1X
- Port base authentication
- Mac base authentication
- VLAN Assignment
- MAB
- Guest VLAN
- RADIUS authentication and accountability support
AAA (including TACACS+)
Secure web management through HTTPS with SSLv3/TLS 1.2
Secure Command Line Interface (CLI) management with SSHv2
IP/Port/MAC-based access control
MACSec (gcm-aes-128, gcm-aes-256)
Secure boot
RADSEC
Management Features
Omada App
Yes, through Omada Pro Controller
Centralized Management
Omada Pro Cloud-Based Controller
Omada Pro Hardware Controller
Omada Pro Software Controller
Cloud Access
Yes, through Omada Pro Controller
Zero-Touch Provisioning
Yes. Requiring the use of Omada Pro Cloud-Based Controller.
Management Features
Web-based GUI
Command Line Interface (CLI) through console port, telnet
SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
SDM Template
DHCP/BOOTP Client
802.1ab LLDP/LLDP-MED
DHCP Auto Install
Dual Image, Dual Configuration
CPU Monitoring
Cable Diagnostics
Password Recovery
SNTP
System Log
IEEE 802.3az Energy Efficient Ethernet (EEE)
OTHERS
System Requirements
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment
Operating Temperature:
-5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters
-5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters
Storage Temperature: -40 °C to 70 ℃ (-40 ℉ to 158 ℉)
Operating Humidity: 10-90% RH non-condensing
Storage Humidity: 5-90% RH non-condensing
