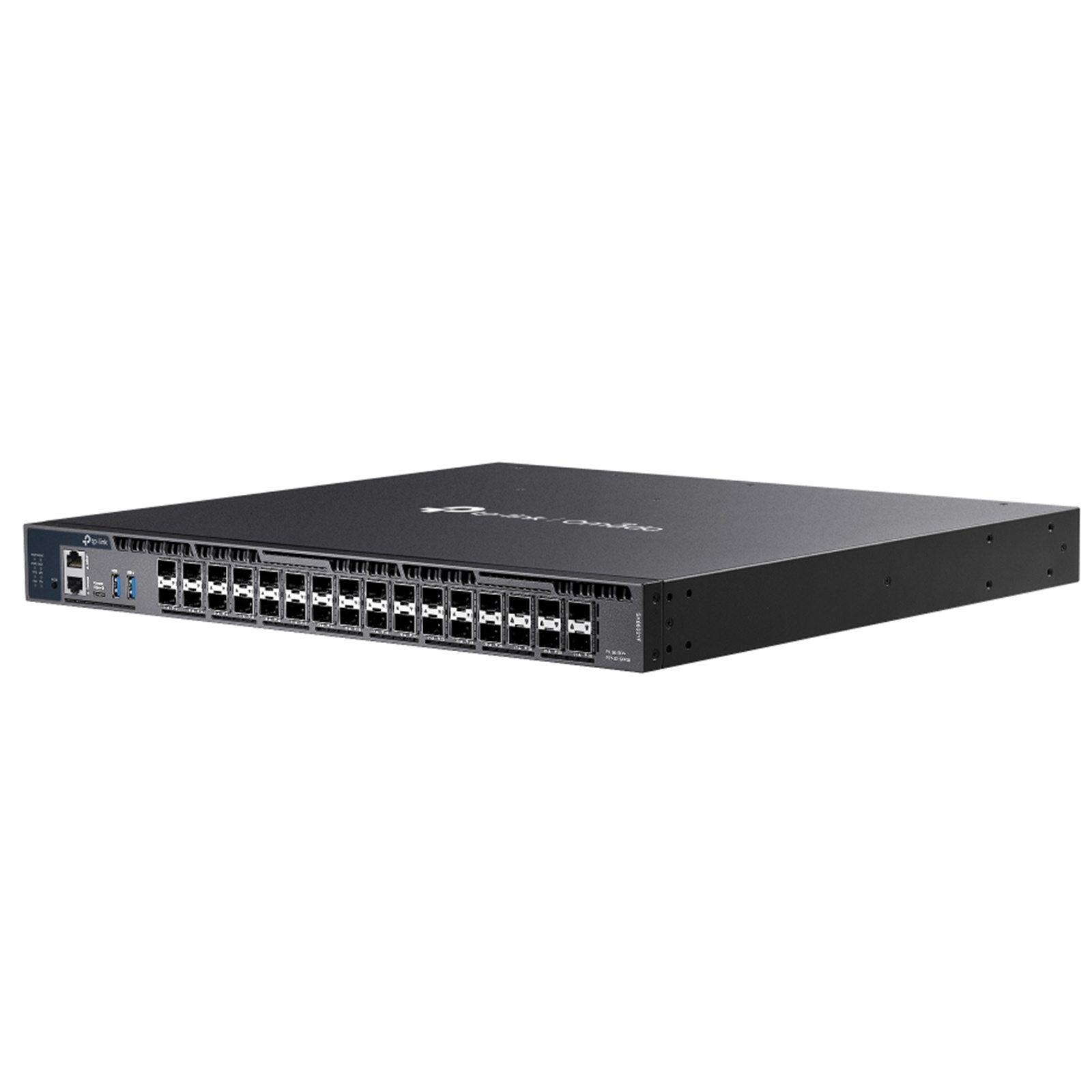

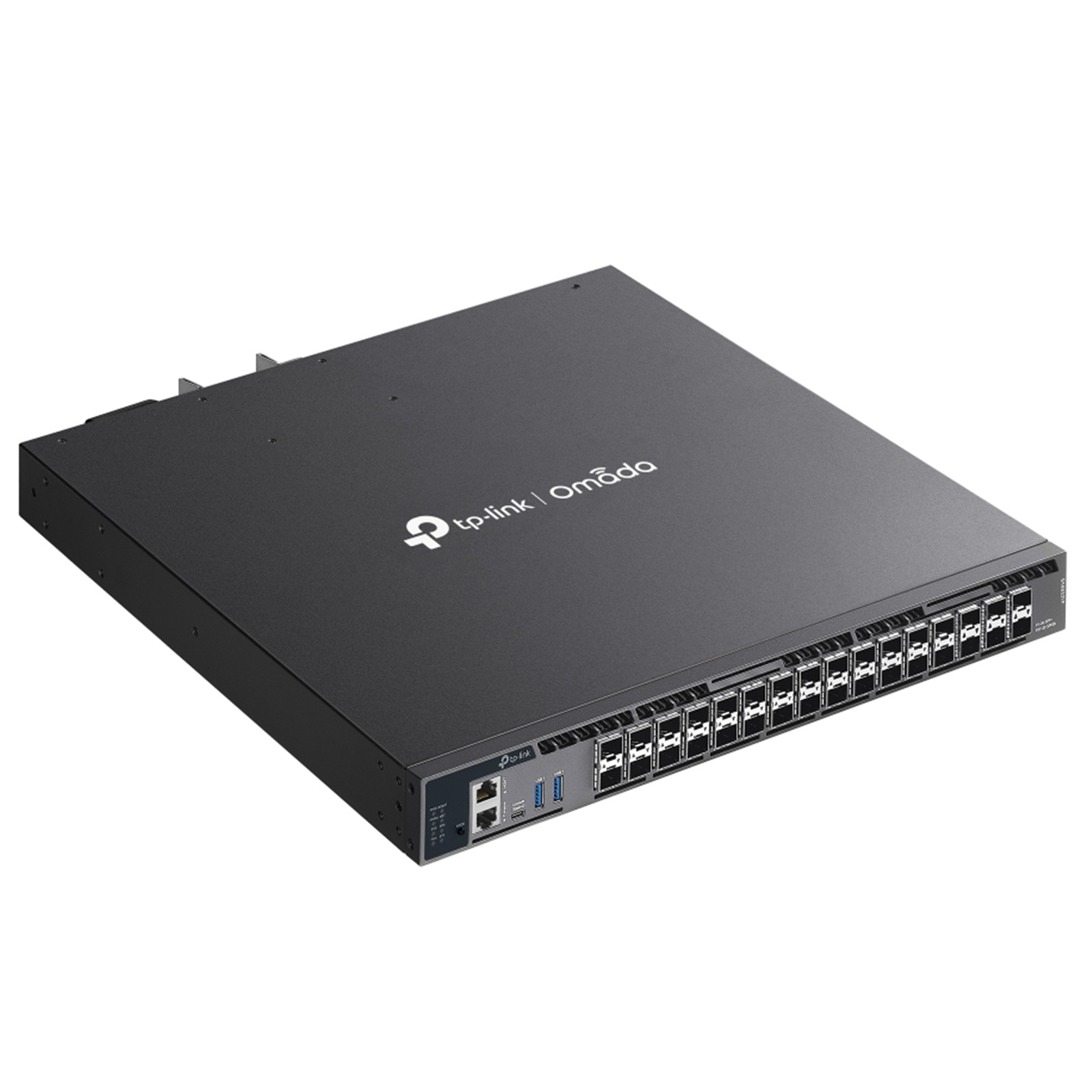

TP-Link Omada SX6632YF 32-Port 25G Stackable L3 Managed Aggregation Switch - 25G SFP28 x6, 10G SFP+ x26

Brand: TP-Link
MPN: SX6632YF
Part #: SWHTPL6632
UPC:

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: TP-Link
MPN: SX6632YF
Part #: SWHTPL6632
UPC:

Be the first to review this product

Multi-Gigabit Support

10Gbps (Some Ports) + 1 more

10 Gigabit Ports

26 Ports

2.5 Gigabit Ports

0 Port

Management Level

Managed

Number of Ports

26 Ports

PoE Ports

PoE Budget

View full specs

Returns & Warranty Bulk Quote Print Page

Features

Omada 26-Port 10G Stackable L3 Managed Aggregation Switch with 6 25G Slots

- 26× 10G SFP+ slots and 6× 25G SFP28 slots

- 820 Gbps switching capacity

- Physical Stacking for built-in redundancy and performance

- L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay

- Security Strategies: ACL, Port Security, DoS Defend, 802.1X

- Highly Available with two field-replaceable power supplies*, VRRP, and ERPS

- Centralized cloud management via the Omada SDN controller

- Standalone management via web, CLI, SNMP, and RMON

What This Product Does

The Omada SX6632YF is a true L3 managed switch with full fiber ports that offers L3 routing, swift 25 Gbps wired speed, stacking, and redundant power supplies, catering to convergence layer demands. It comes with 6× 25 Gbps SFP28 slots, 26× 10 Gbps SFP+ slots, and physical stacking. Integrated with robust security and comprehensive management features, this switch ensures reliable performance for SMB, enterprise, and ISP networks.

High-speed Connectivity and Powerful Stacking

6× 25 Gbps SFP28 slots and 26× 10 Gbps SFP+ slots provide up to 820 Gbps switching capacity per unit. Up to 8 units of physical stacking with up to 6560 Gbps switching capacity empowers the networking structure with built-in redundancy and performance.

Abundant Layer 3 Capabilities

Comes with abundant Layer 3 routing protocols that support a scalable network. Static Routing, RIP, OSPF, ECMP, VRRP, DHCP Server, and DHCP Relay are supported. PIM-DM multicast routing protocol guarantees efficient routing for multicast groups.

Highly Available

Internal fixed redundant power supplies* and VRRP make it an ideal choice for reliable networking architecture. ERPS supports rapid protection and recovery in a ring topology.

Enhanced Security Functions

Defend against a range of network threats with ACL support (IPv4 & IPv6), Dynamic ARP Inspection, IEEE 802.1X, MAB, Port Security, and Secure Shell.

Omada SDN

Integration into the Omada system brings centralized cloud management and a series of management features such as Zero-Touch Provisioning (ZTP).† The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers, providing 100% centralized cloud management-all controlled from a single interface.

Apart from the ability to be centrally managed via the web or the Omada app, SX6632YF is also easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps for abnormal events.

Specifications

HARDWARE FEATURES

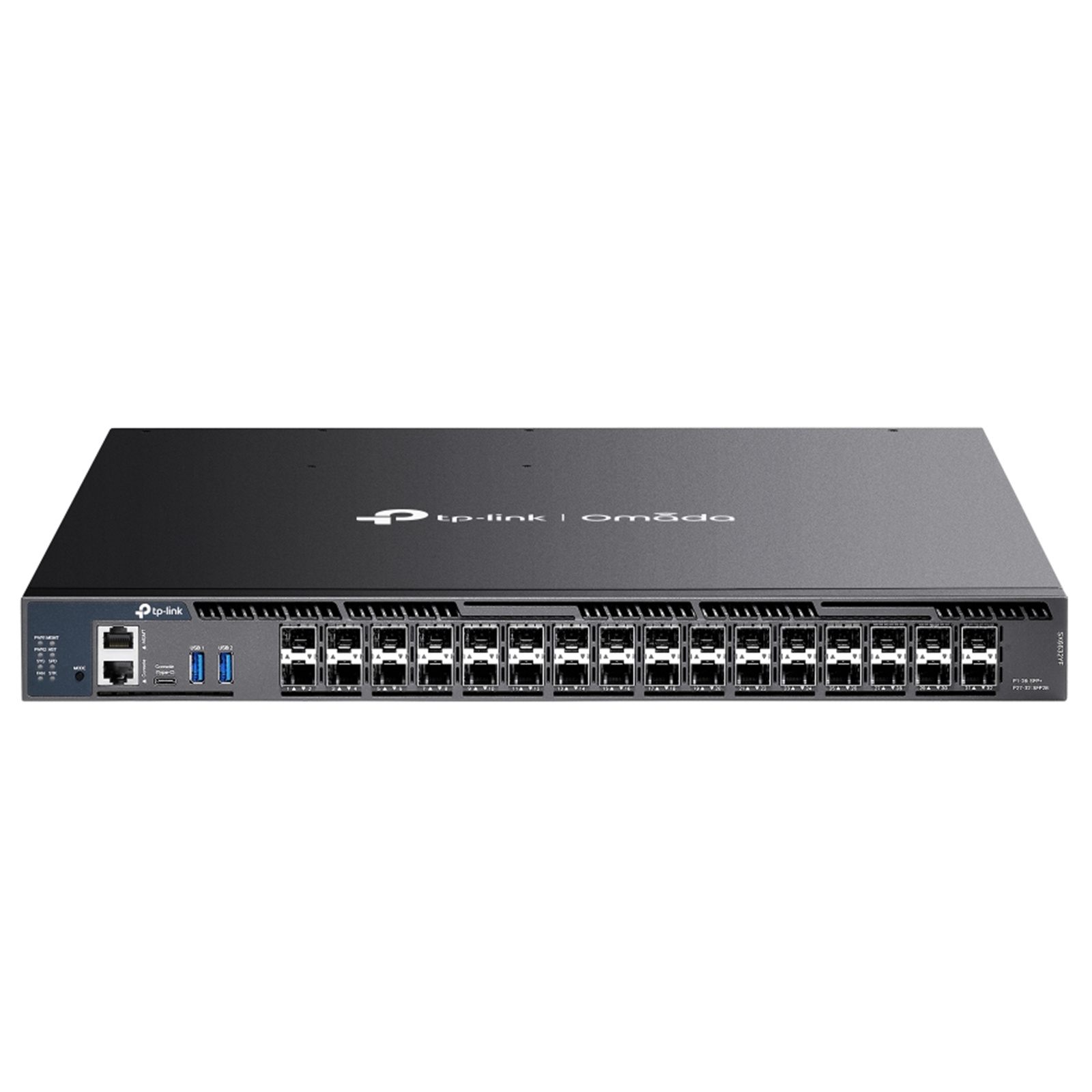

Interface

- 6× 10/25G SFP28 Slots
- 26× 10G SFP+ Slots
- 2× USB 3.0 Ports
- 1× RJ45 Console Port
- 1× USB Type C Console Port
- 1× RJ45 Management Port

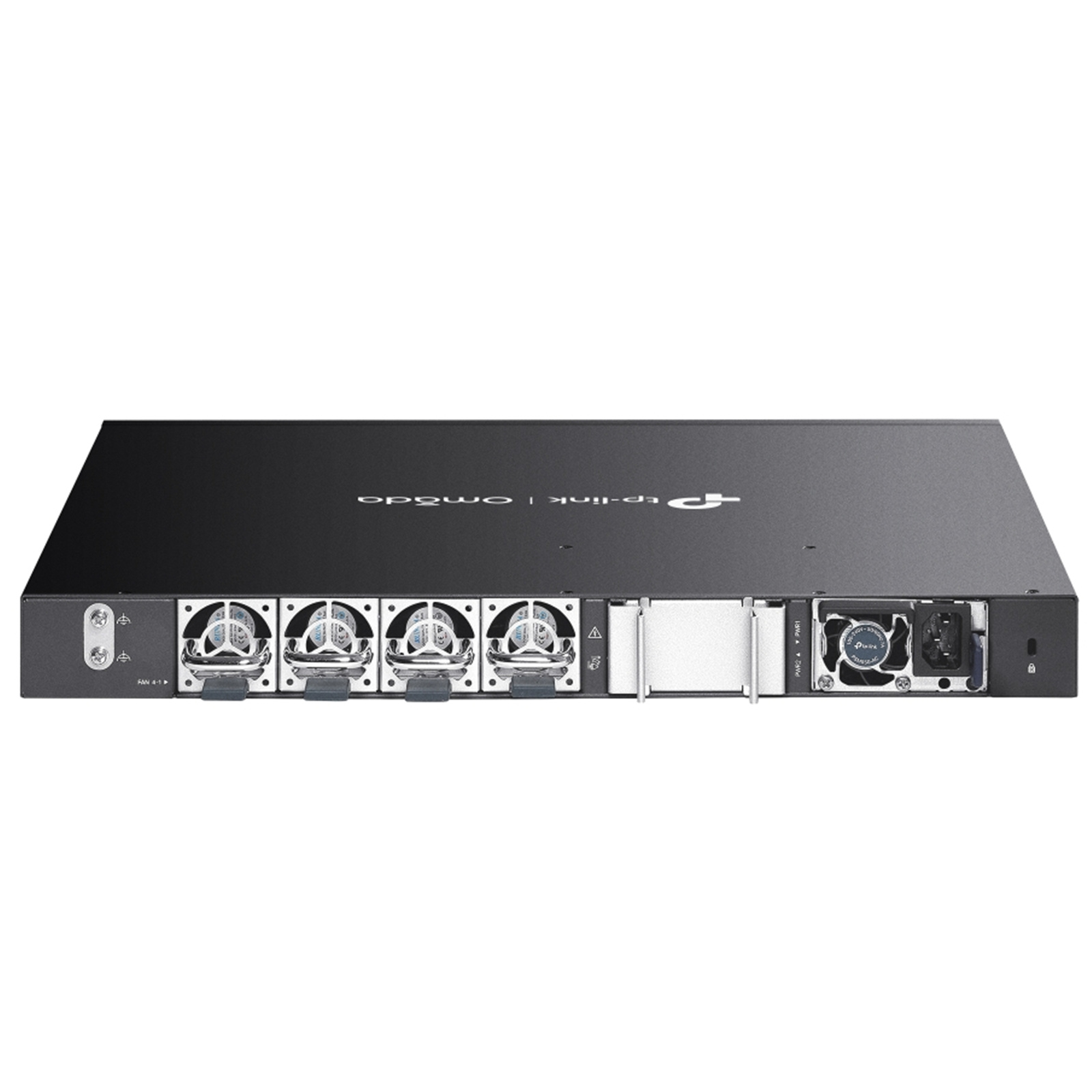

Fan Quantity

Four field-replaceable and hot-swappable fans

Physical Security Lock

Power Supply

Two field-replaceable and hot-swappable redundant power supplies (100-240 VAC, 50/60 Hz)
*Ships with one PSM550-AC module by default, and another field-replaceable redundant power supply requires a separate purchase.

Power Consumption

86.7 W (110 V/60 Hz)

Dimensions ( W x D x H )

17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)

Mounting

Rack Mountable

Max Heat Dissipation

295.85 BTU/hr (110 V/60 Hz)

PERFORMANCE

Switching Capacity

820 Gbps

Stacking

- Stacking Number: 8
- Stacking Port: 25G SFP28
- Stack Bandwidth: Up to 300 Gbps (6 stack ports)

Packet Forwarding Rate

610.1 Mpps

MAC Address Table

128 K

Packet Buffer Memory

8 MB

Jumbo Frame

9 KB

SOFTWARE FEATURES

Quality of Service

- Class of Service
- 8 Queues of Priority
- Port Priority
- IEEE 802.1p Priority
- DSCP Priority
- Queue Min-Bandwidth
- Schedule Mode (SP, WRR, SP+WRR)
- Bandwidth Control
- Rate Limit
- Strom Control
- Voice VLAN
- User-Defined OUI

L3 Features

- Routing IP Interfaces
- Static Routing
- Host Route Table
- RIP v1/v2
- RIPng
- OSPFv2/v3
- VRRP
- ECMP
- ARP Proxy
- DHCP
- DHCP Server
- DHCP Relay
- DHCPv6 Relay
- DHCP Snooping
- DHCPv6 Snooping
- Multicast
- Multicast Table
- IGMP v1/v2/v3
- Static Multicast Routing

L2 and L2+ Features

- Switching
- Port Mirroring(SPAN)
- RSPAN
- Loopback Detection
- Traffic Monitor
- Trunking
- Static LAG
- LACP 802.3ad
- Mac Address
- MAC Address Table
- Static MAC
- Dynamic MAC Address
- Filtering MAC Address
- MAC Flapping
- STP
- STP 802.1d
- RSTP 802.1w
- MSTP 802.1s
- Loop/Root/TC Protect
- BPDU Protect/Filtering
- ERPS
- Multicast
- IGMP Snooping
- MLD Snooping
- L2 Multicast Table
- Fast Leave
- Multicast VLAN Registration (MVR)
- Static Multicast IP
- Multicast Filtering

Advanced Features

- Automatic Device Discovery†
- Batch Configuration†
- Batch Firmware Upgrading†
- Intelligent Network Monitoring†
- Abnormal Event Warnings†
- Unified Configuration†
- Reboot Schedule†

ISP Features:0
- 802.3ah Ethernet Link OAM
- L2PT (Layer 2 Protocol Tunneling)
- Device Link Detect Protocol (DLDP)
- DDM
- sFlow

VLAN

- IEEE 802.1q Tag VLAN
- MAC VLAN
- Protocol VLAN
- VLAN VPN(QinQ)
- Private VLAN
- GARP/GVRP
- Voice VLAN
- Multicast VLAN
- Management VLAN

Security

- Access Security
- Port/MAC/IP-based Access Control
- SSL
- SSH
- Port Security
- Port Isolation
- CPU-Deffend
- Time Range
- Time Range Defination
- Periodic Time Range
- Absolute Time Range
- Time Holiday
- ACL
- Entries
- L2/L3/L4 ACL
- ACL Action
- ACL over VLAN
- ACL over Port
- IP-MAC Binding
- IP+MAC+PORT+VID Binding
- Manual Binding
- ARP Scanning
- DHCP Filter
- DHCPv6 Filter
- DHCP Option 82
- ARP Inspection (Dynamic ARP Inspection)
- IP Source Guard
- IPv6 Source Guard
- ND Neighbor Discovery/ ND Snooping/ ND Filtering
- DoS Defend
- Authentication, Authorization & Accounting (AAA)
- 802.1X Port Authentication
- RADIUS Authentication
- RADIUS Accounting
- TACACS+ Authentication

MANAGEMENT

Omada App

Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management

- Omada Cloud-Based Controller
- Omada Hardware Controller
- Omada Software Controller

Cloud Access

Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller.

Management Features

- Web-based GUI
- Command Line Interface (CLI) through console port, telnet
- SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
- SDM Template
- DHCP/BOOTP Client
- 802.1ab LLDP/LLDP-MED
- DHCP Auto Install
- Dual Image, Dual Configuration
- CPU Monitoring
- Cable Diagnostics
- Password Recovery
- SNTP
- System Log

OTHERS

Package Contents

- SX6632YF Switch
- Power Cord
- Quick Installation Guide
- Rackmount Kit
- Rubber Feet

System Requirements

Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

Environment

- Operating Temperature:
-5 °C to 50 °C (23 °F to 122 °F) @ 300 meters
-5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters
-5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters

- Storage Temperature: -40 °C to 70 ? (-40 ? to 158 ?)
- Operating Humidity: 10-90% RH non-condensing
- Storage Humidity: 5-90% RH non-condensing

Manufacturer Part No:

SX6632YF

Brand:

TP-Link

Product Type:

UPC

Product Family:

Omada

Shipping Weight:

3 kg

PB Part No:

SWHTPL6632

Product Model:

SX6632YF

Warranty: 36 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
