Teltonika TSW030 8 x 10/100 Port Compact DIN Rail Mountable Ethernet Switch

PB Tech price

NZD $ 84 .27

$ 84 .27

Teltonika TSW030 8 x 10/100 Port Compact DIN Rail Mountable Ethernet Switch

Brand: Teltonika
MPN: TSW030
Part #: SWHTTK1022
UPC:

PB Tech price

NZD $ 84 .27

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 12 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Teltonika
MPN: TSW030
Part #: SWHTTK1022
UPC:

Be the first to review this product

Form Factor

Desktop

10 Gigabit Ports

10 Gigabit

Management Level

Managed L2

Number of Ports

10 Ports

PoE Ports

PoE Budget

View full specs

Returns & Warranty Bulk Quote Print Page

Features

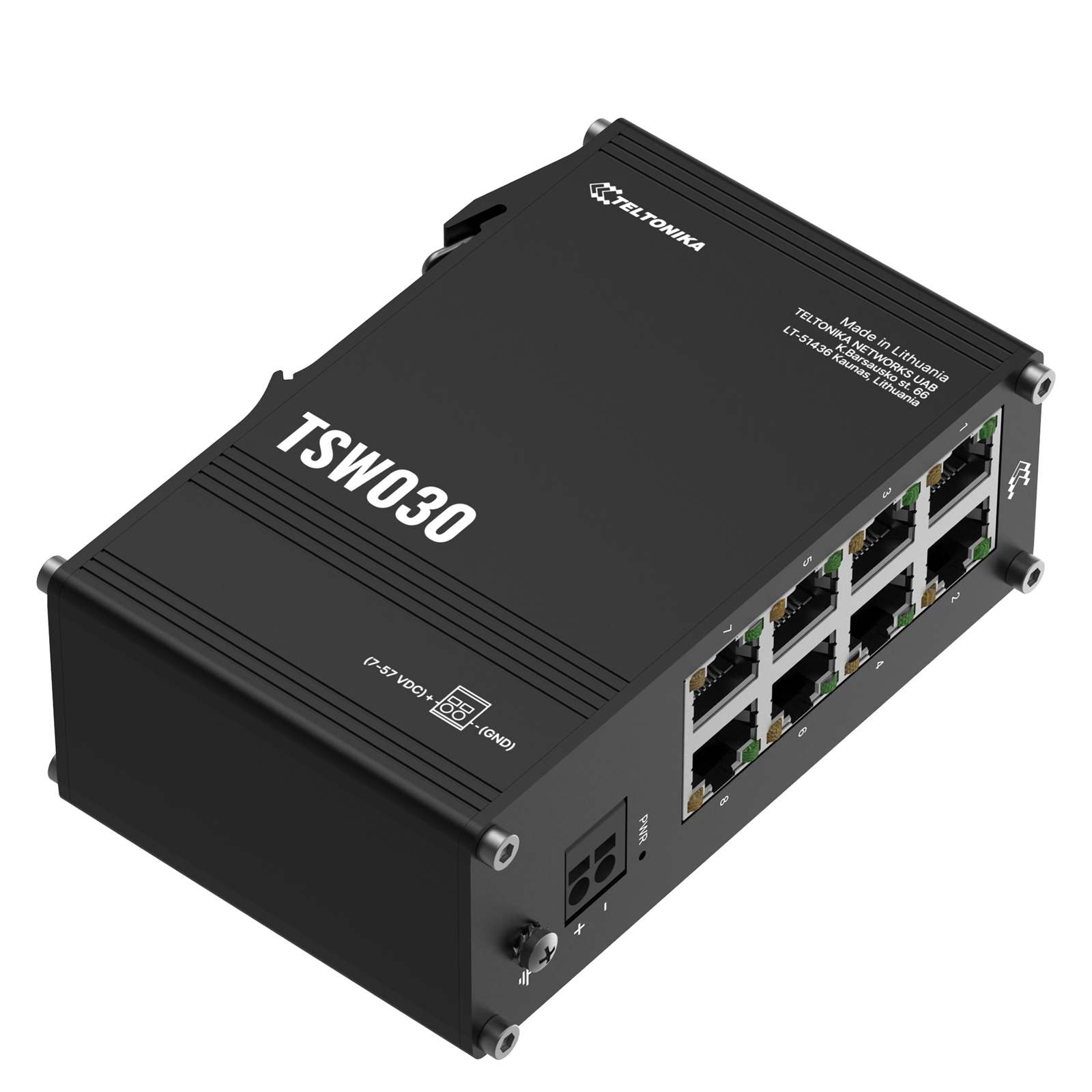

Teltonika TSW030 8 x 10/100 Port Compact DIN Rail Mountable Ethernet Switch

The TSW030 is a cost-efficient unmanaged Ethernet switch, featuring eight 10/100 RJ45 ports and integrated DIN rail mounting. This compact and rugged 8-port switch includes a 2-pin power input and low power consumption of up to 0.5 W when idle and a maximum of up to 1.5 W. These make this plug-and-play switch perfect for industrial applications requiring to connect up to eight devices.

- 2-pin Power Input Simple and suitable for industrial applications
- Low Power Consumption Up to 0.5 W when idle, up to 1.5 W maximum
- Integrated DIN Rail for Easy mounting for plug-and-play deployment
- Eight 10/100 Mbps Ethernet ports

Specifications

Ethernet

8 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover

IEEE 802.3 series standards

802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

Profinet

Profinet Class A conformance (available with optional order code)

Bandwidth (Non-blocking)

20 Gbps

Packer buffer

128 KB

MAC address table size

2K entries

Jumbo frame support

9216 bytes

Power Connector

2-pin industrial DC power socket

Input voltage range

7 - 57 VDC, overvoltage protection: 60Vmax, reverse polarity protection: 80Vmax, surge protection: min 64.4V/max 71.2V breakdown voltage, 93.6V maximum reverse voltage @4.3A maximum reverse surge current, 1- Vin, 2-PGND

Power consumption

Idle: 0.5 W / Max: 1.5 W

Status LEDs

1 x Power LED, 16 x ETH status LEDs

Power

1 x 2-pin industrial DC power socket

Other

1 x Grounding screw

Casing material

Anodized aluminum housing and panels

Dimensions (W x H x D)

113.1 x 41.2 x 74.6 mm

Weight

256 g

Mounting options

Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)

Operating temperature

-40 °C to 75 °C

Operating humidity

5% to 95% non-condensing

Ingress Protection Rating

IP30

Standards

UL/CSA Safety: UL 62368-1 (3rd Ed., Rev. December 13, 2019), C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019)

Manufacturer Part No:

TSW030

Brand:

Teltonika

Product Type:

8 x 10/100 Port Compact DIN Rail Mountable Ethernet Switch

UPC

Product Family:

Shipping Weight:

10 kg

PB Part No:

SWHTTK1022

Product Model:

TSW030
