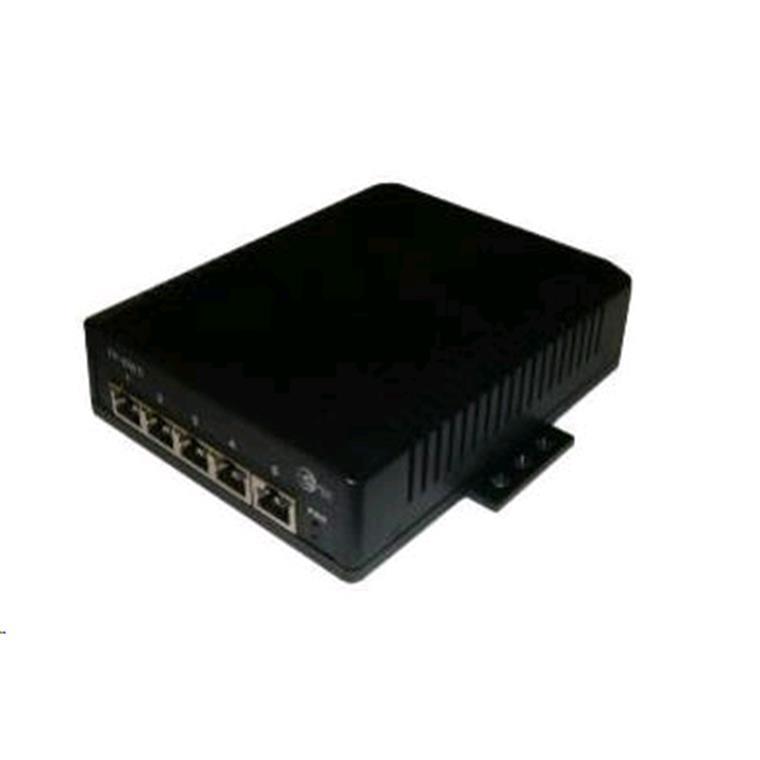

IEEE802.3af Compliant 48VDC 10/100/1000MB POE Out Switch. The Tycon TP-SW5G-24 switch accepts 18-36VDC power via a wire terminal connector on the back of the Switch or via 48VDC POE into the 802.3af/at compliant uplink port (90W max). Perfect for remote solar/battery systems. 35W Out per port.
Specifications
DC Input Voltage 24VDC (12V to 36V), Dual DC Inputs, Reverse Polarity Protected. Also Accepts POE power input on Port 5
DC Input Connector Removable Screw Type Compression Wire Terminal (12 AWG Max)
PoE Method IEEE 802.3af, 802.3at
Data in & Data/POE Output Connector RJ45 (Shielded)
Interfaces 1 data/POE input and 4 data/POE, automatic crossover and polarity
POE Output Ports Port 1-4, auto power management Pin assignment: TX(1,2), RX(3,6), V+(4,5), V-(7,8)
Maximum POE Power Up to 35W per port; max 70W per 5 port switch
Dimensions Length 159 mm Width 118 mm Height 40 mm
Manufacturer Part No:
TP-SW5G-24
Brand:
Tycon Systems
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1.01 kg
PB Part No:
SWHTYC1001
Product Model:
-
Warranty:
12 months * * Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
Reviews
There are currently no reviews for this product
Do you own this product?
Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
Delivery Estimates
The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, in-stock products typically arrive within 7-10 working days for all countries that we ship to.
Overseas Shipments
If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are located in Australia you can order directly from our Australian website www.pbtech.com/au
Returns & Warranty
7 day right of exchange
If you change your mind after making a purchase, or realise you have ordered the incorrect item, you can enjoy the peace of mind that we offer a 7 day exchange policy.
To exchange a product, goods must be sealed / unopened, with packaging in original condition, and accompanied by a valid receipt dated no more than 7 calendar days from when you request an exchange.
If there is not a suitable product that can be exchanged for your returned item you will be offered a credit on your account or gift card based on the value paid at the time of purchase.
Please note, items purchased on finance cannot be exchanged for a gift card.
Hassle free warranty service
If your product develops a fault within the manufacturer warranty period, you need to fill out our request a return form.
If your product develops a fault outside of the manufacturer warranty or PB Tech warranty period, we offer a full repair service and are an authorised repair agent for leading brands such as Samsung, HP, Toshiba, Lenovo and more.
Tycon Systems TP-SW5G-24 Tycon 5 Port 802.3af Gigabit POE Switch
Brand:Tycon Systems
MPN:TP-SW5G-24
Part #:SWHTYC1001
PB Tech price
NZD $479.13
Date Created: 23:59, 03-09-2025 Product URL: https://www.pbtech.com/pacific/product/SWHTYC1001/Tycon-Systems-TP-SW5G-24-Tycon-5-Port-8023af-Gigab
Features
IEEE802.3af Compliant 48VDC 10/100/1000MB POE Out Switch. The Tycon TP-SW5G-24 switch accepts 18-36VDC power via a wire terminal connector on the back of the Switch or via 48VDC POE into the 802.3af/at compliant uplink port (90W max). Perfect for remote solar/battery systems. 35W Out per port.
Specifications
DC Input Voltage 24VDC (12V to 36V), Dual DC Inputs, Reverse Polarity Protected. Also Accepts POE power input on Port 5
DC Input Connector Removable Screw Type Compression Wire Terminal (12 AWG Max)
PoE Method IEEE 802.3af, 802.3at
Data in & Data/POE Output Connector RJ45 (Shielded)
Tycon Systems TP-SW5G-24 Tycon 5 Port 802.3af Gigabit POE Switch
PB Tech price
PB Tech price
NZD $479.13$479.13
Product Attributes
Part #:SWHTYC1001
Form Factor:
N/A
10 Gigabit:
No
Management Level:
N/A
Number of Ports:
5 Ports
PoE:
Yes
PoE Ports:
5 Ports
PoE Budget:
90 Watts
Stacking:
No
Uplink Ports:
0
Uplink Speed (Max):
None
