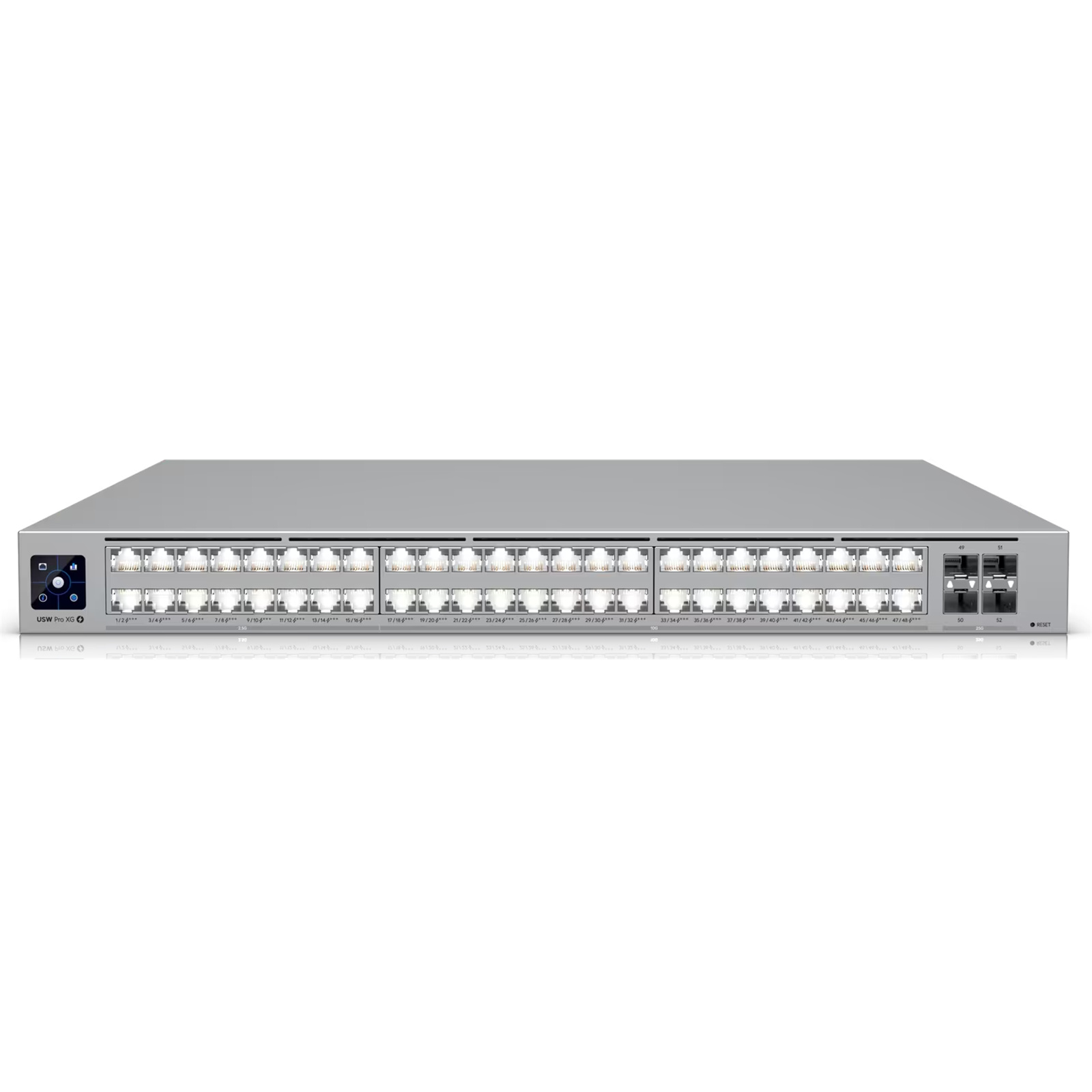

Ubiquiti Unifi USW-Pro-XG-48 48-Port 25G L3 Managed Etherlighting Switch - SFP28 x4, 10GbE x32, 2.5GbE x16
Ubiquiti Unifi USW-Pro-XG-48 48-Port 25G L3 Managed Etherlighting Switch - SFP28 x4, 10GbE x32, 2.5GbE x16
- Brand: Ubiquiti
- MPN: USW-Pro-XG-48
- Part #: SWHUBI104801
- UPC:
- Brand: Ubiquiti
- MPN: USW-Pro-XG-48
- Part #: SWHUBI104801
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Switches





Ubiquiti Unifi USW-Pro-XG-48 48-Port 25G L3 Managed Etherlighting Switch - SFP28 x4, 10GbE x32, 2.5GbE x16
- Brand: Ubiquiti
- MPN: USW-Pro-XG-48
- Part #: SWHUBI104801

Product URL: https://www.pbtech.com/pacific/product/SWHUBI104801/Ubiquiti-Unifi-USW-Pro-XG-48-48-Port-25G-L3-Manage
Features
Specifications
Dimensions
442 x 480 x 44 mm (17.4 x 18.9 x 1.7")
Port Layout
2.5 GbE RJ45
16 (All PoE+++)
(2.5G/1G/100M/10M)
10 GbE RJ45
32 (All PoE+++)
(10G/5G/2.5G/1G/100M/10M)
25G SFP28
4
(25G/10G/1G)
Max. PoE Output
Up to PoE+++
Total PoE Availability
200-240V AC: 1080W
100-120V AC: 972W
Redundancy
DC Power Backup
Layer 3
Yes
Form Factor
Rack mount (1U)
Etherlighting™
Yes
Performance
Switching Capacity
920 Gbps
Total Non-Blocking Throughput
460 Gbps
Forwarding Rate
684 Mpps
Supported VLANs
1,000
MAC Address Table Size
128,000
L3 Table Size
ARP Entries
128,000
IPv4 Routes
256,000
Packet Buffer Size
8 MB
Access Lists
IPv4
256
MAC
256
Hardware
PoE Ports
PoE+++
48
Max. PoE Wattage per Port by PSE
PoE
15.4W
PoE+
30W
PoE++
60W
PoE+++
90W
Max. Power Consumption
200W (Excluding PoE Output)
200-240V: 1,280W /
100-120V AC: 1,172W (Including PoE Output)
Power Method
(1) Universal input, 100-240V AC, 50/60 Hz
(1) USP RPS DC input
Power Input Method
AC input
Power Supply
AC/DC, internal, 1,350W
Supported Voltage Range
100-240V AC
Management
Ethernet
AR
Weight
Without mounting brackets: 8.7 kg (15.4 lb)
With mounting brackets: 8.8 kg (15.7 lb)
Enclosure Material
SGCC steel
Mount Material
SGCC steel
Supported Rack Depth
482.6 mm (19") four-post racks
Posts depths ranging from 600 to 1,066 mm (23.6-42")
LCM Display
1.3" touchscreen
ESD Protection
Air: ± 30kV, contact: ± 20kV
Ambient Operating Temperature
-5 to 40° C (23 to 104° F)
Ambient Operating Humidity
10 to 90% noncondensing
Etherlighting™
Ethernet
Yes
SFP28
Yes
LEDs
RPS
Yes
NDAA Compliant
Yes
Certifications
CE, FCC, IC
Software
Application Requirements
UniFi Network
Version 9.1.120 and later
