Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch - 1GbE x5
- Brand: Ubiquiti
- MPN: USW-FLEX-MINI
- Part #: SWHUBI1105
- UPC:817882029810

Product URL: https://www.pbtech.com/pacific/product/SWHUBI1105/Ubiquiti-UniFi-USW-Flex-Mini-5-Port-Gigabit-L2-Man?is-review=1
Features
5-Port managed Gigabit Ethernet switch powered by 802.3af/at PoE or 5V, 1A USB-C power adapter.
Build and expand your network with the UniFi® Switch, part of the Ubiquiti UniFi Enterprise System. The UniFi Switch, model USW-Flex-Mini, is a smart managed Gigabit switch. It offers 5 RJ45 Ethernet ports, providing 1 Gigabit links to your devices. Power up the USW-Flex-Mini with the included USB Type-C power adapter or with 802.3af PoE Ethernet in port 1.
Managed by UniFi Network Controller version: 5.12.5 or higher
*5V, 1A USB-C power adapter included only with the single-pack of the USW-Flex-Mini.
Compact Desktop Design
The cost-effective UniFi Switch Flex Mini can be discreetly integrated into any environment.
Copper Connectivity
Five RJ45 ports offer 10/100/1000 links. One port also supports 802.3af/at PoE input.
Efficient Use of Energy
The UniFi Switch Flex Mini uses only a maximum of 2.5W. For your convenience, it can be powered by 802.3af/at PoE or a 5V, 1A USB-C power adapter*.
* Included only with the single-pack of the USW-Flex-Mini.
Switching Performance
The UniFi Switch Flex Mini offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

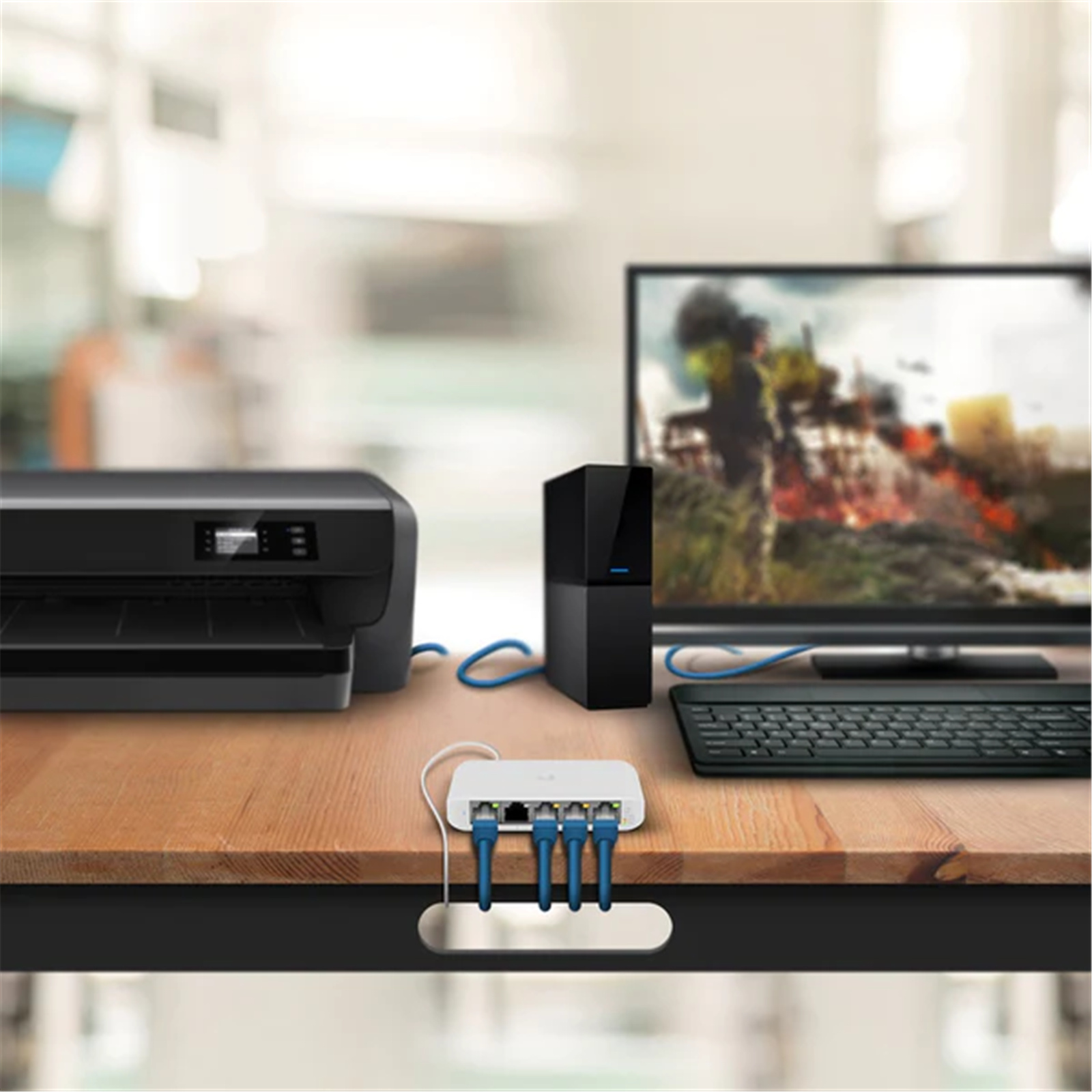

Deployment Example
The UniFi Switch Flex Mini connects a variety of devices, including a printer, game console, NAS, and computer.
Scalable UniFi Network Controller
Management Capabilities
The UniFi Network™ Controller can provision UniFi devices, map out networks, and quickly manage system traffic. Important network details are logically organized for a simplified, yet powerful, interface.
Network Overview
From a single pane of glass, view network topology and configuration, real-time statistics, and debugging metrics. Monitor your network's vitals and make on-the-fly adjustments as needed.
Multi-Site Management
A single controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and administrator accounts.
Deep Packet Inspection
Ubiquiti's proprietary Deep Packet Inspection (DPI) engine includes the latest application identification signatures to track which applications (and IP addresses) are using the most bandwidth.
Detailed Analytics
The UniFi Network Controller provides configurable reporting and analytics to manage large user populations and expedite troubleshooting. Advanced search and sorting capabilities make network management more efficient.
Software Features
The UniFi Network Controller software offers the following features for the UniFi Switch Flex Mini:
Centralized configuration management (including configuration cloning)
Auto-MDIX automatically adjusts as needed for straight through or crossover cable
Switch Configuration
You can access the UniFi Switch Flex Mini through the UniFi Controller to configure a variety of features:
Operation mode (switching or mirroring) per port
Network/VLAN configuration*
Jumbo frame and flow control services
Network settings
Storm control setting per port
Switch Port Status
You can also view status information for each port:
Connection speed and duplex mode
TX/RX data rates
Network/VLAN setting*
* USW-Flex-Mini uses port-based VLANs only and does not support SSH, STP (forwarding only), 802.1X, DNS suffix, or experience in the controller.
Download data sheet: http://dl.ui.com/ds/usw-flex-mini_ds.pdf
Specifications
General
Dimensions
107.16 x 70.15 x 21.17 mm
(4.22 x 2.76 x 0.83")
Weight
150 g
(5.29 oz)
Networking Interfaces
(5) 10/100/1000 Mbps RJ45 Ports
PoE In Interface
802.3af/at PoE (Pins 1, 2+; 3, 6-)
Max. Power Consumption
2.5W
Power Method
USB Type C, 5V 802.3af/at
PoE (44 - 57VDC, 0.05 - 0.04A)
Power Supply
5V, 1A Power Adapter*
ESD/EMP Protection
± 16kV Air, ± 12kV Contact
Operating Temperature
-5 to 45° C (23 to 113° F)
Operating Humidity
10 to 90% Noncondensing
Certifications
CE, FCC, IC
Voltage Range
USB Type C
4.7 - 5.2VDC
802.3af/at PoE
44 - 57VDC
LEDs
System
RJ45 Data Ports
Status
Link/Speed/Activity
