RAM VESA mounting set Drilling solution round plate, short Length Arm and VEAS plate including 3.68" Dia Round Plate with 2.25" Ball , Ram 8.375'' Arm and 75 X75 mm VESA plate with 2.25' ball.
Out of stock
RAM VESA mounting set Drilling solution round plate, short Length Arm and VEAS plate including 3.68" Dia Round Plate with 2.25" Ball , Ram 8.375'' Arm and 75 X75 mm VESA plate with 2.25' ball.
- Brand: RAM
- MPN: RAM Drilling-S
- Part #: TAARAMI9002
- UPC:
- Brand: RAM
- MPN: RAM Drilling-S
- Part #: TAARAMI9002
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial PCs & IoT





RAM VESA mounting set Drilling solution round plate, short Length Arm and VEAS plate including 3.68" Dia Round Plate with 2.25" Ball , Ram 8.375'' Arm and 75 X75 mm VESA plate with 2.25' ball.
- Brand: RAM
- MPN: RAM Drilling-S
- Part #: TAARAMI9002

Product URL: https://www.pbtech.com/pacific/product/TAARAMI9002/RAM-VESA-mounting-set-Drilling-solution-round-plat
Features

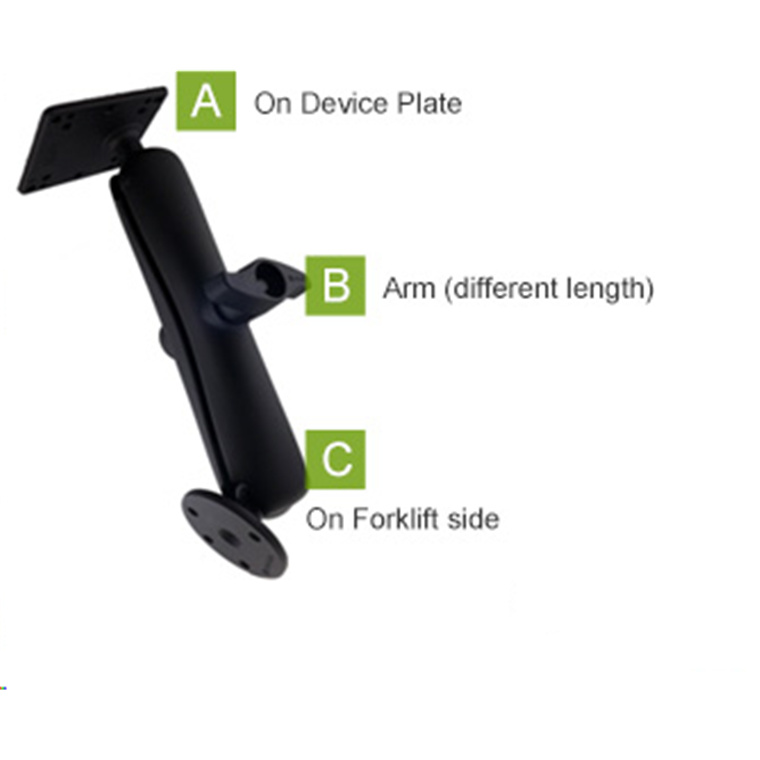

Bundle Includes:
- RAM D-202U 2.25" diameter rubber ball
- RAM D-201U-C RAM Short Length Double Socket Arm for D Size 2.25" Balls
- RAM D-2461U 75x75mm VESA plate with D Size Ball
RAM D-202U 2.25" diameter rubber ball
The RAM-D-202U consists of a 2.25" diameter rubber ball, connected at right angles to a 3.68" diameter round base. The base has pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees.
RAM D-201U-C 1 x RAM D Size Ball Short Length Socket Arm
The RAM-D-201U-C, short double socket arm, has a socket at both ends that accommodates 2.25" ball bases. A single spring inside the arm opens the end sockets, allowing you to pivot the ball and socket connection. This socket technology allows for almost infinite adjustment and perfect viewing angles.
RAM D-2461U RAM 75 X75mm VESA plate with D Size ball
The RAM-D-2461U consists of a 2.25" rubber ball, connected to a 3.625" square plate with a 75mm X 75mm VESA hole pattern. The rubber ball is positioned 0.88" from the center of one edge.
Specifications
RAM D-202U 2.25" diameter rubber ball
Material
Powder Coated Marine Grade Aluminum
Ball Size
2.25" Rubber Ball "D" Size
Weight
0.71 lbs.
RAM D-201U-C 1 x RAM D Size Ball Short Length Socket Arm
Overall Length
5.0625"
Socket-To-Socket Length
3.1875"
Material
Powder Coated Marine Grade Aluminum
Ball Size
2.25" Rubber Ball "D" Size
Weight
1.66 lbs.
RAM D-2461U RAM 75 X75mm VESA plate with D Size ball
Material
Powder Coated Marine Grade Aluminum
Ball Size
2.25" Rubber Ball Size
Weight
0.7 lbs.
