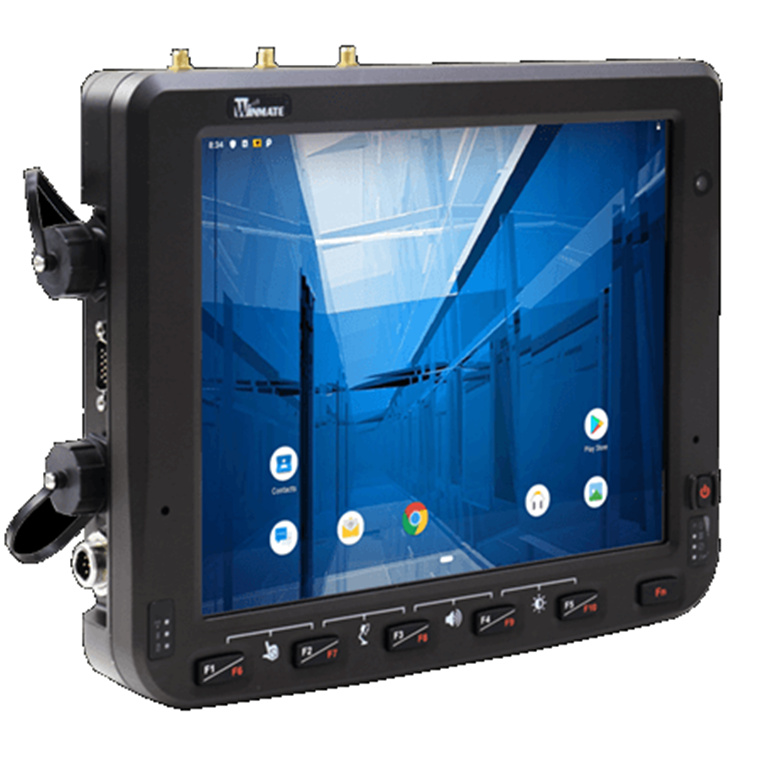

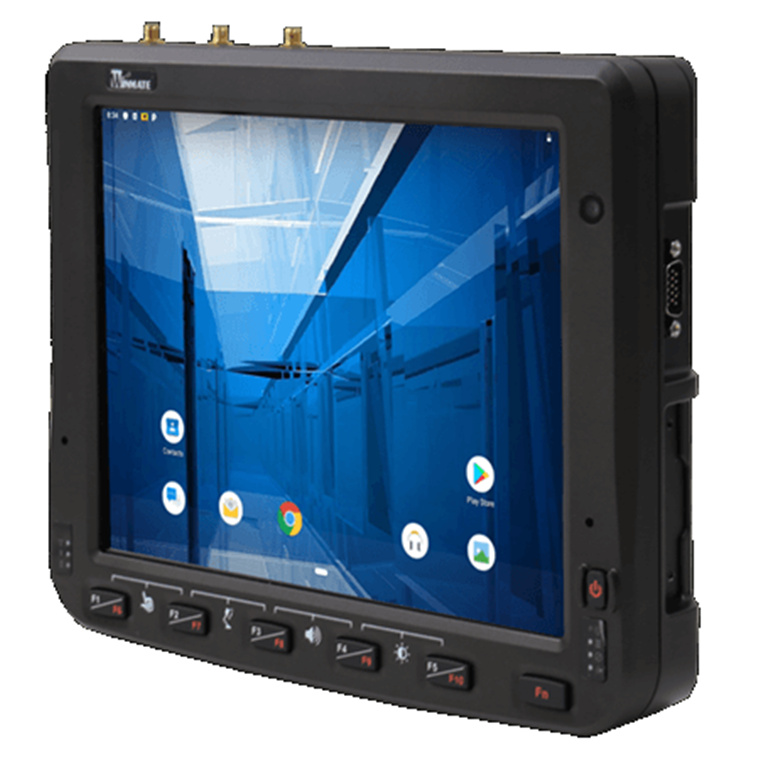

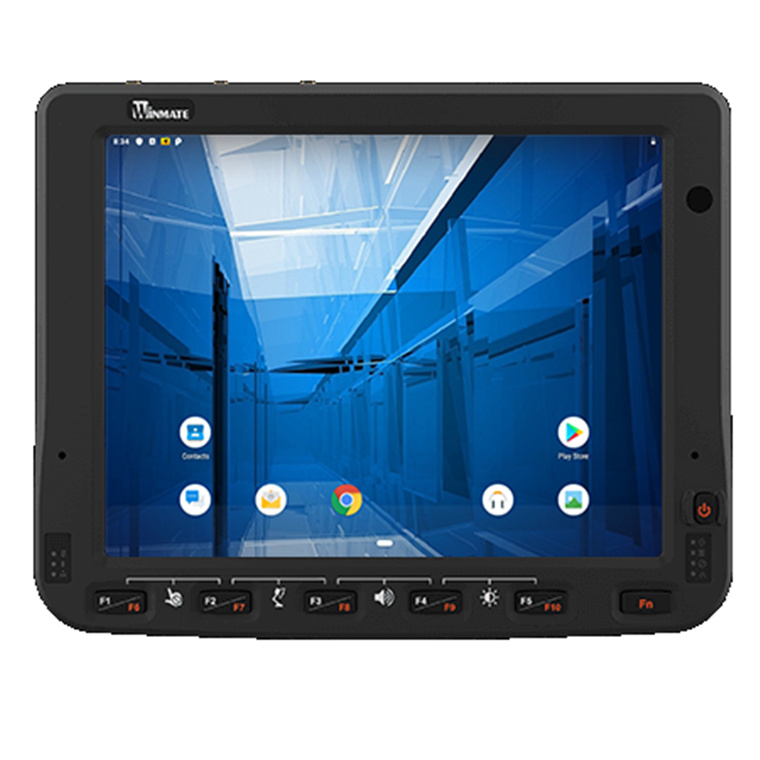

Winmate FM10Q-v 3G 32GB Android 9.0 10.4 vehicle Rugged Tablet 1024x768, PCAP, Qualcomm 2.2 Wide power input 10-60V DC with ignition, Support VESA Mount
- Brand: Winmate
- MPN: FM10Q-V
- Part #: TABWMAFM10QV

Product URL: https://www.pbtech.com/pacific/product/TABWMAFM10QV/Winmate-FM10Q-v-3G-32GB-Android-90-104-vehicle-Rug
Features
High-Performance Qualcomm® Snapdragon™ CPU
The Qualcomm Snapdragon™ 660 octa-core, 2.2 GHz CPU platform delivers powerful computing performance while being power efficient. It includes long-term extended support to reduce maintenance and ensure the CPU platform's reliability for years to come.
10.4" Compact Housing with Anti-scratch P-Cap Multi-touch Screen
Thanks to the compact form factor, vehicle operators maintain unobstructed line-of-sight during operations to increase efficiencies and minimize errors. The screen boasts P-Cap technology and anti-scratch properties to deliver an excellent multi-touch experience with better environmental resistance.
Vibration and shock-proof design ensure reliable performance
When it comes to industrial usage, a rugged device to survive harsh environments is a must. Its solid enclosure proves the FM10Q-V's durability with MIL-STD-810H certification and IP65 rating.
Built-in Backup Battery
The FM10Q-V contains a backup battery (minimum 30 minutes) that enables the device to be seamlessly swappable from one dock to another, keeping your tasks going on without interruption.
Rich I/O Ports
Ships with rich I/O interfaces to support multiple onboard peripherals, the FM10Q-V delivers a steady output, impressive extensibility, and maximum efficiency for either in-vehicle or field operations.
Specifications
Display
Size
10.4 inches
Resolution
1024x768
Type
Projected Capacitive Multi Touch
Panel Brightness
400 nits
800 nits(Optional)
Contrast Ratio
1200:1
View Angles
88,88,88,88
Touch Mode
Support Hand, Stylus, Glove Mode
System Specification
Processor
Qualcomm® Snapdragon™ 660 (Octa-Core 2.2 GHz)
Memory
3GB
Storage
32GB
Operating System
Android 9.0
WLAN
Support
BT
Support
WWAN
4G/LTE (Optional)
GNSS
GPS/GLONASS (Optional)
Sensors
G-Sensor, Temp. Sensor
Camera
Front Camera
2MP Camera
Mechanical
Dimension
268 x 214 x 51 mm
Weight
2.4 kg
Mounting
RAM Mount/ VESA Mount
Cooling System
Fanless Design
IO Ports
USB Port
1 x USB 3.0 Type C (OTG)
1 x USB 2.0 Port
Serial Port
2 x RS232/422/485 (Default RS232)
LAN
1 x Gigabit LAN port
PSE (IEEE 802.3at 30W) (Optional)
Audio
1 x Audio(Mic in & Line Out) either one with DIDO (Optional)
SD Card Slot
1 x Micro SD Card Slot
SIM Card Slot
1 x Dual-Nano SIM Card Slot
Indicator
5 x LED Indicator
(Wi-Fi, BT, UPS battery, Screen Blanking, Heater)
DIDO
1 x DIDO (2XDI ; 2XDO) either one with Audio (Optional)
CANBUS
1 x CANBus (Optional)
Environment
Operating Humidity
5% to 95% RH, Non-Condensing
Operating Temperature
-30°C to 50°C
Storage Temperature
-30°C to 60°C
Shock
MIL-STD-810H Method 516.8 Procedure I
Vibration
MIL-STD-810H Method 514.8 Procedure I
IP rating
IP65
Impact
Support EN62262 IK07 Rating
ESD
Compliant with EN 61000-4-2,
Enhanced ESD to ±8kV Direct & ±15kV Air
Certification
Certification
CE, FCC
Control
Button
1 x Power Button, 6 x Function Button
(Programmable Function Key Configured by Winset)
Power
Battery
400mAh UPS Battery for 20 minutes backup (Optional)
Power Rating
10V~60V with ignition control
Security Function
SOTI MobiControl
SOTI MobiControl Compliance
Accessory
Accessory
5M Power Cable with Fuse Kit
0.15M Power Converter Cable
DC Jack Power Cable
84W Adapter with power cable
Quick Start Guide
Optional Accessory
Stylus Kit + Screw
1.8M RS232 Cable
2M IP65 LAN Cable
GPS & LTE 2M Combo Antenna(VM240)
GPS & LTE 5M Combo Antenna (VM9C)
GPS & LTE Magnetic Combo Antenna (VM10S)
GPS Antenna
WWAN Antenna
2M Waterproof USB Type-A to A Cable
Cable Clamp Kit
COM Port + CANBus Cable
COM Port + DIDO Cable
