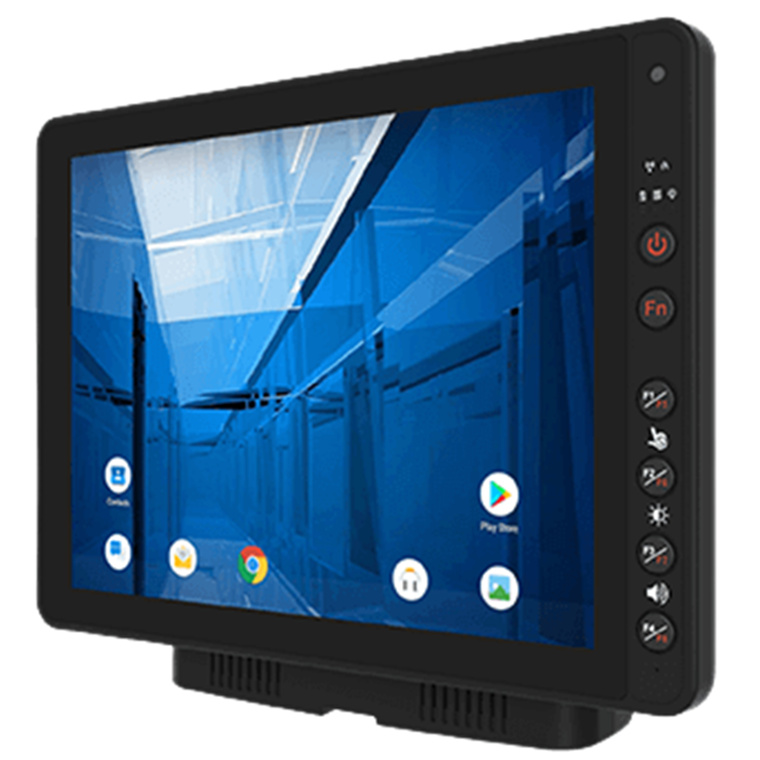

Winmate FM12Q 3G/32GB Android 9.0 12.1" Rugged Tablet 1024x768, PCAP touchscreen, Qualcomm 2.2 GHz CPU, WIFI, IP65 Wide range -30C to 50C operating temperature, Fan-Less & Robust Design, RAM Mount/VESA Mount

PB Tech price
PB Tech price
NZD $ 4,584 .94
$ 4,584 .94
$4,584.94  +GST
$4,584.94

Winmate FM12Q 3G/32GB Android 9.0 12.1" Rugged Tablet 1024x768, PCAP touchscreen, Qualcomm 2.2 GHz CPU, WIFI, IP65 Wide range -30C to 50C operating temperature, Fan-Less & Robust Design, RAM Mount/VESA Mount

BT & GPS (with external GPS antenna), IP65,
  • Brand: Winmate
  • MPN: 98Z012A0000B standard
  • Part #: TABWMAFM12QS
  • UPC:
PB Tech price
NZD $ 4,584 .94 $ 4,584 .94


Delivery: Order now and it ships tomorrow
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$4,584.94  +GST
$4,584.94

Features

Vibration and shock-proof design ensure reliable performance

When it comes to industrial usage, Winmate FM12Q that is rugged enough to survive harsh environments is a must. Its solid enclosure proves the FM12Q's durability with MIL-STD-810H certification and IP65 rating.

PCAP Touch Screen

The FM12Q features a compact panel with a PCAP touch screen. Resistant to dirt, debris, and highly sensitive touch commands make you enjoy every touch and convenience of using the device.

High-Performance CPU

To support the next generation of IoT edge devices, FM12Q has developed a new line of processors enhanced for IoT-Qualcomm Snapdragon™ 660 Series processors. These processors build on new levels of CPU, and graphics performances with integrated IoT features, real-time performance, manageability, security, and functional safety.

Reliable computing under extreme operating temperatures

Low-power components of industrial computers prevent overheating and are less likely to achieve high temperatures in the first place.

Specifications

Display

Size

12.1 inches

Type

Projected Capacitive Multi Touch

Resolution

1024x768

Panel Brightness

400 nits

Contrast Ratio

1000:1

View Angles

89,89,89,89

Touch Mode

Support Hand, Stylus, Glove Mode

System Specification

Processor

Qualcomm® Snapdragon™ 660 (Octa-Core 2.2 GHz)

Memory

3GB

Storage

32GB

Operating System

Android 9.0

WLAN

Support

BT

Support

WWAN

4G/LTE (Optional)

GNSS

GPS/GLONASS

Sensors

G-Sensor, Temp. Sensor

Camera

Front Camera

2MP Camera

Mechanical

Dimension

Tablet: 307 x 225 x 41 mm
Docking: 202 x 245 x 52 mm

Docking Housing

Aluminum Alloy Housing

Weight

Tablet 1.7 kg
Docking 1.6 kg

Mounting

RAM Mount/ VESA Mount

Cooling System

Fanless Design

IO Ports

USB Port

1 x USB 3.0 Type C (OTG)(Tablet)
1 x DB9 Connector for 2 x USB 2.0 Port(Docking)

Serial Port

2 x COM Port(Docking)

LAN

1 x Gigabit LAN port(Docking)

Audio

2 x Speaker(Docking)
1 x CANBus or 1 x Audio(Docking)

SD Card Slot

1 x Micro SD Card Slot(Tablet)

SIM Card Slot

1 x Dual-Nano SIM Card Slot(Tablet)

Indicator

3 x LED Indicator
(WLAN, UPS battery, Heater)

Environment

Operating Humidity

5% to 95% RH, Non-Condensing

Operating Temperature

-30°C to 50°C

Storage Temperature

-30°C to 60°C

Shock

MIL-STD-810H Method 516.8 Procedure I

Vibration

MIL-STD-810H Method 514.8 Procedure I

IP rating

IP65

Impact

Support EN62262 IK07 Rating

ESD

Compliant with EN 61000-4-2,
Enhanced ESD to ±8kV Direct & ±15kV Air

Power

Battery

7.6V UPS Battery (2S1P)
Minimum 30 minutes

Power Rating

Docking: 10V-60V with ignition control
Tablet: 12V DC In

Manufacturer Part No:
98Z012A0000B standard
Brand:
Product Type:
12.1" Rugged Tablet
UPC
-
Product Family:
FM12Q
Shipping Weight:
2.3 kg
PB Part No:
TABWMAFM12QS
Product Model:
3G/32GB Android 9.0
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

There are currently no reviews for this product

Do you own this product?

Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!

Delivery & Pick-up

Shipping Costs

Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.

To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.

Shipping Security & Insurance

All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.

Delivery Estimates

The delivery time-frame (in days) for each product we sell is detailed on the individual product page just to the right of the main product image. From when you place your order, in-stock products typically arrive within 7-10 working days for all countries that we ship to.

Overseas Shipments

If you are located in New Zealand, you can order directly from our New Zealand site www.pbtech.co.nz. If you are located in Australia you can order directly from our Australian website www.pbtech.com/au

Returns & Warranty

7 day right of exchange

If you change your mind after making a purchase, or realise you have ordered the incorrect item, you can enjoy the peace of mind that we offer a 7 day exchange policy.

To exchange a product, goods must be sealed / unopened, with packaging in original condition, and accompanied by a valid receipt dated no more than 7 calendar days from when you request an exchange.

If there is not a suitable product that can be exchanged for your returned item you will be offered a credit on your account or gift card based on the value paid at the time of purchase.

Please note, items purchased on finance cannot be exchanged for a gift card.



Hassle free warranty service

If your product develops a fault within the manufacturer warranty period, you need to fill out our request a return form.

If your product develops a fault outside of the manufacturer warranty or PB Tech warranty period, we offer a full repair service and are an authorised repair agent for leading brands such as Samsung, HP, Toshiba, Lenovo and more.



Returning a product / making a warranty claim

To return a product to PB Tech, please complete our request a return form.

Or view our returns policy for more information.
