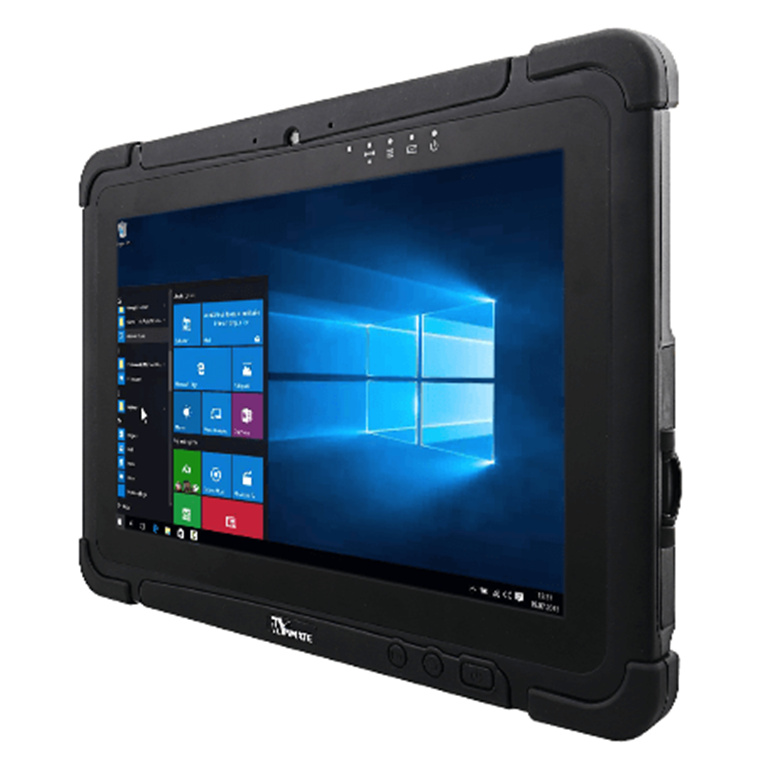

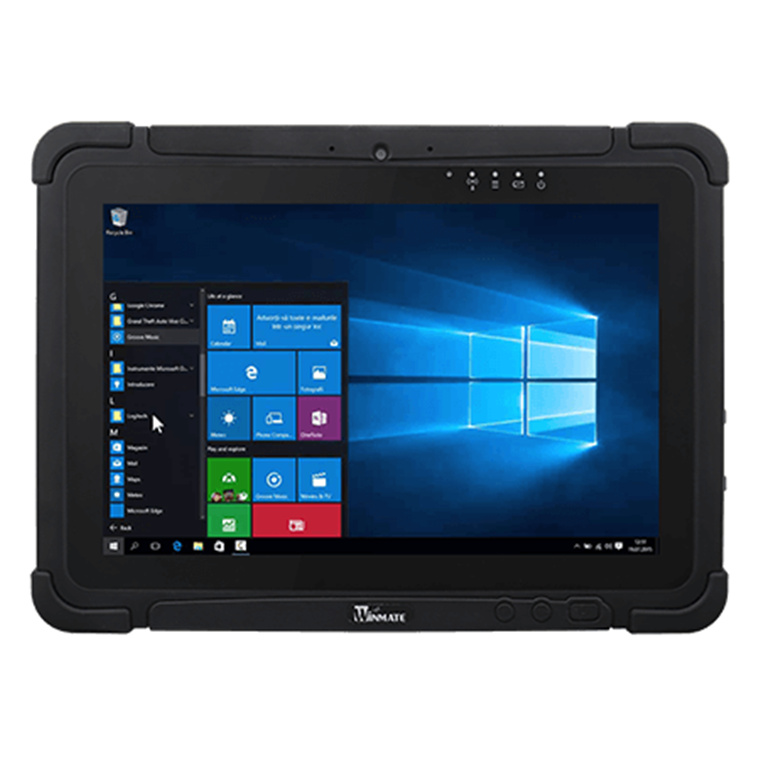

Winmate M101EK 4G, 128GB Win 10 IoT 10.1" Rugged Tablet WIFI 1920x1200 IPS LED, P-Cap Touch, Intel Celeron N6211, IP65, 5900Mah Battery Dual Camera Design: 8MP rear camera/2MP Webcam
- Brand: Winmate
- MPN: M101EK
- Part #: TABWMAM101EK
Product URL: https://www.pbtech.com/pacific/product/TABWMAM101EK/Winmate-M101EK-4G-128GB-Win-10-IoT-101-Rugged-Tabl
Features
10.1" Windows Rugged Tablet PC with Intel® Celeron® N6211
- Intel® Elkhart Lake Celeron® N6211 Processor
- 10.1" 1920 x 1200 IPS LED Panel with direct optical bonding
- IP65 water and dust proof with MIL-STD-810H rugged housing
- Low power consumption with fanless design
- Removable battery with hot-swap function for all day productivity
- Sunlight readable with antiglare solution USB Type-C port supports power delivery 20V In
- Integrated 4G/5G Wireless WWAN (Optional)
Powerful Computing Performance
With a fanless cooling system powered by an Intel® processor, M101EK offers stable performance for multi-tasks in rigorous conditions. It supports Windows® IoT Enterprise operating system to fulfill increasing industrial applications requirements and provide an alternative solution for those between general consumer-grade and extremely rugged solutions.
On Field Communication Reliability
The M101EK lightweight tablet offers the latest wired and wireless connection options for faster and improved reliability in dense deployments. Bring a level-up communication with no delay.
Compact, Slim, Yet Rugged
M101EK rugged tablet is designed sleek, lightweight, IP65 waterproof sealed, and passed the Defence-standard protection to survive all challenging environmental conditions. M101EK is designed genuinely for mobile workers and keepers who always worry about accidental damage.
Optimal Screen Interactivity in the Field
M101EK has 10.1 inches screen supported with the stylus, glove, and wet-touch modes, also integrated with an IPS 800-nits screen for clear visibility and operation comfort whatever the weather and locations are.
Specifications
Display
Size
10.1 inches
Resolution
1920x1200
Type
Projected Capacitive Multi Touch
Panel Brightness
800.0 nits
Contrast Ratio
800:1
View Angles
85,85,85,85
Bonding
Optical Bonding for Sunlight Viewability
Viewability
Anti-Glare touch treatment
System Specification
Processor
Intel Celeron N6211 @1.20 GHz (up to 3.00 GHz)
Memory
4GB LPDDR4
Storage
128GB SSD
Smart Card Reader
Add-on Smart Card Reader (Optional)
Security
Trusted Platform Module (TPM) 2.0
Kensington Lock
Operating System
Windows 10 IoT Enterprise LTSC (64 bit)
WLAN
Support
BT
Support
WWAN
4G (Optional)
5G (Optional)
GNSS
GPS, GLONASS, Galileo, BeiDou
RFID
HF RFID 13.56 MHz reader (Optional)
add-on UHF RFID Reader (Optional)
Sensors
Light sensor/ G-sensor / Gyro
Camera
Front Camera
2MP Front Camera
Rear Camera
8MP Rear Camera with auto-focus and LED light
Mechanical
Dimension
271.9 x 197.3 x 19.5 mm
Weight
1.2 kg (2.65 lbs) with standard battery,
1.4 kg (3.1 lbs) with optional high capacity battery
Cooling System
Fanless design
IO Ports
USB Port
1 x USB 3.0 (Type A), 1 x USB 3.0 (Type-C support Power Delivery 20V In)
Video
1 x Micro HDMI Output (Optional)
Audio
1 x Audio combo 3.5mm audio combo jack (Mic in or Line Out)
Dual Digital Mic With Noise Cancellation
Dual Speaker
SD Card Slot
1 x Micro SD Card slot (Support SDXC)
SIM Card Slot
1 x SIM card slot
Expansion Port
1 x Expansion connector (Optional)
Indicator
4x LED Indicator for Power, Battery, HDD, RF status
Docking Connector
1 x 19-pin docking connector
Environment
Operating Humidity
10% to 90% RH, non-condensing
Operating Temperature
-20°C to 60°C
Storage Temperature
-30°C to 70°C (-22°F to 158°F)
Shock
MIL-STD-810G Method 516.6 Procedure I
Vibration
MIL-STD-810G Method 514.6 Procedure I
Drop
MIL-STD-810G Method 516.6, 4 ft
IP rating
IP65
Certification
Certification
CE, FCC, UL, PTCRB, Verizon
Control
Button
1 x Power, 1 x Home, 2 x Volume,
2 x Programmable Function Keys
Security Function
SOTI MobiControl
SOTI MobiControl Compliance
Kensington Lock
Kensington Lock Support
Accessory
Accessory
Adapter and Power Cord
Capacitive Stylus
Standard Battery
Optional Accessory
Desk Dock (Optional)
Vehicle Dock (without VGA output) (Optional)
Vehicle Cradle (Optional)
Battery Charger (Optional)
Smart Card Reader (Optional)
High Capacity Battery (Optional)
Hand Strap (Optional)
VESA Mount Kit (Optional)
Shoulder Strap (Optional)
Carry Bag (Optional)
Vehicle Charger (Optional)
Barcode Scanner
Barcode Scanner
1D/2D barcode reader (Optional)
Power
Battery
Hot-swappable 7.7V, typ. 5900 mAh Li-Polymer Battery (2S1P)
7.4V, typ. 10280 mAh Li-Polymer Battery (2S2P, optional)
Battery Operating Time
Standard. Battery: 9 hours
High Capacity Battery: 16 hours
Power Rating
19V DC
Adapter
100-240V, 50-60Hz / 19V DC
