Winmate M116TG 11.6", 8G 128GB 1920x1080 Intel Core i5 with P-Cap touch 7.7V typ. 5900 mAh Li-Polymer Battery Front :2M Rear :8M with WiFi/BT/GPS GNSS: GPS, GLONSS
Winmate M116TG 11.6", 8G 128GB 1920x1080 Intel Core i5 with P-Cap touch 7.7V typ. 5900 mAh Li-Polymer Battery Front :2M Rear :8M with WiFi/BT/GPS GNSS: GPS, GLONSS
- Brand: Winmate
- MPN: M116TG
- Part #: TABWMAM116TG
- UPC:
- Brand: Winmate
- MPN: M116TG
- Part #: TABWMAM116TG
- UPC:
Features
Specifications
Reviews
Accessories
Delivery & Pick-up
Returns & Warranty
Popular Industrial PCs & IoT





Winmate M116TG 11.6", 8G 128GB 1920x1080 Intel Core i5 with P-Cap touch 7.7V typ. 5900 mAh Li-Polymer Battery Front :2M Rear :8M with WiFi/BT/GPS GNSS: GPS, GLONSS
- Brand: Winmate
- MPN: M116TG
- Part #: TABWMAM116TG

Product URL: https://www.pbtech.com/pacific/product/TABWMAM116TG/Winmate-M116TG-116-8G-128GB-1920x1080-Intel-Core-i
Features

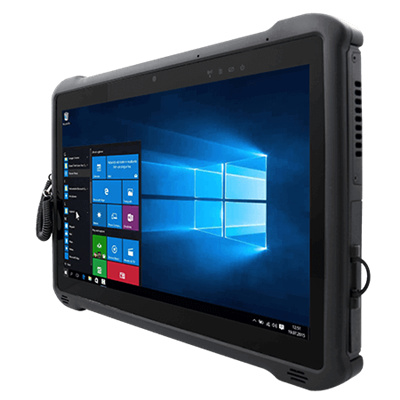

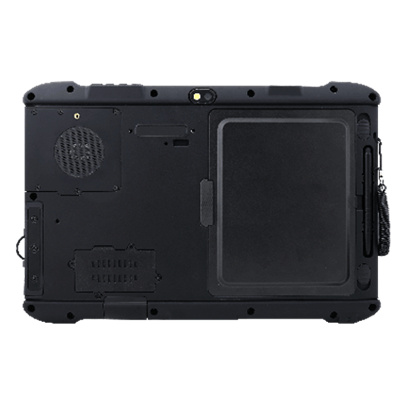

M116TG
- 11.6" 1920 x 1080, 850 nits IPS LED Panel with direct optical bonding
- Intel® Core™ i5-1135G7 Tiger Lake processor
- IP65 waterproof and dustproof, MIL-STD-810H shock, vibration and drop resistance
- Sunlight readable with antiglare solution
- Hot-swappable battery design
- USB Type-C port support power delivery 20V In
Durable Waterproof Tablet PC, MIL-STD-461G
Winmate waterproof tablet is designed with a dust-tight and splashproof IP65 rating. It can also withstand shock, drop, vibration, and a wide range of operating temperatures, allowing the tablet to be used in harsh environments for industrial and Defence use.
Multi-touch Touch Screen Tablet
The waterproof M116TG comes with a 10-point PCAP touchscreen that offers accurate intuitive controls and user-friendly experiences.
Sunlight Readable Wide-Angle Panel
M116TG offers a tablet in 11.6 inches panels, 1920 x 1080 LED high resolution, and sunlight readable display to provide comfort and perfect for viewing under different conditions.
Intel Quad-core CPU Designed for Tablets
The rugged windows tablets are designed with the Intel Tiger Lake processors to provide high performance and low power consumption, providing extended battery life. It supports Windows IoT Enterprise operating system to fulfill the increasing requirement in industrial and rugged applications.
Multiple Data Collection Methods with Real-time Data Connectivity
Real-time data access to the correct information is critical to fielding service mobile users. M116TG supports WWAN, WLAN, GPS, and BT to allow users to connect in the way that best suits their needs. Apart from the 2MP front camera and 8MP rear camera, the M116TG is equipped with an optional 1D/2D Barcode Reader or HF RFID Reader.
Specifications
Display
Size
11.6 inches
Resolution
1920x1080
Type
Projected Capacitive Multi Touch
Panel Brightness
850.0 nits
Contrast Ratio
1000:1
View Angles
85,85,85,85
Bonding
Optical Bonding for Sunlight Viewability
Viewability
Anti-Glare touch treatment
Touch Mode
Support Hand/Rain, Stylus, Glove Mode
System Specification
Processor
Intel Core i5-1135G7 2.4GHz (up to 4.2GHz)
Memory
8GB DDR4 SDRAM
Storage
256GB M.2 NVMe SSD
Security
Trusted Platform Module (TPM) 2.0
Kensington Lock
Operating System
Windows 10 IoT Enterprise LTSC (64 bit)
WLAN
Support
BT
Support
GNSS
GPS, GLONASS
RFID
HF RFID reader 13.56 MHz (Optional)
Sensors
Light sensor/ G-sensor / Gyro
Camera
Front Camera
2MP Front Camera
Rear Camera
8MP Rear Camera with auto-focus and LED light
Mechanical
Dimension
300.67 x 201.97 x 22.5 mm
Weight
1.5 kg (3.3 lbs) with standard battery
Cooling System
Fan design
IO Ports
USB Port
1 x USB 3.0 (Type A), 1 x USB 3.0 (Type-C support Power Delivery 20V In)
LAN
1 x RJ45-10/100/1000 GigaLAN port (Optional)
Video
1 x Micro HDMI (Optional)
Audio
1 x Audio combo 3.5mm audio combo jack
Dual Digital Mic With Noise Cancellation
SD Card Slot
1 x Micro SDXC slot
SIM Card Slot
1 x Micro SIM card slot
Indicator
4x LED Indicator for Power, Battery, HDD, RF status
Docking Connector
1 x 19-pin docking connector
Environment
Operating Humidity
10% to 90% RH, non-condensing
Operating Temperature
-20°C to 60°C
Storage Temperature
-30°C to 70°C (-22°F to 158°F)
Shock
MIL-STD-810H Method 516.8 Procedure I
Vibration
MIL-STD-810H Method 514.8 Procedure I
Drop
MIL-STD-810H Method 516.8, 4 ft
IP rating
IP65
EMC
MIL-STD-461G CE101, CE102, RE101, RE102, CS118 (Default)
MIL-STD-461G CS101, CS114, CS115, CS116, RS101, RS103 (Optional)
Certification
Certification
CE, FCC
Security Function
SOTI MobiControl
SOTI MobiControl Compliance
Kensington Lock
Kensington Lock Support
Control
Button
1 x Power,3 x function keys
Power
Battery
Hot-swappable 11.55V, typ. 4558 mAh Li-Polymer Battery (3S2P)
Battery Operating Time
Standard. Battery: 8 hours
Power Rating
19V DC
Adapter
100-240V, 50-60Hz / 19V DC
Accessory
Accessory
Adapter and Power Cord
Capacitive Stylus
Standard Battery
Optional Accessory
Desk Dock (Optional)
Vehicle Dock (Optional)
Vehicle Cradle (Optional)
Vehicle Charger (Optional)
High Capacity Battery (Optional)
Hand Strap (Optional)
Shoulder Strap (Optional)
Carry Bag (Optional)
Barcode Scanner
Barcode Scanner
1D/2D barcode reader (Optional)
