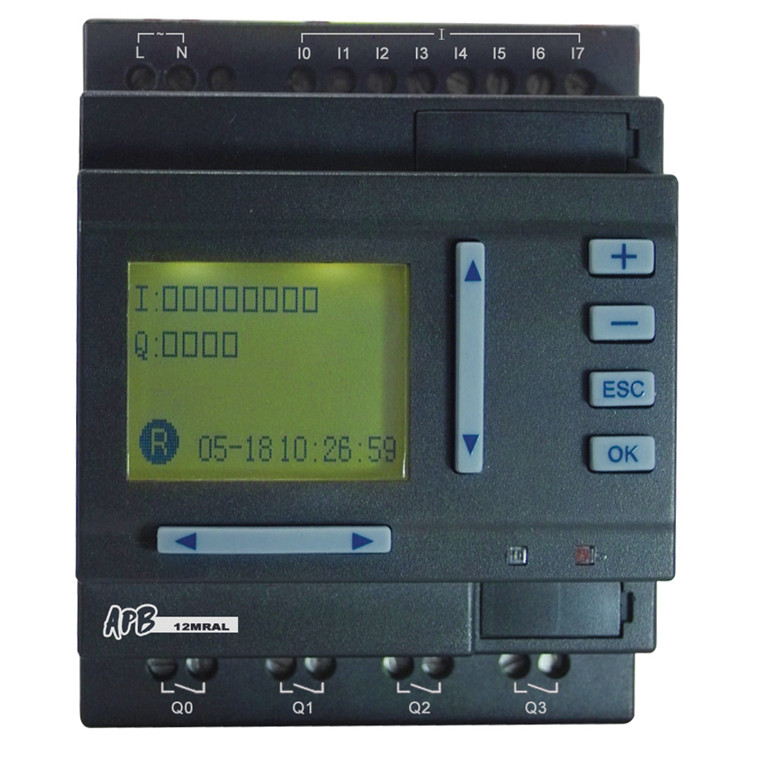

Array APB-12MRDL PLC with LCD (DC version ) and USB programming cable

PB Tech price

NZD $ 339 .13

$ 339 .13

Array APB-12MRDL PLC with LCD (DC version ) and USB programming cable

Brand: Array
MPN: APB-12MRDL
Part #: TOLARR1002
UPC:

PB Tech price

NZD $ 339 .13

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 16 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Array
MPN: APB-12MRDL
Part #: TOLARR1002
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Array APB-12MRDL 12-24V DC Programmable Logic Controller

Main module: 12\22\24 points; Extension module: 22 points; It is flexible for extending, and the optimal max. configuration: 7 I/O extension modules, 1 voice module, and 1 SMS module;
Program memory capacity: 320 FBDs, EEPROM;
It is allowed to place a Li-ion battery to power the clock;
Under the circumstance of DC12-24V, the main machine at most has 12 voltage analog inputs 0-10V, 2 current analog inputs 4-20mA and 2 analog outputs 4-20mA;
High-speed operation: at most 4 high-speed inputs 10KHZ and 2 high-speed outputs 10KHZ;
MODBUS protocol, and can be connected to SH-300 (Text Panel);
New function blocks: pulse width modulation (PWM), pulse

Specifications

Power Supply

Rated Voltage:

DC12-24V

Permissible Range:

DC11V-28V

Digital Input

Input Type:

NPN/PNP

Input Signal 0:

DC0-5V

Input Signal 1:

DC8.5-28V

Isolation:

Non-isolation

Digital Output

Output Type:

Relay

Rated Voltage:

24VDC/220VAC

Isolation Method:

Relay isolation

Analog Input

Input Type:

(DC0-10V)/8 inputs

Technical Parameters

Surge Immunity:

2kv(common mode), 1kv(differential mode), Level 3 (IEC61000-4-5)

Electrostatic Discharge (outer casing):

±8kv(air discharge)/±6kv(contact discharge), Level 3 (IEC61000-4-5)

Ambient Temperature:

-10??+55?

Storage Temperature:

-40??+70?

Ambient Humidity:

5%?95%RH

Degree of Protection:

IP20(Non-waterproof)

Installation:

Fixing with M3 screws or Standard DIN rail mounting

Dimensions (mm):

71*99*58.5(12 points)?126*99*58.5(22 points)?126*99*58.5(24 points)

Programming Language:

FBD

Points:

12 points/22 points/24 points/can support 7 I/O extension modules

Memory Capacity:

320 FBDs

Filtering Duration of Input Signal:

It can be set to improve the stability of signal

Real-time Clock:

160h,can place a Li-ion battery if it is necessary

Password Protection:

Multiple passwords protection

High-speed Operation:

At most 4 high-speed inputs 10KHz, and 2 high-speed outputs 10KHz

Analog Operation:

At most 12 voltage 0-10V and 2 current 4-20mA analog inputs, and 2 analog outputs 0/4-20mA

Power Failure Protection:

Yes

Simulate Monitoring:

Yes

Communication Interface:

TTL interface; besides, communication module supports 2 RS485 and 1 RS232 interfaces

Baud Rate:

9600bps

Communication Protocol:

MODBUS RTU

Manufacturer Part No:

APB-12MRDL

Brand:

Array

Product Type:

UPC

Product Family:

Shipping Weight:

1.01 kg

PB Part No:

TOLARR1002

Product Model:

Warranty: 12 months *
