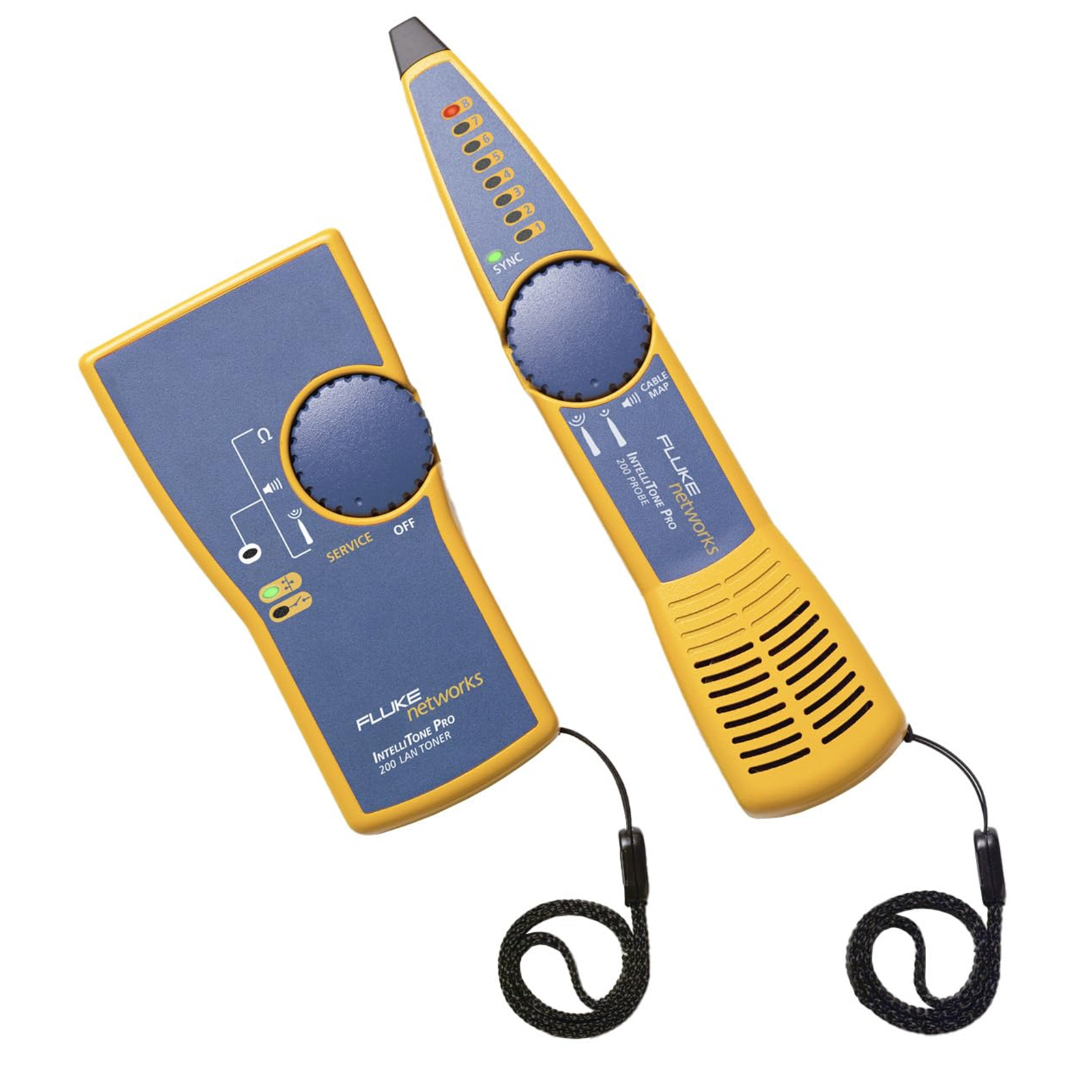

FLUKE MT-8200-60-KIT IntelliTone Pro 200 Lan Toner and Probe Kit
FLUKE MT-8200-60-KIT IntelliTone Pro 200 Lan Toner and Probe Kit
- Brand: FLUKE
- MPN: MT820060-KIT
- Part #: TOLFLN27444
- UPC: 754082127444
- Brand: FLUKE
- MPN: MT820060-KIT
- Part #: TOLFLN27444
- UPC: 754082127444
Features
Breakthrough digital and analogue toning in one
The Fluke MT-8200-60-KIT IntelliTone Pro 200 LAN Toner and Probe Kit combines advanced digital and analog toning technologies into one powerful tool for locating, isolating, and verifying copper network cables-even in active networks. Designed to eliminate noise and false signals, it accurately finds the right cable bundle, tests continuity, and identifies common miswires with CableMap. SmartTone™ analog toning isolates individual wire pairs, while digital signal processing ensures precise detection, making it ideal for fast, reliable cable troubleshooting in complex environments.
- MT-8200-60-KIT IntelliTone Pro 200 LAN Kit
- Finds the cables the others can't
- IntelliTone digital signal processing rejects noise and false signals
- SmartTone analog signal precisely isolates individual wire pairs
- Tones safely and clearly on active networks
- Tests for continuity
- Identifies and diagnoses 10/100/1 Gb Ethernet link connectivity with NIC/hub indication
- Verifies twisted-pair installation with CableMap capability which identifies common cable miswire
IntelliTone Pro Digital and Analog Cable Locator Tool
IntelliTone™ Pro is the first toner and probe to offer digital and analog toning all-in-one tools. That means it's equipped with the most powerful cable location and verification technologies for any work environment - even active networks.
- Eliminates confusion over cable location; decisively rejects noise and false signals
- Locates the correct cable bundle
- Isolates a cable within the bundle, despite cable bleed
- Verifies twisted-pair installation with visual end-to-end continuity test (opens, shorts and reversed pairs)
- Identifies individual wire pairs with new SmartTone™ analog toning
- Simplifies signal interpretation in noisy environments with multiple LED indicators
Locate cables quickly and easily
Fluke Networks has applied decades of cable test engineering expertise to the science of locating copper cables. The result is what we call IntelliTone technology - a digital signal-toning and signal-interpreting process that rapidly zeroes in on cables.
IntelliTone technology energizes cable conductors with a smart, synchronized digital signal. Multiple tone types occur in the signal that help you to:
- LOCATE the correct cable bundle using maximum radiation.
- ISOLATE a cable within the bundle using a signal with minimum radiation.
- VERIFY cable conductor continuity with an automated signal that steps through each conductor.
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Testing & Measurement Tools
ProsKit MT-4612 Dual Infrared Laser Point Thermometer Range -50...
UGREEN UG-10950 Network & Telephone Cable Tester
Leica Disto D2 Bluetooth ISO certified measuring engine high...
ProsKit MT-7058 Wire Tester Mini Lan Ethernet Cable Tester...
StarTech.com USBC-PWRTESTER USB-C Power Tester Digital Multimeter
FLUKE MT-8200-60-KIT IntelliTone Pro 200 Lan Toner and Probe Kit
- Brand: FLUKE
- MPN: MT820060-KIT
- Part #: TOLFLN27444
- UPC:754082127444
Product URL: https://www.pbtech.com/pacific/product/TOLFLN27444/FLUKE-MT-8200-60-KIT-IntelliTone-Pro-200-Lan-Toner
Features
Breakthrough digital and analogue toning in one
The Fluke MT-8200-60-KIT IntelliTone Pro 200 LAN Toner and Probe Kit combines advanced digital and analog toning technologies into one powerful tool for locating, isolating, and verifying copper network cables-even in active networks. Designed to eliminate noise and false signals, it accurately finds the right cable bundle, tests continuity, and identifies common miswires with CableMap. SmartTone™ analog toning isolates individual wire pairs, while digital signal processing ensures precise detection, making it ideal for fast, reliable cable troubleshooting in complex environments.
- MT-8200-60-KIT IntelliTone Pro 200 LAN Kit
- Finds the cables the others can't
- IntelliTone digital signal processing rejects noise and false signals
- SmartTone analog signal precisely isolates individual wire pairs
- Tones safely and clearly on active networks
- Tests for continuity
- Identifies and diagnoses 10/100/1 Gb Ethernet link connectivity with NIC/hub indication
- Verifies twisted-pair installation with CableMap capability which identifies common cable miswire
IntelliTone Pro Digital and Analog Cable Locator Tool
IntelliTone™ Pro is the first toner and probe to offer digital and analog toning all-in-one tools. That means it's equipped with the most powerful cable location and verification technologies for any work environment - even active networks.
- Eliminates confusion over cable location; decisively rejects noise and false signals
- Locates the correct cable bundle
- Isolates a cable within the bundle, despite cable bleed
- Verifies twisted-pair installation with visual end-to-end continuity test (opens, shorts and reversed pairs)
- Identifies individual wire pairs with new SmartTone™ analog toning
- Simplifies signal interpretation in noisy environments with multiple LED indicators
Locate cables quickly and easily
Fluke Networks has applied decades of cable test engineering expertise to the science of locating copper cables. The result is what we call IntelliTone technology - a digital signal-toning and signal-interpreting process that rapidly zeroes in on cables.
IntelliTone technology energizes cable conductors with a smart, synchronized digital signal. Multiple tone types occur in the signal that help you to:
- LOCATE the correct cable bundle using maximum radiation.
- ISOLATE a cable within the bundle using a signal with minimum radiation.
- VERIFY cable conductor continuity with an automated signal that steps through each conductor.
Specifications
General
Operating temperature
32 °F to 104 °F (0 °C to 40 °C)
Storage temperature
-4 °F to +140°F (-20 °C to °C)
Operating relative humidity (% RH without condensation)
95 % (50 °F to 95 °F; 10 °C to 35 °C)
75 % (95 °F to 104 °F; 35 °C to 40 °C) Uncontrolled < 50 °F (< 10 °C)
Vibration
Random, 2 g, 5 Hz-500 Hz
Shock
1 m drop test
Safety
EN 61010-1, Category: None
Altitude
3000 m
EMC
EN 61326-1, FCC Part 15 B
Battery type and life
9 V alkaline (NEDA 1604A or IEC 6LR61); 20 hours typical
Applications
Copper cabling media including; 75 or 50 Ohm Coaxial cable; Two Conductor control, security, generic cabling. 10 Base-T or 10/100 Base-T datacom networks. UTP cable. Shielded Twisted Pair supported in Cable Map function of the IntelliTone 200.

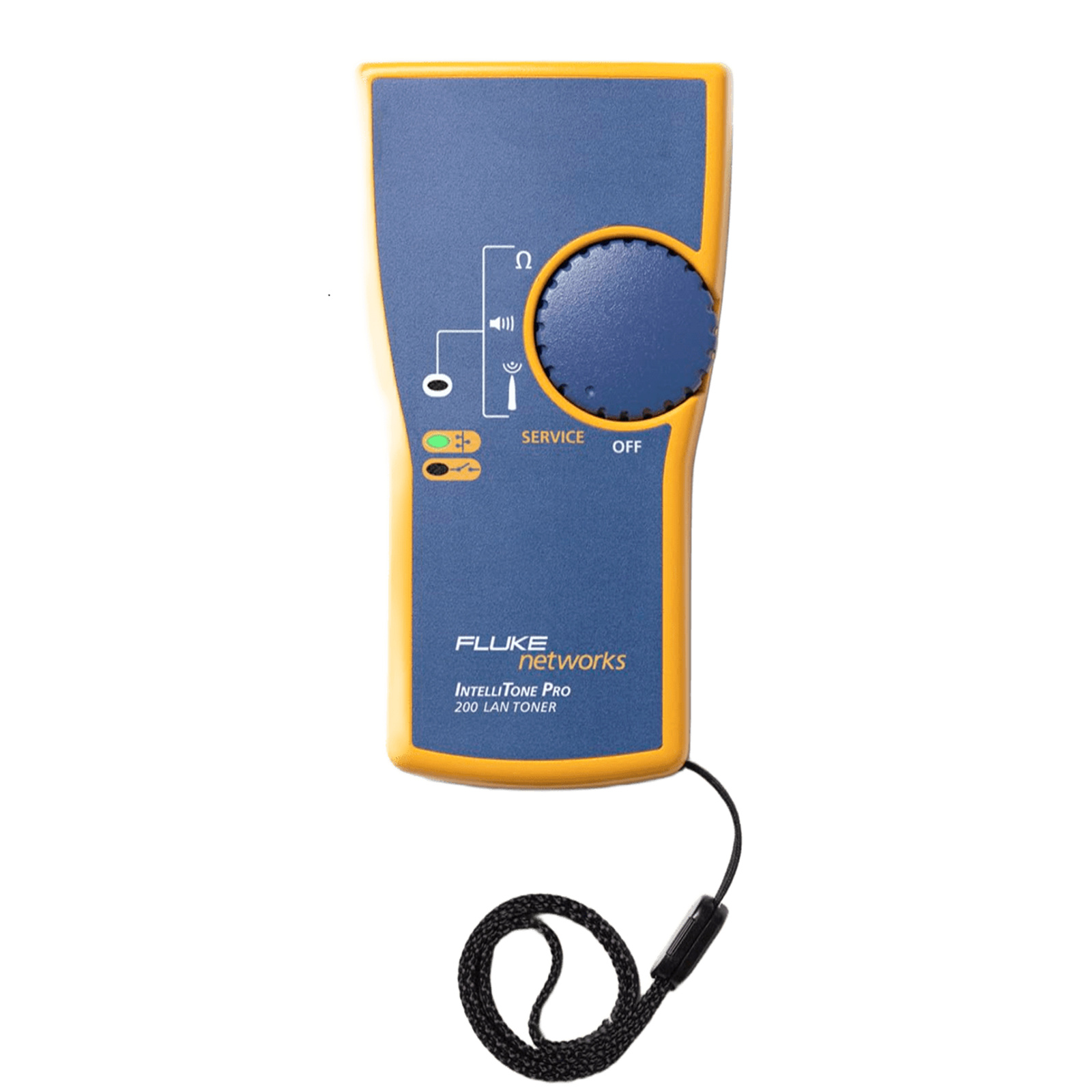

Toner
Dimensions
5.54 in x 2.94 in x 1.25 in (14.1 cm x 7.5 cm x 3.2 cm)
Display
LED
Control
Thumbwheel switch
Toner interface
Main Mod8 port for tone generation on all 4 pairs of UTP / STP cabling. F Connector for coaxial cabling Banana Jack Plugs (2) - two conductor wiring
Toner frequency
IntelliTone™ signal: encoded digital signal
Analog SmartTone signal: 500 - 1200Hz, 4 songs
Ouptut power
5 V p-p
Auto power down
Turns off automatically after 2 1/2 hours of inactivity

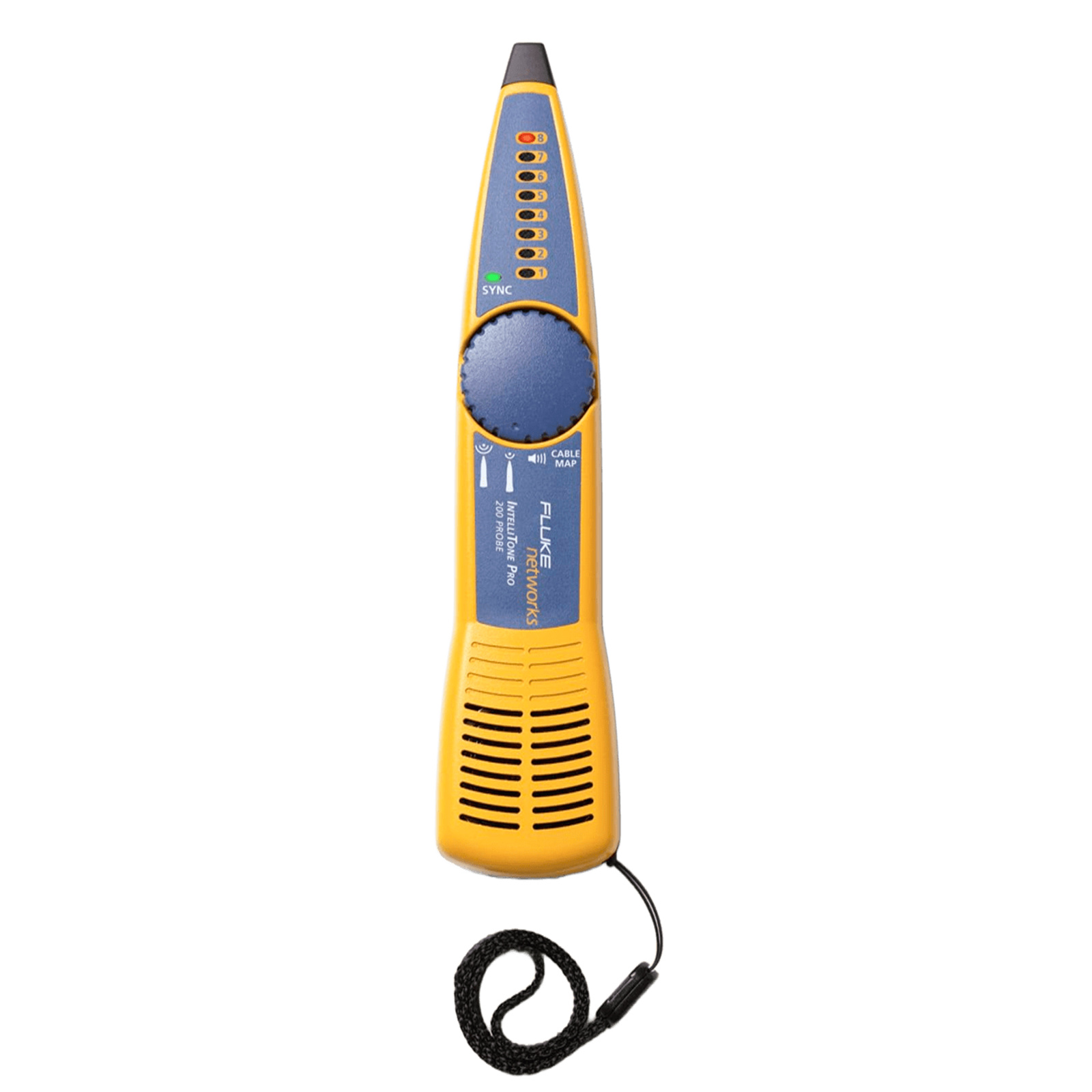

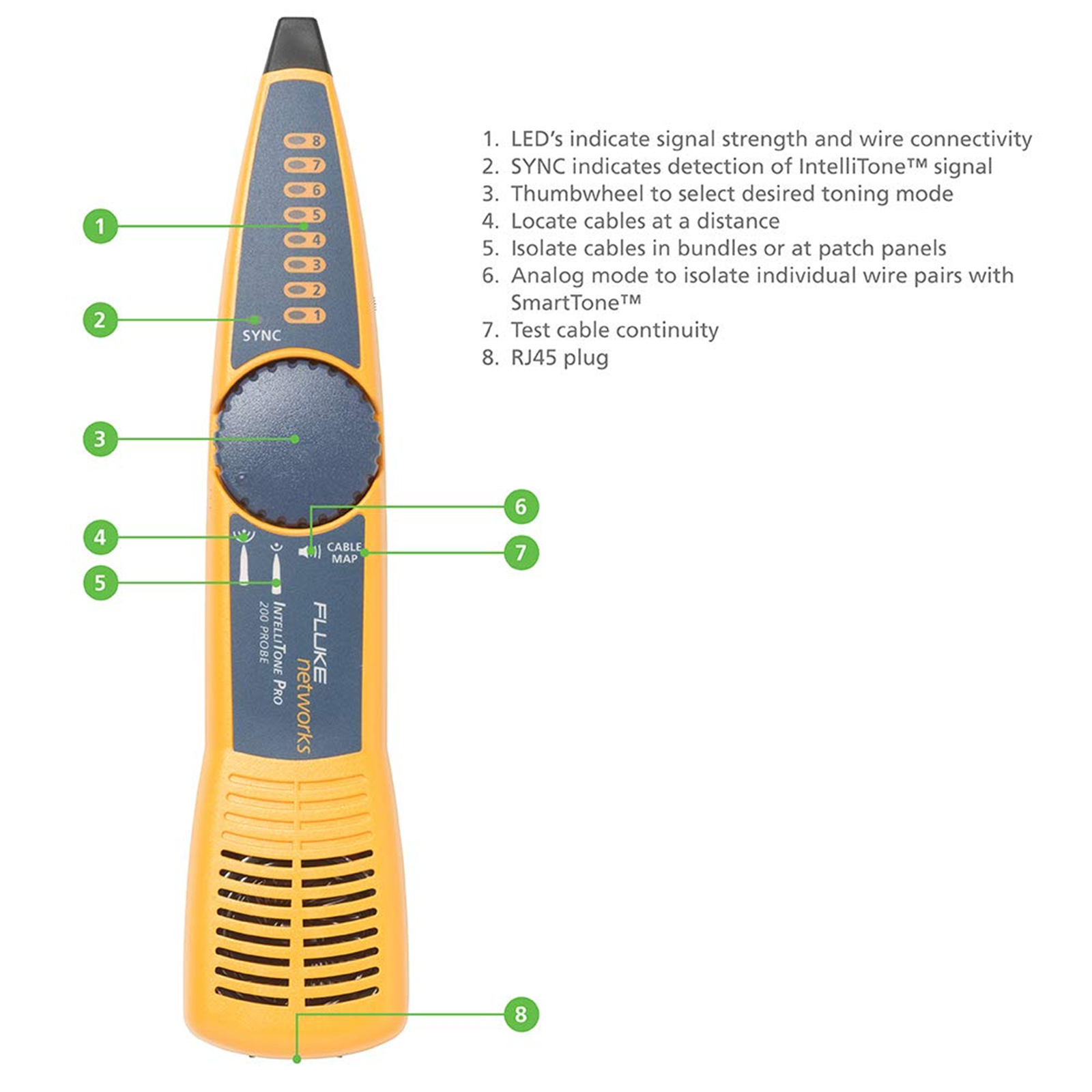

Probe
Dimensions
8.73 in x 1.88 in x 1.26 in (22.2 cm x 4.8 cm x 3.2 cm)
Display (8)
LED indicators, Sync LED indicator
Audio
IntelliTone: Microprocessor controlled audio files
Analog: Detected toner signal
Control
Thumbwheel switch, volume control wheel
Tone detection
Detects IntelliTone™ digital signal for Locate, Isolate, and Cable Map
Detects analog SmartTone signal (500-1200Hz) and other analog toners.
Toner interface
Main Mod8 port for Cable Map on all 4 pairs of UTP / STP cabling.
Auto power down
Turns off automatically after 1 hour of inactivity
