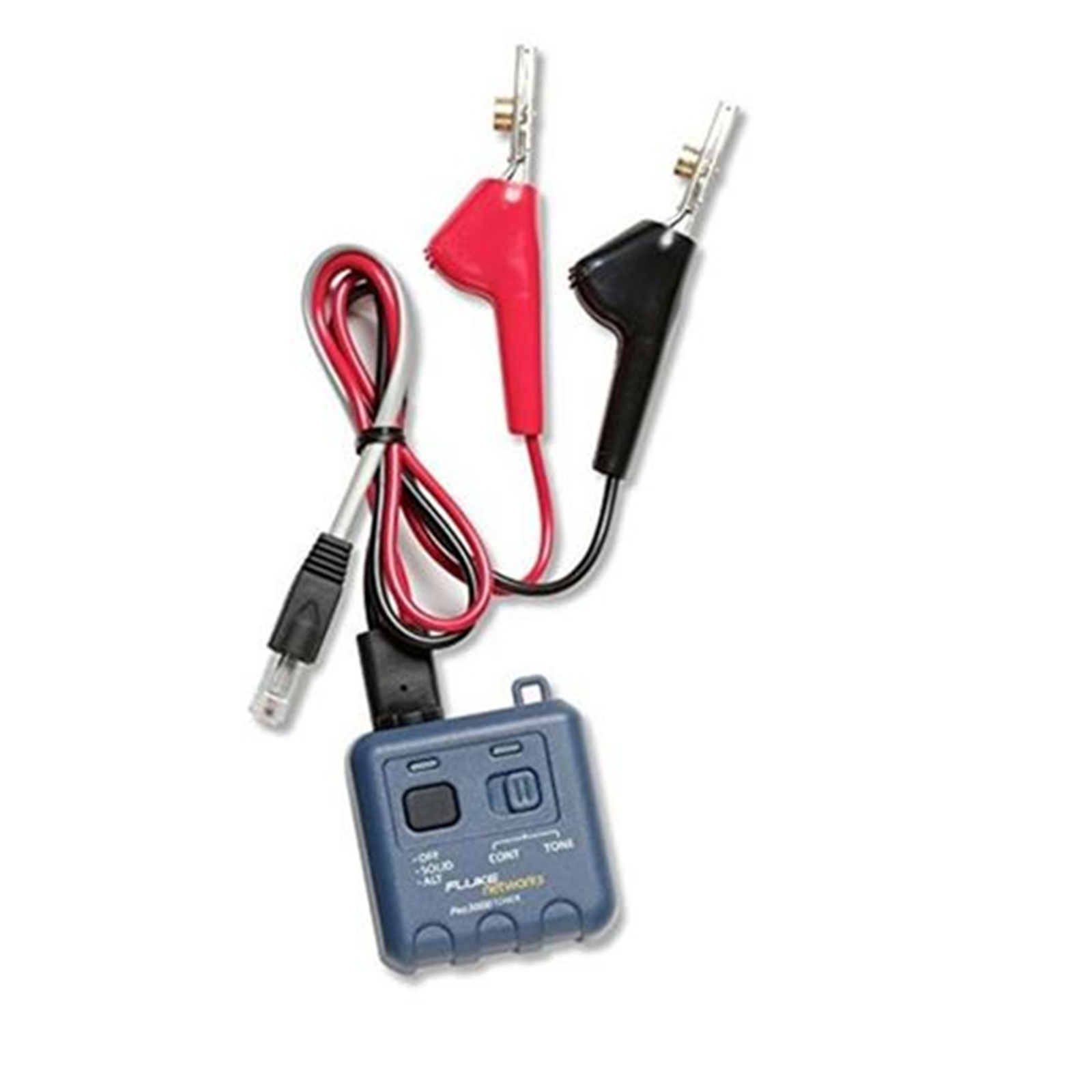

FLUKE 26200900 Pro3000 Analog Tone Generator Only. Compatible with Pro3000 Probe (26000900).
Out of stock
FLUKE 26200900 Pro3000 Analog Tone Generator Only. Compatible with Pro3000 Probe (26000900).
- Brand: FLUKE
- MPN: 26200900
- Part #: TOLFLN39020
- UPC: 754082039020
- Brand: FLUKE
- MPN: 26200900
- Part #: TOLFLN39020
- UPC: 754082039020
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Testing & Measurement Tools





FLUKE 26200900 Pro3000 Analog Tone Generator Only. Compatible with Pro3000 Probe (26000900).
- Brand: FLUKE
- MPN: 26200900
- Part #: TOLFLN39020
- UPC:754082039020

Product URL: https://www.pbtech.com/pacific/product/TOLFLN39020/FLUKE-26200900-Pro3000-Analog-Tone-Generator-Only
Features
Use the SmartTone capability of the Pro3000 Tone Generator to identify the right pair. When touching the wires together and momentarily shorting the far end of a cable pair, the SmartTone technology will change the cadence of the tone generated.
This tone change you hear through the probe positively verifies the correct wire pair. SmartTone provides five distinct tones for exact pair identification.
- SmartTone technology
- Send tone signal up to 16km on most cables
- Line cord features angled bed-of-nails clips and ruggedized RJ-11 plug for direct access to phone and data jacks without adapters
- An external switch allows the selection of solid or alternating tone options, indicated with solid or flashing LEDs
- Continuity testing
- Line polarity confirmation
Specifications
Pro3000 Analog Toner Specifications
User interface
Slide switch selects Continuity or Tone Mode
Push button switch selects SOLID, ALT or OFF
Tone mode LED
Continuity/Polarity LED
Solid Frequency
1000 Hz nominal
Alternating Frequency
1000/1500 Hz nominal
Over Voltage Protection
60 Vdc in Toner/Polarity Mode
Output Power in Tone Mode
8 dbm into 600 ohms
Output Voltage Level in Continuity Mode
8 Vdc with fresh battery
Battery
9V alkaline
Temperature
Operating: -20° C to 60° C, Storage: -40° C to 70° C
Case dimensions
2.7 in. x 2.4 in. x 1.4 in. (6.9 cm x 6.1 cm x 3.6 cm)
