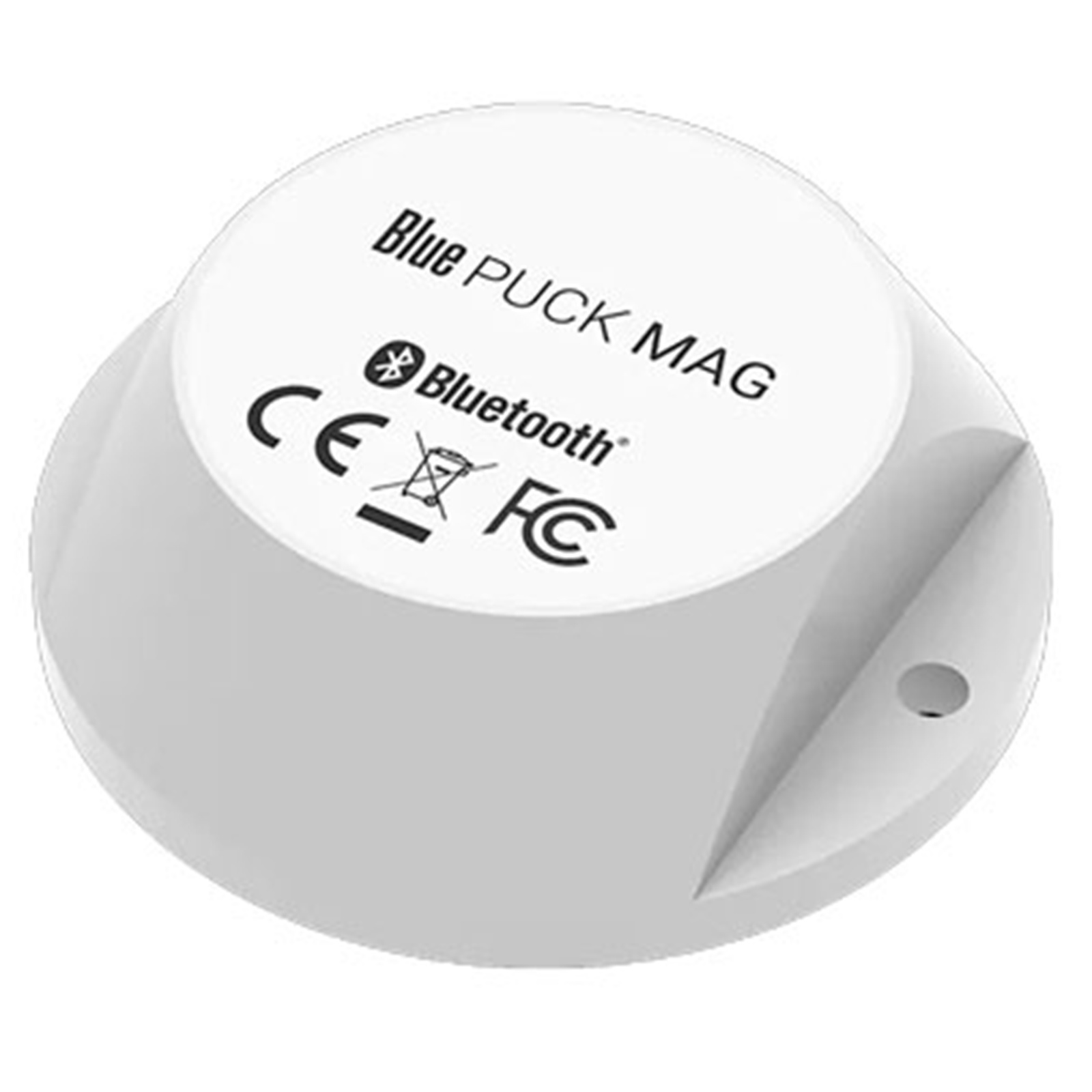

Teltonika Blue Puck MAG - Bluetooth 4.0 LE Magnet Contact Sensor
Teltonika Blue Puck MAG - Bluetooth 4.0 LE Magnet Contact Sensor
- Brand: Teltonika
- MPN: BLUE_PUCK_MAG
- Part #: UNC001001389
- UPC:
- Brand: Teltonika
- MPN: BLUE_PUCK_MAG
- Part #: UNC001001389
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Teltonika Blue Puck MAG - Bluetooth 4.0 LE Magnet Contact Sensor
- Brand: Teltonika
- MPN: BLUE_PUCK_MAG
- Part #: UNC001001389

Product URL: https://www.pbtech.com/pacific/product/UNC001001389/Teltonika-Blue-Puck-MAG---Bluetooth-40-LE-Magnet-C
Features
Teltonika Blue Puck MAG - Bluetooth 4.0 LE Magnet Contact Sensor
Teltonika is always focused on innovation and constantly offers new solutions to customers. Latest addition of BLE sensors extends covered business cases: doors, hood or similar objects open/close status monitoring. In combination with sensor it is necessary to use additional magnet. Sensor can send information when magnet is attached/detached. Bluetooth magnet sensors are small signal transmitters with configurable signal strength and data send intervals. Sensor uses advanced Bluetooth 4.0 LE technology to get data from long distance and can work from one battery up to 11 years.
- Long transmission range, up to 500 meters (open field)
- Long battery life time, up to 11 years
- Easy configuration with dedicated mobile application via secured NFC
- IP68 Rated
Specifications
Battery
Lifecycle up to 11 years
Bluetooth
2,4 GHz - Bluetooth Low Energy 4.0/4.2
NFC
Supported
Dimensions
ø 57 mm base - Thickness 18 mm - 2 mounting ø 4 mm holes, spaced of 49 mm
Weight
36 g
Operating temperature
-40°C to +85°C
Ingress Protection Rating
IP68 (Waterproof)
Transmission range
Up to 500 meters (open field)
Transmission period
0,1 to 10 second (programmable)
Regulatory
CE (Europe)*: EN 300 328/ EN 301 489 & EN 55032 / EN 62368-1, FCC (USA)*: FCC 15.247 / FCC PT 15B, ISED/IC (Canada)*: RSS-247 / ICES-003, RoHS certified,(*) Certification in progress
