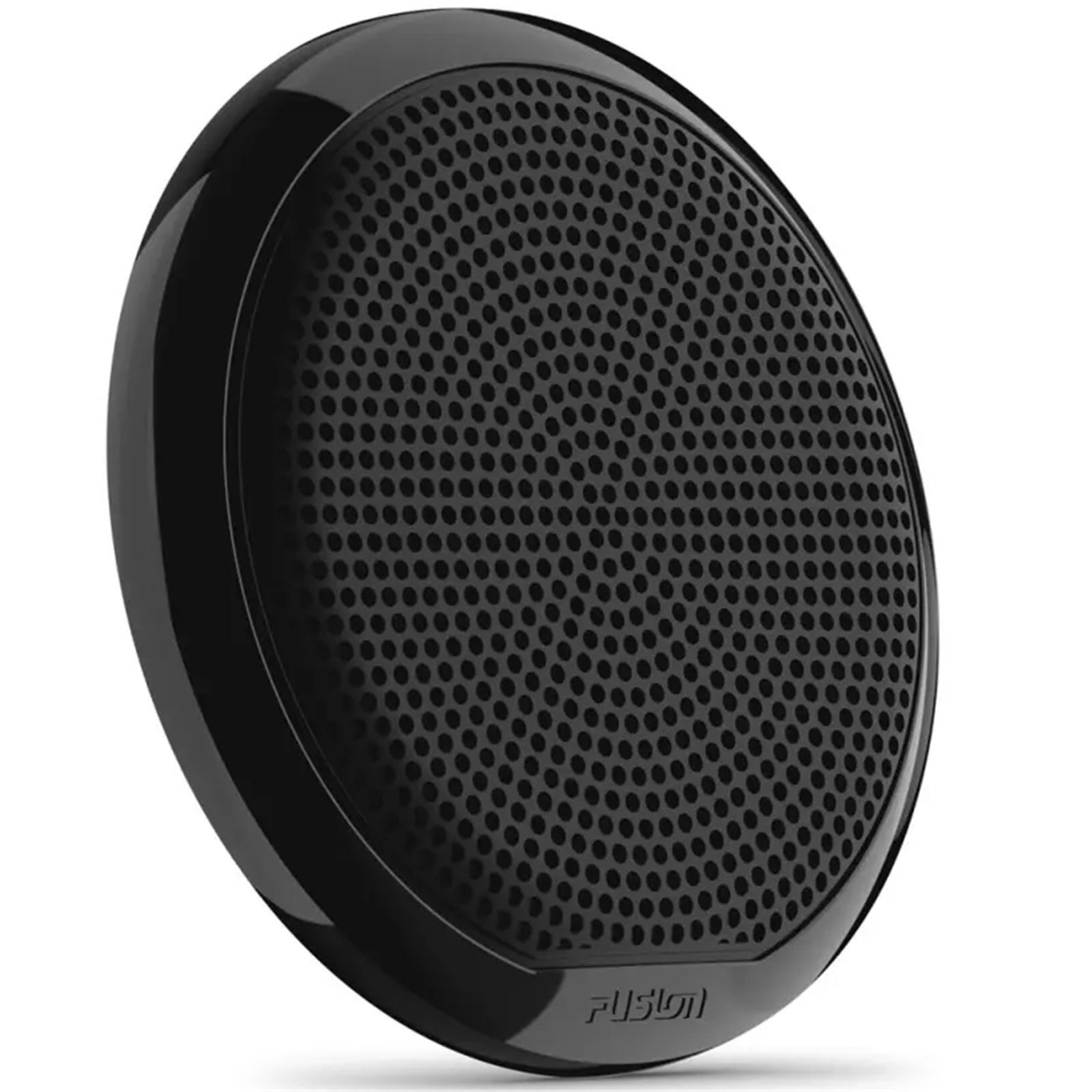

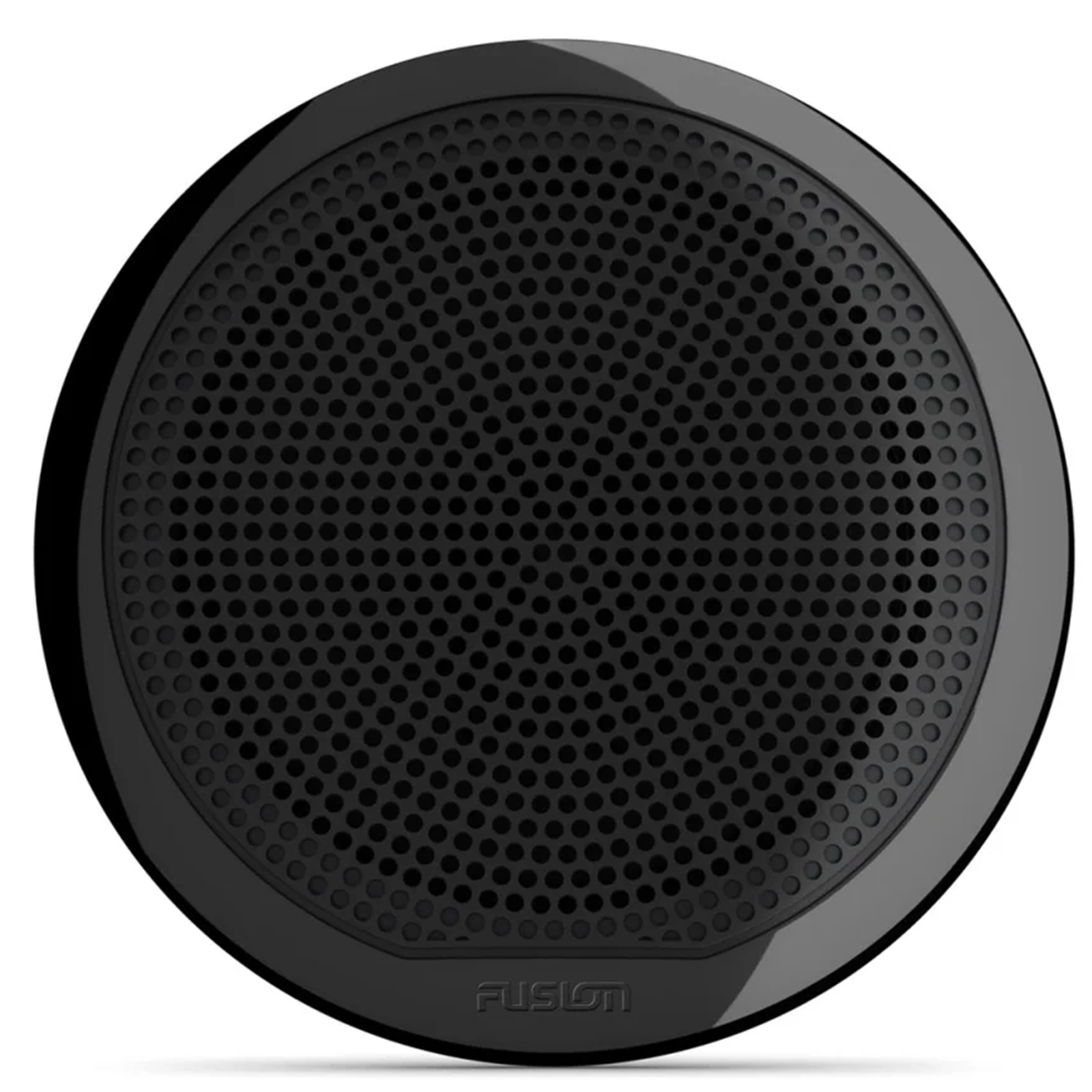

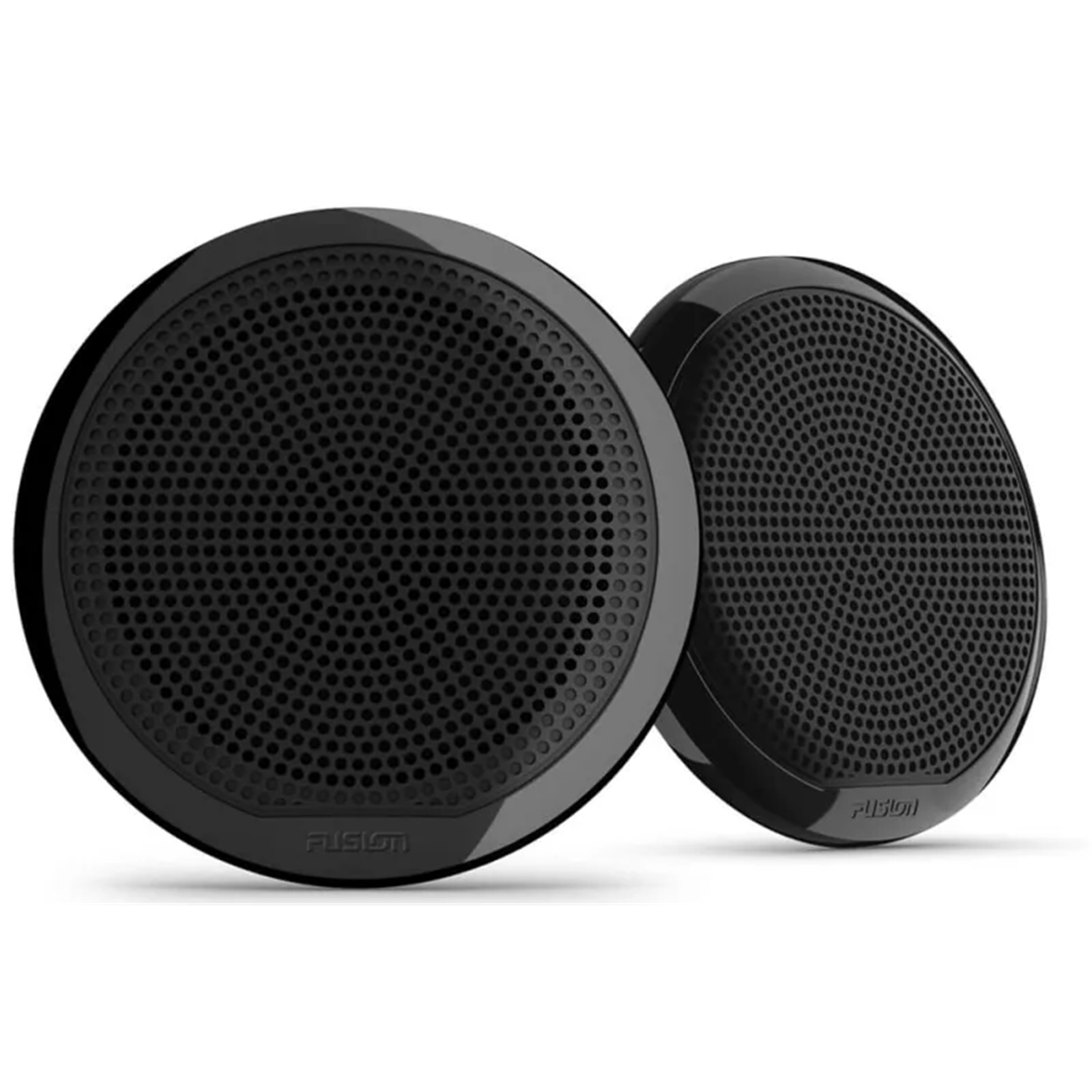

FUSION 6.5" Marine Speakers Pair 80W EL Series 80W Classic Black EL-F651B
FUSION 6.5" Marine Speakers Pair 80W EL Series 80W Classic Black EL-F651B
- Brand: FUSION
- MPN: 010-02080-11
- Part #: UNC001004221
- UPC:
- Brand: FUSION
- MPN: 010-02080-11
- Part #: UNC001004221
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
FUSION 6.5" Marine Speakers Pair 80W EL Series 80W Classic Black EL-F651B
- Brand: FUSION
- MPN: 010-02080-11
- Part #: UNC001004221

Product URL: https://www.pbtech.com/pacific/product/UNC001004221/FUSION-65-Marine-Speakers-Pair-80W-EL-Series-80W-C
Features
INJECTION-MOLDED POLYPROPYLENE (IMPP) CONE
By using a water-resistant IMPP cone it improves the robustness of the speaker, allowing for clean, clear audio reproduction.
LIGHTWEIGHT VOICE COIL
The lightweight design allows for higher sensitivity, resulting in increased power and efficiency to deliver an enhanced audio experience.

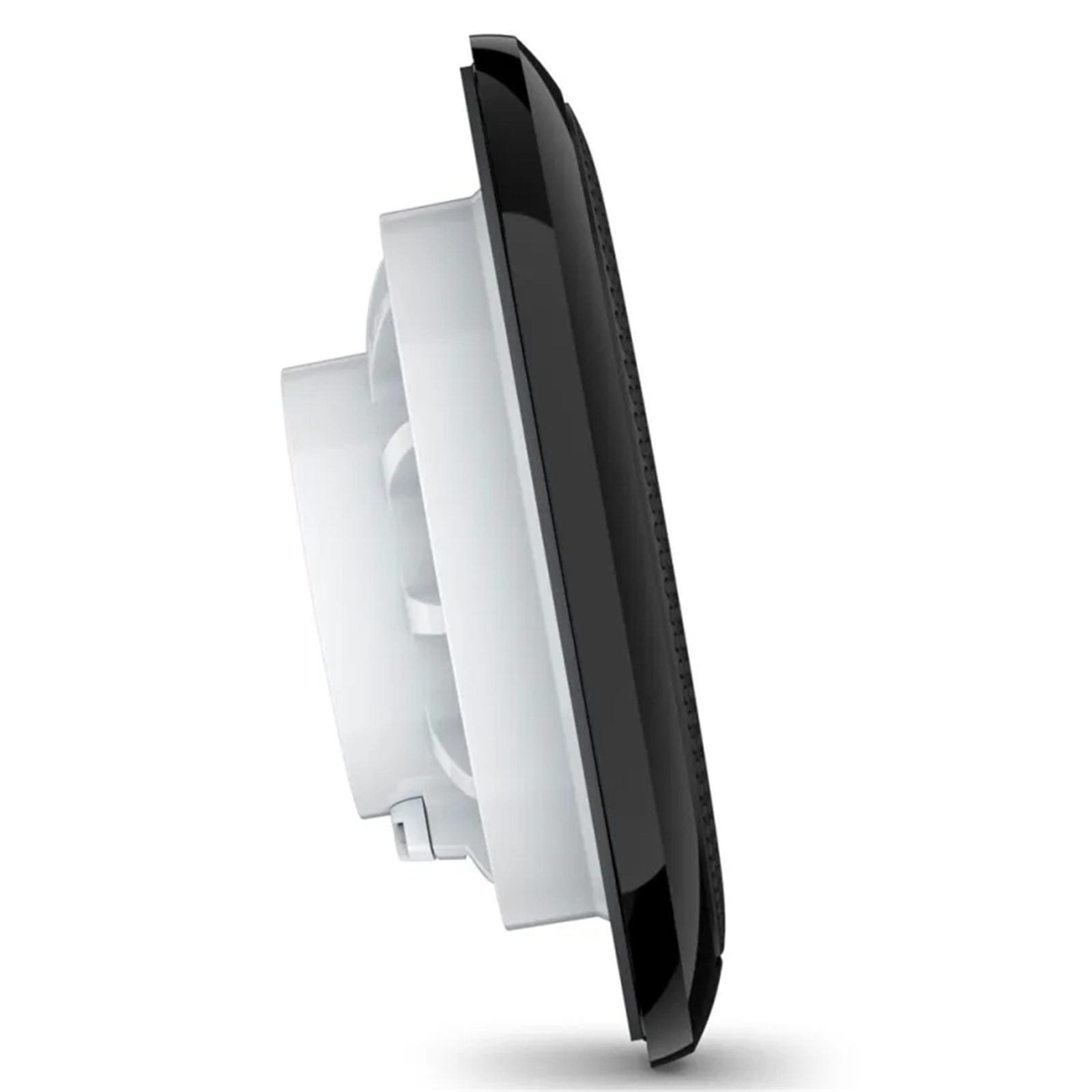

OPEN BASKET CONSTRUCTION
The optimized open back design allows for extended power handling and versatile mounting options with reduced mounting depth.
DESIGNED AND ENGINEERED FOR THE MARINE ENVIRONMENT:
The EL Series speakers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog and UV.
DESIGNED TO COMPLY WITH ISO12216
Tested to international standards for pressure and water ingress, the EL Series speakers are designed and built for superior quality and robustness.
QUALITY MATERIALS AND ACOUSTIC ENGINEERING
The EL Series speakers incorporate high-quality materials and marine-specific design elements, ensuring they look and sound great on the water
Specifications
General
Physical dimensions (Diameter x Depth)
6.93" x 2.26" (176 x 57.5 mm)
Weight
1.21 lbs (0.55 kg)
Water and dust rating
IP65
Configuration
Full range
Speaker size
6.5"
Peak power (Watts)
80 W
RMS power (Watts)
20 W
Sensitivity (1 W / 1 m)
88 dB
Frequency response
45 Hz-16 kHz
Nominal impedance
4 ohms
Recommended amplifier power (RMS)
20-40 W/Ch
Operating temperature range
32° to 122° F (0° to 50° C)
Voice coil diameter
0.79"
Cone material
Polypropylene cone with cloth surround
Compass-safe distance
100" (254 cm)
Mounting Dimensions
Mounting diameter clearance
5.12" (130 mm)
Mounting depth clearance
1.69" (43 mm)
