FUSION Marine Stereo Kit MS-RA60 with EL Classic White Speakers
Out of stock
Features
EVERYTHING YOU NEED TO AMPLIFY THE MOMENT

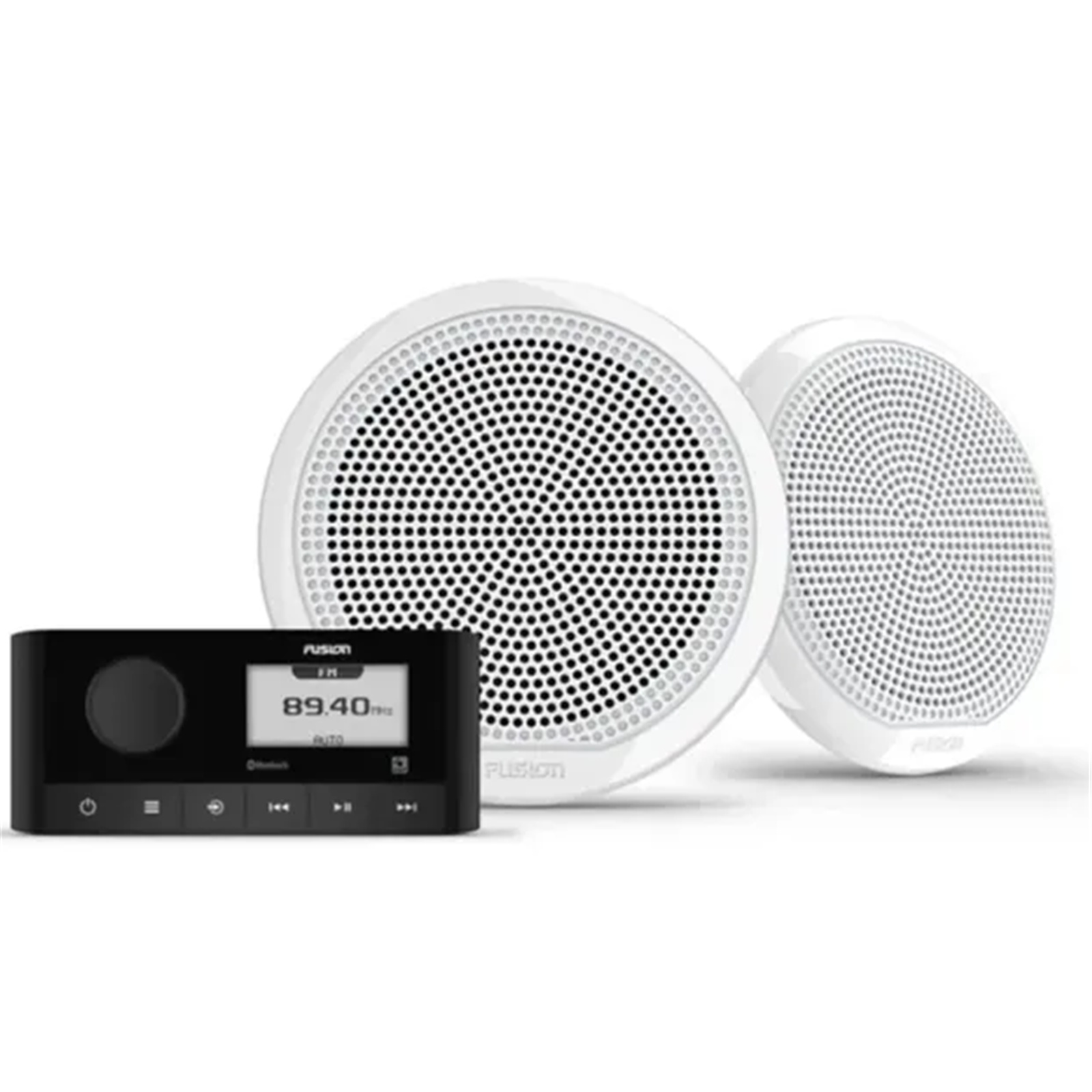

Outfit your boat with an exceptional sound system at an outstanding value. A Fusion® MS-RA60 marine stereo and EL Series speaker kit or MS-RA210 and XS Series speaker kit put the perfect soundtrack at your fingertips.
Enjoy your music ASAP. Your marine stereo and both speakers come ready to install.
Easily control music from your compatible Garmin MFD[1], smart device or Garmin watch.
Built-in Class D amplifier brings aboard higher efficiency and greater output.
Multi-Zone™ Technology makes you the captain of two separate audio zones.
Conveniently update software via Bluetooth® technology[2] from the Fusion® Audio app on your compatible smart device.
Grow your audio system with compatible Fusion speakers, subwoofers and amplifiers.
World-class stereos optimise your audio.
IPX6 AND IPX7 INGRESS PROTECTION
Designed and engineered for the harsh marine environment, the Fusion stereos have an IPX6 and IPX7-rated water-resistant front panel to perform and last on board.

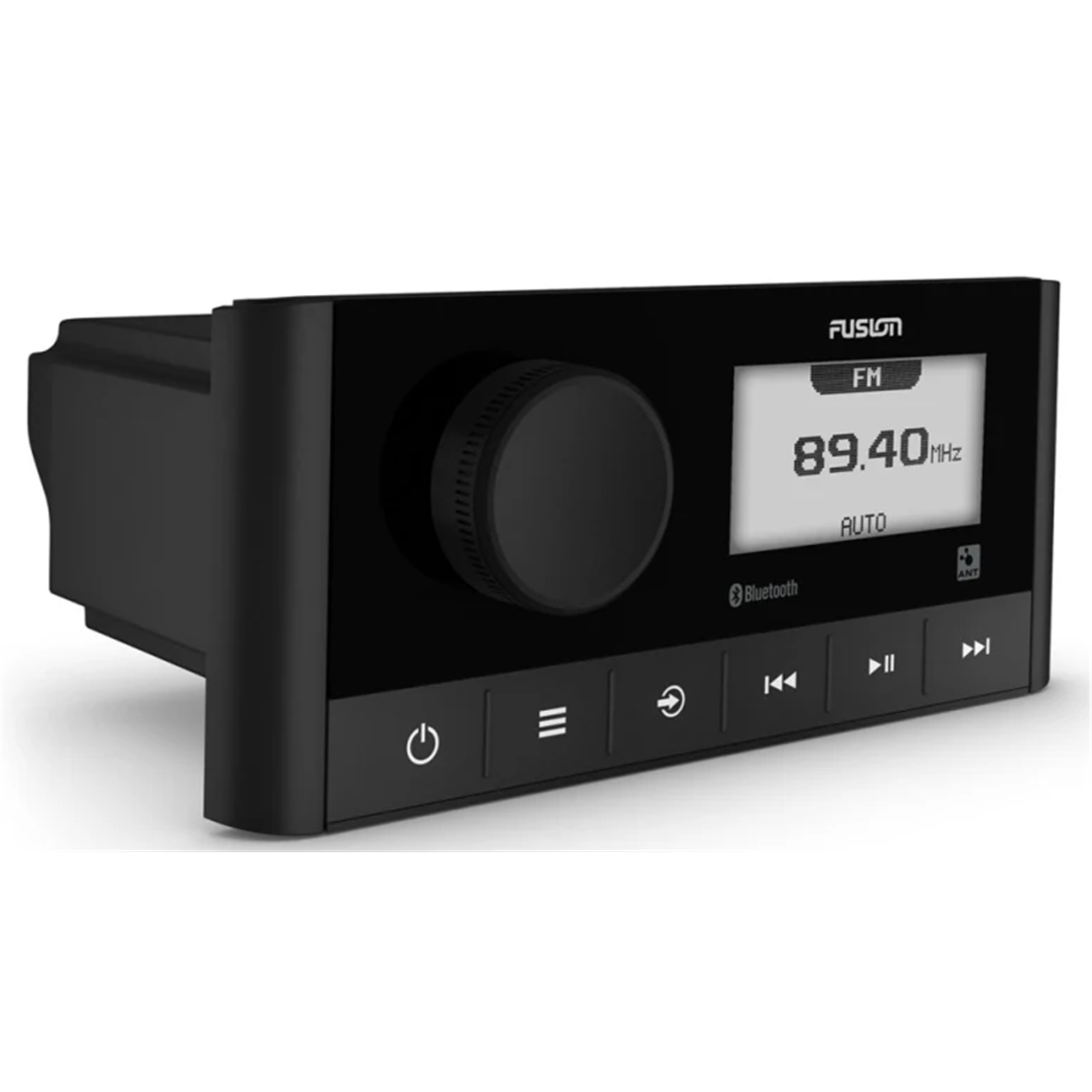

MODERN DESIGN AND AESTHETICS
Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy and elegant installation.

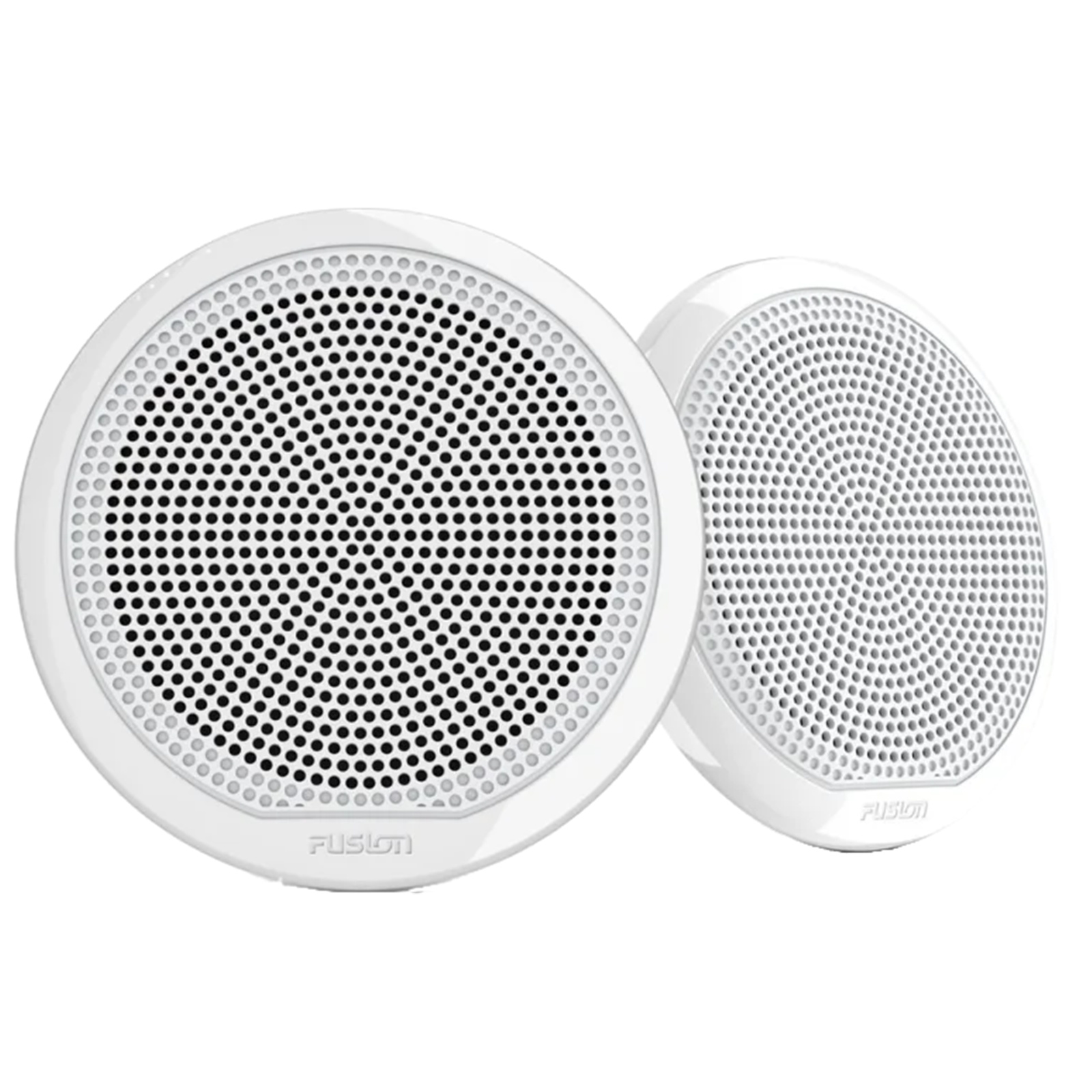

6.5" Fusion speakers produce quality sound on the water.
[1]Only compatible with MS-RA210.
[2]Only compatible with MS-RA60.
Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
FUSION Marine Stereo Kit MS-RA60 with EL Classic White Speakers
- Brand: FUSION
- MPN: 010-02405-51
- Part #: UNC001004430
Product URL: https://www.pbtech.com/pacific/product/UNC001004430/FUSION-Marine-Stereo-Kit-MS-RA60-with-EL-Classic-W
Features
EVERYTHING YOU NEED TO AMPLIFY THE MOMENT
Outfit your boat with an exceptional sound system at an outstanding value. A Fusion® MS-RA60 marine stereo and EL Series speaker kit or MS-RA210 and XS Series speaker kit put the perfect soundtrack at your fingertips.
Enjoy your music ASAP. Your marine stereo and both speakers come ready to install.
Easily control music from your compatible Garmin MFD[1], smart device or Garmin watch.
Built-in Class D amplifier brings aboard higher efficiency and greater output.
Multi-Zone™ Technology makes you the captain of two separate audio zones.
Conveniently update software via Bluetooth® technology[2] from the Fusion® Audio app on your compatible smart device.
Grow your audio system with compatible Fusion speakers, subwoofers and amplifiers.
World-class stereos optimise your audio.
IPX6 AND IPX7 INGRESS PROTECTION
Designed and engineered for the harsh marine environment, the Fusion stereos have an IPX6 and IPX7-rated water-resistant front panel to perform and last on board.
MODERN DESIGN AND AESTHETICS
Providing uniformity across the helm, the black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy and elegant installation.
6.5" Fusion speakers produce quality sound on the water.
[1]Only compatible with MS-RA210.
[2]Only compatible with MS-RA60.
Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.
Specifications
Stereo Specifications
Physical dimensions (HxWxD)
2.68" x 6.18" x 4.06" (68 x 156.9 x 103.2 mm)
Weight
11.1 oz (316 g)
Water rating
IPX6 and IPX7 (front panel only, when properly installed)
Power input
10.8-16 VDC
Operating temperature range
32° to 122° F (0° to 50° C)
Current (max.)
15 A
BLUETOOTH® wireless range
Up to 30 ft (10 meters)
ANT wireless range
Up to 10 ft (3 meters)
Wireless frequencies/protocols
BLUETOOTH 2.4 GHz @ +12 dBm nominal
ANT 2.4 GHz @ +7 dBm nominal
Compass-safe distance
5.9" (150 mm)
Display
2.3" perimeter bonded monochrome dot matrix LCD
Built-in amplifier
Class-D (minimum 4 ohm impedance)
Peak power
180W
Rated power output (4 ohm)
22 W rms x 4 @ 14.4 V input < 10% THD
Fusion-Link™ control
yes (with smartphone and Garmin watch)
Multi-Zone™ technology
2 zones
BLUETOOTH wireless technology
yes
ANT wireless technology
yes
DAB+ ready
yes (DAB tuner built in)
Multi-language interface
Dutch, English, French, German, Italian, Spanish
Sources
AM/FM/BLUETOOTH/AUX x1/DAB+ (available in Europe and Australia
Auxiliary input
One RCA input (AUX)
AM/FM radio
One Motorola antenna connector port
Speaker
4 speaker connections (2 zone amplified)
RCA pre-out (left, right and subwoofer)
1 zone (requires external amplification)
Line out
Zone 1 (L + R, requires external amplification)
Subwoofer out
Zone 1 (requires external amplification)
Speaker Specifications
Physical dimensions (Diameter x Depth)
EL Classic Speaker: 6.93" x 2.26" (176 x 57.5 mm)
Water rating
IP65
Configuration
Full range
Speaker size
6.5"
Peak power (watts)
80 W
RMS Power (watts)
20 W
Sensitivity (1 watt/1 meter)
88 dB
Frequency response
45 Hz-16 kHz
Nominal impedance
4 ohm
Recommended amplifier power (RMS)
20-40 W/Ch
Operating temperature range
32° to 122° F (0° to 50° C)
Voice coil diameter
0.79"
Cone material
Polypropylene cone with cloth surround
Compass-safe distance
100" (254 cm)
Mounting diameter clearance
5.12" (130 mm)
Mounting depth clearance
1.69" (43 mm)
