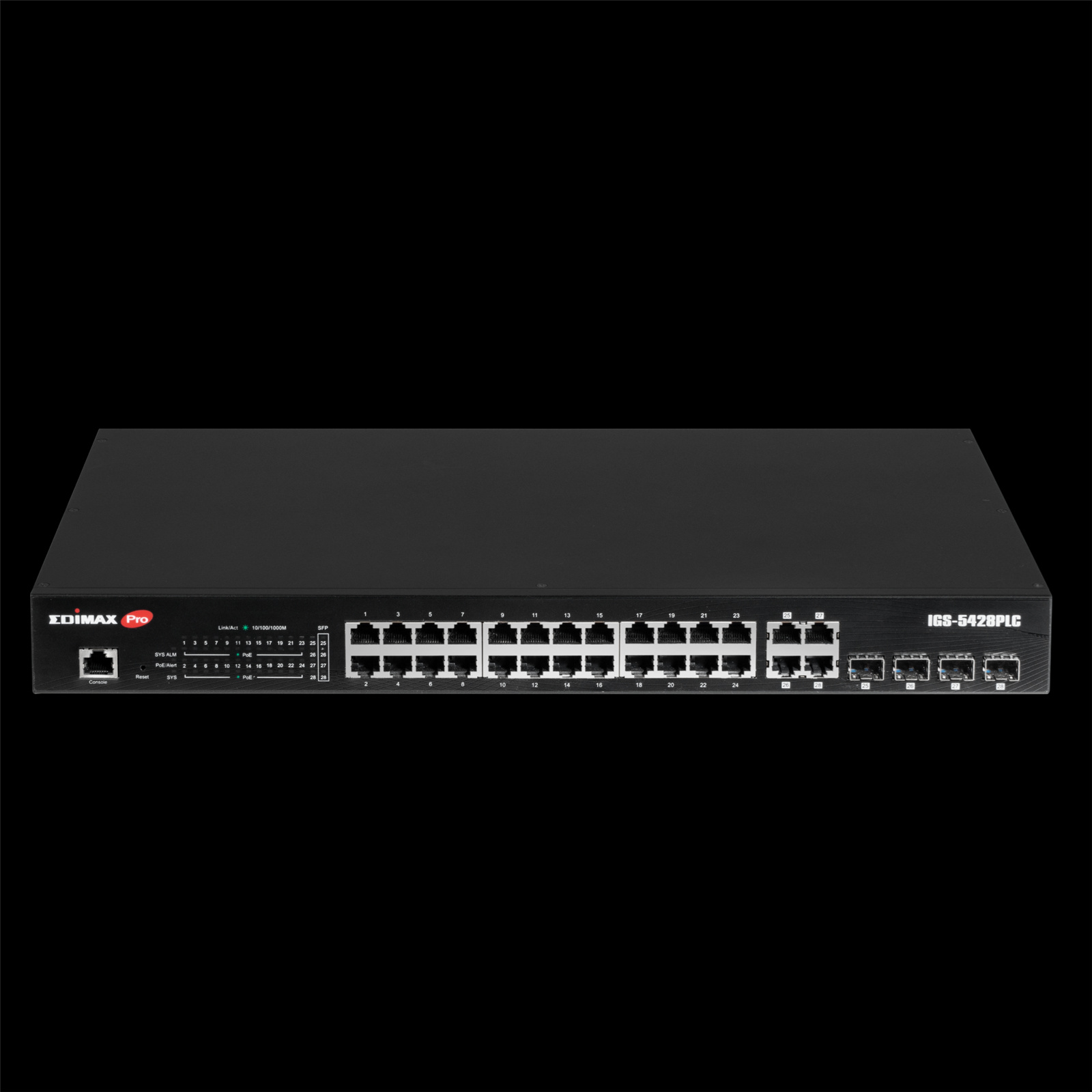

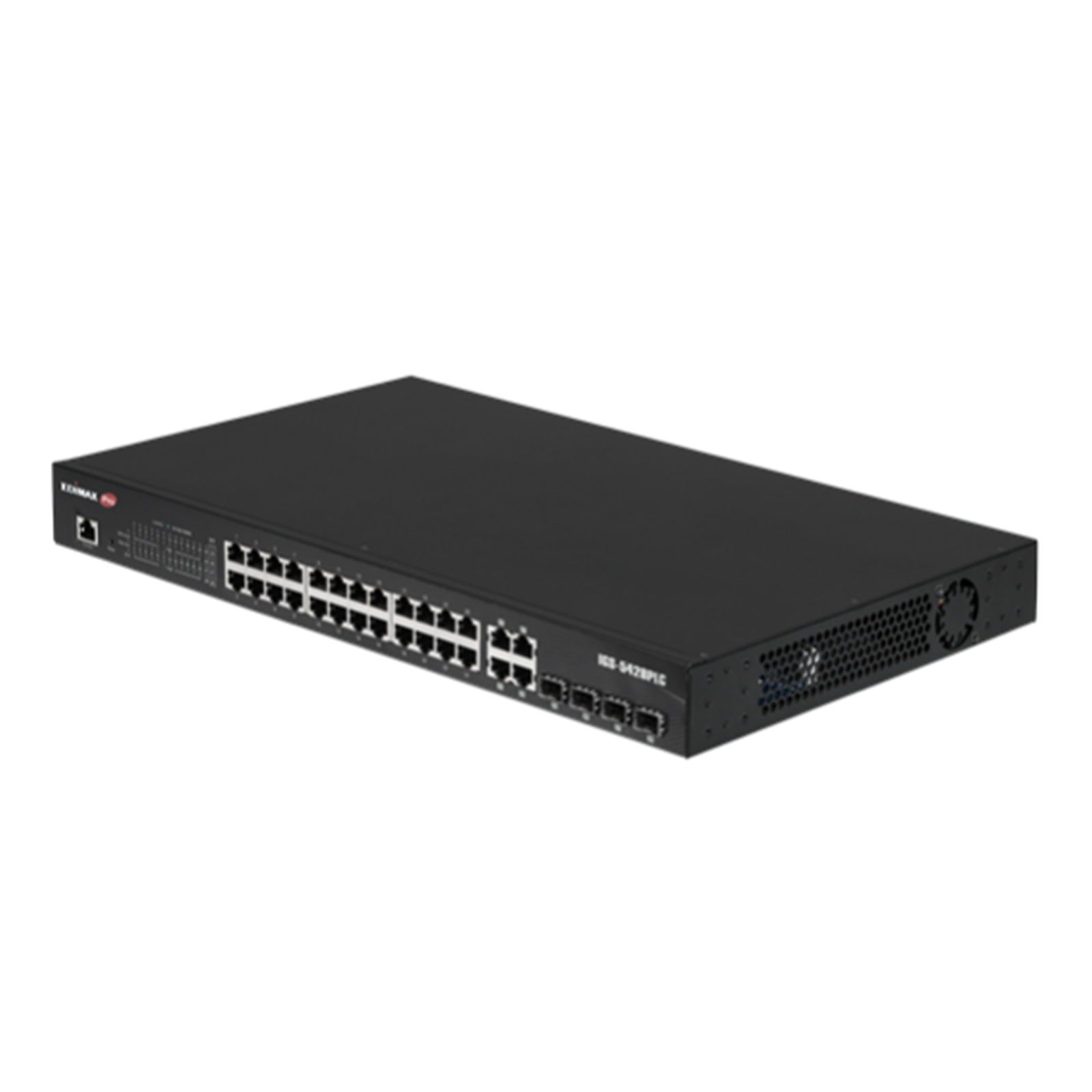

Edimax Industrial Surveillance VLAN 28-Port Gigabit PoE+ Web Smart Switch. 24 Gigabit Ethernetorts,4Gigabit RJ45 and 4 SFP Combo Ports. PoE up to 200m at 10Mps. Supports up to 30W per Port.
- Brand: Edimax
- MPN: IGS-5428PLC
- Part #: UNC001004547
- UPC:
- Brand: Edimax
- MPN: IGS-5428PLC
- Part #: UNC001004547
- UPC:
Features
EDIMAX Industrial Surveillance VLAN 28-Port Gigabit PoE+ Web Smart Switch. 24 Gigabit Ethernet Ports, 4 Gigabit RJ45 and 4 SFP Combo Ports. PoE up to 200m at 10Mps. Supports up to 30W per Port.
Features:
- 24 Gigabit Ethernet PoE+ ports and 4 Gigabit RJ45/SFP combo ports
- Wide operating temperature range of -20°C ~+65°C for industrial or extreme environments
- Dual PoE power budget supplies up to 500W in classic mode and 300W in industrial mode (default)
- One-click to create Surveillance VLAN and auto-discover, auto-enrolled devices all at once
- PoE-powered devices (PD) alive check to enhance the reliability of the network
- Dual-firmware image for robust failover mechanisms
- Guaranteed PoE long distance to 200m
- Power backfeed protection to avoid damaging the PoE ports
- IP Surveillance VLAN and Voice VLAN to enhance video and voice quality
- DHCP snooping to protect the integrity of the legitimate DHCP server and its operations
- IEEE 802.3af/at PoE compliant, up to 30W per port (total power budget: 500W or 300W) for powering PoE-enabled devices
- Supports SNMP v1/v2c/v3, Access Control List (ACL), QoS, 802.1Q VLAN, IPv4/IPv6, Port Trunking, Port Mirroring, IGMP v1/v2/v3 Snooping and etc.
- Supports 56Gbps backplane bandwidth, 41.6Mpps forwarding rate, 8K MAC address table and 9KB jumbo frame
Cost-effective PoE Solution
Offering high-speed network connection with power supply to Powered Devices (PDs) for cost saving of power line deployment, the switch PoE Powered Device (PD) alive check monitors real-time status of connected PDs and enables reboot fail PDs, further enhancing network reliability.
Further Network Connection
The long-range mode provides extended power and data delivery distance to 200 meters (656 ft.) at 10Mbps full-duplex operation on a per-port basis. It's ideal for long-distance applications such as IP cameras, VoIP phones, access points, and PoE-enabled IoT devices at remote locations.
Safeguard Your Devices
Each port is equipped with power backfeed protection in order to avoid damaging the PoE ports while the non-standard PSE (Power Sourcing Equipments) are connected.
Stable and Reliable Network
The switch has two firmwares stored. The additional backup firmware can be activated while the main firmware goes under restoration, reducing system downtime.
