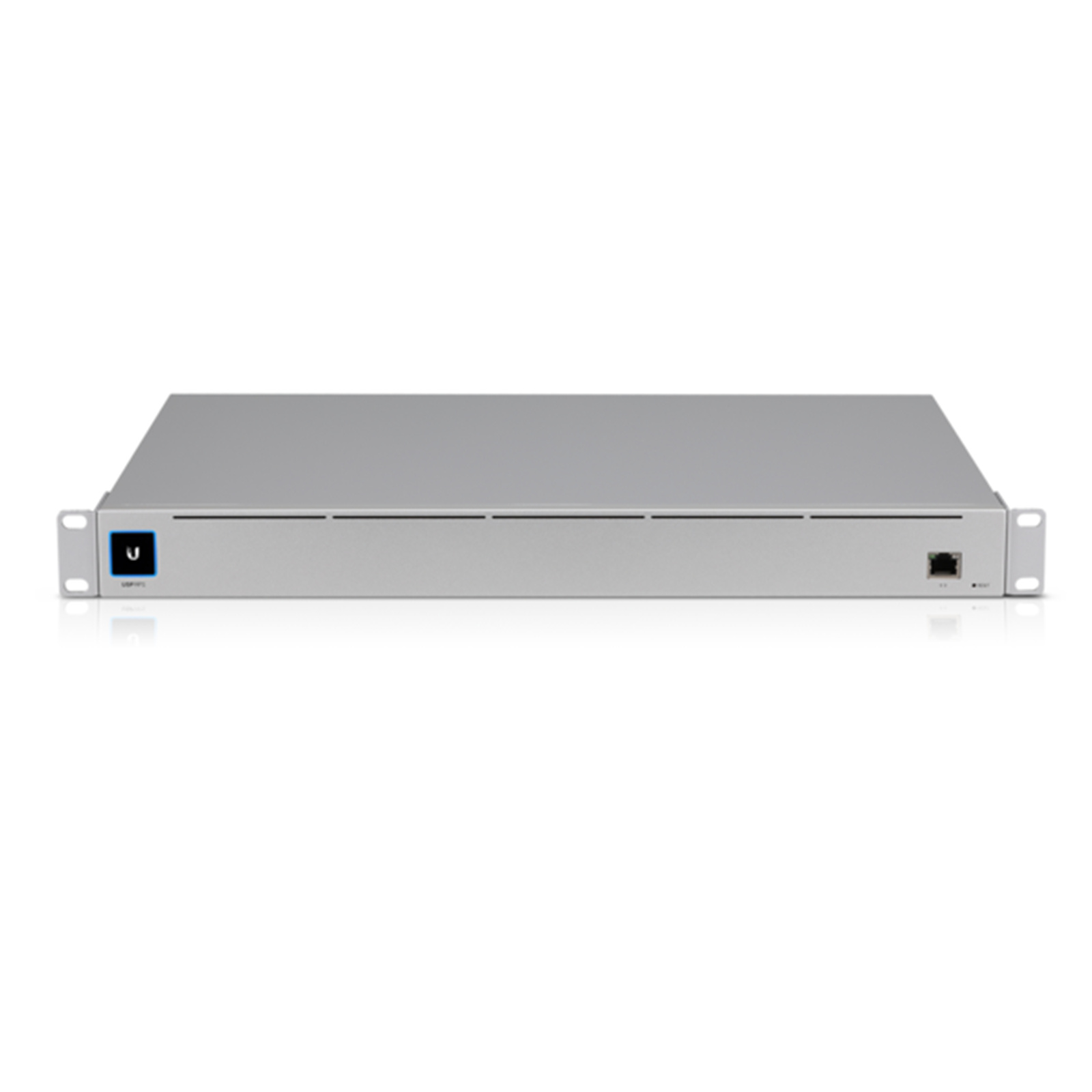

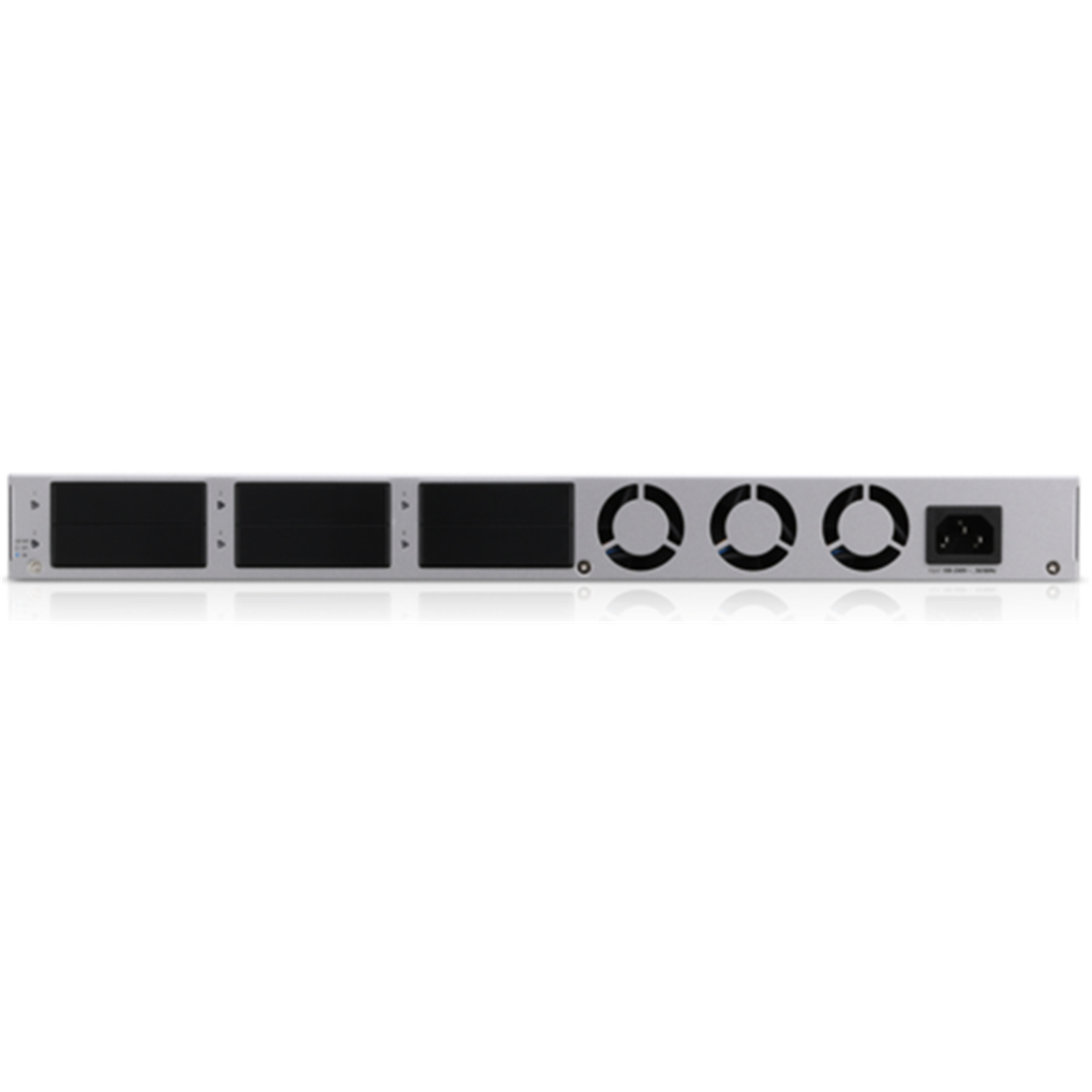

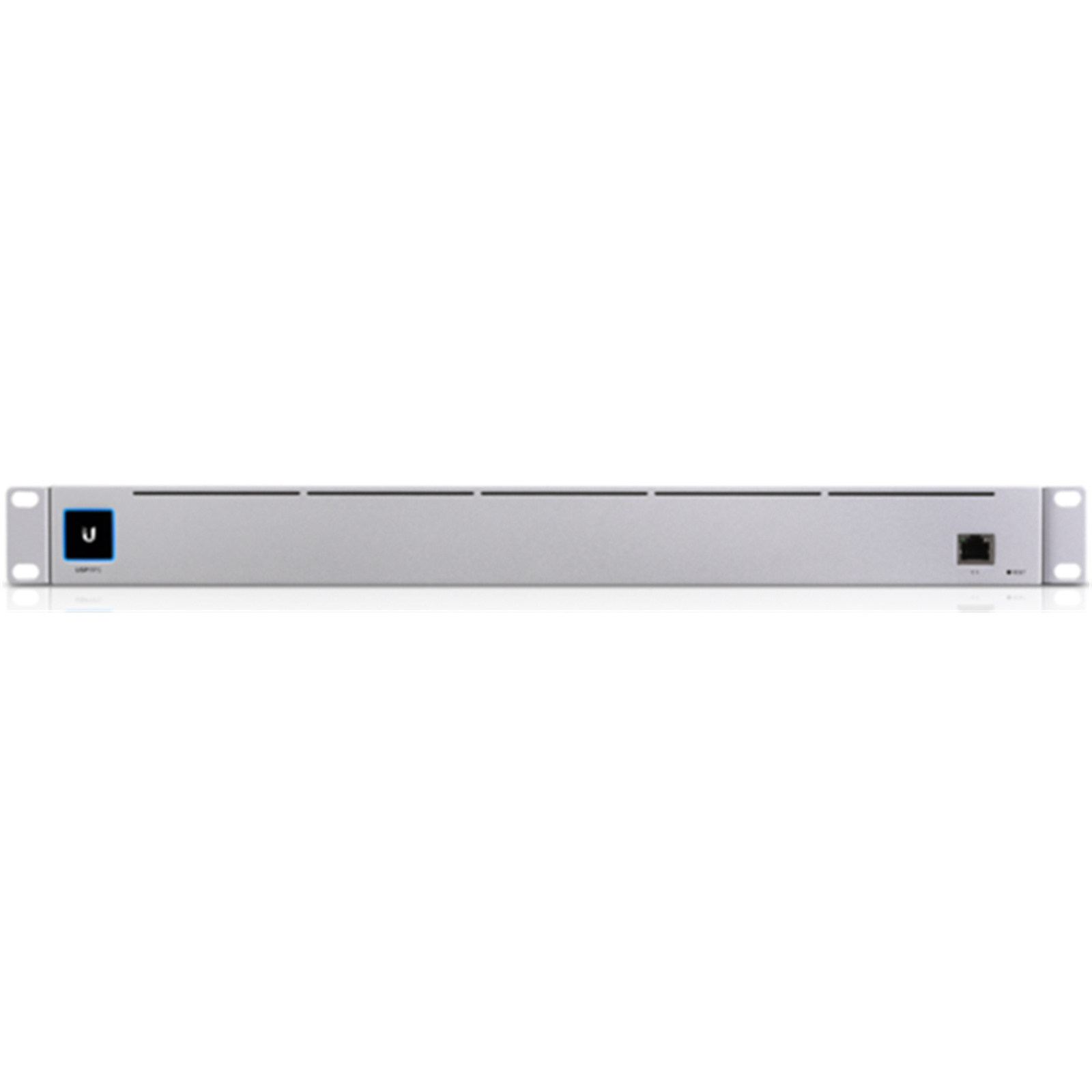

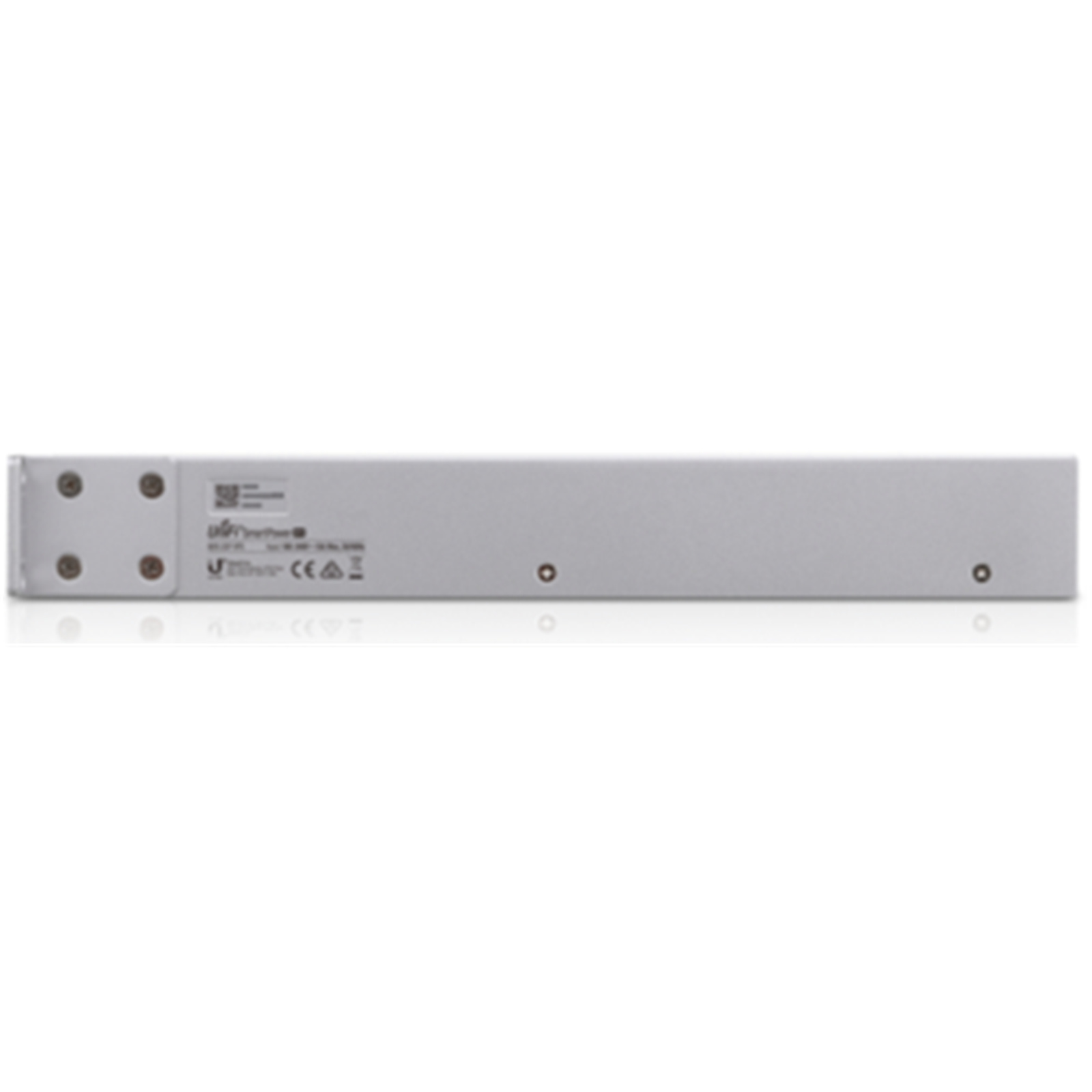

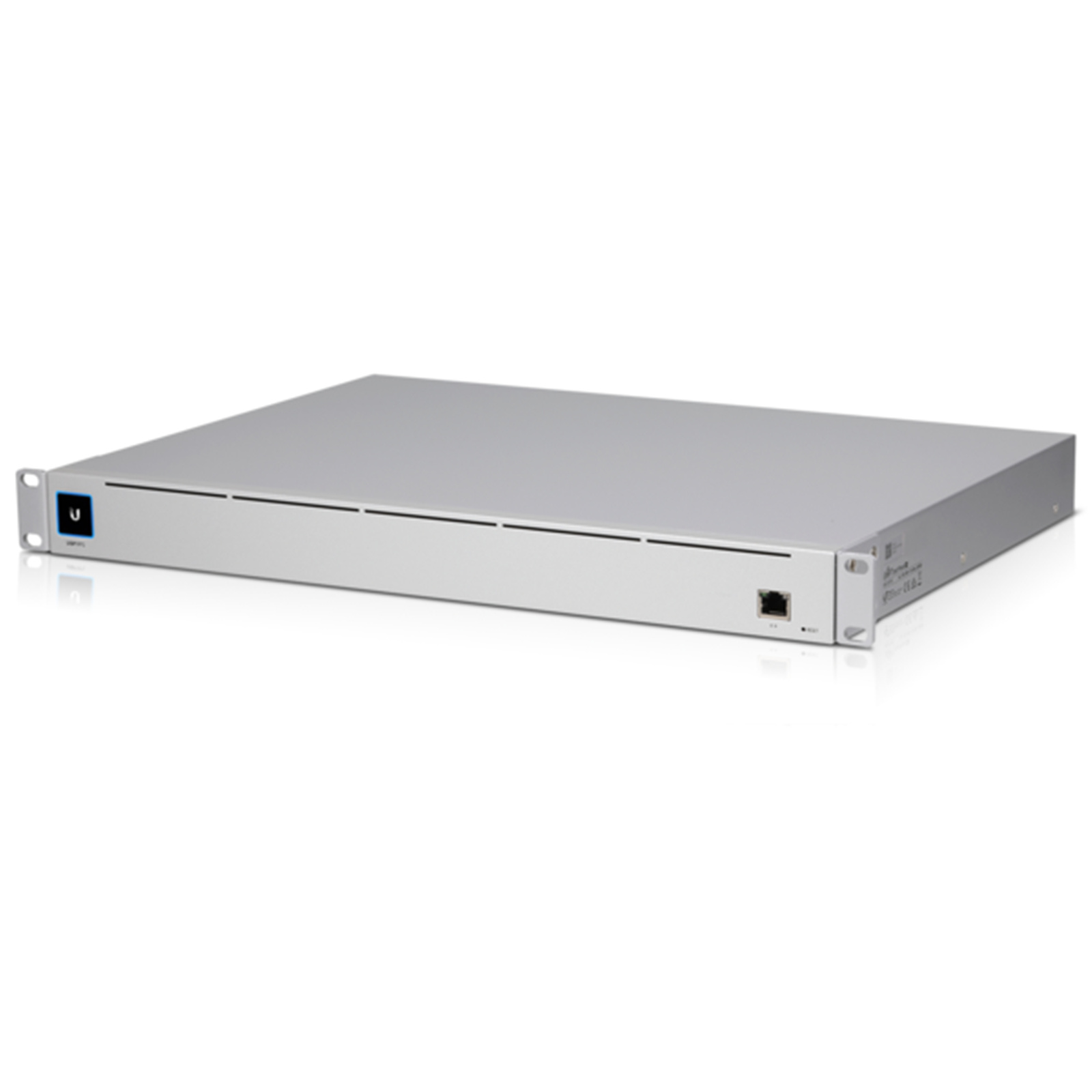

Ubiquiti USP-RPS SmartPower Redundant Power System
- Brand: Ubiquiti
- MPN: USP-RPS
- Part #: UPSUBI1001
- UPC:817882029216

Product URL: https://www.pbtech.com/pacific/product/UPSUBI1001/Ubiquiti-USP-RPS-SmartPower-Redundant-Power-System
Features
The UniFi® SmartPower Redundant Power System, model USP-RPS, is a proprietary redundant power system designed to protect up to six UniFi SmartPower supported devices from sudden power supply module failure. The USP-RPS continually monitors all attached devices. In the event of an internal AC/DC power supply failure, failover is automatic so your network continues to operate with no interruption in service. With a 950W DC power budget, the USP-RPS can protect a variety of high-power devices, including UniFi PoE switches. An integrated 1.3" color touchscreen LCM displays system information for convenient monitoring.
- (6) USP DC output ports
- (1) Ethernet port
- 1U Rackmountable (kit included)
- 1.3" Touchscreen display with status information
- Managed by UniFi Network Controller version: 5.12.11 or later
Specifications
Dimensions
442.40 x 325.60 x 43.70 mm
(17.42 x 12.82 x 1.72")
Weight
5.500 kg (12.13 lb)
With Mount Brackets
5.590 kg (12.32 lb)
Interfaces
Networking
(1) 10/100/1000 Mbps RJ45 Port
Management
Ethernet In-Band
Power Output
(6) RPS DC Ports
Max. Power Consumption
995W
Power Method
(1) Universal AC Input, 100 to 240VAC
Power Supply
Internal 350W AC/DC
Internal 645W AC/DC
Supported Voltage Range
100 - 240VAC
Display
1.3" Color Touch Panel
LED
System
Status
RJ45
Link/Activity
USP RPS
Activity
ESD/EMP Protection
Air: ± 16 kV, Contact: ± 12 kV
Operating Temperature
-5 to 45° C (23 to 113° F)
Operating Humidity
10 to 90% Noncondensing
Certifications
CE, FCC, IC
Total Output Power
52VDC
11.54A (600W)
11.5VDC
30.44A (350W)
Max. Output Power per RPS Port
52VDC
11.54A (600W)
11.5VDC
30.44A (350W)
