Yealink CM20 AI-Powered Dynamic Noise Cancelling Beamforming Ceiling Microphone, 16-Mic Array, 8 Pickup Zones, PoE Powered
- Brand: Yealink
- MPN: 1303095
- Part #: VCYLK1303095

Product URL: https://www.pbtech.com/pacific/product/VCYLK1303095/Yealink-CM20-AI-Powered-Dynamic-Noise-Cancelling-B
Features

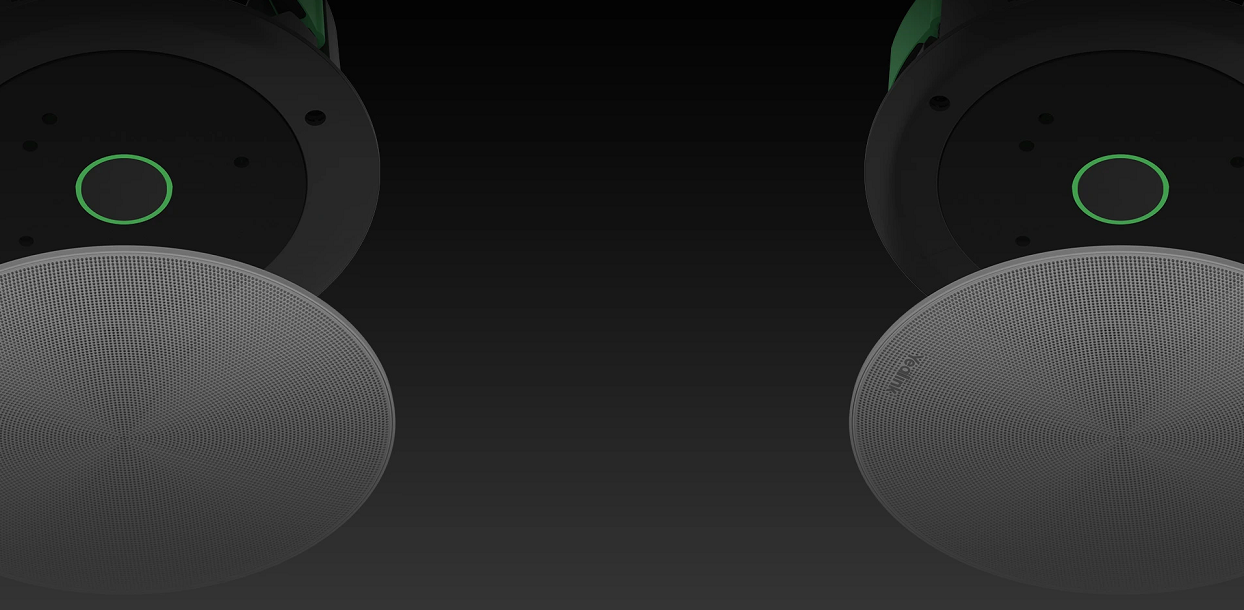

Practical and Aesthetic Integration
Yealink CM20 features an 80mm low-profile design and a detachable magnetic cover with a snap-on attachment. The overall design ensures seamless integration and aesthetic appeal, while facilitating effortless deployment and maintaining the integrity of the ceiling.
High Fidelity of Voice
CM20 is equipped with 16 omnidirectional microphone units, providing unparalleled audio clarity across 8 independent pickup zones. It effectively covers up to a radius of 4m nominal coverage, with a high quality radius of 3m full-duplex audio capture, ideal for medium to large spaces. The EQ tuning of the CM20 is specifically tailored to accentuate the exceptional quality of human vocals.
- 16-mic arrays
- 8 pickup zones
- 30m² premium quality full-duplex audio*
- 60m² effectively pick-up range*
*3.2 meters pick-up radius with STIPA value 0.78; 4.5 meters pick-up radius with STIPA value 0.72; Environment: RT60 = 408ms @ 1khz; Noise Level = 40dBA; 2.8 meter deployment height.

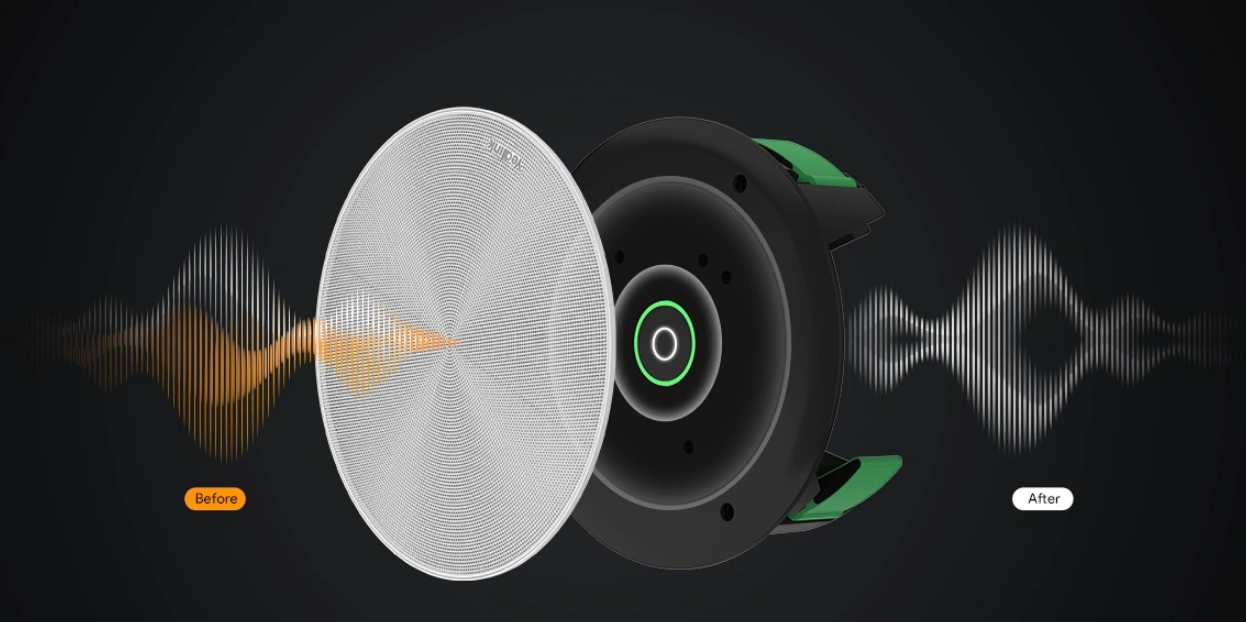

Intelligent Algorithm, Adaptive Optimization
By incorporating AI Dynamic Noise Reduction and AI Reverberation Suppression, the CM20 guarantees pristige audio quality during every meeting. It effortlessly adjusts to the ambient conditions of the room, effectively minimizing noise and echo. With its integrated DSP, the CM20 seamlessly integrates with Yealink MVC systems, eliminating the requirement for an extra DSP device and providing hassle-free plug-and-play functionality.

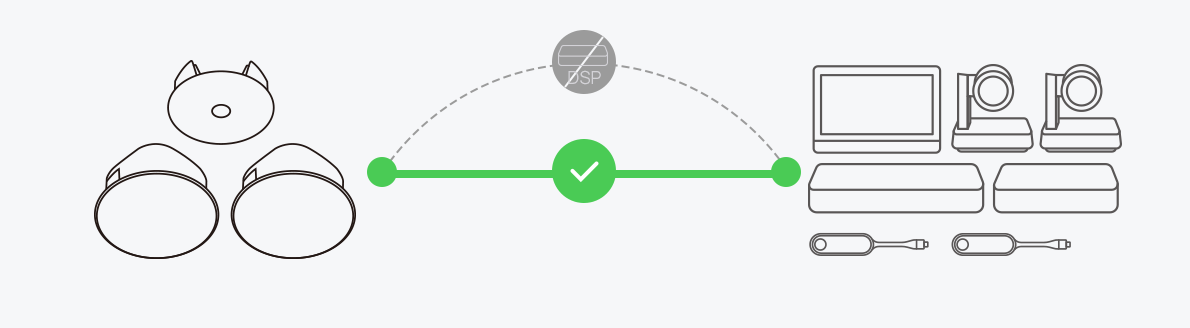

Built-in DSP for Seamless Integration
Featuring and integrated DSP, the CM20 offers a plug-and-play experience with Yealink MVC systems, removing the need for external audio processing.
Versatile Adaptability
Yealink CM20 provides flexible deployment options for divers meeting room styles.

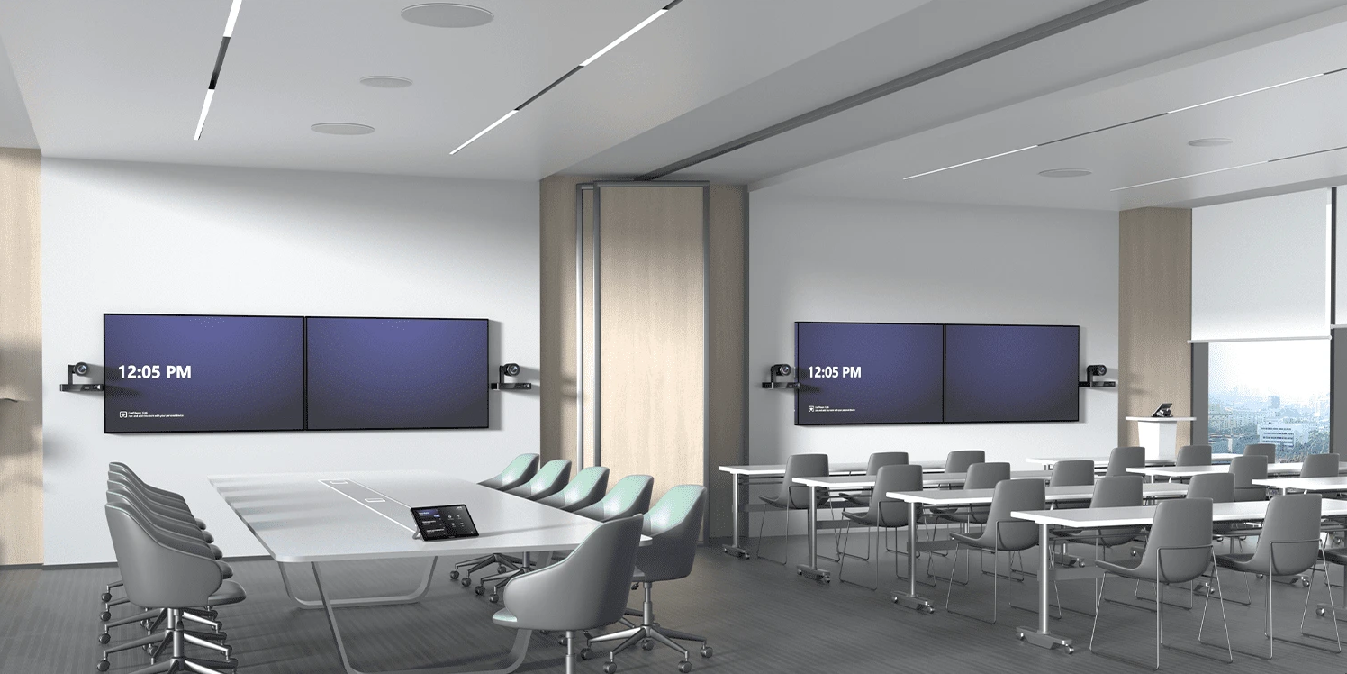

Deploy for Multiple Spaces
Large Room
Divisible Room
Medium Room
Specifications
General
Brand
Yealink
Manufacturer Part Number
1303095
Materials
ABS+PC&iron mesh
Interface
1 × RJ-45
Dimensions
223mm (diameter) × 83mm (H) (with cover mesh)
215mm (diameter) × 81mm (H) (without cover mesh)
Weight
615g
Audio
Frequency Response
120Hz-16kHz
Maximum SPL
122dBSPL
Signal Noise Ratio
86dB @<1% THD
Sensitivity
0 dBV/Pa 94dBSPL @ 1kHZ
Microphone
16 omni-direction microphone
AEC Channel
1 channel internal
Power
Typical Power
5.7 W
Rated Power
9 W
Power Supply
PoE (IEEE 802.3af, class 3)
Envirinmental Conditions
Operating Temperature
0-50°C
Storage Temperature
0-70°C
Operating Humidity
5%~90%
